I-series Standard Range (3kN to 54kN)

Get a Quote

Markets

/ / / / /

Models

Specifications

Click Here

Specifications

Eco

*1 Random force ratings are specified in accordance with ISO5344 conditions. Please contact IMV or your local distributor with specific test requirements.
*2 Power supply: 3-phase 200/220/380/400/415V, 50/60 Hz. A transformer is required for other supply voltages.
*3 In case of 400 V
*4 Maximum velocity 4.6m/s. High velocity restricts maximum Shock force. Please contact IMV or your local distributor with specific test requirements.
*5 Spec described above is in case of 50Hz. Dimension is changed in case of 60Hz.
*6 In case of high velocity option
*7 Export License is required for exporting the shaker system of over 50 kN Sine force.

* The specification shows the maximum system performance. For long-duration tests, de-rating by up to 70% must be applied. Continuous use at maximum levels may cause failure.
* In the case of Random vibration test, please set the test definition of the peak value of acceleration waveform to be operated less than the maximum acceleration of Shock.
* Frequency range values vary according to sensor and vibration controller.
* Armature mass and acceleration may change when chamber is comibined.

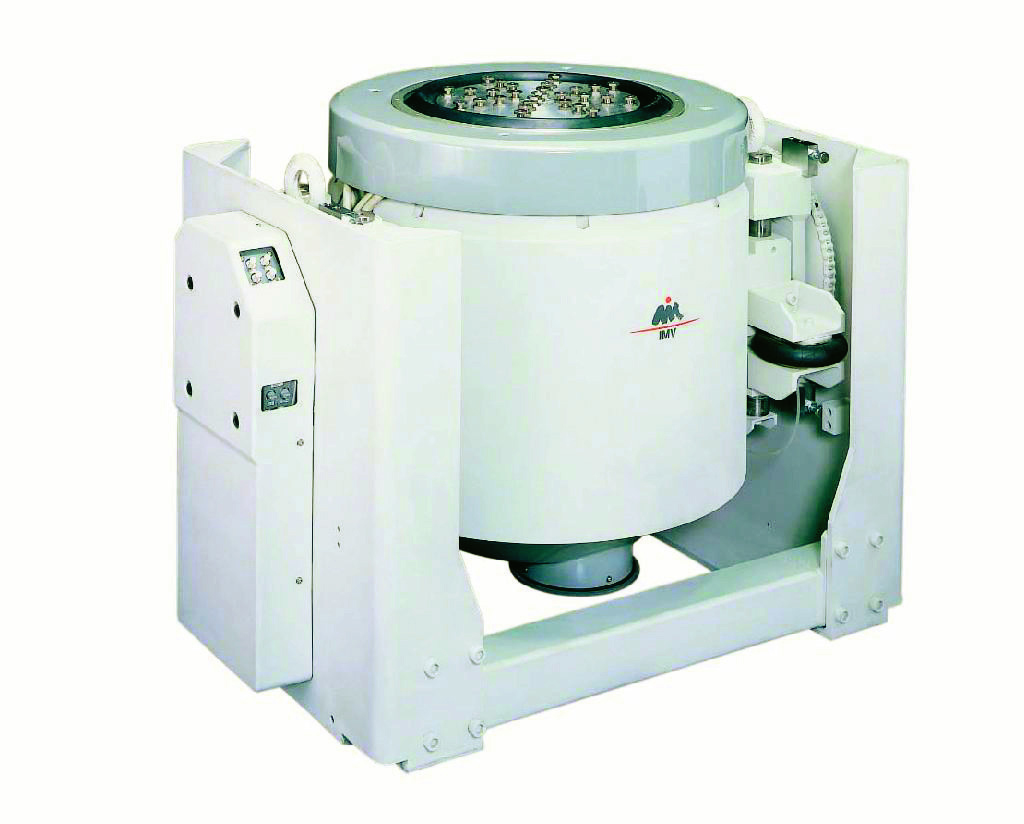

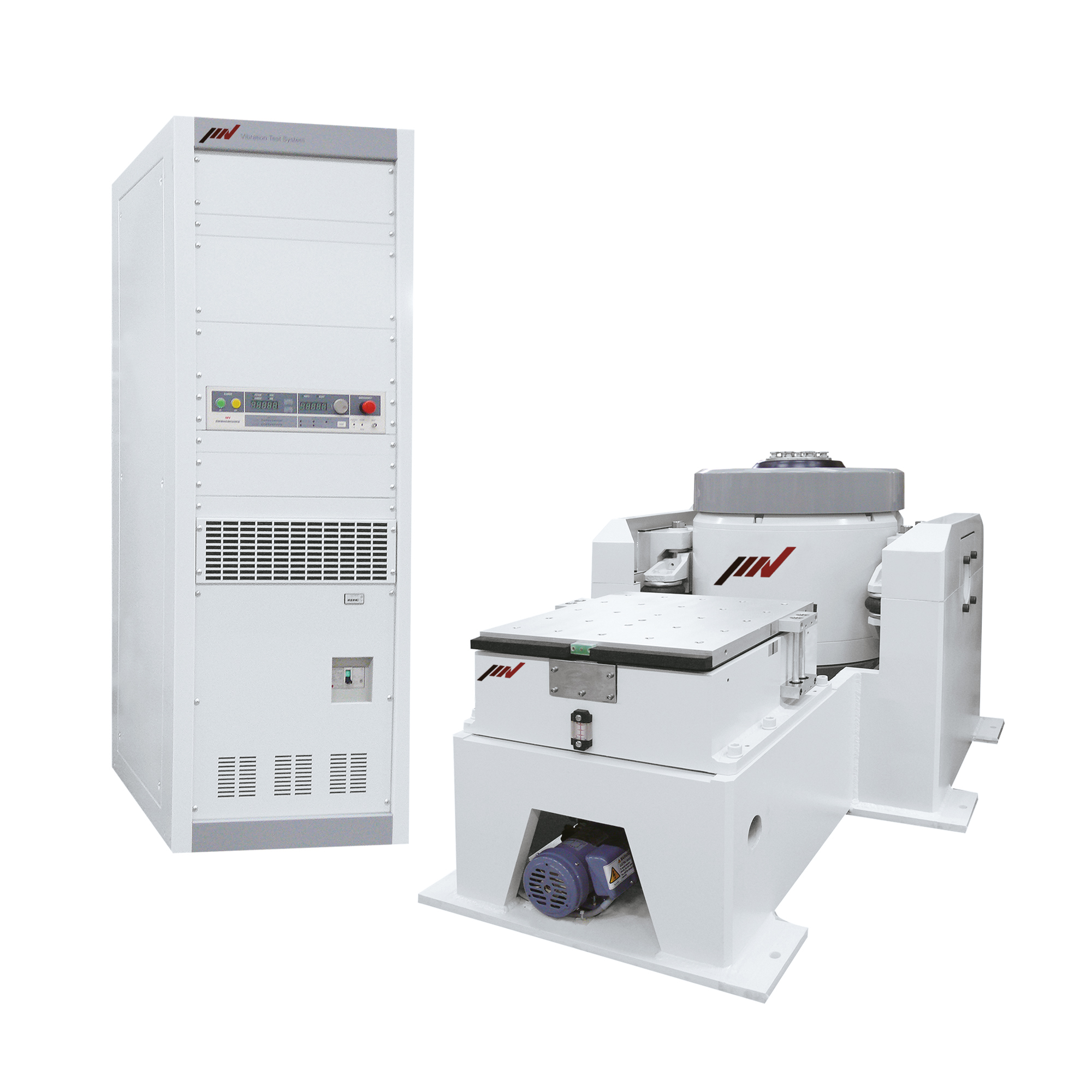

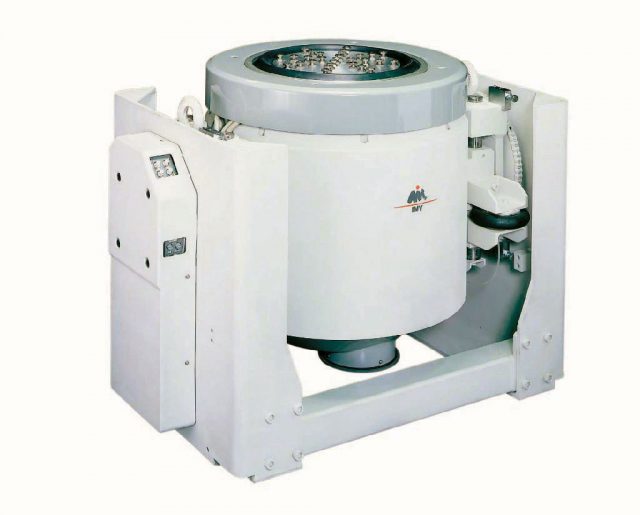

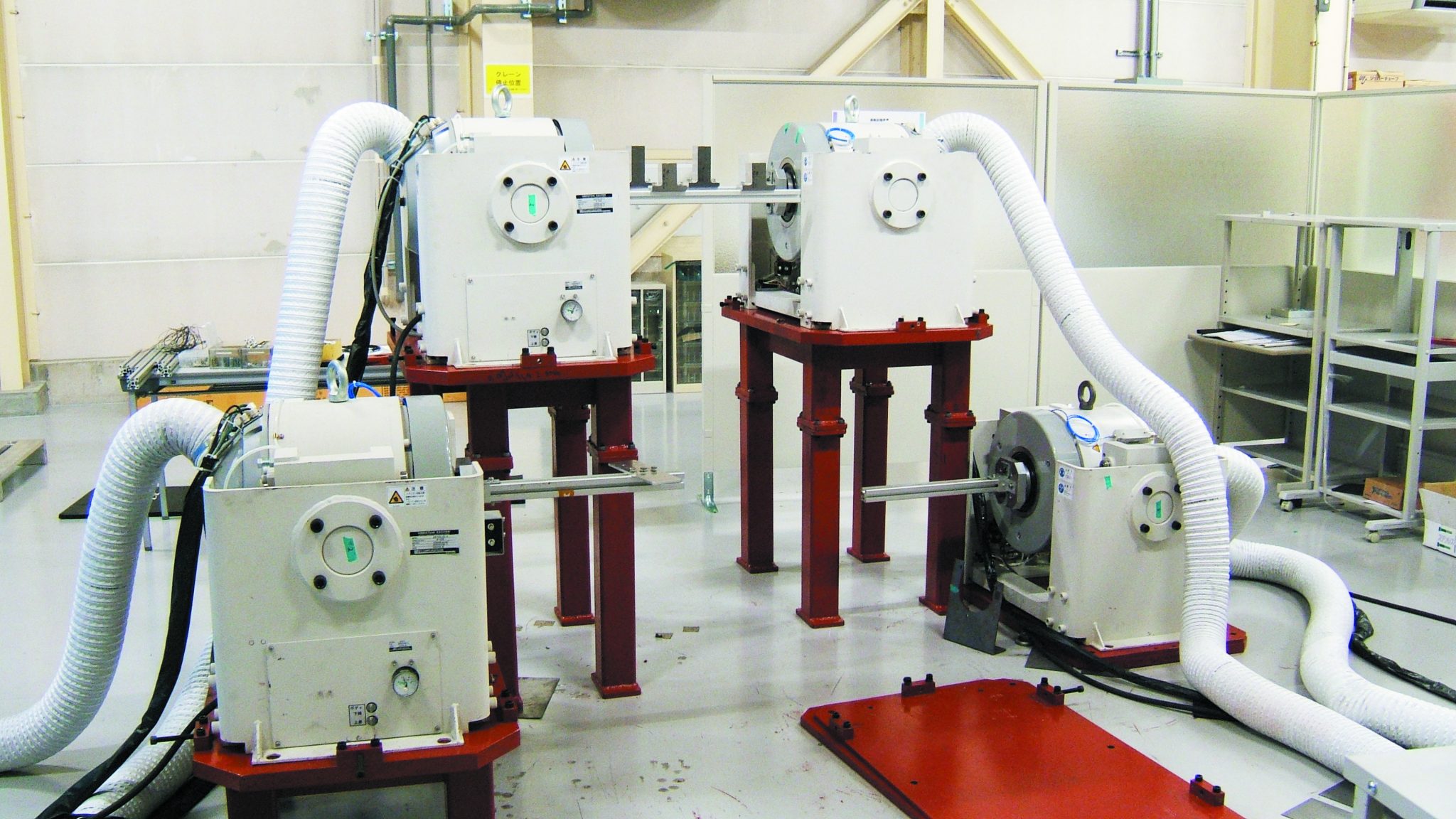

Product Overview

The i-Series Vibration Test System from IMV is a High Grade type test system designed to offer a solution for the diverse and strict range of test specifications and requirements. The i-Series range of shaker systems offers a user-friendly line-up with premium-grade performance and enhanced durability that you would expect from IMV.

The High Grade Vibration Generator features maximum acceleration of 1250 m/s2, a maximum velocity of 2.2m/s, maximum displacement of 51mm and a maximum loading mass of 1,000kg.

A common feature in IMV Vibration Test Systems is low noise output. This is achieved by the optimised design of the air intake, based on fluid dynamics. IMV have achieved 54kN excitation force by optimising the magnetic circuits based on finite element analysis coupled with their unique cooling technologies.

Further innovation is seen in the i-Series shakers with IMV’s Parallel Support Guide System (PSG), which supports the upper armature.

The PSG significantly improves both durability, reliability of the system resulting in a higher quality of vibration and it’s design provides adequate stiffness and rigidity when compared to a roller support system. This is achieved by an alternative alignment of gears that have a unique curve called an involute curve.

Learn More

Control System

Launcher

Rapid creation of a test from a set of pre-defined templates conforming to most international test standards.

Templates

System Monitor

Remote monitoring of the test status over the internet.

The status of the test, and the amplifier or shaker operation can be viewed on a remote PC using a standard internet browser. Problems or errors are easily identified.

Home Screen

Home Screen

Home Screen (Error)

Home Screen (Error)

Eco Screen

Eco Screen

Camera Screen

Camera Screen

Chamber Screen

Chamber Screen

Home Screen

Key Features

  • Expanded test range: maximum values that the i-series can offer
    • Maximum acceleration: 1250m/s2
    • Maximum velocity: 3.5m/s
    • Maximum displacement: 51mmp-p
    • Maximum loading mass: 1,000kg



  • Patented upper (armature) support system PS Guide
    Parallel Slope Guide is standard

  • Low noise
    Optimised design of the air intake based on fluid dynamics has reduced the air-intake noise.

  • All models can be directly coupled to a climatic chamber.

Available Options

ECO-Shaker

ECO-shaker is an electrodynamic vibration test system in which the output of the power amplifier, power input to the vibration generator and cooling blower speed are automatically optimised, according to the payload and test requirements.

Complicated manual settings are no longer needed. Changes in the operating environment or in test level are accommodated without operator intervention.

Features
  • Only vibration test levels need to be set
  • Automatic response to changes in sample under test or test level
  • Continuous monitoring of temperatures used to control blower speed

Intelligent Shaker Manager

ECO Shaker


High performance slip table

Hydrostatic-Bearing Slip Tables from IMV Corporation are of the latest design and use hydro-static bearing blocks which are attached to the underside of the slip plate to enhance the performance of the test system.

Features
  • High moment resistance
  • Low cross-axis acceleration
  • Low distortion
  • No requirement for a separate hydraulic unit
  • Good work efficacy
  • Smaller system installation space

Learn More


I-series Table Insert Pattern

Variable Armature Insert Pattern

The option to freely select the table insert pattern on the shaker armature.

  • Selecting this option, the armature mass will increase.
  • Due to combining with other options; the horizontal slip table, insert pattern may have restrictions


Head Expanders

The purpose of a Head Expander is to allow testing of multiple items simultaneously, or expanding the test area of a shaker for larger test samples.

Head Expanders can increase efficiency, or simply expand your test capabilities on an existing Vibration Test System.

Features
  • Increase Efficiency – Test Multiple Items Simultaneously
  • Expand Test Capabilities

Learn More

TBV Head Expanders
