SLICE IP68

/

Product Overview

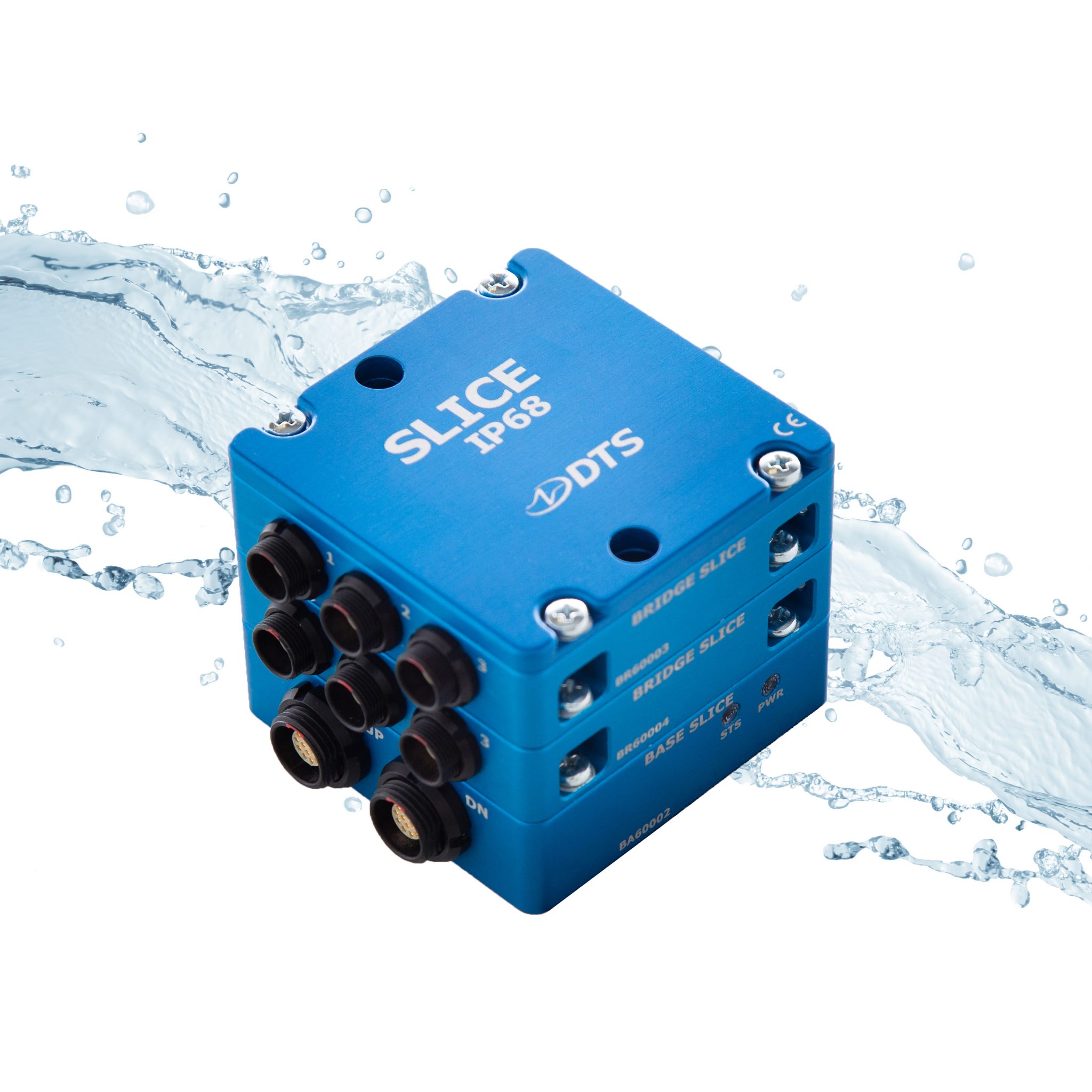

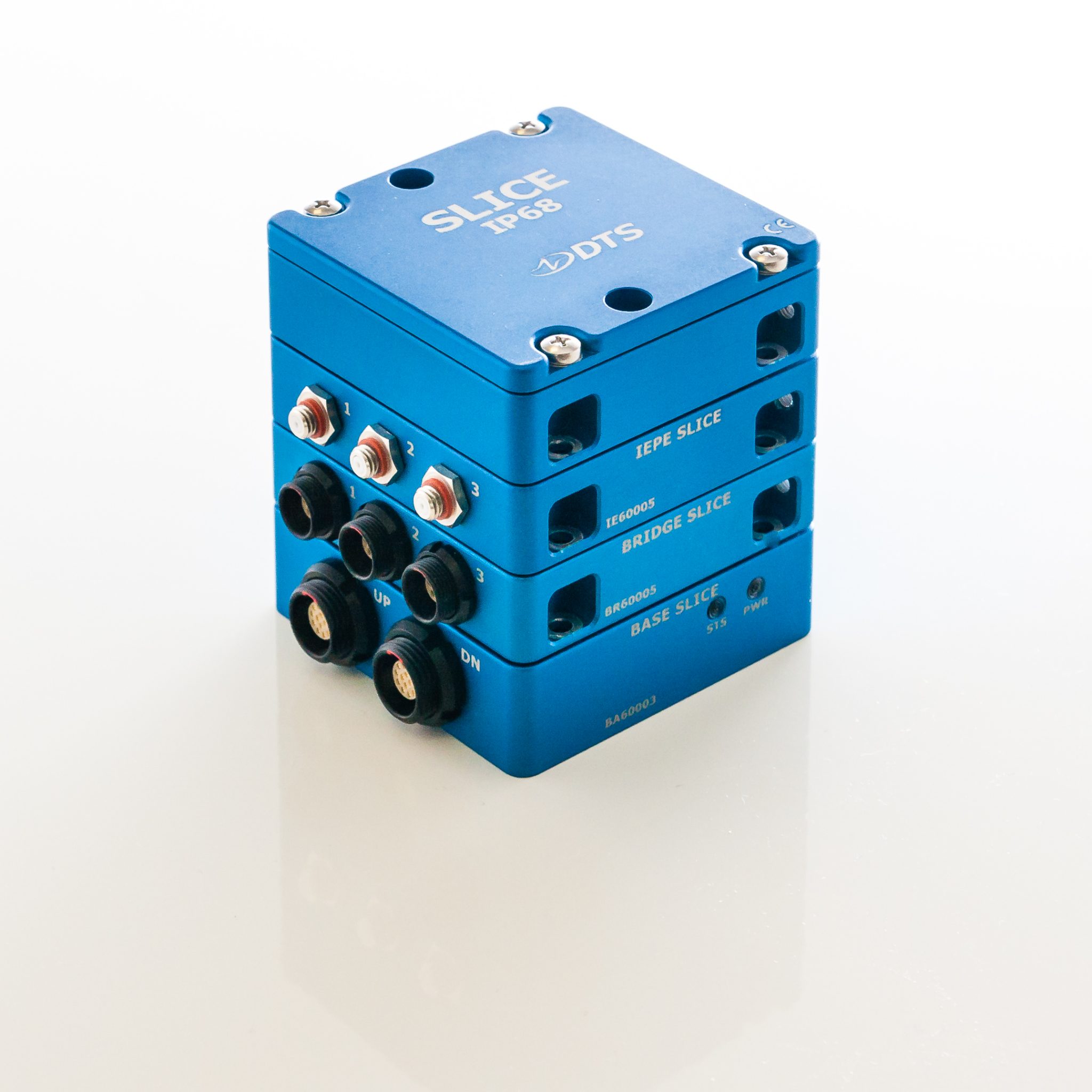

SLICE IP68 is a modular data acquisition system featuring unparalleled flexibility, technology and reliability in an ultra small
form factor. Based on the proven architecture of SLICE MICRO, the SLICE IP68 system is engineered to for even more extreme test environments.

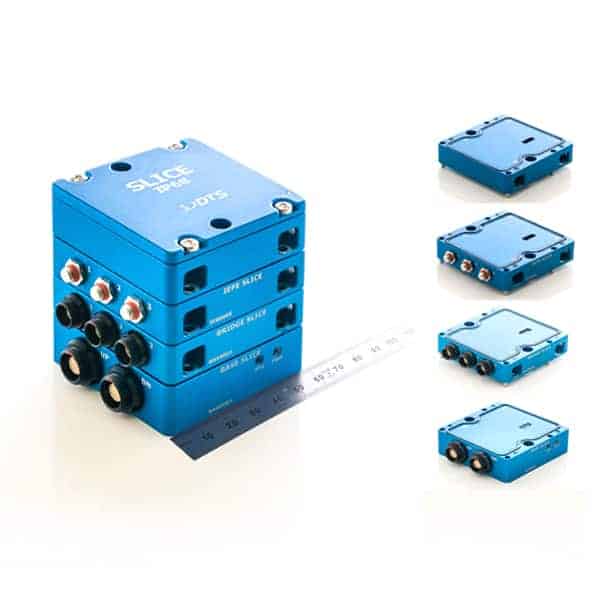

SLICE makes it easy to systems in 3-channel increments by stacking layers with different sensor input configurations.




Key Features

  • Harsh Environment Testing

    • Meets IP68 for dust and water ingress
    • MIL-STD-810G for temp, altitude, shock & vibration

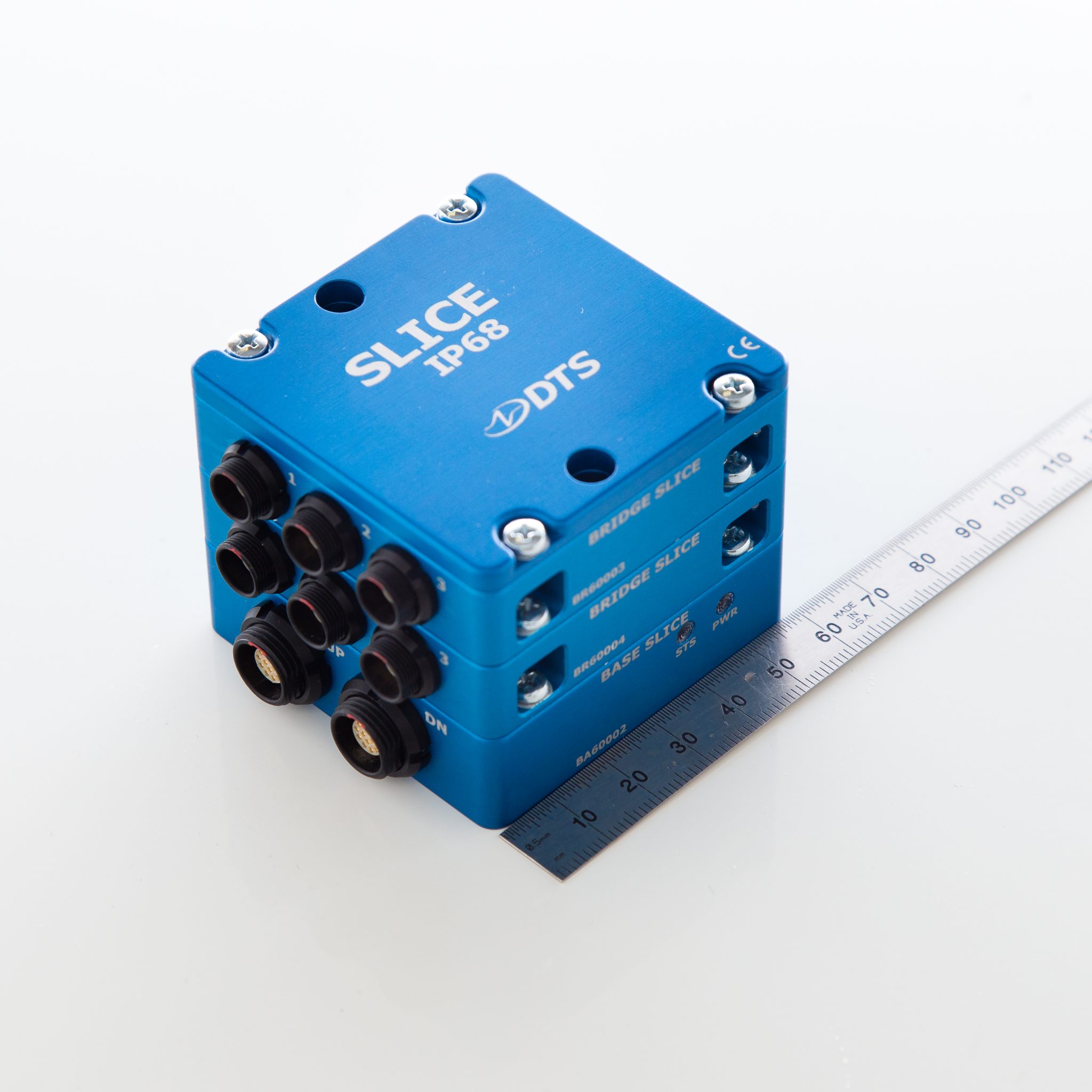

    • Ultra-small, embeds on or in test article

    High Performance

    Expandable

    • 3-channel units, up to 24 channels per stack
    • Daisy-chain stacks for large channel counts
    • Supports a variety of sensors, including: bridge, IEPE, MEMS, strain, load, voltage, temperature

    Software that's fast and easy

    • Amplifiers and filters auto-configure
    • Real-time, logging, viewing and exporting



Available Options

BASE+ SLICE IP68

One (1) base required per stack, includes system microprocessor and 16 GB memory. Next add any combination of sensor input layers (up to 24 channels) per base. Stacks can be daisy-chained for higher channel counts.

BRIDGE SLICE IP68

Three (3) inputs for external sensors including: full and half-bridge sensors, strain gauges, IEPE, voltage input, thermocouples.

IEPE SLICE IP68

Three (3) inputs for external IEPE (piezo-electric) sensors.

ACCEL SLICE IP68

Built-in triaxial accelerometer available in a variety of ranges.

ARS SLICE IP68

Built-in triaxial angular rate sensor available in a variety of ranges.

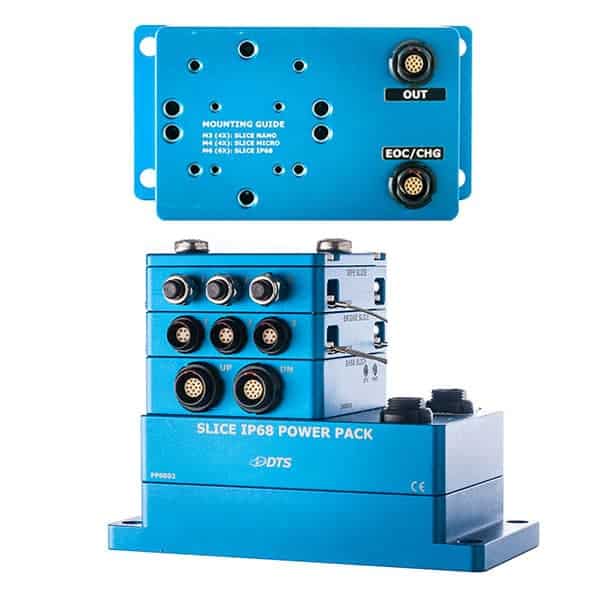

SLICE IP68 Power Pack

Optional primary power source, Li-Po, available in 2200 and 6600 mAH.
