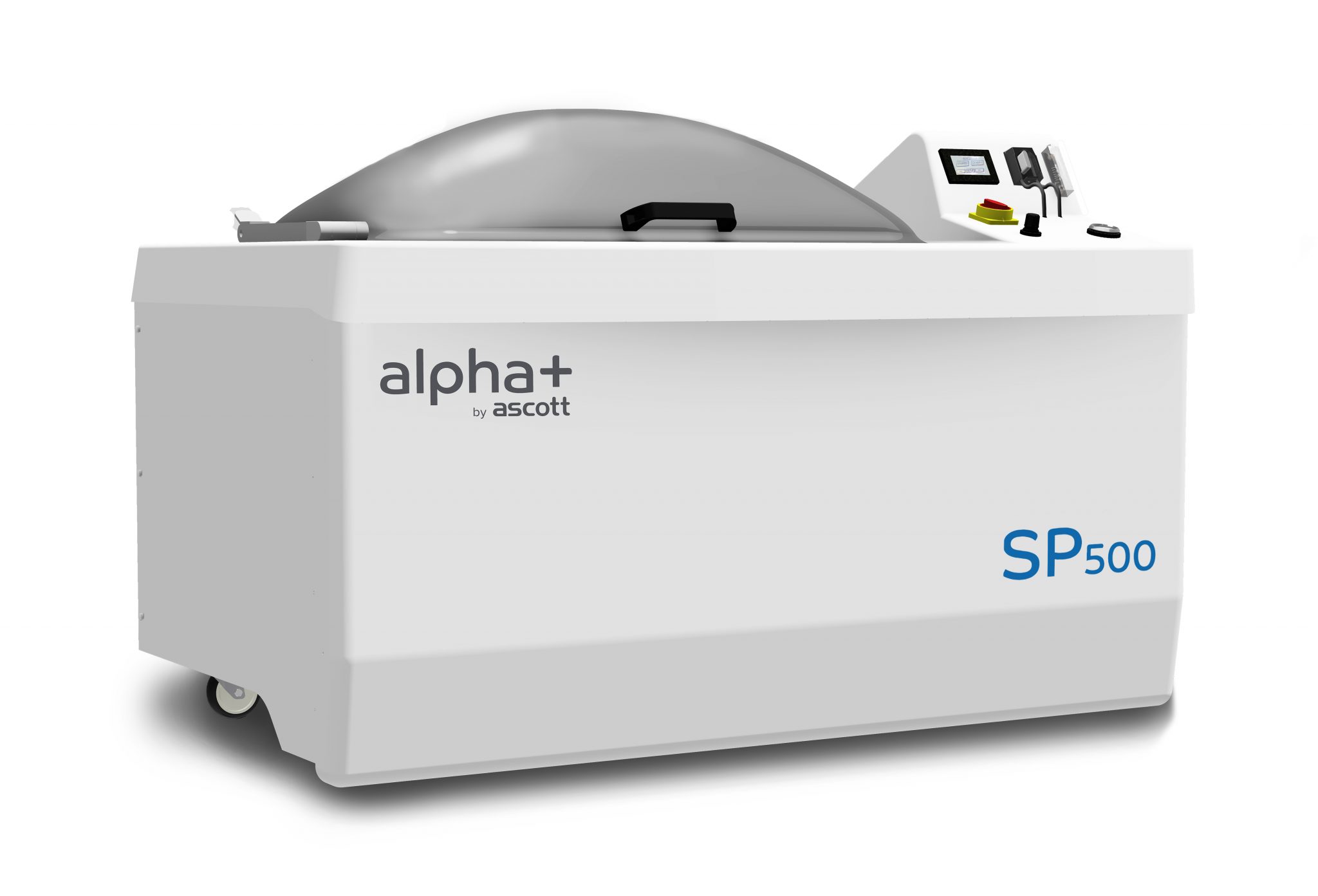

SP Series: SP500 & SP1000

Models: SP500 & SP1000 salt spray cabinets are the ideal choice for long term tests. (short term test defined as tests of those up to 240 hours’ duration. Tests beyond this duration are defined as long-term tests)

The Alpha+ range by Ascott is designed for ease of use, simple operation and reliability. Easy to install with minimal number of external service connections. Simple to operate due to intuitive touch screen interface. Reliable and uncomplicated design backed by 25 years manufacturing experience.

Design features:

  • Manufactured from a robust glass reinforced plastic (GRP) construction, combined with other non corroding materials, to guarantee a trouble free long life.
  • Visually striking, transparent domed roof providing unimpeded 360 degree viewing of the cabinet interior.
  • Latching roof stay for ease of loading.
  • Self-regenerating water trap seal, preventing salt fog escaping during operation.
  • Ergonomically positioned menu driven touch screen programmer for comfortable and intuitive control.
  • Timed stop facility and hours run counter.
  • Maximised cross-sectional load area, enabling many samples to be tested at any one time, without compromising ergonomics.
  • Supplied with complimentary corrosion proof sample holders.
  • Platform available as an optional accessory for large/heavy objects to be located in the base of the cabinet.

International Standards Compliance:

The Alpha+ range complies with the most popular international standards for corrosion testing, including:

  • Salt spray standards
  • ASTM B117
  • ISO 9227
  • DIN 50 021
  • JIS Z 2371
  • Humidity standards
  • DIN 50 017-KK
  • DIN 50 017-KFW
  • DIN 50 017-KTW
  • ISO 6270-2
  • VDA 621-421
  • ASTM D2247
  • BS 3900 Part F2
  • All cabinets are CE marked as your assurance of their quality and compliance with European directives.



Learn More

Key Features

Key Features:

  • Designed specifically for long-terms tests (over 240 hours’ duration).
  • Cabinet heated by externally mounted heater mats, protecting them against damage from the corrosive climate inside the cabinet, also ensuring uniform heat distribution inside the cabinet.
  • Heated bubble tower humidifies the compressed air en-route to the salt fog atomiser, in full compliance with International test standards.
  • Bubble tower can be topped up with water automatically, or by hand via the manual filler port.
  • Supplied with a 90L external salt water solution tank, easier to fill and clean than an integral tank.
  • Additional and larger capacity tanks available for a reduced change-over time on long-term testing.
  • The all plastic atomiser has an integral filter in addition to a filter on the reservoir feed pipe to prevent salt crystal build-up blocking the outlet nozzle and disrupting the test.
  • Cabinets can be operated with a wet or dry base.
  • Insulated non-transparent roof blanket, offering greater thermal efficiency available as an option.

Additional features:

  • SP models are equipped with an advanced control system featuring a peristaltic pump based salt water delivery system, coupled with a user adjustable precision speed controller.
  • Ensures consistent fall-out of salt spray / fog on to the test samples, over longer term duration tests (240+ hours of continuous salt spray testing) especially if such testing is unattended.



Available Options

Product Details S1000 & SP1000
Workspace capacity Ltrs (cu ft) 1000 (35.3)
Workspace internal dimensions width / ‘a’ mm (inches) 1553 (61.1)
depth / ‘b’ mm (inches) 863 (33.0)
cabinet height / ‘c’ mm (inches) 620 (24.4)
roof height / ‘d’ mm (inches) 350 (13.8)
total height / ‘e’ mm (inches) 970 (38.2)
Cabinet external dimensions width / ‘f’ mm (inches) 2127 (83.7)
depth / ‘g’ mm (inches) 1127 (44.4)
height / ‘h’ mm (inches) 1159 (45.6)
Cabinet Weight Kg (lbs) 190 (419)
Cabinet Load Capacity Kg (lbs) 150 (330)
Cabinet colour White



Optional Accessories:

500 L 1000 L
Option Reference
Internal base loading platform ACC15/8 ACC15/9 Horizontal removable loading platform, covering the internal base of cabinet, to enable large/heavy test samples to be accommodated directly on the internal base of the cabinet.
Extra sample holders ACC16/7 ACC16/8 Additional sample holders
Installation kit ACC22 A bottle trap to connect between the drain outlet of cabinet and local drain facility, to prevent any smells from entering the cabinet via the drain. Also 3m of drain/exhaust tubing with a selection of couplers, and 3m compressed air hose with hose clips
Fall-out measuring kit ACC35 ACC35 Two 80cm2 funnels and two 0-100ml measuring cylinders, for monitoring salt spray fall-out rate.
Hand-held salinity refractometer ACC100 ACC100 A salinity refractometer to give a direct reading of percentage sodium chloride in water, in the range 0 to 28%, from a single drop of salt solution. Can be used to simply and accurately check the concentration of the salt solution to be sprayed.
Insulated roof blanket ACC45/1 ACC45/2 An insulated non-transparent blanket for the transparent roof. Improves thermal efficiency to increase cabinet maximum operating temperature and salt spray fall-out range
Additional salt solution reservoir ACC55 ACC55 An additional 90Ltrs (23 US Gal) reservoir to the one supplied as standard.
Advanced salt solution reservoir ACC02/* see note ACC02/* see note Translucent salt solution tank with a graduated scale for viewing the contents, supplied with a hinged lid for filling & cleaning, mounted on castors.

* ACC02/1  80 Ltr / 21 US gal capacity model

* ACC02/2  115 Ltr / 30 US gal capacity model

* ACC02/3  160 Ltr / 42 US gal capacity model

Air compressor ACC04/1 ACC04/1 Provides continuous supply of oil free compressed air to enable functioning without connection to a local compressed air supply
Deioniser ACC06 ACC06 Provides high purity water for topping up the cabinet air saturator, humidity system and for making up salt solution.

* ACC06/1  small model

* ACC06/2  medium model

* ACC06/3  large model

Waste water trough ACC20 ACC20 Where a local floor level drain is unavailable the ACC20 provides a tank into which the cabinet drain outlet is terminated. When full, waste water is automatically pumped to a remote drain located up to 10m/32ft horizontally & 3m/10ft vertically.
Exhaust salt scrubber ACC92 ACC92 Removes the majority of highly corrosive salt fog from the cabinet exhaust where it is not possible to vent this outside the building. ACC92/1 – non-recirculating – total loss of water used to condense the salt fog.

ACC92/3 – recirculating- reuses some of the water used to condense the salt fog.

Air agitation of salt solution ACC96 ACC96 Uses compressed air bubbles to aid dissolving salt within the salt solution reservoir to create a thoroughly mixed salt solution (only for use with ACC02 advanced salt solution reservoir).
