Salt Spray

Salt Spray Capabilities

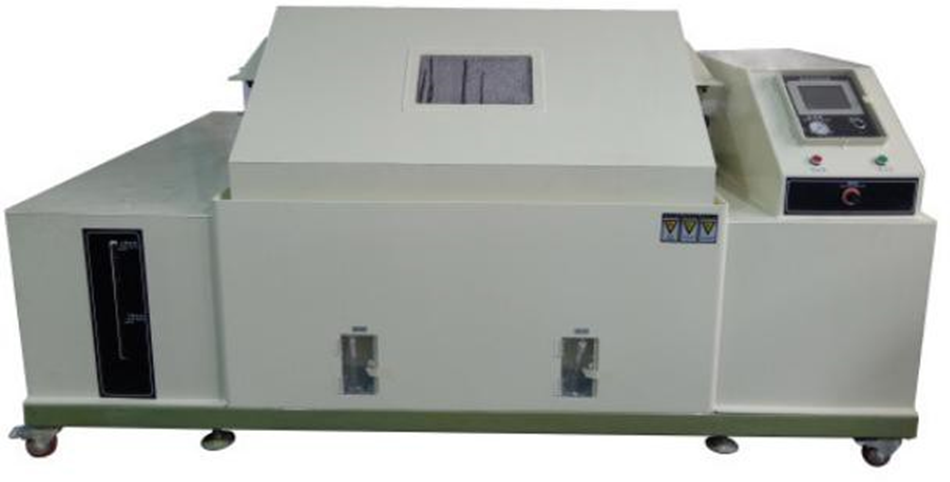

Salt Spray Chamber Specifications

  • Internal Size (W*D*H): 900*600*500mm, 270 liter
  • External Size (W*D*H): 1900*1250*1400mm
  • Temperature range: Room temperature: 25℃~80℃± 2℃
    (No humidity below 25℃)
  • Humidity range: Humidity: 30% - 98%RH±3RH
  • Spraying method: Continuous and Periodic spray type
  • Brine Temperature: 35℃±1℃
  • Spray Quantity: 1.0~2.0 ml / 80cm2 / hr
  • PH value: Salt Spray Method (NSS ACSS6.5~7.2)
    Corrosion-resistant Testing Method (CASS)3.0~3.2
  • Lab Volume: 270L
  • Brine Tank Capacity: 25L
  • Multiple Safety Protection Devices: Current discharge protection, over pressure protection, over
    temperature protection, over load fuse protection
  • Air source: Air pump (provided by buyer)
