Spider 101 Temperature and Humidity Controller

Get a Quote


/ / / /

Product Overview

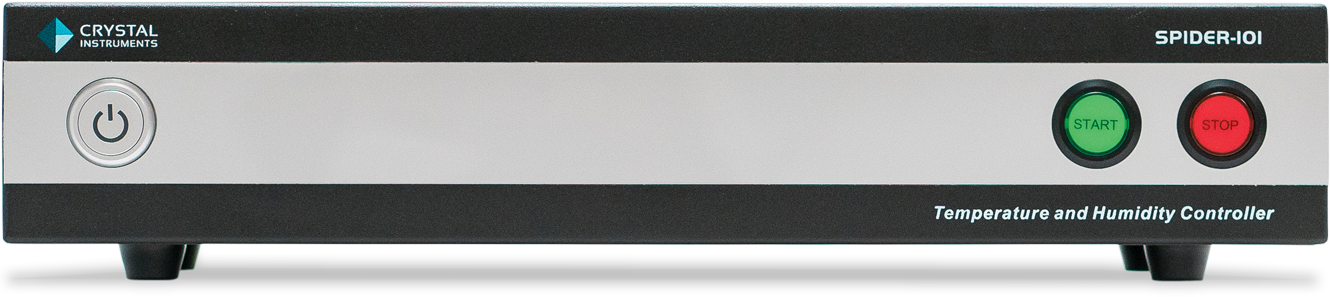

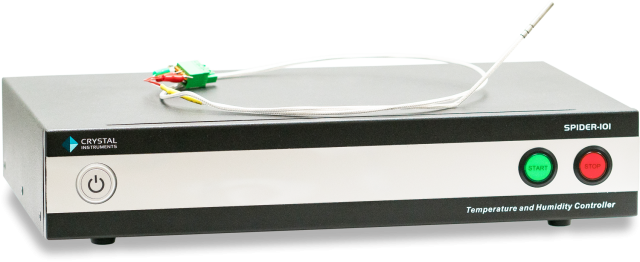

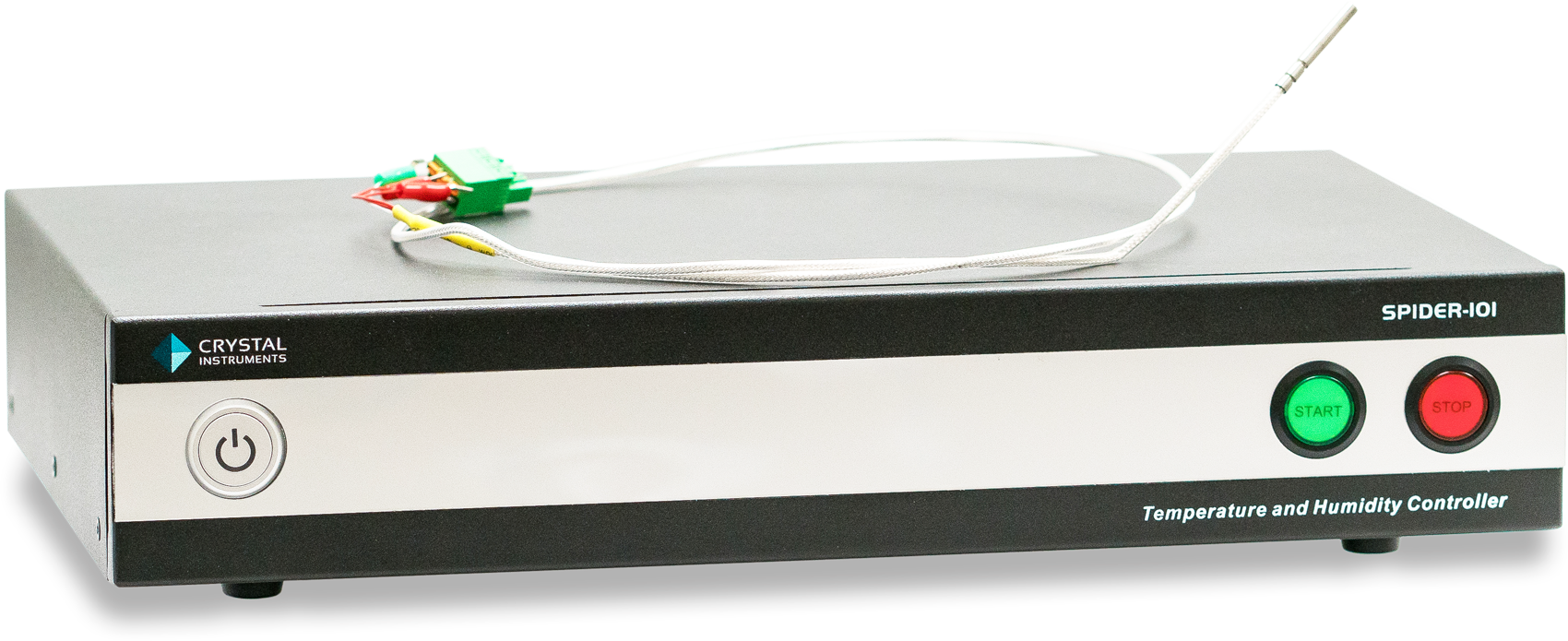

Designed and produced by Crystal Instruments, the Spider-101 controller is a key element of the THV chamber system from Sentek Dynamics. THV stands for Temperature, Humidity and Vibration. Temperature, humidity and vibration are controlled with high accuracy and at synchronized levels to simulate the actual physical environment. The EDM software provides an integrated user interface to access and control all parameter setup, schedule, and test operation.

This is the world’s first controller (hardware) that is supported by two sets of software: EDM to control the combined THV environment and EDC (Embedded Device Controller) to control only the temperature and humidity.

EDM (a PC-based software developed by Crystal Instruments) is used when vibration control is required to be combined with temperature and humidity control. Parameter and schedule setup between all combined physical quantities are fully integrated in one user interface. Vibration tests such as Random, Sine, Shock, SoR, RoR, and other types can be executed together with various cycle settings of temperature and humidity.

The Spider-101 can also operate in an independent climatic chamber for temperature and/or humidity without participating in vibration testing. The EDC software developed by the Crystal Instruments is a touch screen application software that runs on any Windows 10 platform.

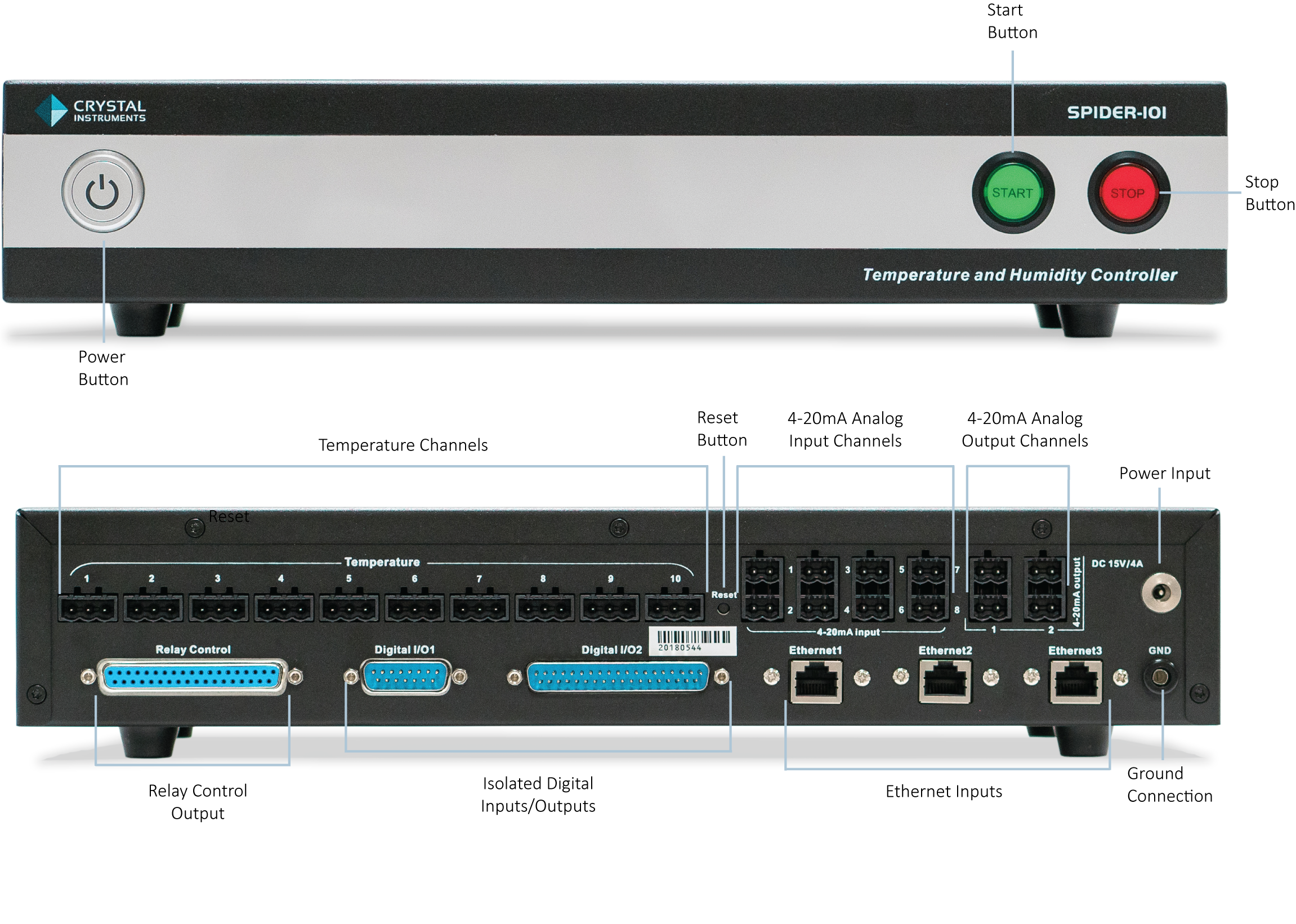

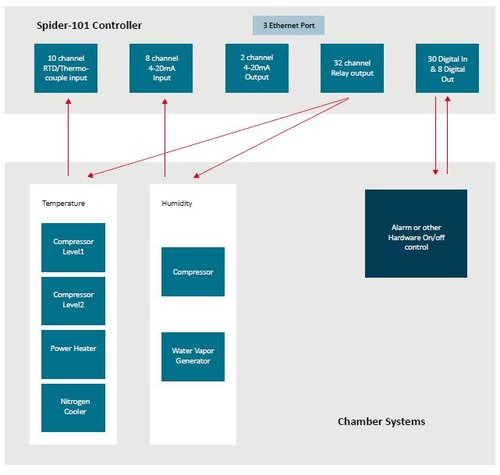

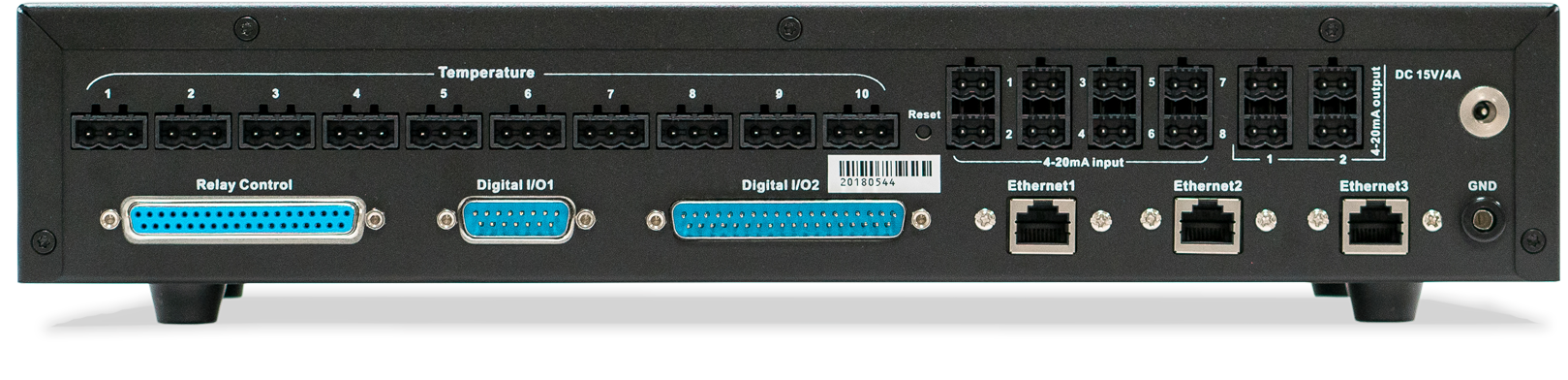

The Spider-101 provides ten input channels using either RTD or K-type thermocouple for temperature measurement, eight 4-20mA input channels for humidity sensors. There are 32 configurable relay control outputs to control compressors and other mechanical systems, as well as digital I/O channels for alarm/status monitoring.

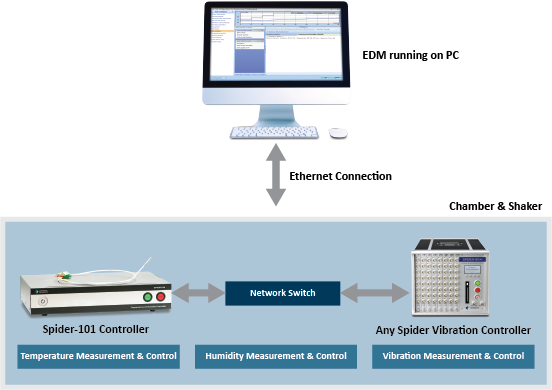

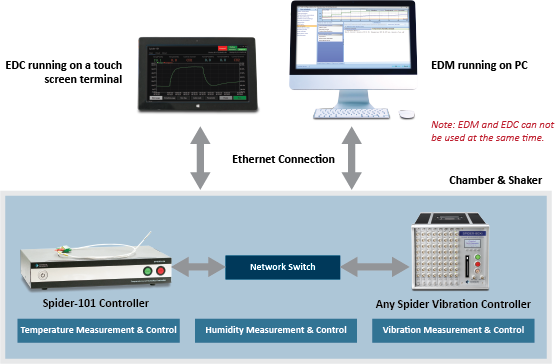

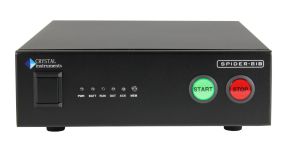

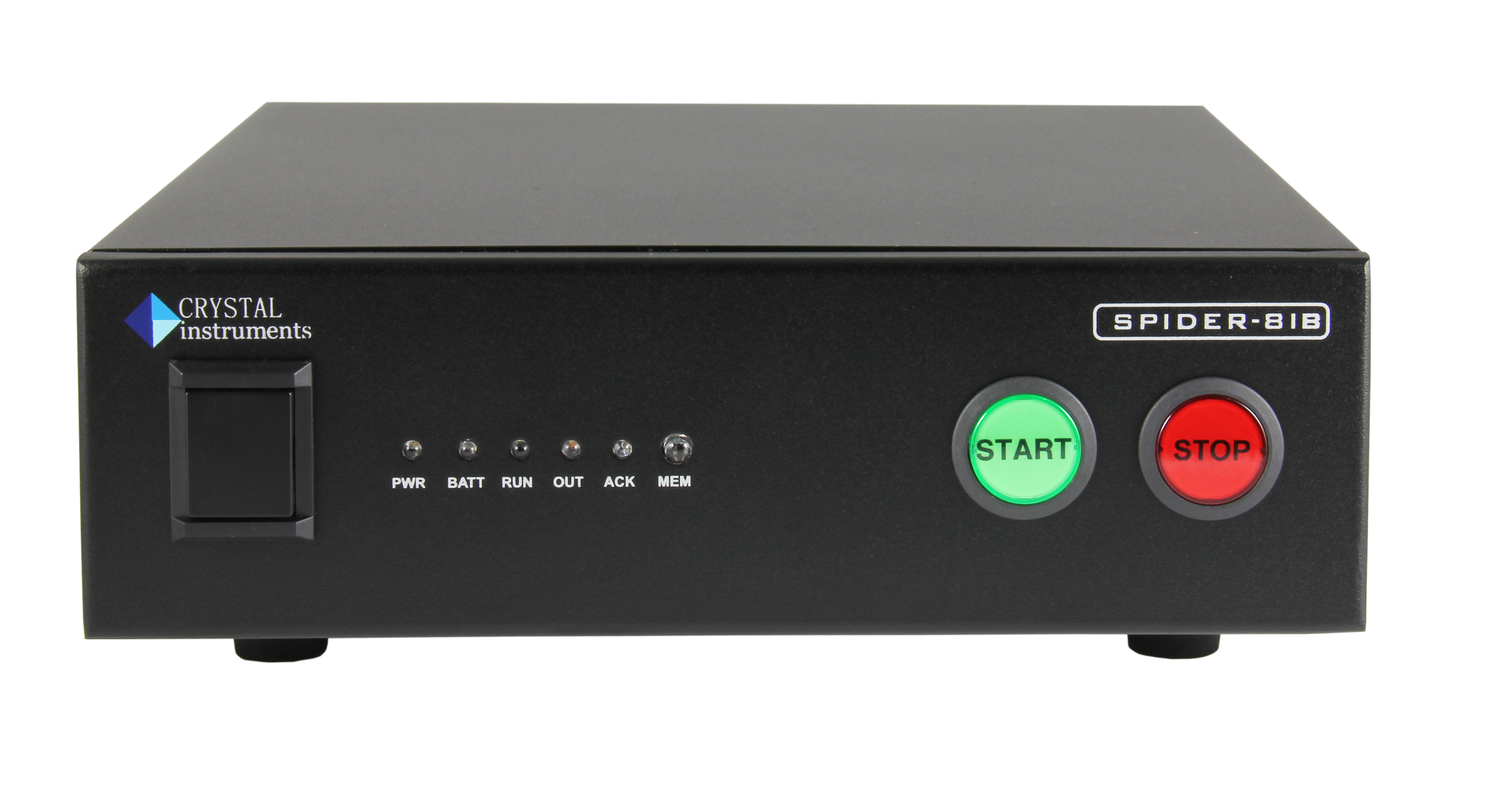

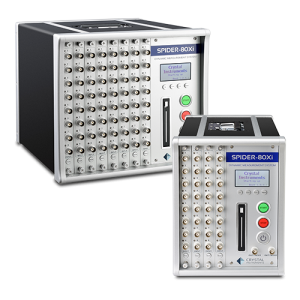

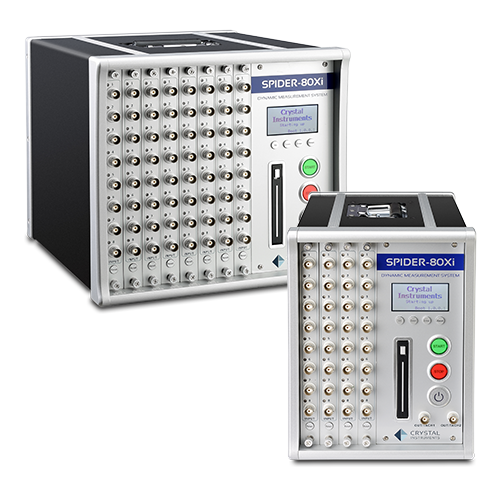

The Spider-101 controller can connect to the control PC or tablet via Ethernet ports or wirelessly for test setup and/or test monitoring. When a THV test type is required, the Spider-101 can combine with any vibration controller (Spider-81/81B, Spider-80Xi, etc.) from Crystal Instruments through a network switch for synchronized, accurate THV testing.

Learn More

Control System

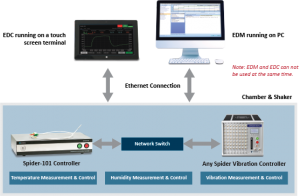

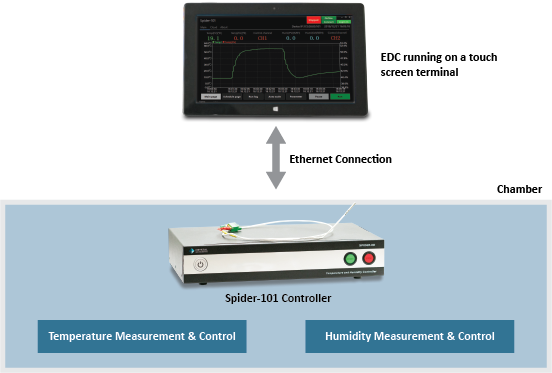

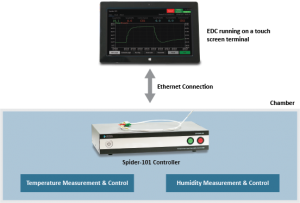

Configuration 1

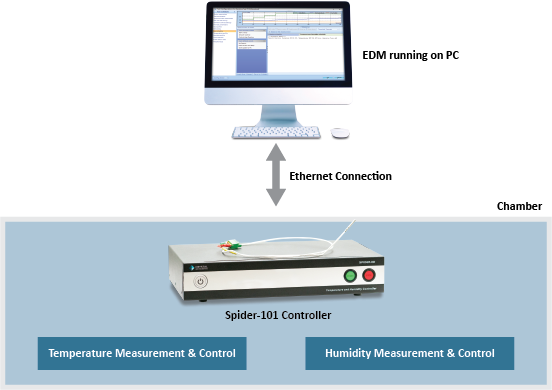

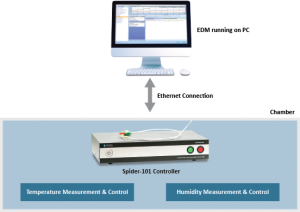

Configuration 2

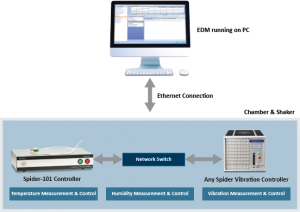

Configuration 3

Configuration 4

Software Designed for Combined Environmental Testing

EDC (Embedded Device Controller) and EDM THV are two software modules specifically designed for the Spider-101 to perform Temperature/Humidity (TH) or Temperature, Humidity, and Vibration (THV) control tests. EDC is a lightweight Windows application with an interface designed for touchscreen use. It runs smoothly on both Intel-based and ARM-based Windows 10 tablets, which can serve as wireless touchscreen terminals that users can mount to the testing chamber.

In addition, there is a wide selection of Windows tablets offered in the market that fulfill various requirements (such as the IP6X tablet). The Spider-101 controller runs on EDC software to conduct TH testing (without vibration) in independent climate chambers. Users can configure a test, operate a test, review test logs and review signals from the EDC interface.

Software Features

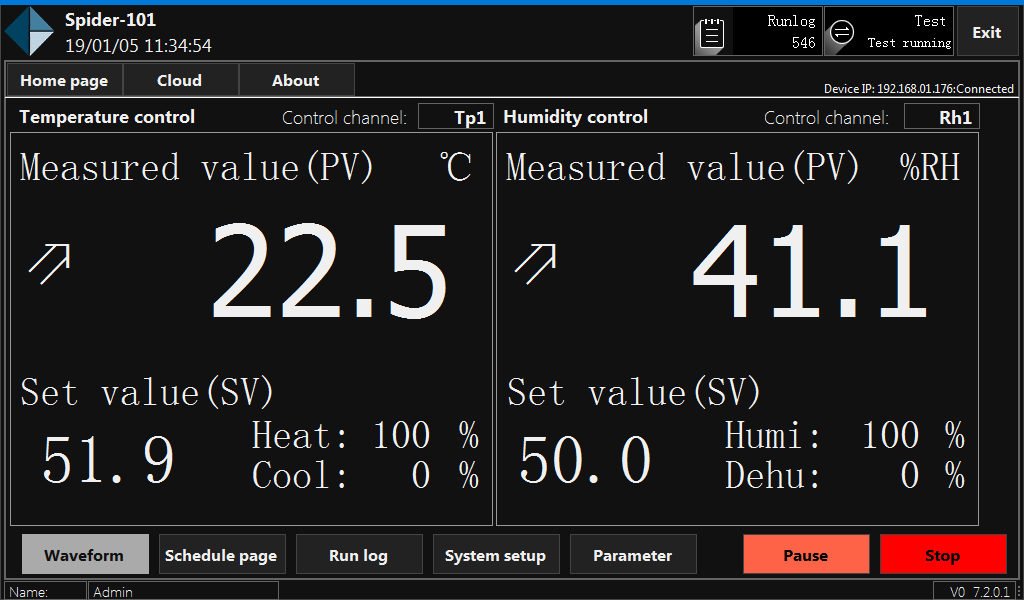

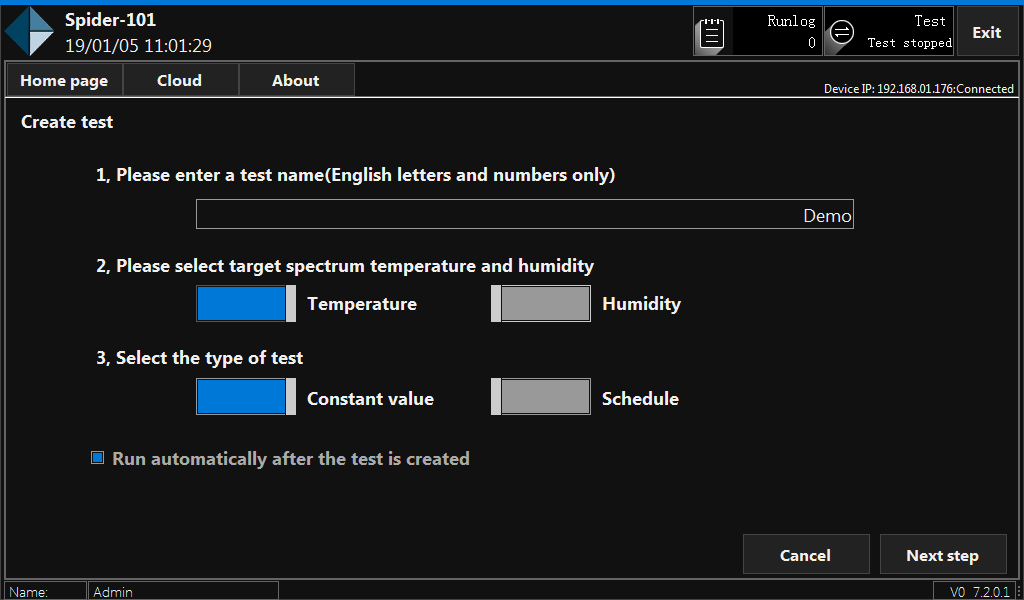

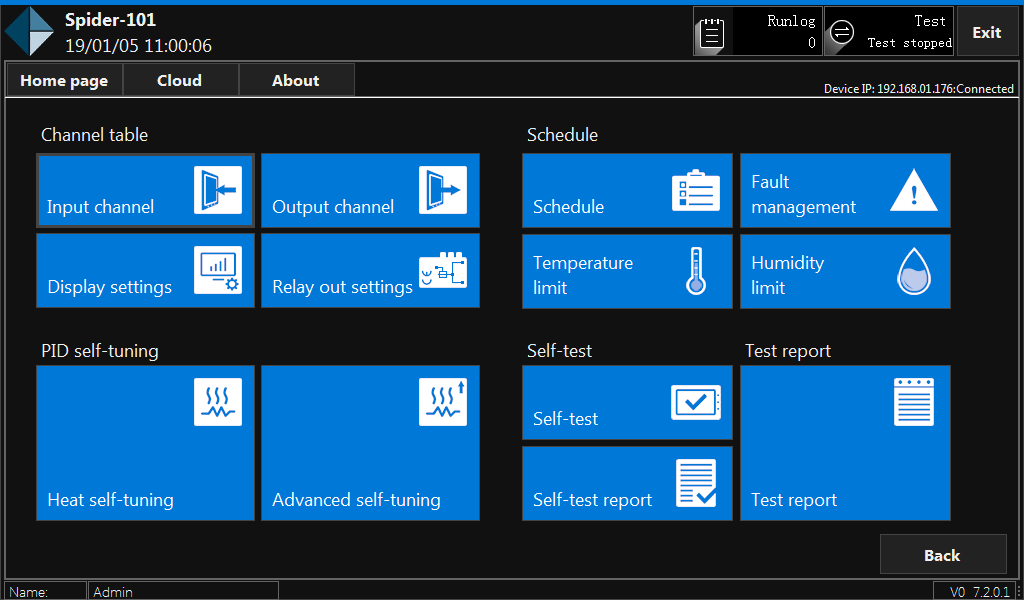

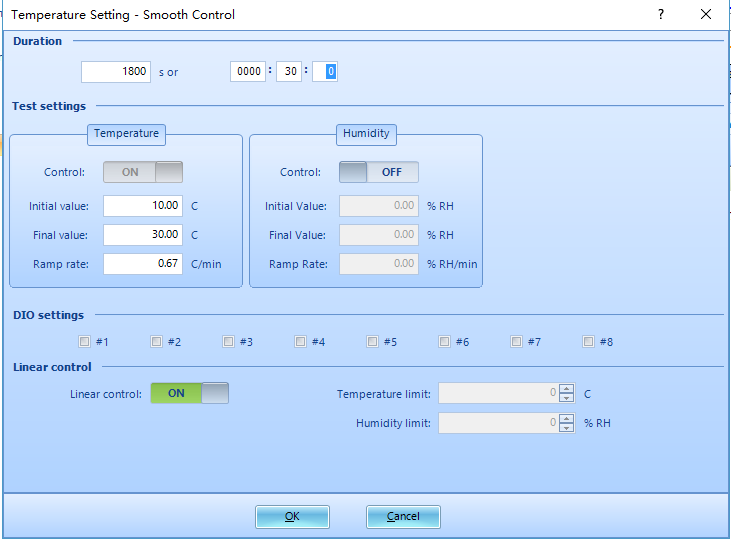

EDC TH Control User Interface

EDC TH Control User Interface

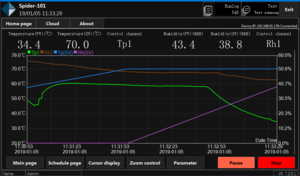

EDC TH Control User Interface

EDC TH Control User Interface

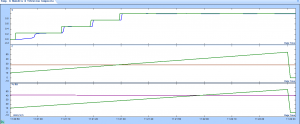

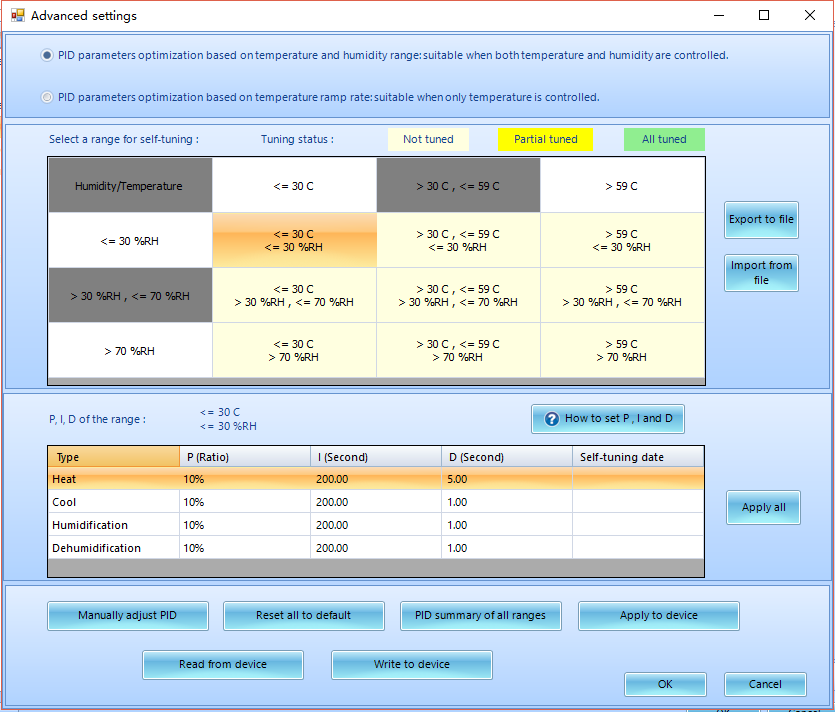

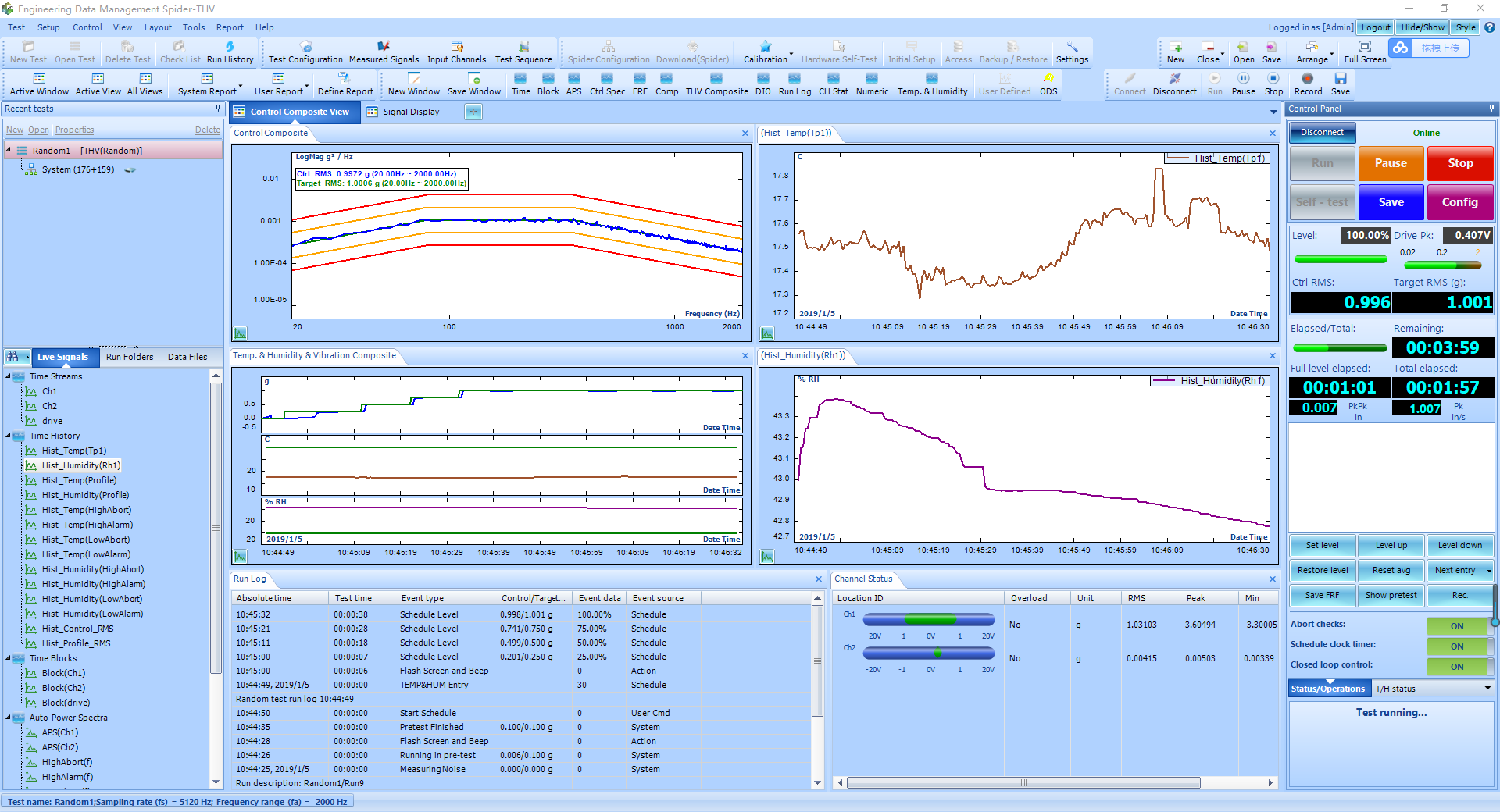

EDM THV Control User Interface

EDM THV Control User Interface

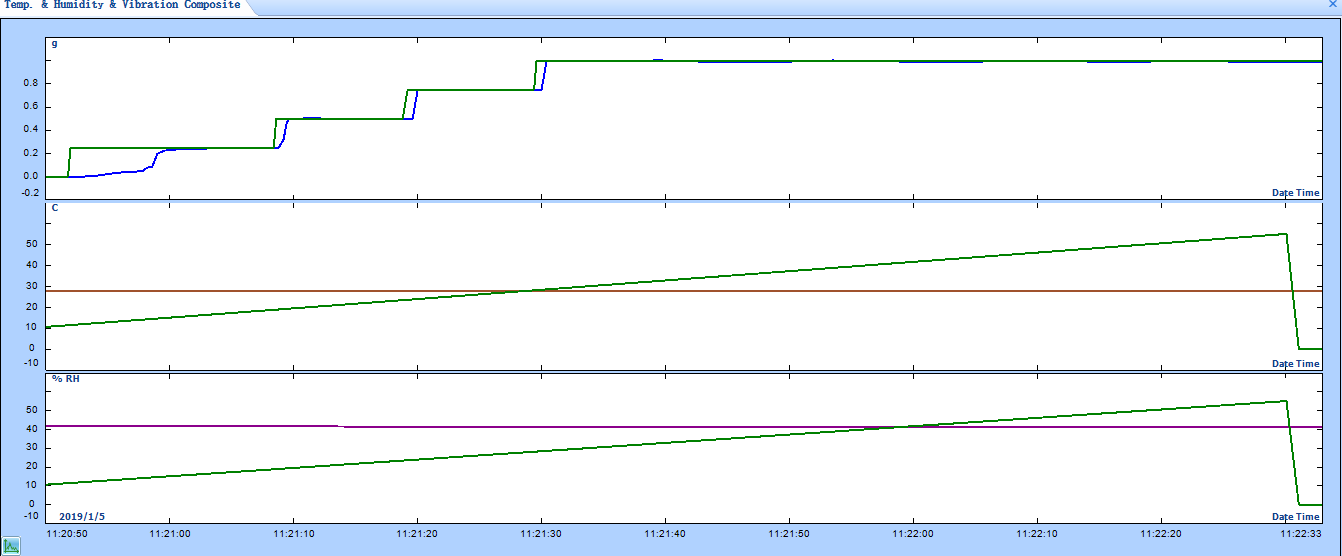

EDM THV Control User Interface

EDM THV Control User Interface


Key Features

  • A controller fully integrated with any shaker controller from CI
    • One integrated setup
    • One clock and schedule
    • One user interface
    • One testing report
    • One vendor to provide the support
  • Two user interfaces
    • EDC: Embedded Device Control, a touch screen user interface running on Windows 10 tablet
    • EDM, the PC software to control T, H and V

Available Options

For further information on options available for this Product, please contact our specialist sales team on:

+44 (0) 1462 481859 or

Contact Us via THP-Systems.com.

Request Quote

Please select the form below relevant to your enquiry:


Temperature Input Channel

  • Number of Channels: 10

  • Connector Type: Three-pin Terminal

  • Input Type: three wire RTD, K type thermocouple

  • Input Range: RTD: -200C —+850C; K type thermocouple: -200C — +1250C

  • Sensor Accuracy: RTD: +/-0.2C; Thermocouple: +/-0.5 C

  • Maximum Sampling Rate: 1 kHz

4-20mA Analog Input

  • Number of Channels: 8

  • Connector Type: 2-Pin Terminal

  • Input Type: 4-20mA

  • ADC resolution: 16 bits

  • Maximum sampling Rate: 833Hz

  • Accuracy: 1mV offset error, 0.01% gain error

 4-20mA Analog Output

  • Number of Channels: 2

  • Connector Type: 4-pin Terminal

  • Output Type: 4-20mA

  • DAC resolution: 16 bits

  • Accuracy: 1%

  • DC24V/50mA for every channel

Relay Control Channel Output

  • Number of Relay Control output channel: 32

  • Output Type: TTL +3.3V compatible control signals and internal +DC3.3V/1.5A power

  • Connector Type: 37 pins D-SUB

Digital IO

  • Number of Digital Input : 30

  • Digital Input type:

    • Input Resistance: 6.1 kΩ

    • Input On Current: 2.0 mA or more

    • Input Off Current: 0.16 mA or less

  • Digital Output

  • Number of Digital output : 10

  • Connector Type: 37 pins D-Sub and 15 pins D-Sub.

  •  37pin D-Sub: 22 bit Input and 8 bits Output

  •  15Pin D-Sun: 8 bits Input and 2 bit Output

System Specifications

  • On Board Memory: 4 GB non-volatile flash memory, the maximum can be up to 32 GB, 32 MB DRAM

  • Ethernet: 100Base-T, RJ45 female connector

  • Internal Clock: maintains date and time

  • Cooling: no cooling fan required

Power Specifications

  • Power Supply: external DC power

  • External DC Power: AC adaptor accepts 100 to 240 VAC (50/60 Hz), DC power 15 V (±10%)/4A

  • Power Consumption: 15 watts

Environmental and General Specifications

  • Enclosure: metal box compliant with CE electrical safety and EMI shielding standards.

  • Dimension (in): 14 ½ by 8 ½ by 2 ¾ inches (W x D x H)

  • Weight: ~8 lb

  • Safety Standards: electromagnetic compatibility and sensitivity: EN 61326:1997+A1:1998+A2:2001, EN61000-3-2: 2000, EN61000-3-3: 1995+A1:2001

  • Operating Temperature: -10 °C to +55 °C

  • Storage Temperature: -20 °C to +70 °C

  • Shock: 50 g’s, 315 in/sec, tested at 6 sides, non-operational test

  • Vibration: 5 ‒ 500 Hz, 0.3 g, tested at 3 sides, operational test

  • Vibration: 5 ‒ 500 Hz, 2.42 g, tested at 3 sides, non-operational test

Hardware Compatibility


Ethernet connections makes system integration easier.





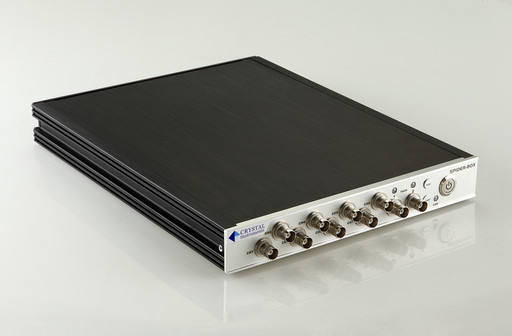

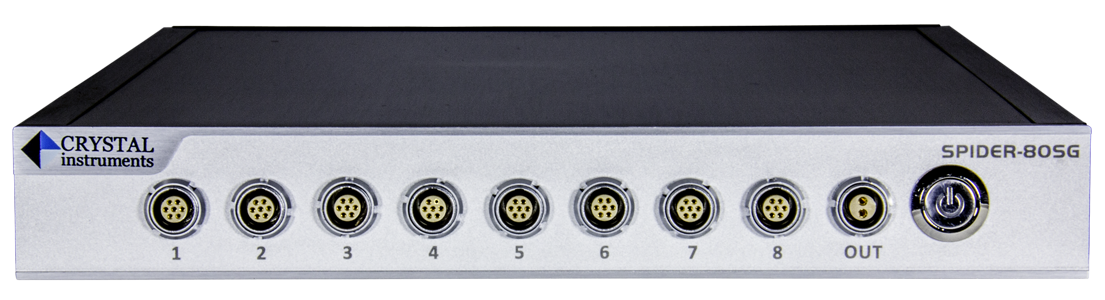

Premium Vibration Controller

Premium Vibration Controller

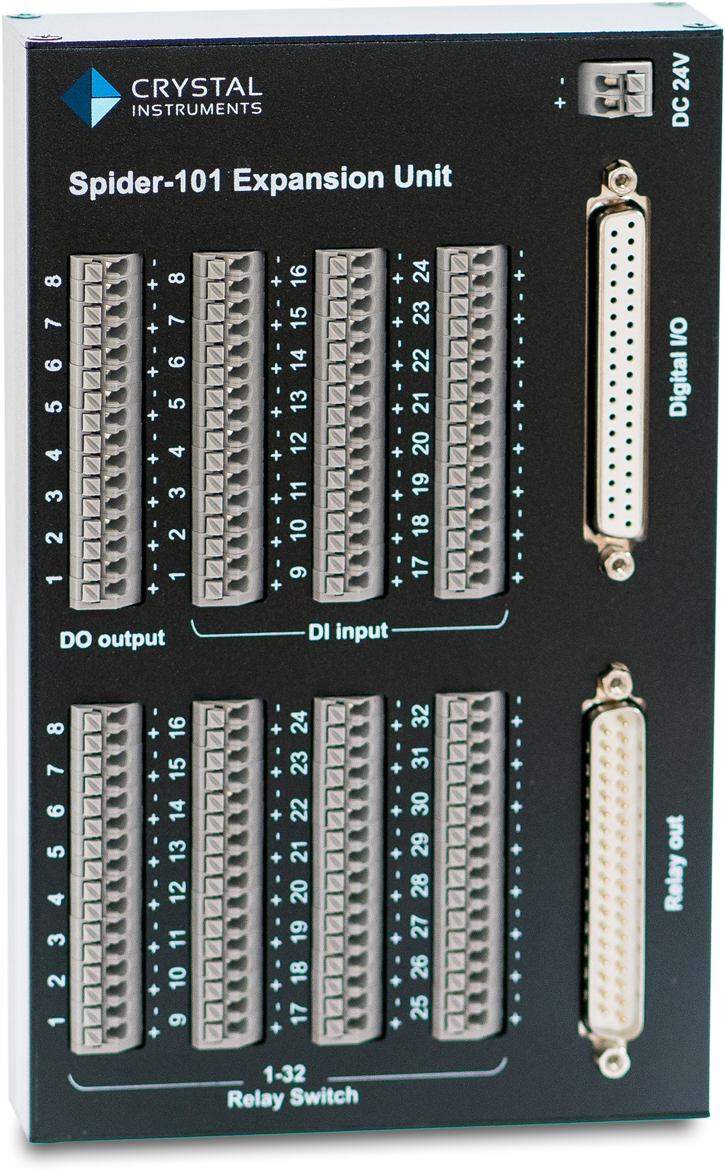

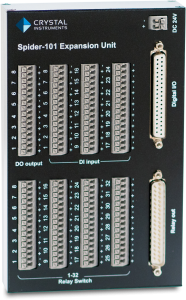

Spider-101 Expansion Unit

All vibration control functions are available with a combined Spider-101 and Crystal Instruments Controller system:

  • RandomMulti-Resolution Control
  • MSC, Multi-Shaker Control
  • Sine (Swept/Dwell)
    • Total Harmonic Distortion (THD)
    • Phase Track Dwell
    • Resonance Search and Tracked Dwell (RSTD)
    • Multi-Sine
    • Step Sine, Sine Oscillator
  • Classic Shock
  • Transient Time History Control (TTH).
  • Shock Response Spectrum (SRS)
  • Earthquake testing
  • Time Waveform Replication (TWR)
