Test House

Test House Services

Precision Testing for Packaging, Electronics, Automotive, Defence & Industrial Products

Test House Capabilities

THP Systems provides a full suite of environmental, vibration, climatic and transit test services. Our UK test lab combines high-force shakers, advanced environmental chambers and ISTA-certified processes to validate products against industry, military and commercial standards.

Compression Testing

Static and dynamic compression to assess load capacity and crush resistance.

  • Suitable for packaging, materials & structural components
  • Force/time profiles to spec
  • Supports ISTA & ASTM methods

NI-Based Data Logging & Signal Analysis

Advanced multi-channel data acquisition for complex test setups.

  • NI hardware & LabVIEW architecture
  • High-speed sampling
  • Multi-axis vibration data
  • FFT, PSD & time-domain analysis
  • Integration with external sensors and strain gauges
  • Full analytical report included

Testing Standards

+ Contract chamber testing and partner test houses for extended capability
Contact Us

Equipment List

Precision equipment, proven reliability
For full specifications and details on test capabilities, please contact us.

Search

Search

  • 1076L Temperature & Humidity Chamber

    • Manufacturer: ACS
    • Model: DY1200C
    • Size: 1076 litres
    • Internal Dimensions: 1000 mm x 1130mm x 953mm  (WxDxH)
    • Temperature Range: -75°C to +180°C
    • Temperature Rate Change: (measured at the control probe)
      • Heating: 4.5°C/min
      • Cooling: 2.3°C/min
      • (based on IEC60068-3-5, with passive 20kg load)
    • Temperature Control: +/-0.5°C at steady state condition after stabilization.
    • Relative Humidity Range: From 10% to 98% RH within the temperature range +10°C to +95°C

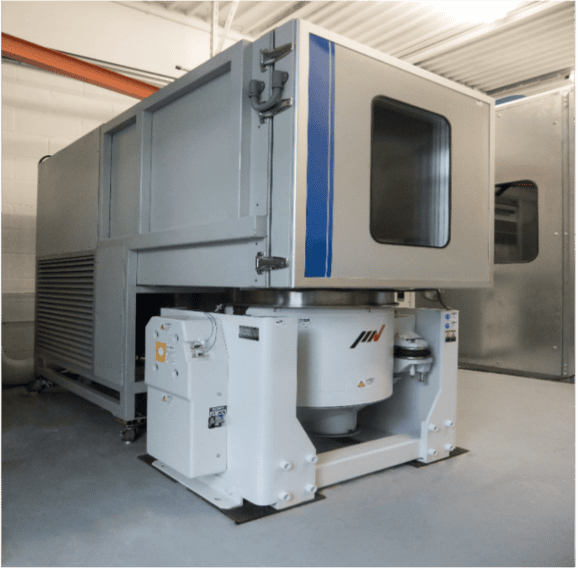

  • 16kN – i230 ECO System

    • Sine Force: 16kN
    • Random Force: 16kN
    • Shock Force: 32kN
    • Armature Size: Ø200mm
    • Frequency Range: 5-3,000Hz
    • Displacement: 51mm
    • Peak to Peak Velocity: 2.2m/s
    • Max Acceleration – Sine: 127.5g pk
    • Max Acceleration – Random: 89grms
    • Max Acceleration – Shock: 250g pk
    • Max Payload: 300kg

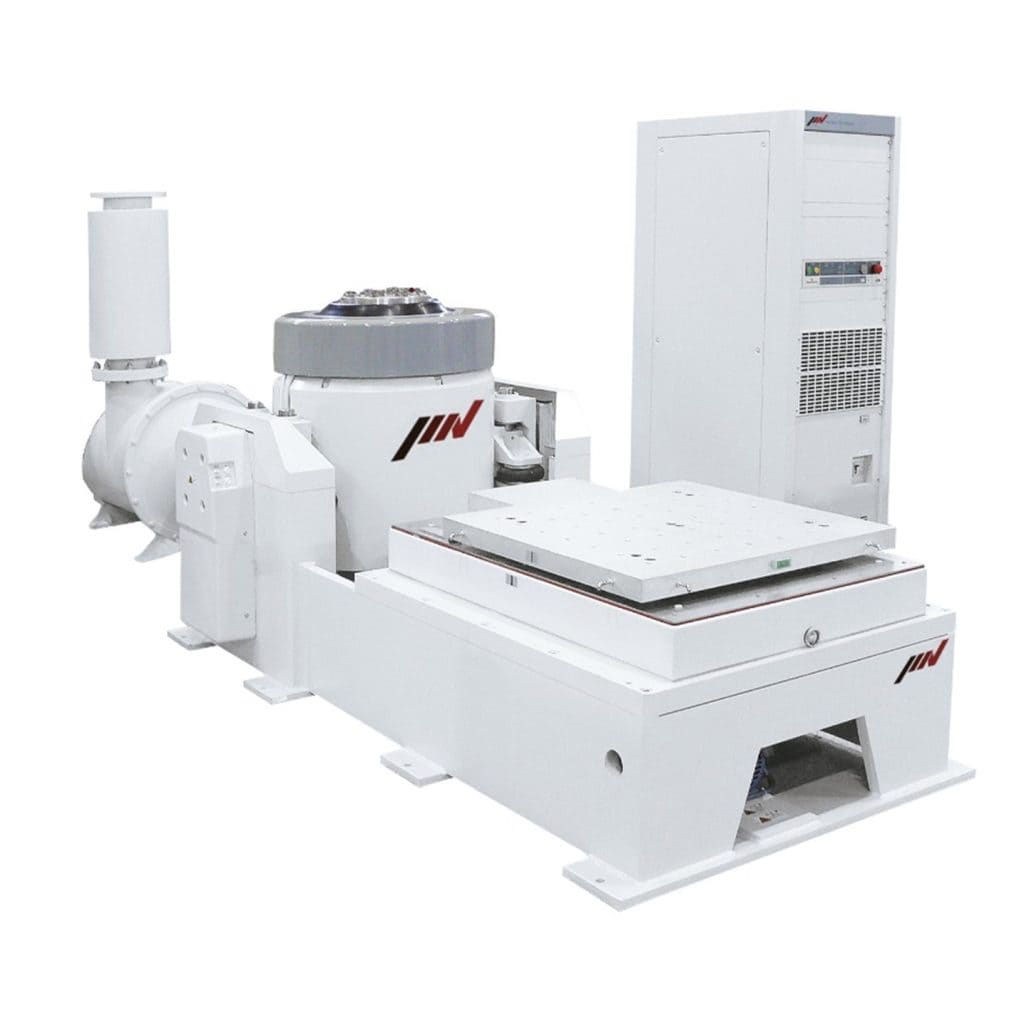

  • 20kN with Horizontal Slip Table

    • Sine Force: 20.3kN
    • Random Force: 22.2kN
    • Shock Force: 56kN
    • Armature Size: Ø640mm
    • Frequency Range: 5-2,000Hz
    • Displacement: 50.8mm
    • Peak to Peak  Velocity: 1.5m/s
    • Max Acceleration – Sine: 50gn pk
    • Max Acceleration – Random: 50grms
    • Max Payload:  Vertical 600kg
    • Horizontal 3000kg

    Horizontal Axis Slip Table

    • Dimension: 900 x 900mm
    • Frequency Range: Up to 2000Hz

  • 337L Temperature & Humidity Chamber

    • Manufacturer: ACS
    • Model: DM340C
    • Size: 337 litres
    • Internal Dimensions: 601 mm x 810mm x 964mm (WxDxH)
    • Temperature Range: -75°C to +180°C
    • Temperature Rate Change: (measured at the control probe)
      • Heating: 4.5°C/min
      • Cooling: 2.3°C/min
      • (based on IEC60068-3-5, with passive 20kg load)
    • Temperature Control: +/-0.5°C at steady state condition after stabilization.
    • Relative Humidity Range: From 10% to 98% RH within the temperature range +10°C to +95°C

  • 40kN with Horizontal Slip Table

    • Sine Force: 40kN
    • Random Force: 40kN
    • Shock Force: 80kN
    • Armature Size: Ø400mm
    • Frequency Range: 5-2,000Hz
    • Displacement: 75.0mm Peak to Peak (3”)
    • Velocity: 2.0m/s Max Acceleration – Sine: 100g pk
    • Max Acceleration – Random: 87.5grms
    • Max Payload: 500kg

    Horizontal Axis Slip Table

    • Dimension: 750 x 750mm
    • Frequency Range: Up to 2000Hz

    Vertical Axis Head Expander

    • Dimension: 750 x 750mm
    • Frequency Range: Up to 2000Hz (multi-point control)

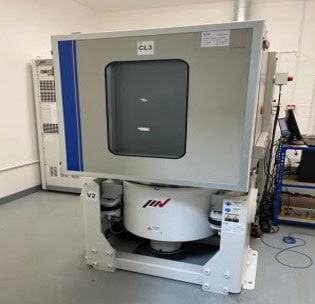

  • 420L Temperature Chamber (useable with shaker)

    • Manufacturer: Weiss
    • Model: FS420-40V
    • Size: 420 liters
    • Internal Dimensions: 750mm x 750mm x 750mm (WxDxH)
    • Temperature Range: -40° to 160°C
    • Temperature Rate Change: (measured at the control probe)
      • Heating: 3°C/min
      • Cooling: 3°C/min
      • (based on IEC60068-3-5,empty)
    • Temperature Control: +/-0.5°C at steady state condition after stabilization.

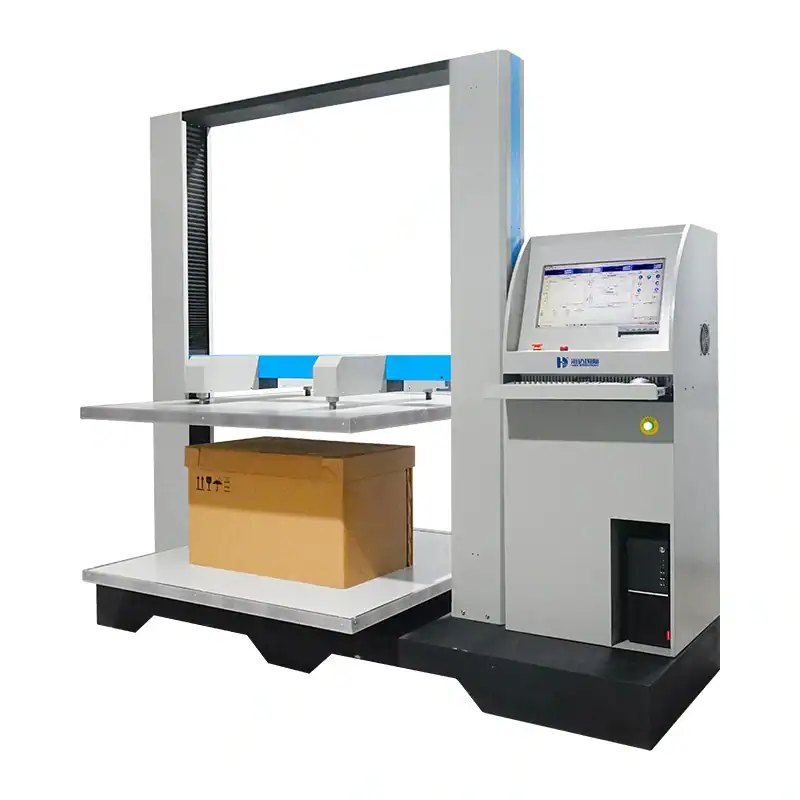

  • Compression Tester

    • Max force: 5000kg (50KN)
    • Load Cell: 4 imported Load Cells
    • Control System: Embedded PC-Windows 7, RS-232 interface
    • Motor: Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
    • Load Cell Resolution: 1/250,000
    • Load Precision: within ±0.25%
    • Parallelism of Platens: Parallel within ±2.5mm
    • Effective Test Area: 1000 x 1200 x 1500mm(LxWxH)
    • Test Speed: 10 ±3mm/min (0.01~200mm/min adjustable)
    • Data Display: Load, displacement, speed, loading rate and elapsed time

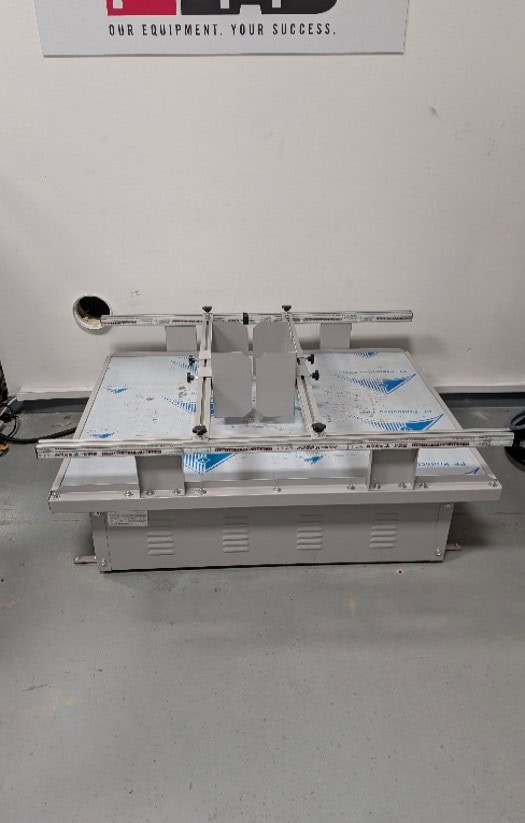

  • HD-A521

    • Payload capacity: 100 Kg
    • Table Size: 1000mm x 1200mm
    • Table Height: 500 mm
    • Max Acceleration: 1.25 g
    • Frequency Range: 1-5 Hz (60-300 RPM)
    • Max Displacement: 25mm (Fixed)

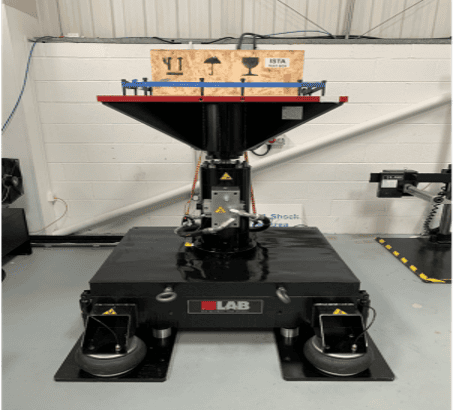

  • HV-36 Hydraulic Test System

    • Actuator Force: 2,404kgs (5300 lbs)
    • Displacement: 102mm peak to peak
    • Reaction Mass: 2,722kgs
    • Table Size: 915 x 915mm
    • Hydraulic Power Supply (HPS): 20HP
    • Vibration Controller with Sine, Random and Road Load Data (RLD)
    • Perform – ISTA, ASTM and Amazon 6

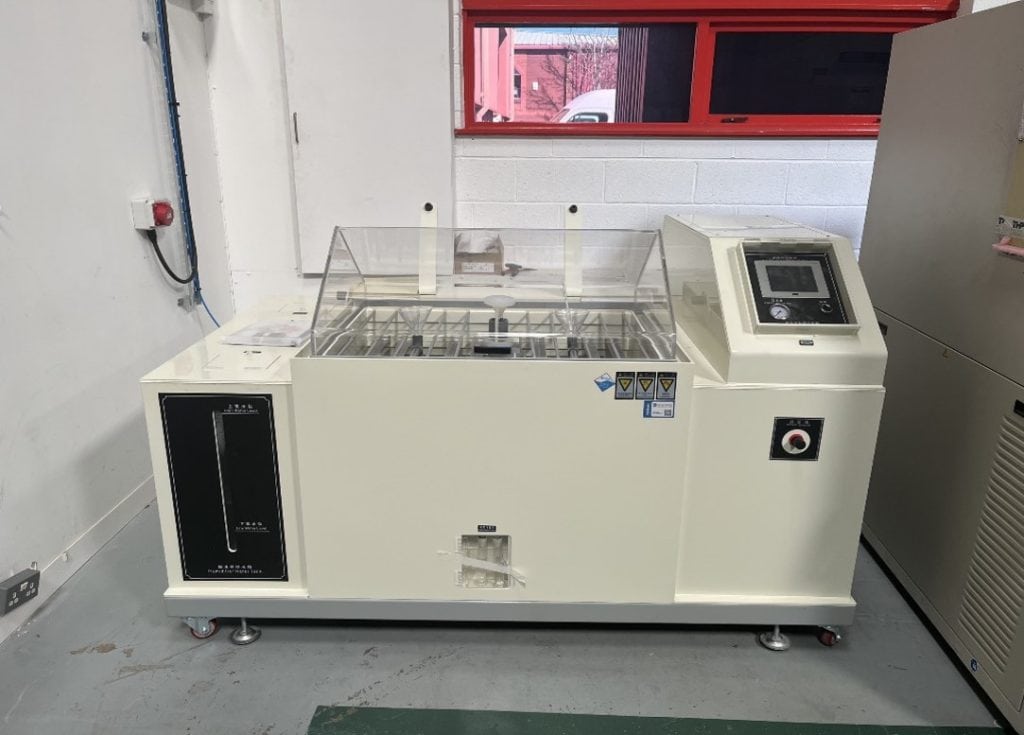

  • Salt Spray Chamber

    • Internal Size : 900 x 600 x 500mm (WxDxH) 270 liter
    • Volume: 270 litre
    • Temperature range: Room temperature: 25℃~80℃± 2℃ (No humidity below 25℃)
    • Humidity range: Humidity: 30% – 98%RH±3%RH
    • Spraying method: Continuous and Periodic spray type
    • Brine Temperature: 35℃±1℃
    • Brine Tank Capacity: 25L
    • Spray Quantity: 1.0~2.0 ml / 80cm²/hr PH value: Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method (CASS)3.0~3.2
    • Multiple Safety Protection Devices: Current discharge protection, over pressure protection, over temperature protection, over load fuse protection

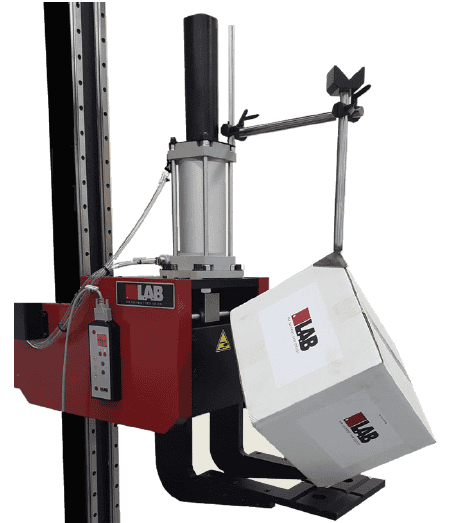

  • TrueDrop 160

    • Maximum Payload: 73 Kgs
    • Drop Height Range: from 305-1829 mm
    • Maximum Package Depth: 812 mm deep
    • Steel Impact Plate: 812 mm (Deep) x 900 mm (Wide)

Frequently Asked Questions

  • What types of testing does THP Systems provide?

    We offer vibration testing, climatic & environmental testing, ISTA & transit testing (including Amazon, FedEx, ASTM and ISO protocols), shock & drop testing, compression testing, NI-based data logging, signal analysis and compliance testing for specialist standards such as MIL-STD, ISO-6800 among others.

  • Do you support combined environmental and vibration testing?

    Yes. Our 16kN vertical system integrates with a climatic chamber, allowing temperature-controlled vibration testing across a wide temperature range.

  • Can you test to specific industry or defence standards?

    Yes. We regularly test to ISTA, ASTM, ISO, MIL-STD, IEC, FedEx, Amazon and other manufacturer-specific requirements. If you have a bespoke or non-standard test, we can build a custom test plan.

  • Do you offer Amazon package certification testing?

    Yes. We support Amazon ISTA test methods and can provide full documentation needed for certification submissions.

  • Can you run custom test profiles?

    Yes. We can run bespoke vibration, temperature, humidity and combined profiles defined by your engineering team or derived from field measurements.

  • What size products can you test?

    Maximum dimensions vary by equipment:

    • Large environmental chambers: up to approx. 1000mm × 900mm

    • Slip table: 700mm × 700mm

    • Other fixtures are dependent on the test setup; contact us for specific dimensions.

  • What force levels can your vibration systems achieve?

    We operate 16kN, 20kN, and 40kN electrodynamic shakers suitable for sine, random and shock testing up to 3000Hz.

  • Which ISTA levels do you support?

    We offer ISTA 1, 2, 3, 4 & 6 series testing, plus enhanced protocols for Amazon, Sam’s Club and FedEx

  • Do you provide certified ISTA reports?

    Yes — your tests are overseen by our Level-3 ISTA-trained specialist, and reports include pass/fail results, raw data, analysis, photos and notes.

  • Can you help me determine which standards I need?

    Yes. If you’re unsure whether ISTA, Amazon, ASTM, MIL-STD or ISO applies to your situation, we can advise based on your supply chain, product type and packaging configuration.
