Material Pairing and Stick-Slip Test Systems for Tribo-Acoustic Validation
Material Pairing and Stick-Slip Test Systems for Tribo-Acoustic Validation
THP Systems supplies material pairing test benches for friction, stick-slip and noise characterisation under application-typical conditions. Systems support programmable motion profiles (linear, sine, random), controlled normal force, and testing with third-body substances such as oils, greases, fuels, coolants, water, pastes and dusts. Outputs include friction metrics and risk indicators such as Risk Priority Number plus event counts and rates, with options for simultaneous acoustic capture when friction noise is critical. Selected platforms align with VDA 230-206 and major OEM specs.
Browse Material Pairing

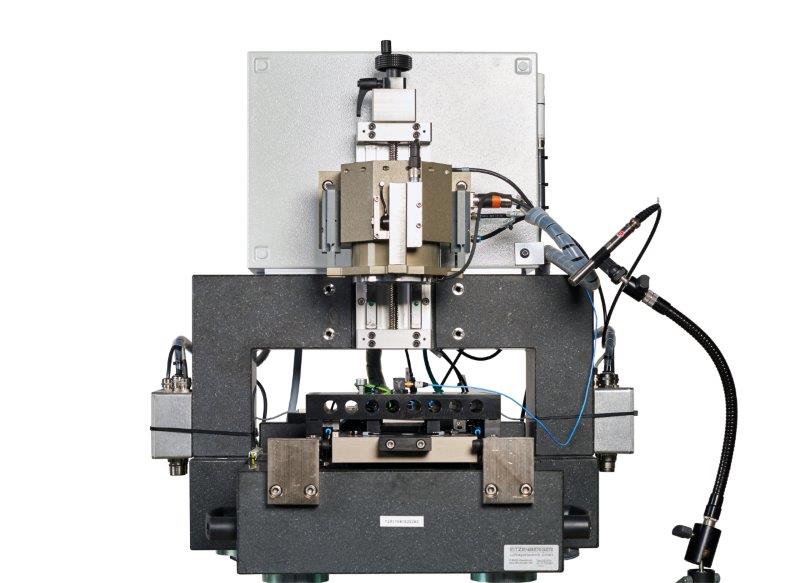

H3P Stick-Slip Test Bench
The H3P is specifically designed to measure the stick-slip effect...View Details
Repeatable Tribology Results. Production-Relevant Insight.
- Programmable motion: linear, sine and random for realistic excitation profiles
- Normal force control typically 2 to 60 N for representative contact loading :contentReference
- Speed ranges for screening and development: 1 to 150 mm/s (platform dependent) :contentReference
- Environmental operation for application-typical temperatures, e.g. about -30 to +80 deg C (platform dependent)
- Third-body media handling to quantify effects of oils, greases, fuels, coolants, water, pastes and dusts

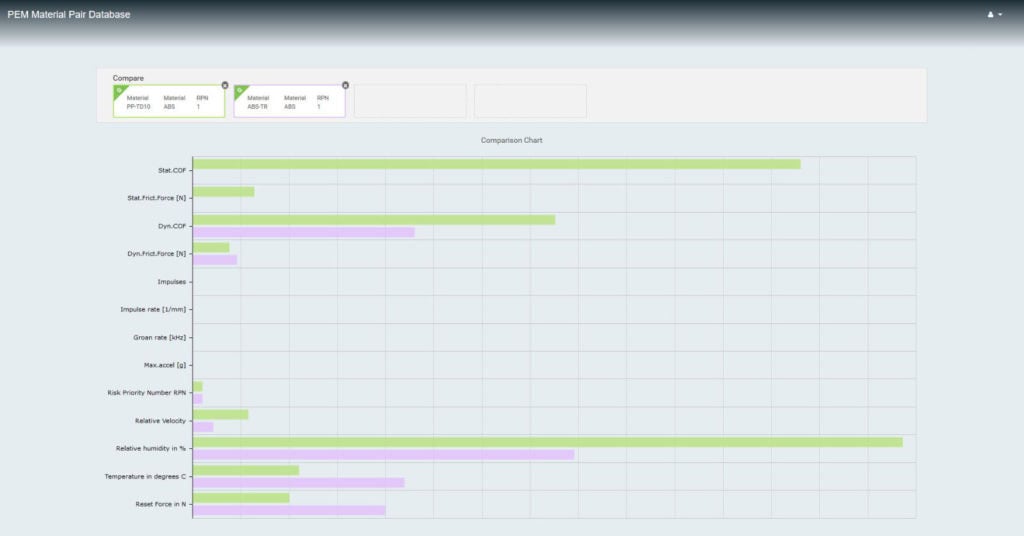

- Outputs include RPZ, friction coefficients and event counters for decision-making and sign-off
- Option for combined friction and acoustic measurement on dedicated benches
From Material Screening to Interior Noise Sign-off
- Trim, seal and fabric pair optimisation to prevent squeak and creak in cabin
- Seat, console and switchgear validation with duty-cycle motion profiles
- Environmental workflows combining temperature exposure and media contamination
- Custom coupons, fixtures and conditioning to match real interfaces
- Reporting templates with friction and RPZ outputs for PPAP and QA
