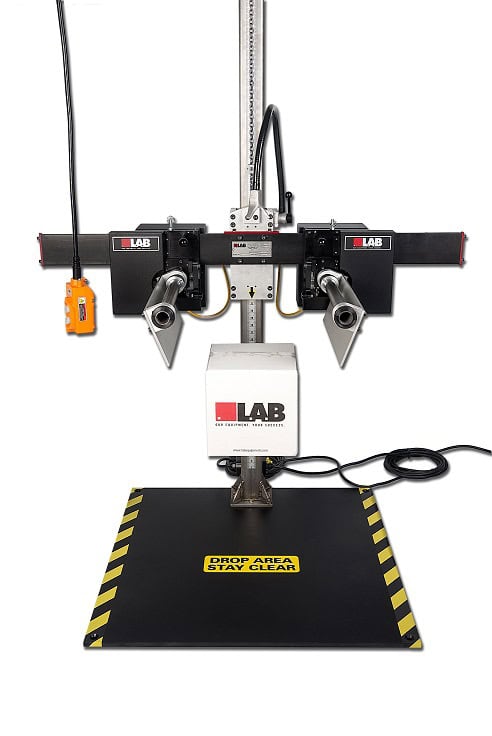

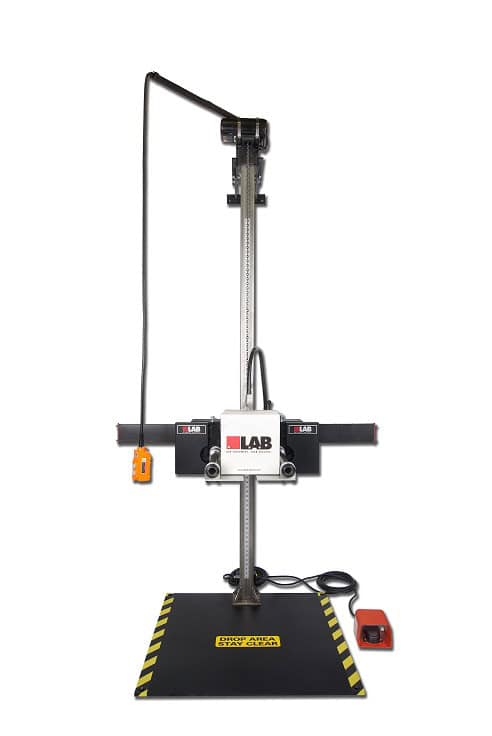

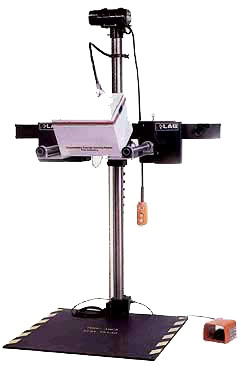

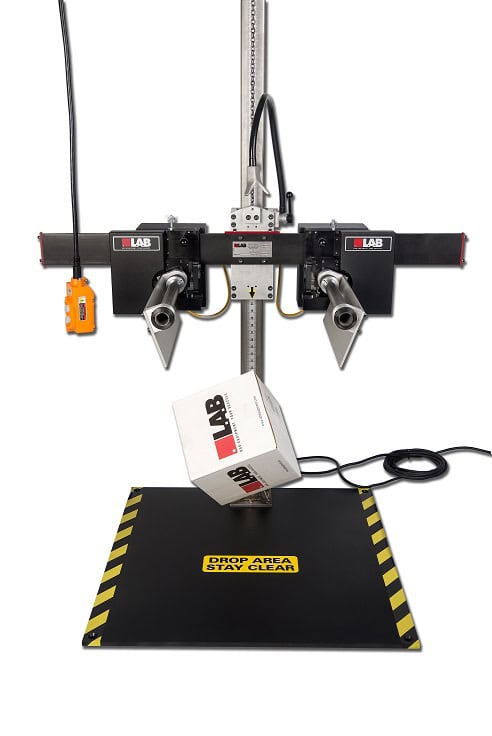

AccuDrop™ 125 Drop Test System

Product Overview

The AccuDrop™ 125 drop test system provides the same precision technology as the other AccuDrop™ series products but is meant for smaller packages. The AD-125 is an intuitive and affordable option for package performance testing.

Markets

Aerospace, Automotive, Defence, Electronics, Ground Transportation, Package Testing

Request a Quote

Product Resources

AccuDrop™ 125

Data Sheet


Payload Capacity	160 lb (73 kg)
Drop Height	12-72 in (305-1829 mm)
Maximum Package Depth	32 in (813 mm)
Impact Zone	36×32 in (914×813 mm) – WxD
Utility Requirement (Electrical)	220V / 1Ph / 50-60Hz / 7Amp
Utility Requirement (Air)	90 PSI (620 kPa) / 2 cfm (60 lpm)
Machine Weight	1300 lb (590 kg)
Machine Dimensions	103x36x69 in (2616x914x1753 mm) – HxWxD

Key Features
- 125 lbs (56 kg) payload capacity
- 0.5” (13 mm) leaf center gap
- Automatic leaf reset
- 8″ to 84″ (203 mm x 2134 mm) drop height
- 36″ x 26″ (914 mm x 660 mm) package size
- Package holding fixture (PHF)
- Hand-held control pendant
- Drop height indicator scale
- Disable drop switch
- Meets ISTA, ASTM, and ISO standards
Options
- Drop height extension
- Safety Fence
- Wooden base plate
- CE Compliance
- Enlarged Base Plate
- Non-standard voltage
- Increased drop leaf width (consult factory for sizes)
- Test Lab Professional data acquisition system
