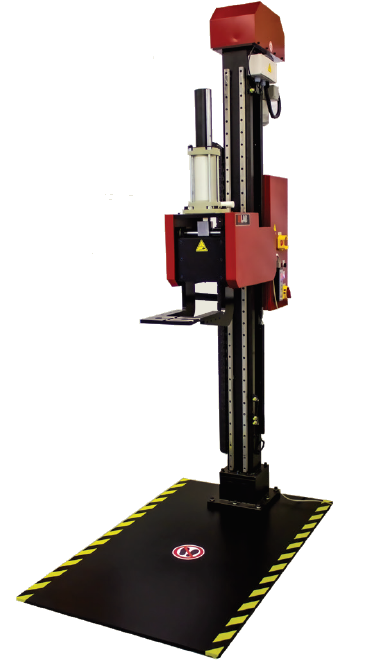

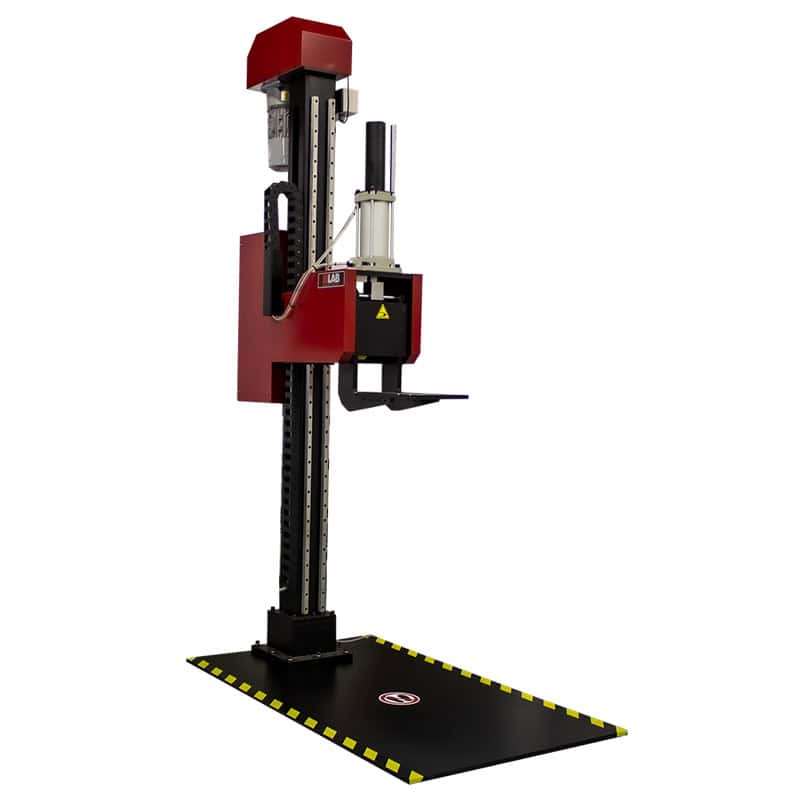

AccuDrop™ TrueDrop™ 160 Drop Test System

Product Overview

Precision drop testing at an affordable price. The TrueDrop™ 160 drop tester. This drop tester represents the ultimate in product and package performance testing and is designed to meet a wide variety of global testing needs.

One of three models in the MAXDROP™ Series. It helps determine the ruggedness of packages and the effectiveness of their interior cushioning when exposed to impact during material handling. The effects of dropping are easily duplicated in a laboratory setting using controlled and precise flat, corner, and edge drop tests.

Complies with ISTA, ASTM, ISO, MIL STD, and other internationally recognized test
standards.

Markets

Aerospace, Automotive, Defence, Electronics, Ground Transportation, Package Testing

Request a Quote

Product Resources

AccuDrop™ TrueDrop™ 160

Brochure

TrueDrop™ 160 (2024)

Brochure


Payload Capacity	160 lb (73 kg)
Drop Height	12-72 in (305-1829 mm)
Maximum Package Depth	32 in (813 mm)
Impact Zone	36×32 in (914×813 mm) – WxD
Utility Requirement (Electrical)	220V / 1Ph / 50-60Hz / 7Amp

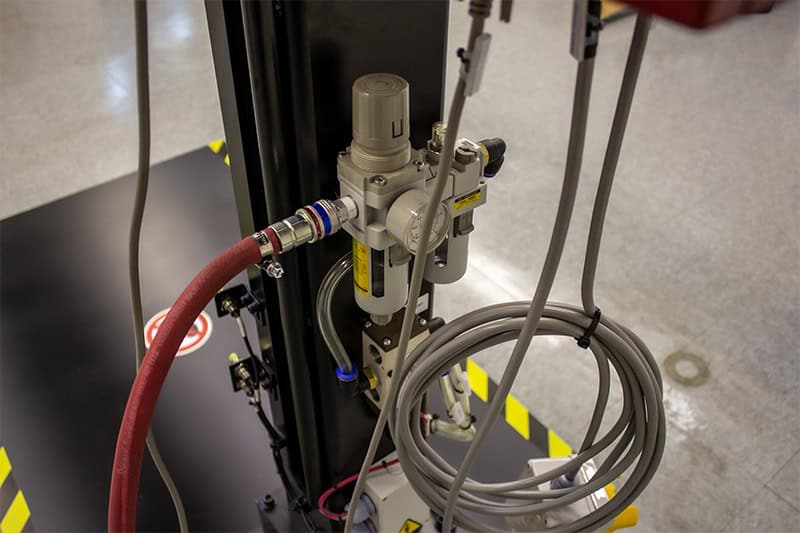

Utility Requirement (Air)	90 PSI (620 kPa) / 2 cfm (60 lpm)
Machine Weight	1300 lb (590 kg)
Machine Dimensions	103x36x69 in (2616x914x1753 mm) – HxWxD

Key Features
Linear rail movement with Single Drop Arm Action
- 160 lbs (73 kg) maximum payload capacity
- 32” (813 mm) maximum package depth
- 36” W x 32” D (914x 813mm) steel impact surface
- 12” – 72” (300 – 1829 mm) adjustable drop height
- Audible alert during drop arm release sequence
- Package Holding Fixture holds package in correct orientation prior to drop
- Exclusive Hand-Held Operator Control with LCD digital readout:
- Selectable display units of inches or millimeters
- Two button drop release sequence to ensure safe operation
- Auto positioning function with memory
- Drop positioning control
- Analog counter tracks the number of drops performed
- Versatile package height and width
- CE compliant
Options
- Extended drop height
- Enlarged base plate for larger packages
- Wooden base plate for MIL STD 810 testing
- Safety Fence
Package Support Arm

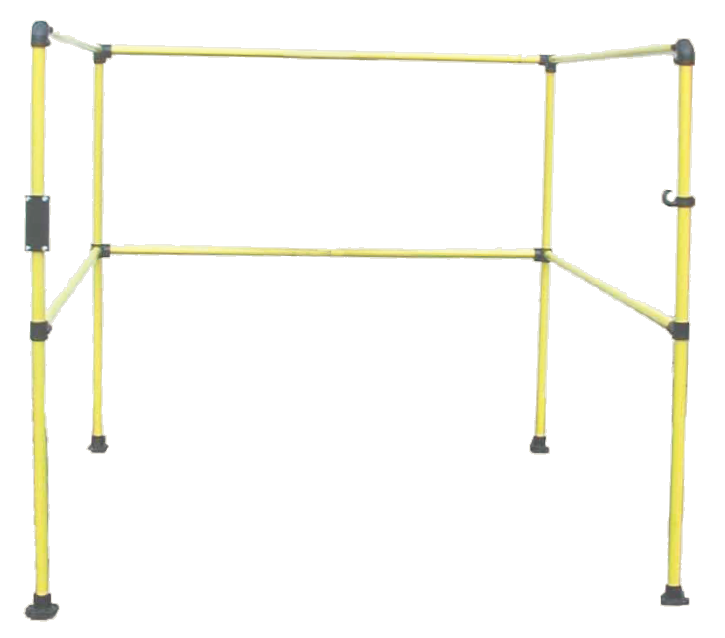

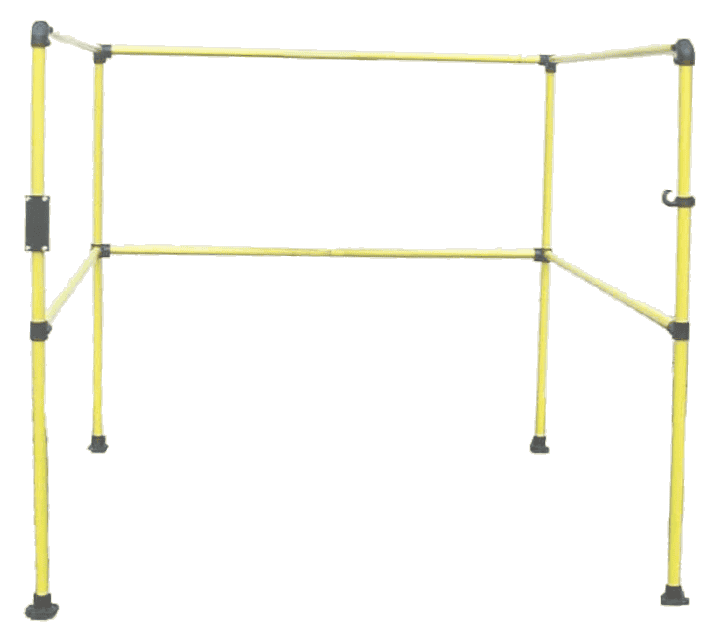

Safety Fence

DAS-105 Data Acquisition System:
Drop & Shock

Hand Controller and Operator Indicator Panel
Control System
Hand Controller and Operator Indicator Panel
- Exclusive Hand-Held Operator Control with LCD digital readout:

  SI or English Units

  Auto Drop Height

  Audio Alarm upon Release

  2 Button Safety Release

  Auto-home
TrueDrop™ Model 160 OPTIONS
- Extended drop height
- Containment pan for liquid testing
- Enlarged base plate for larger packages
- Wooden base plate for MIL STD 810 testing
- Safety Fence for Compliance
