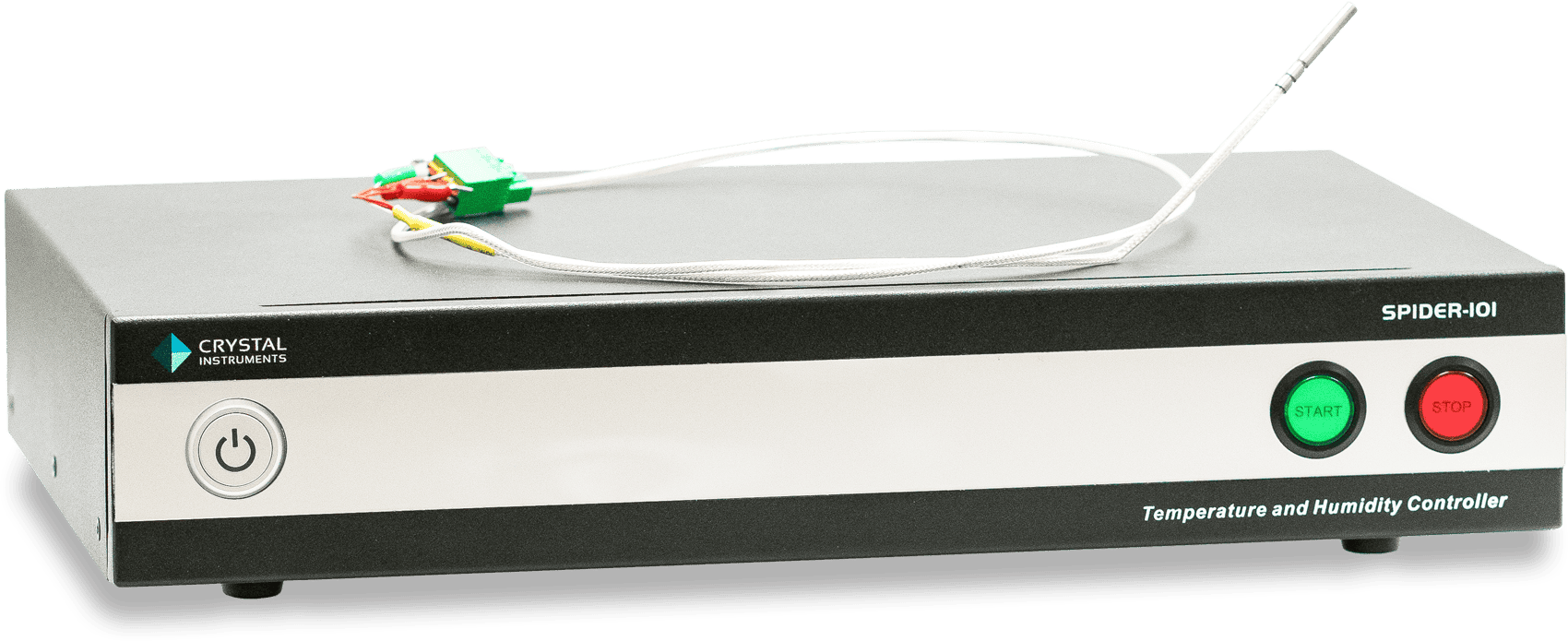

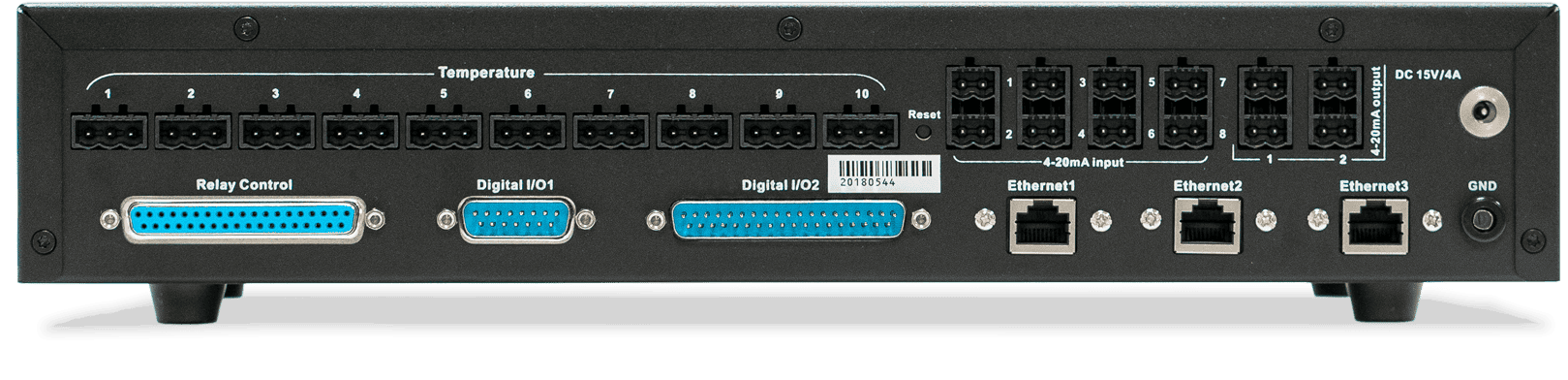

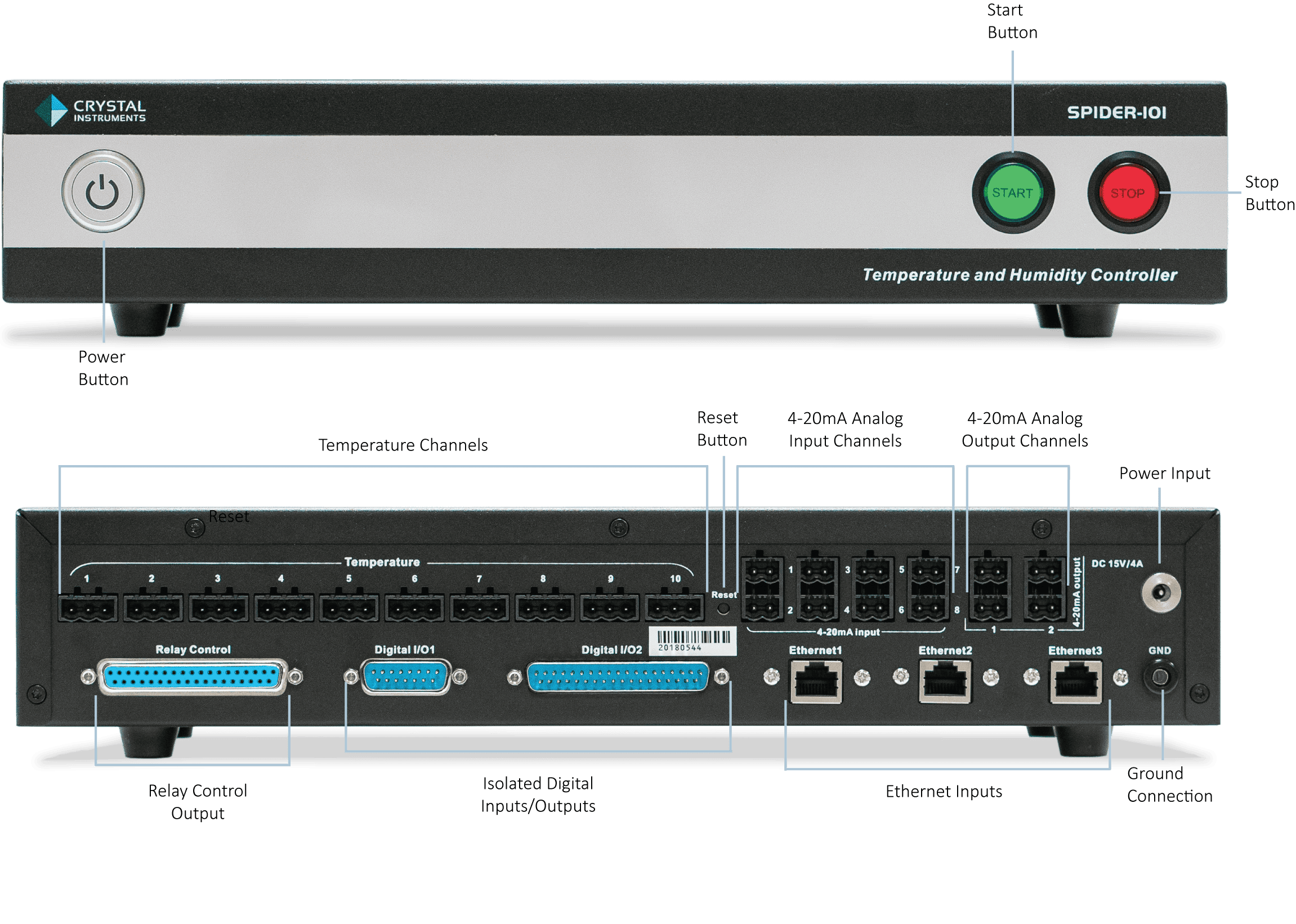

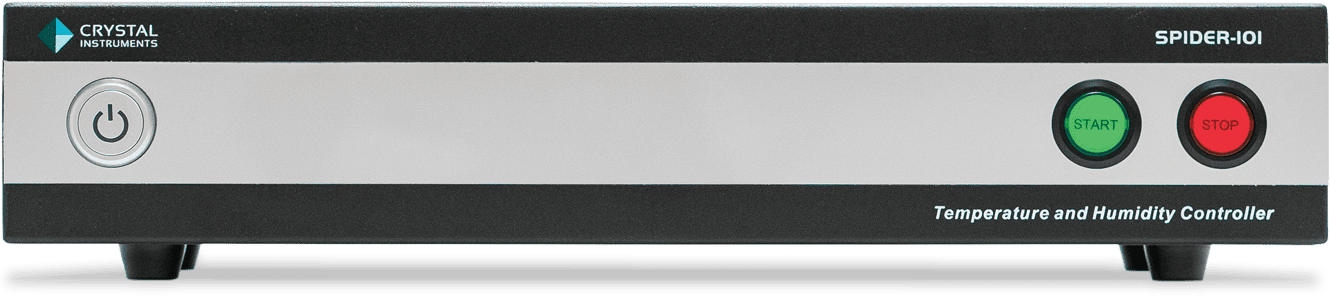

Spider 101 Temperature and Humidity Controller

Temperature Input Channel

• Number of Channels: 10

• Connector Type: Three-pin Terminal

• Input Type: three wire RTD, K type thermocouple

• Input Range: RTD: -200C —+850C; K type thermocouple: -200C — +1250C

• Sensor Accuracy: RTD: +/-0.2C; Thermocouple: +/-0.5 C

• Maximum Sampling Rate: 1 kHz

4-20mA Analog Input

• Number of Channels: 8

• Connector Type: 2-Pin Terminal

• Input Type: 4-20mA

• ADC resolution: 16 bits

• Maximum sampling Rate: 833Hz

• Accuracy: 1mV offset error, 0.01% gain error

4-20mA Analog Output

• Number of Channels: 2

• Connector Type: 4-pin Terminal

• Output Type: 4-20mA

• DAC resolution: 16 bits

• Accuracy: 1%

• DC24V/50mA for every channel

Relay Control Channel Output

• Number of Relay Control output channel: 32

• Output Type: TTL +3.3V compatible control signals and internal +DC3.3V/1.5A power

• Connector Type: 37 pins D-SUB

Digital IO

• Number of Digital Input : 30

• Digital Input type:

  • Input Resistance: 6.1 kΩ

  • Input On Current: 2.0 mA or more

  • Input Off Current: 0.16 mA or less

• Digital Output

• Number of Digital output : 10

• Connector Type: 37 pins D-Sub and 15 pins D-Sub.

•  37pin D-Sub: 22 bit Input and 8 bits Output

•  15Pin D-Sun: 8 bits Input and 2 bit Output

System Specifications

• On Board Memory: 4 GB non-volatile flash memory, the maximum can be up to 32 GB, 32 MB DRAM

• Ethernet: 100Base-T, RJ45 female connector

• Internal Clock: maintains date and time

• Cooling: no cooling fan required

Power Specifications

• Power Supply: external DC power

• External DC Power: AC adaptor accepts 100 to 240 VAC (50/60 Hz), DC power 15 V (±10%)/4A

• Power Consumption: 15 watts

Environmental and General Specifications

• Enclosure: metal box compliant with CE electrical safety and EMI shielding standards.

• Dimension (in): 14 ½ by 8 ½ by 2 ¾ inches (W x D x H)

• Weight: ~8 lb

• Safety Standards: electromagnetic compatibility and sensitivity: EN 61326:1997+A1:1998+A2:2001, EN61000-3-2: 2000, EN61000-3-3: 1995+A1:2001

• Operating Temperature: -10 °C to +55 °C

• Storage Temperature: -20 °C to +70 °C

• Shock: 50 g’s, 315 in/sec, tested at 6 sides, non-operational test

• Vibration: 5 ‒ 500 Hz, 0.3 g, tested at 3 sides, operational test

• Vibration: 5 ‒ 500 Hz, 2.42 g, tested at 3 sides, non-operational test

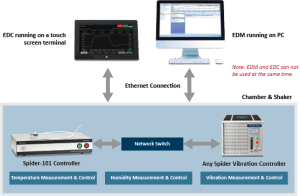

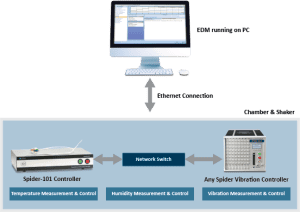

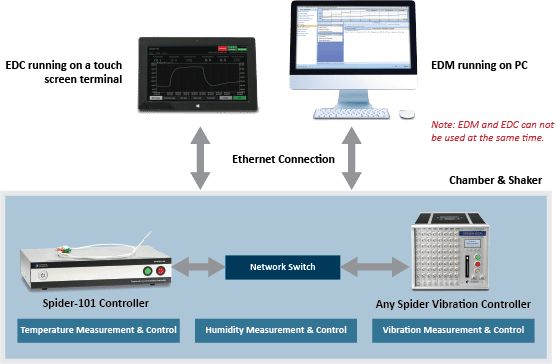

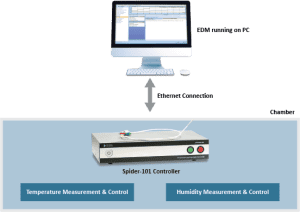

SPIDER-101 TH CONTROLLER COMBINES WITH ANY CRYSTAL INSTRUMENTS VIBRATION CONTROLLER

Ethernet connections makes system integration easier.

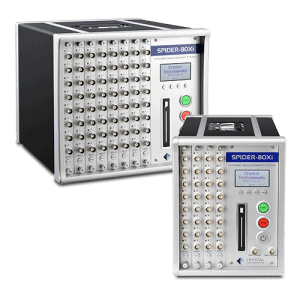

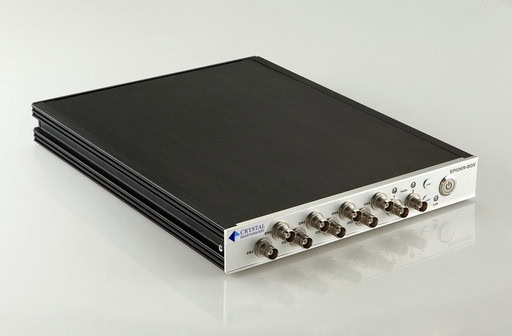

Spider-80X
Modular DAQ/DSA/VCS

Spider-80SG
Modular DAQ/DSA/VCS

Spider-80Xi
Modular DAQ/DSA/VCS

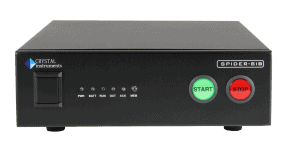

Spider-81
Premium Vibration Controller

Spider-81
Premium Vibration Controller

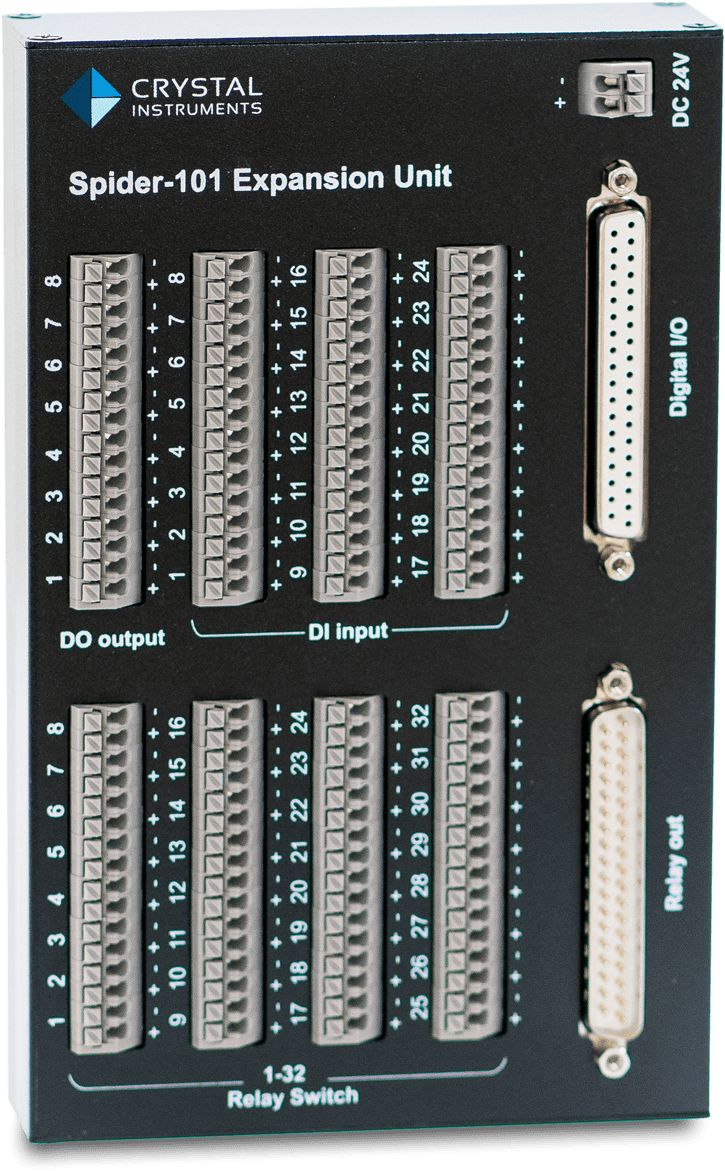

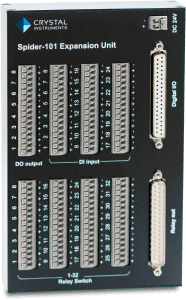

Spider-101 Expansion Unit

All vibration control functions are available with a combined Spider-101 and Crystal Instruments Controller system:

• RandomMulti-Resolution Control
  • Kurtosis Control
  • Random on Random
  • Sine on Random
• MSC, Multi-Shaker Control
• Sine (Swept/Dwell)
  • Total Harmonic Distortion (THD)
  • Phase Track Dwell
  • Resonance Search and Tracked Dwell (RSTD)
  • Multi-Sine
  • Step Sine, Sine Oscillator

• Classic Shock
• Transient Time History Control (TTH).
• Shock Response Spectrum (SRS)
• Earthquake testing
• Time Waveform Replication (TWR)

Software Designed for Combined Environmental Testing

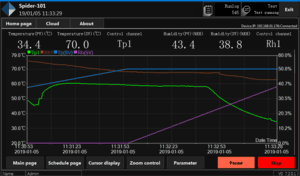

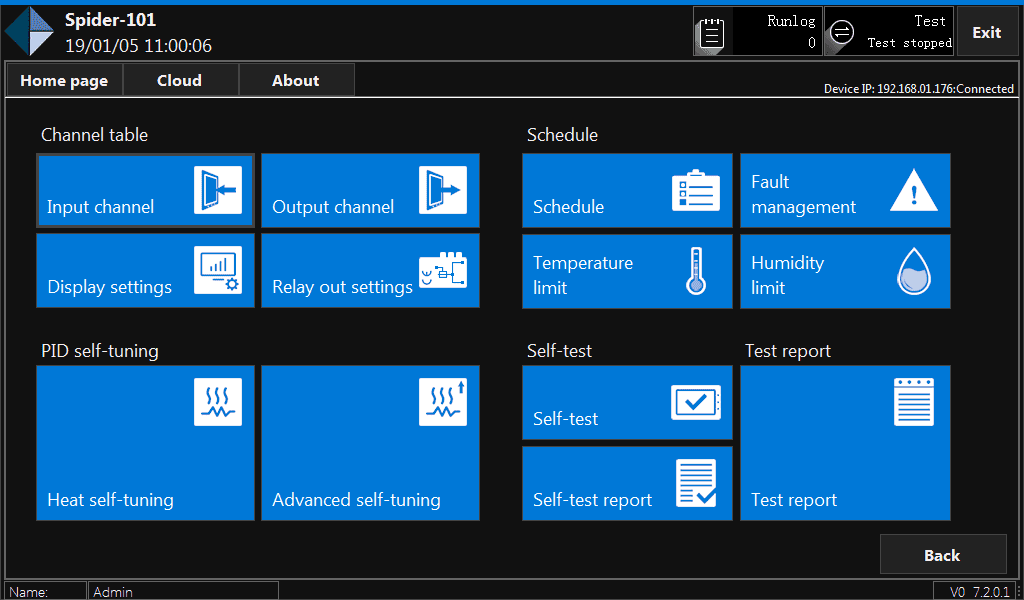

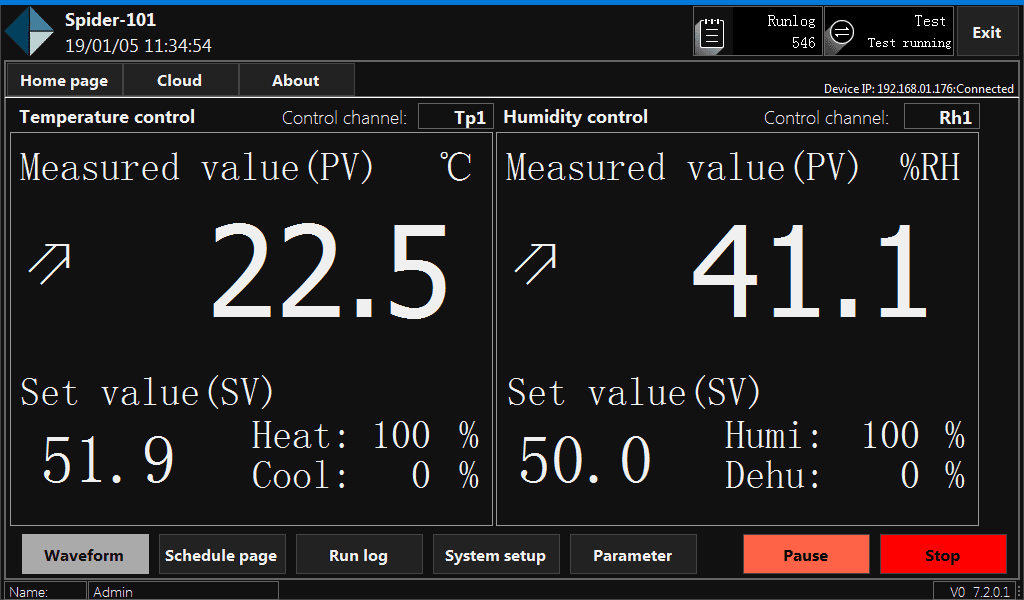

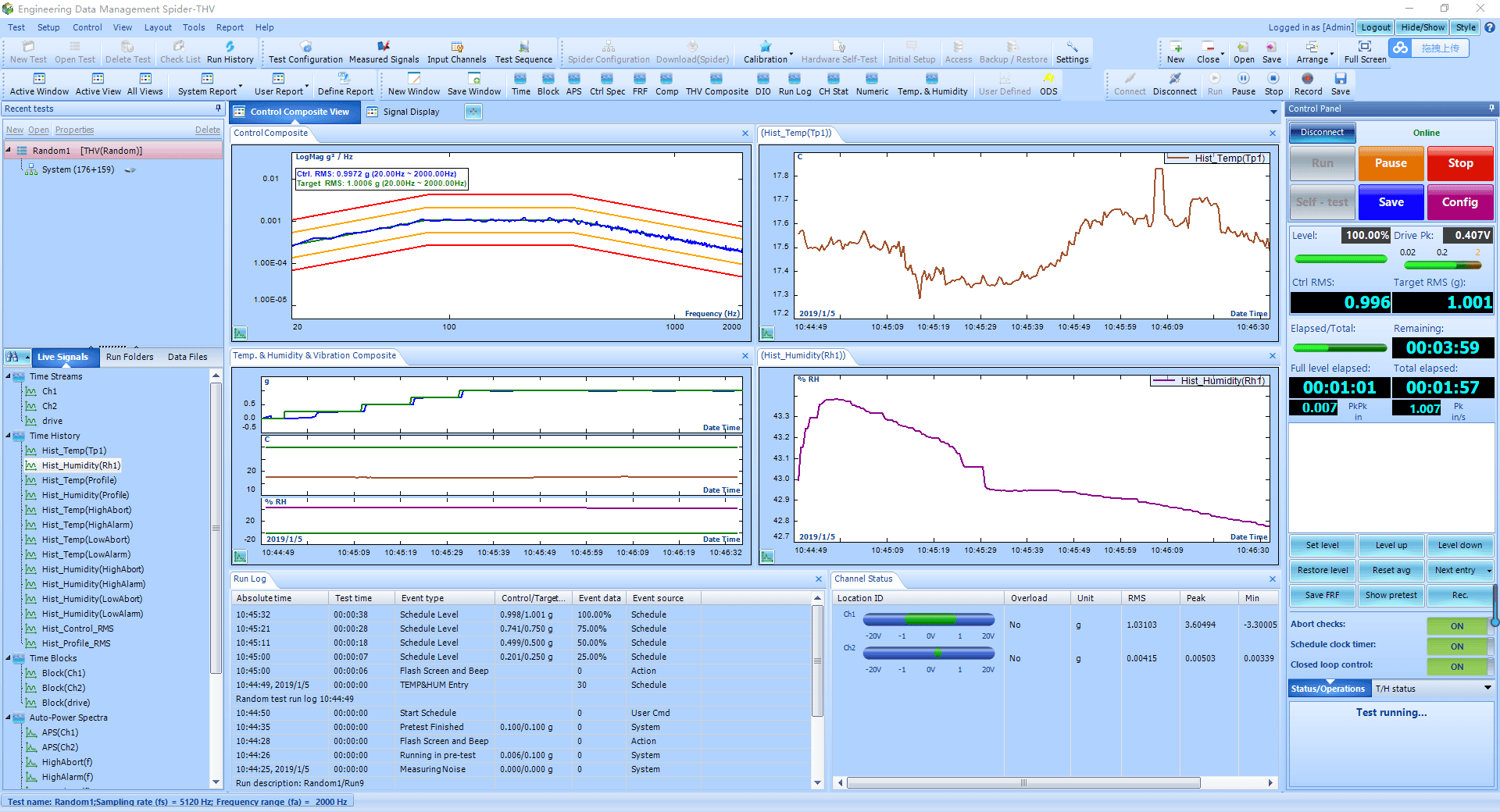

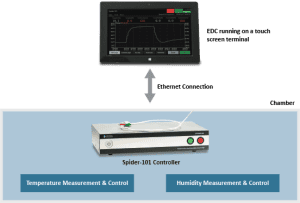

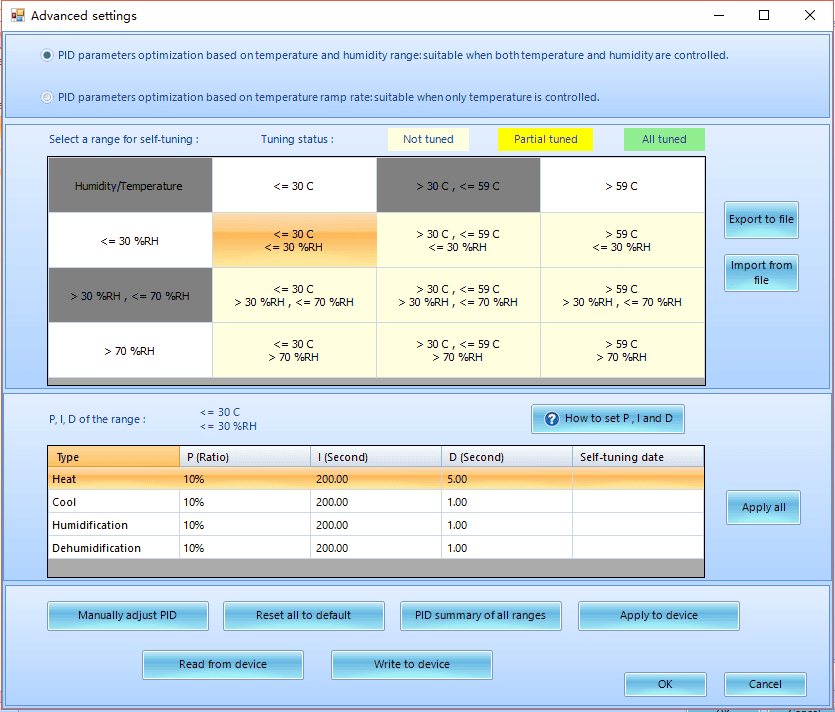

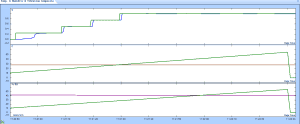

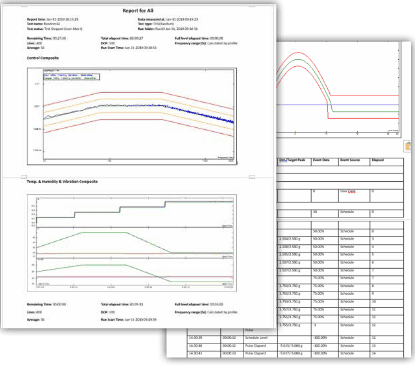

EDC (Embedded Device Controller) and EDM THV are two software modules specifically designed for the Spider-101 to perform Temperature/Humidity (TH) or Temperature, Humidity, and Vibration (THV) control tests. EDC is a lightweight Windows application with an interface designed for touchscreen use. It runs smoothly on both Intel-based and ARM-based Windows 10 tablets, which can serve as wireless touchscreen terminals that users can mount to the testing chamber.

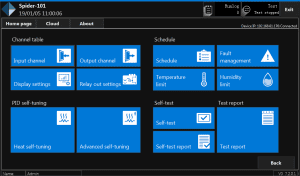

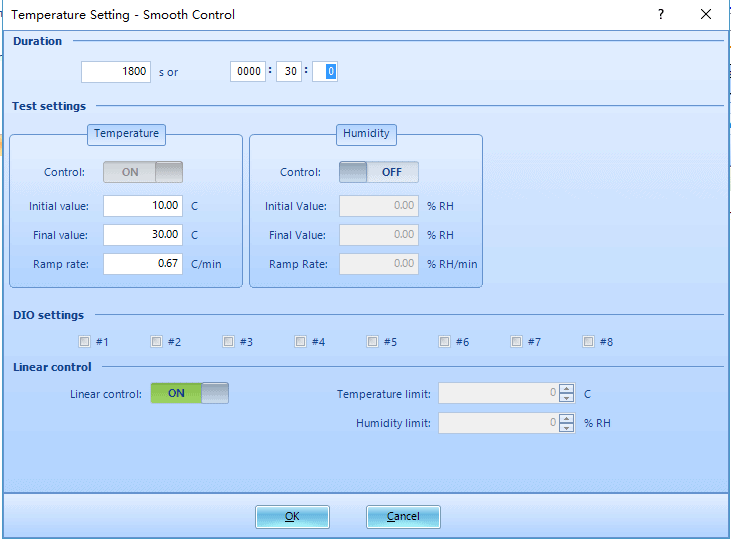

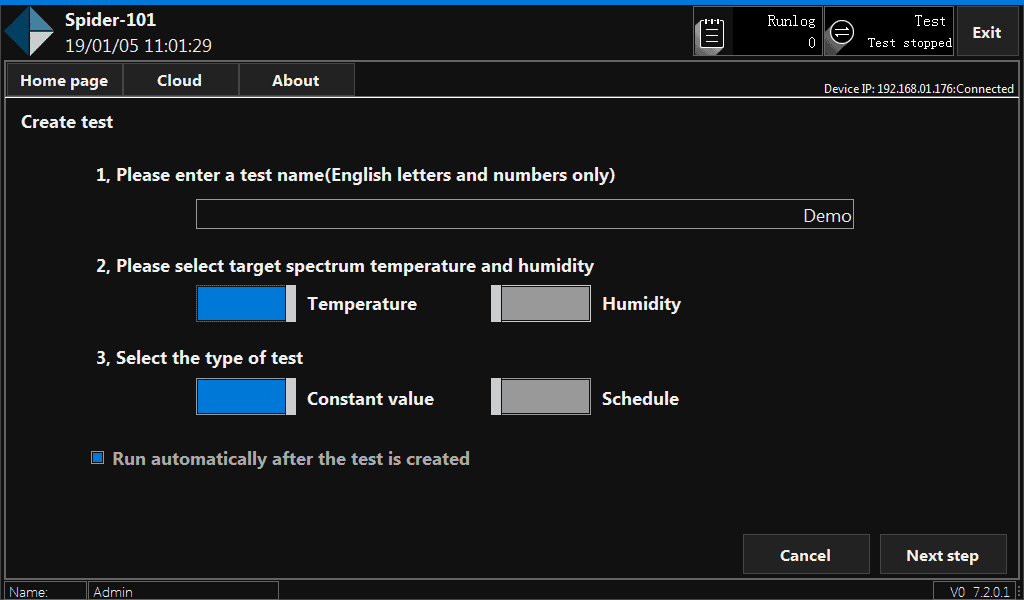

In addition, there is a wide selection of Windows tablets offered in the market that fulfill various requirements (such as the IP6X tablet). The Spider-101 controller runs on EDC software to conduct TH testing (without vibration) in independent climate chambers. Users can configure a test, operate a test, review test logs and review signals from the EDC interface.

Software Features

• Random

  • Multi-Resolution Control

  • Kurtosis Control

  • Random on Random

  • Sine on Random

• MSC, Multi-Shaker Control

• Sine (Swept/Dwell)

  • Total Harmonic Distortion (THD)

  • Phase Track Dwell

  • Resonance Search and Tracked Dwell (RSTD)

  • Multi-Sine

  • Step Sine, Sine Oscillator

• Classic Shock

• Transient Time History Control (TTH).

• Shock Response Spectrum (SRS)

• Earthquake Testing

• Time Waveform Replication (TWR)
