Prisms
Product Overview

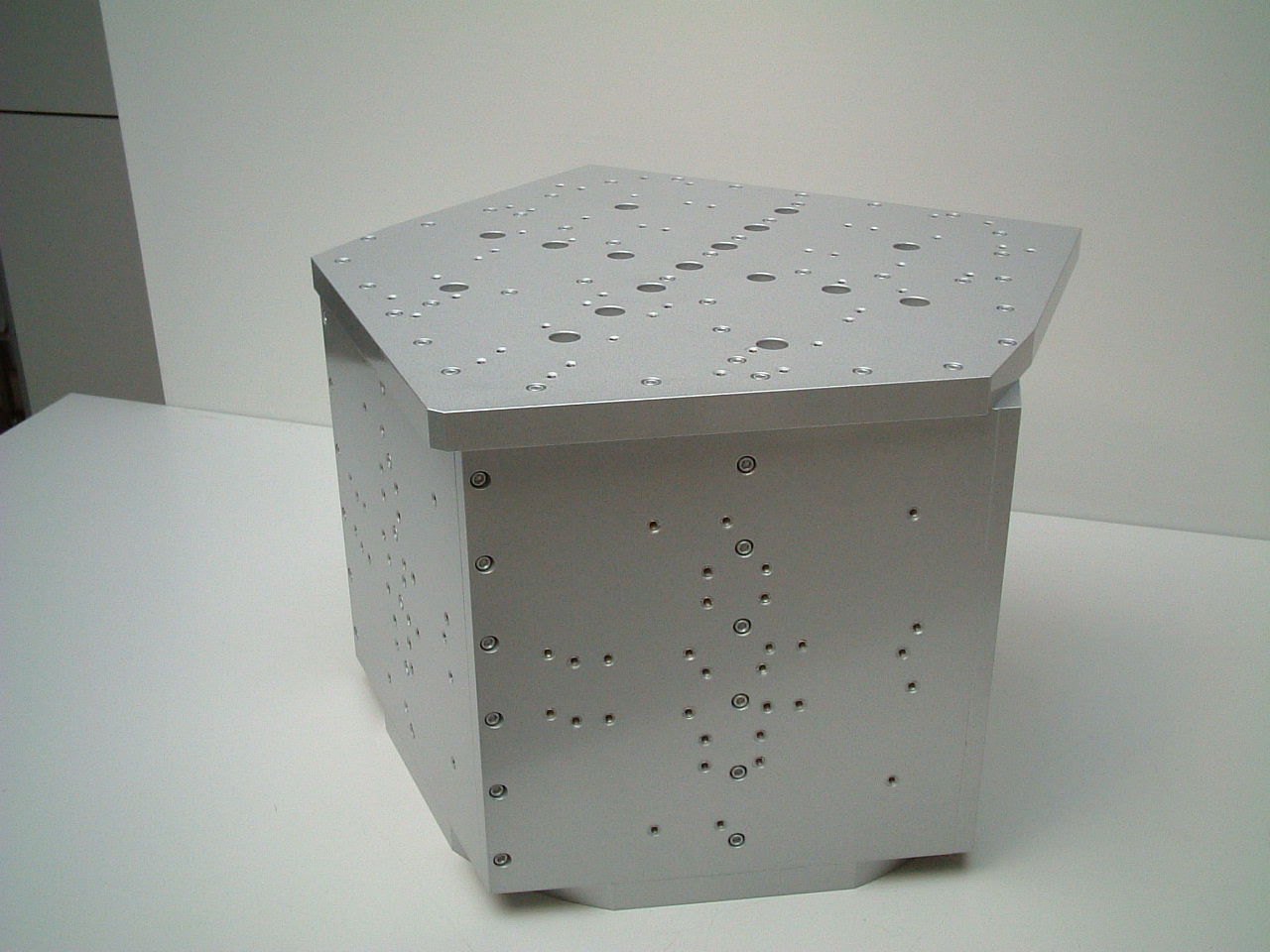

Prisms, manufactured by Centrotecnica, could be considered as a substitute to a Slip Table for Vibration Test Systems.
The Prism has two opposite faces with the same insert patterns, which can be used to perform the in-plane (horizontal) axis while the out-of-plane (vertical) axis has to be performed fixing the items directly on the shaker armature or on an expander.
Markets
Key Features
- Light-weight structure
- Two opposite faces to be used together
- High resonance frequencies if the loads on the two faces are well balanced
Configuration

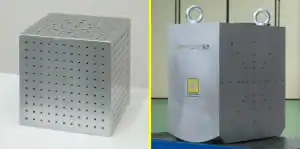

Prisms are available Casted or Machined.
Casted Prisms feature several standard patterns and are cast in Aluminium or Magnesium alloy. Larger Prisms are Casted.
Machined Prisms are smaller and can be machined from solid aluminium or magnesium alloy.
Options
- Cast
- Machined
- Aluminium
- Magnesium Alloy
Interface plates: for adapting fixtures to the drilling template of shakers, slip tables and expanders. Our LAB has many plates that are available to customers to make the necessary drilling templates for their fixture
