TSR Control Software

Product Overview

DTS has designed and engineered a complete line of software exclusively for DTS data acquisition systems. All software is developed with intuitive user interfaces, flexible features and maximum efficiency for data collection, viewing and analysis. TSR Control software provides rapid, easy-to-use tools for controlling the TSR shock recorder and viewing the logged events.

The TSR Control Software has been developed with a heavy emphasis on speed and simplicity, whilst providing the tools to configure the recorder, view real-time sensor output and review your time-history data. TSR Control is Windows XP, Vista, or 7 compatible. TSR is a standalone data logger so once it is armed, the PC can be disconnected.

Request a Quote

Windows XP, Vista or 7 Compatible
Synchronised Timestamp
Download select or multiple events
Data Viewer provides simple tools for Zoom, Filtering and FFT

Intuitive	• Intuitive GUI interface for test set-up, control, viewing and data export
	• User-selectable recording time
	• Software enabled power saving features wakes unit from sleep to ready mode
	• System automatically re-arms for another event after previous event recording is complete
Comprehensive	• Programmable level trigger on each axis
	• Real time sensor output
	• Date, time and temperature stamp for each event
Compatible	• SAE filters, zoom, multiple viewing options
	• Head Injury Criteria (HIC) calculations
	• Windows 7/8/10 (32- and 64-bit) compatible

Configuration

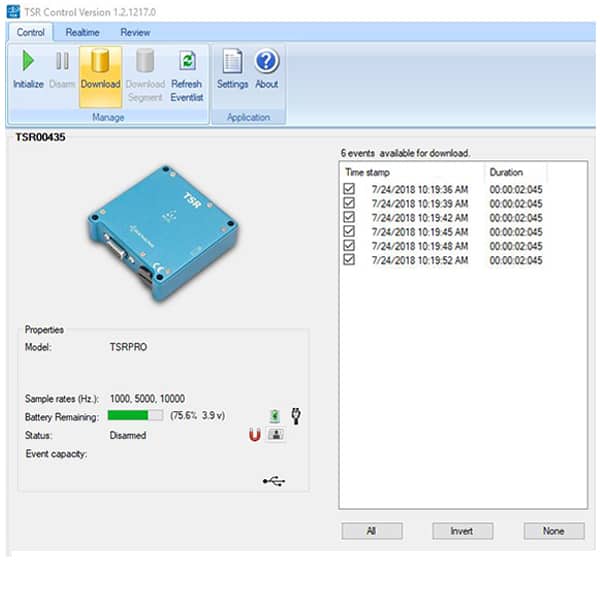

TSR Control allows you to choose the recording time (seconds) and trigger threshold (g) for each axis. Initializing the TSR synchronizes its timestamp with the PC. The TSR will trigger and collect data for the programmed period if the g threshold on any axis is met. The system will automatically re-arm for another event after the previous event recording is complete.

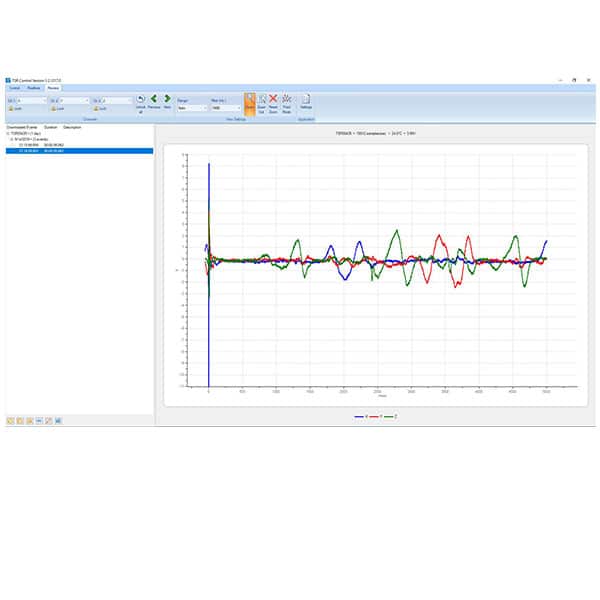

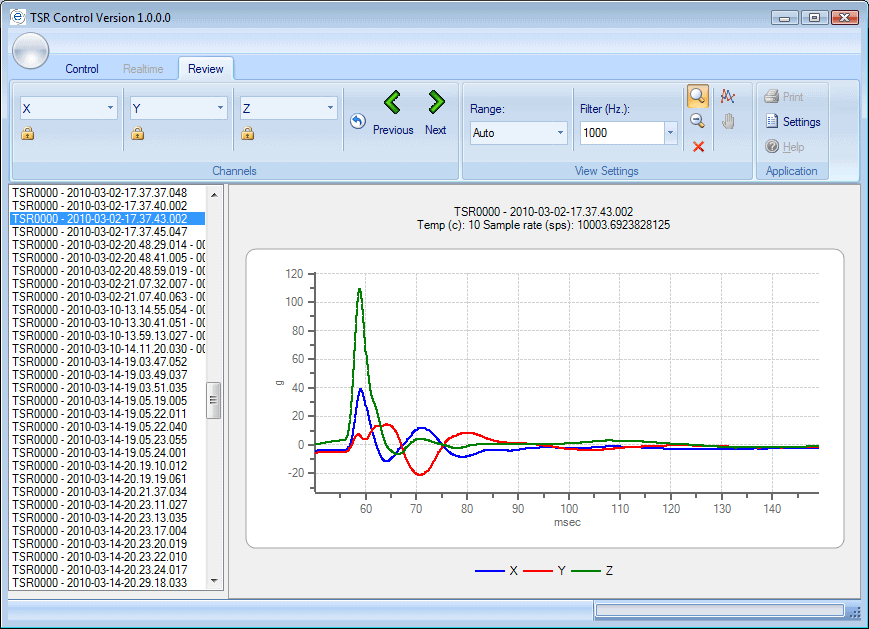

The system allows users to easily download select or multiple events stored in the unit, which can also be viewed real time. TSR Control data viewer provides easy-to-use tools for zoom, filtering and FFT.

TSR Control is the user-friendly set-up, control and viewing software for the entire line of TSR data loggers. An intuitive interface makes it easy to configure the recorder, view real-time sensor output and review time-history data. Via a PC, users can set the record time (seconds), trigger threshold (g) per axis, and download individual or multiple events stored in flash memory. TSR Control also includes tools for zoom, filtering and Head Injury Criteria (HIC) calculations.
