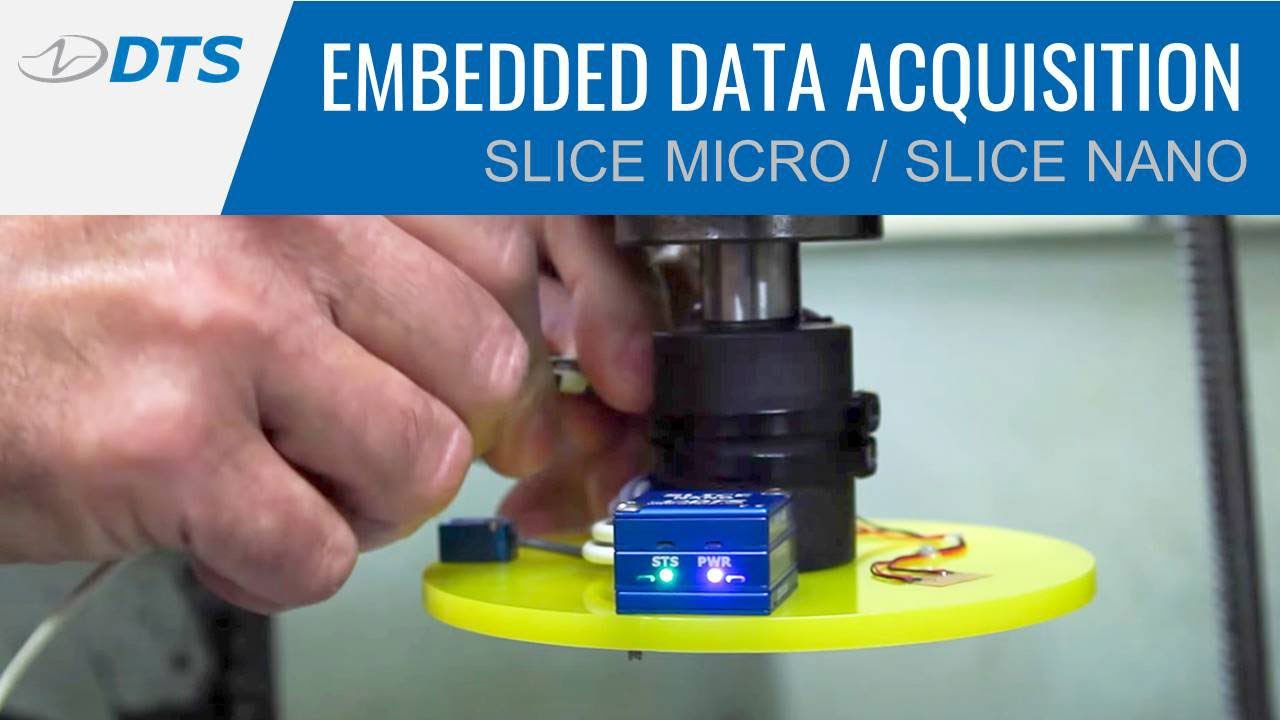

SLICE is a modular data acquisition system manufactured by DTS (Diversified Technical Systems). The Ultra-Small SLICE miniature Data Recorders feature unmatched flexibility, technology and reliability

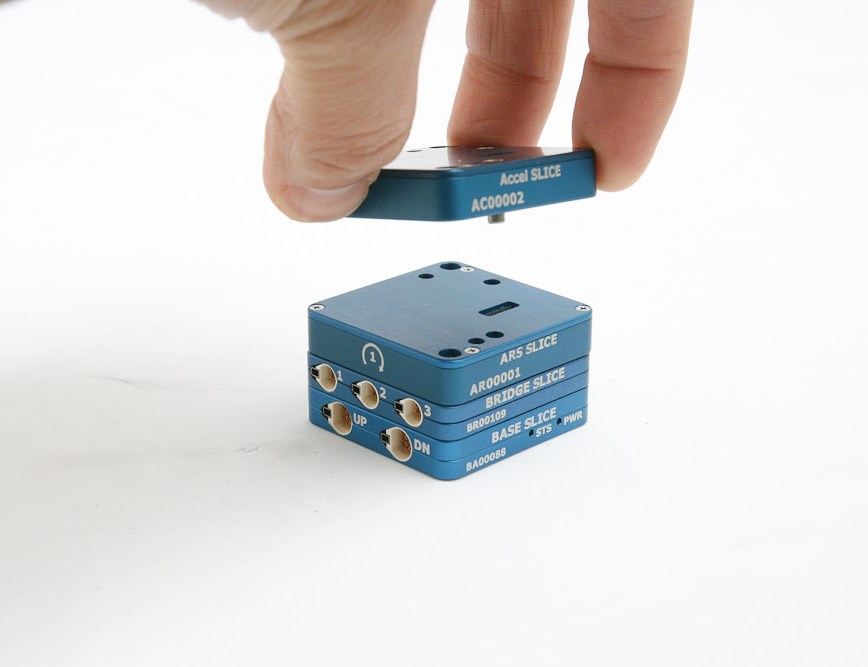

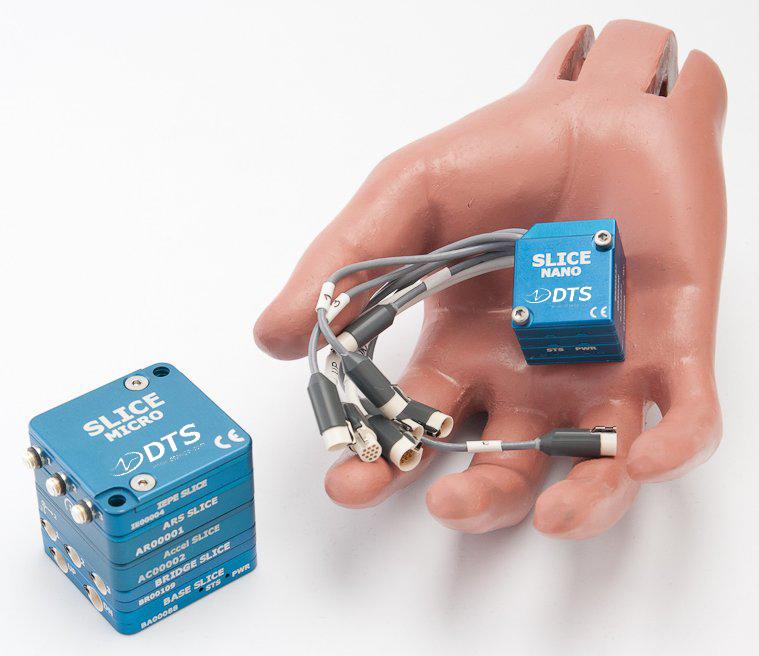

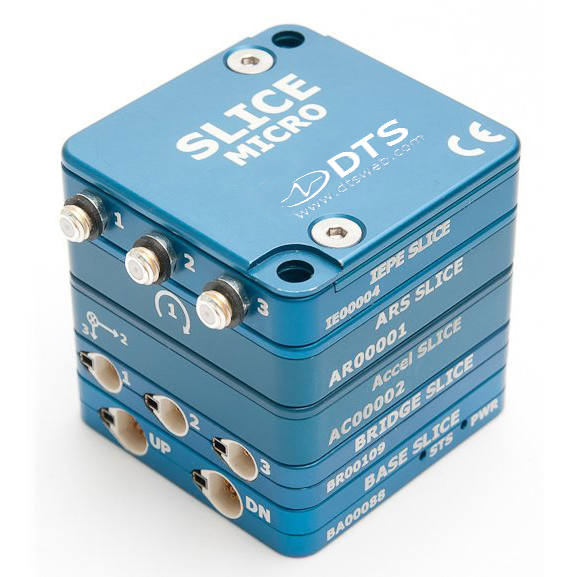

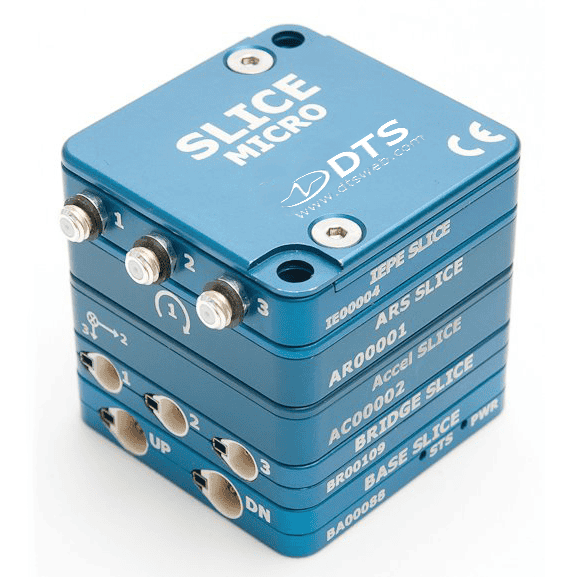

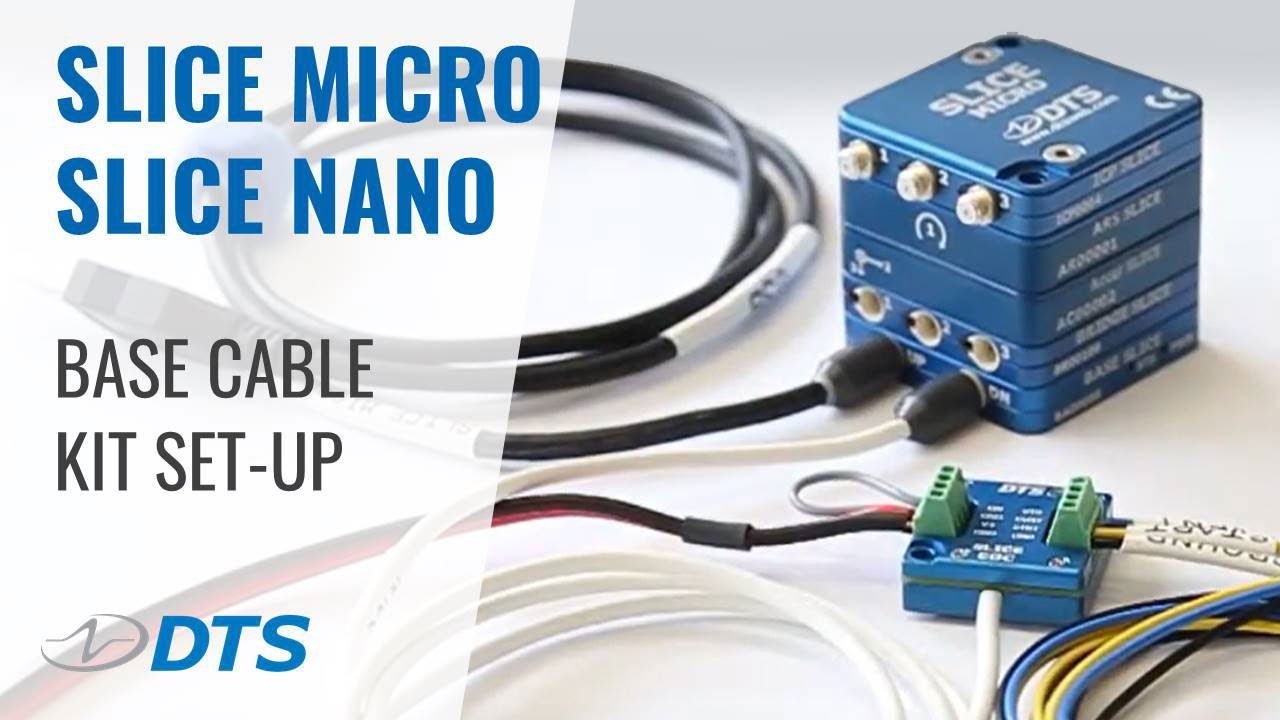

SLICE is available in two form factors, SLICE MICRO & SLICE NANO. Both models are ideal for a variety of critical test & measurement applications and allow for custom configurations. The foundation of the system is the BASE SLICE that contains the microprocessor, memory and all of the control circuits for managing multiple 3-channel SLICEs that can be stacked in different channel count and sensor input configurations. A simple interface provides power, trigger and communication signals for chaining multiple SLICE stacks and connecting to your PC.


SLICEWare is the Control Software that allows for set-up and provides fast, easy-to-use tools for storing sensor information and performing data collection for analysis later.

Advanced features such as automatic sensor assignment, detailed channel diagnostics, and real-time data display support successful, consistent testing and high-quality data every single time.

Learn More

Key Features

  • Modular: SLICE modules can be stacked and daisy-chained to create the exact feature and channel combination needed. Add up to 24 channels per stack and up to thousands of channels per test.
  • Intuitive, easy-to-use software
  • Lightweight & extremely small
  • Samples up to 120 ksps/channel
  • 7 GB non-volatile flash memory
  • Supports a variety of external sensor types: bridge (including MEMS, strain, load), IEPE, voltage, etc.
  • Capable of measuring parameters such as force, acceleration, strain, displacement, temperature, etc.
  • SLICE MICRO can also be configured with built-in triaxial sensor modules for acceleration, angular rate, or external IEPE (piezo-electric) sensors
  • Meets NHTSA, FAA, ISO 6487 and SAE J211
