SLICE6 AIR-BR

DTS Software, Miniature Data Acquisition Systems

Product Overview

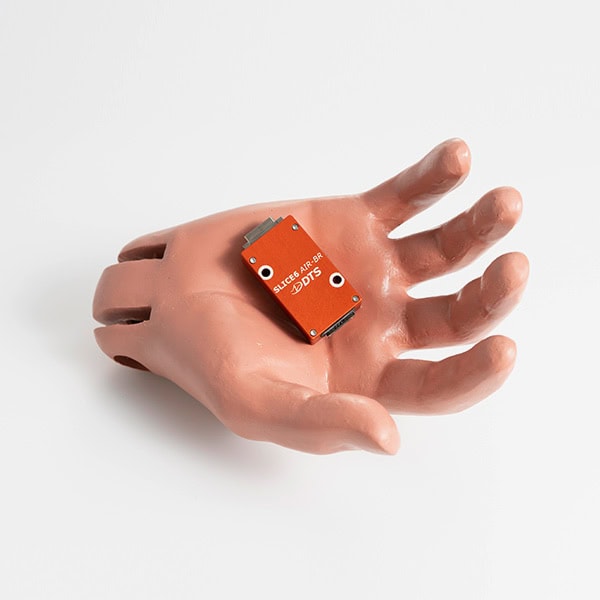

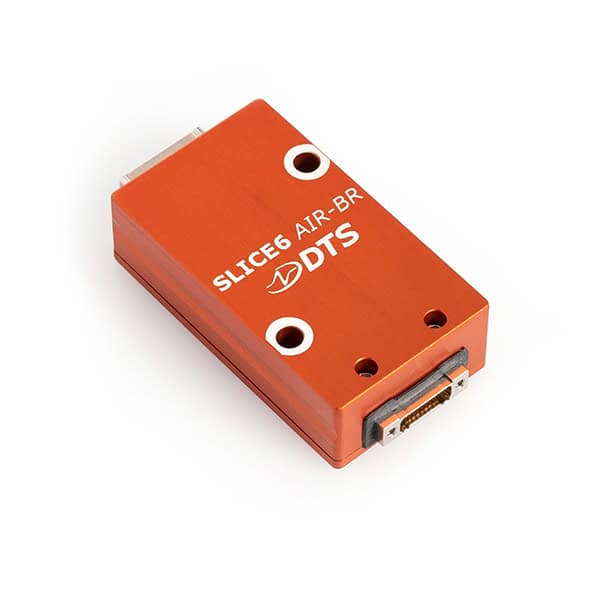

The SLICE6 AIR-BR is an ultra-small, ultra-reliable 6-channel data acquisition unit (DAU) from DTS, built for strain-based measurements in demanding onboard test environments. At just 24 x 49 x 12.5 mm and 25 grams, it mounts directly on the test article close to the sensors, giving precise measurements with minimal cabling and access to hard-to-reach locations.

The SLICE6 AIR-BR supports bridge, MEMS, voltage, thermocouple and RTD sensors (not IEPE), and runs standalone or networked, integrating into Ethernet-based flight test instrumentation including the wider SLICE6 AIR family. Real-time streaming in IRIG 106 formats runs alongside store-in-place recording, giving live monitoring and a redundant onboard backup. Typical applications include flight testing, rotors, parachute deployment, UAS and counter-UAS, launch vehicles and munitions.

Markets

Aerospace, Defence

Request a Quote

Product Resources

SLICE6 AIR DAS User Manual

Manual

SLICE6 AIR Interface Device Use and Operation

Manual

SLICE6 AIR-BR Datasheet

Data Sheet

SLICE6 AIR-BR Application Diagrams

Brochure

SPECIFICATIONS

Physical	24 x 49 x 12.5 mm, 25 grams
Channels	6 channel module; standalone DAU, networked (up to 10 modules, 60 channels) or integrated into existing FTI
Sensor Support	Bridge, MEMS, voltage, thermocouple and RTD (IEPE not supported)
Sampling	Onboard recording up to 400k sps on all channels; real-time streaming up to 20k sps
Streaming	IRIG 106 Chapter 10, IENA or TmNS
Filtering	Fixed 6-pole Butterworth anti-alias filter (factory set, 1.28 kHz standard); adjustable 6-pole IIR digital filter for streaming
Data Storage	16 GB non-volatile flash; more than 17 hours at 20k sps
Shock & Vibration	500 g, 4 ms half sine; 12 g rms, 3 Hz to 2 kHz
Synchronisation	IEEE 1588 PTPv2 with internal real-time clock; 1PPS input/output
Environmental	-40° to 80°C, IP64, MIL-STD-810G, MIL-STD-461G
Power	9 to 30 VDC; under 3 W with full sensor load
Software Interface Options	DataPRO, API, LabVIEW (display only), IRIG 106 (Ch10, IENA or TmNS)
Calibration	ISO/IEC 17025 accredited, traceable to SI

FEATURES

Low SWaP	• Ultra-small 24 x 49 x 12.5 mm, 25 g module
	• Position near sensors, reduces set-up time and eliminates long cable runs
	• Does not alter test dynamics, even on small test articles
High Performance	• IEEE 1588 compliant Ethernet switch allows PTPv2 daisy-chaining
	• Programmable sampling rates with fixed anti-alias and adjustable digital filters
	• 500 g shock rated for dynamic test environments
Custom Configurable	• Works standalone, networked (up to 60 channels) or integrated into existing FTI systems
	• Onboard recording and real-time streaming at the same time
	• Sensor support: bridge, MEMS, voltage, thermocouple and RTD (IEPE not supported)
Comprehensive Software	• DTS DataPRO set-up, control and data viewing software
	• Advanced test set-up features and diagnostics tools
	• Additional options: API, LabVIEW (display only), IRIG Chapter 10/IENA/TmNS streaming

Options
ACCESSORIES

SLICE6 AIR-BR Test Device Cable Kit

The Test Device connects directly to the SLICE6 AIR-BR system connector to support time synchronisation (1588 PTPv2, IRIG-B, GPS/1PPS) and control onboard recording functions:
• On/off switch
• Start record
• Event/T=0
• Status LED
Kit includes: SLICE6 AIR-BR Test Device and power supply. See the application diagram.

SLICE6 AIR-BR Interface Device Cable Kit

Connects to and configures up to 10 SLICE6 AIR-BR modules for benchtop checkout and verification. The Interface Device supports time synchronisation (1588 PTPv2, IRIG-B, GPS/1PPS) and controls onboard recording functions:
• On/off switch
• Start record
• Event/T=0
• Status LED
Kit includes: SLICE6 AIR-BR Interface Device, Chain Module, S6A Chain Extension Cable, Ethernet Return Plug, Ethernet Cable, Serial Input Connector and power supply. See the application diagram.

Applications

• Flight testing
• Rotors
• Parachute deployment
• UAS and counter-UAS
• Launch vehicles
• Munitions
Software
SLICE6 AIR-BR configuration software options:

DTS DataPRO Software: Complete Windows application with sensor database, diagnostics, streaming mode configuration, arming, downloading and data viewing.

API: Application Programming Interface (API) for user-developed application support

LabVIEW (display only): NI LabVIEW driver for real-time data visualisation

IRIG Chapter 10/IENA/TmNS Streaming: Requires 3rd party IRIG 106 compliant software for real-time data visualisation
