ARS PRO & ARS HG

ARS PRO & ARS HG

Product Overview

World’s smallest, ultra-high shock tolerant uniaxis ARS (angular rate sensors). The ARS PRO and ARS HG are designed to measure high rates of angular velocity in dynamic testing environments.

Request a Quote

Product Resources

ARS PRO & ARS HG

Data Sheet

Physical	ARS PRO 7.6 x 10.2 x 14.6 mm, 2.2 g ARS HG 7.6 x 16.5 x 14.6 mm, 2.5 g
Features	Single axis, rugged aluminum enclosure
Range	Range Options: ±300, ±1500, ±8000, ±18000, ±50000 degrees/second
Bandwidth	Multiple bandwidth options
Excitation	4.9-14.0 VDC
Current	4 mA nominal
Shock Rating	10000 g
Environmental	-40°C to 80°C, IP67
Performance	Meets SAE J211, ISO 6487, NHTSA & FAA data acquisition requirements

High Performance	• Ultra-small, low mass, uniaxis sensor
	• High shock tolerant
	• Ideal for high rate measurements
Versatile	• Multiple range and bandwidth options
	• Optional Dallas ID and user-specified connector
	• Easily converts to a triaxial or six degrees of freedom sensor solution

Options

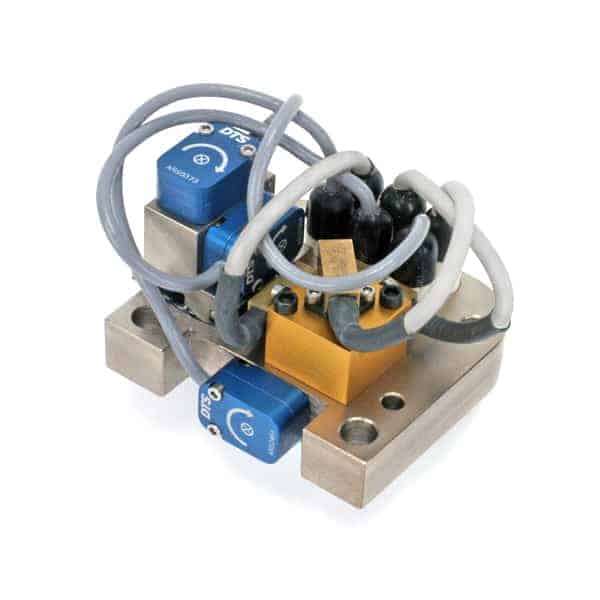

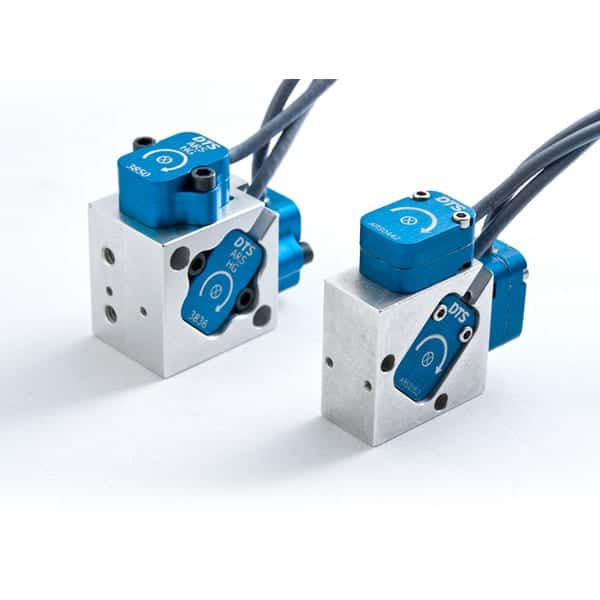

Triax Mounting Blocks

Aluminum mounting blocks make it easy to create a triaxial solution. Additional mounting holes support three Endevco 7264 or MSI 64 accelerometers to create a complete six degrees of freedom package. Two options: ARS PRO Block 21.6 x 21.6 x 10.9 mm (9.9 grams) or the ARS HG Block 21.6 x 21.6 x 16.8 mm (15.2 grams).
