Product Overview

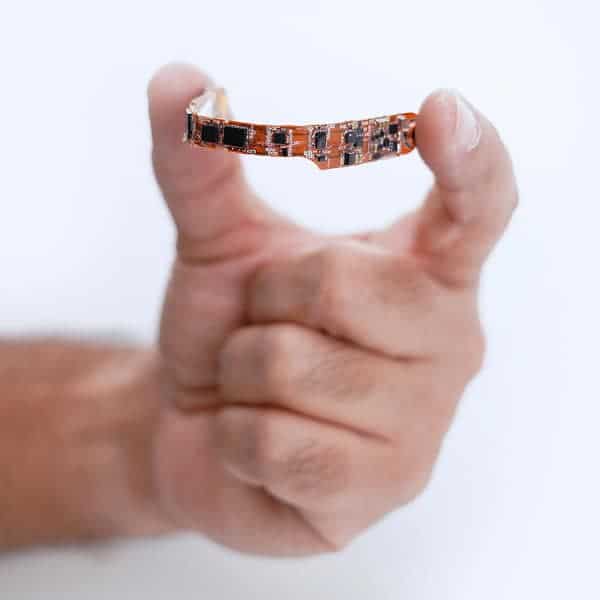

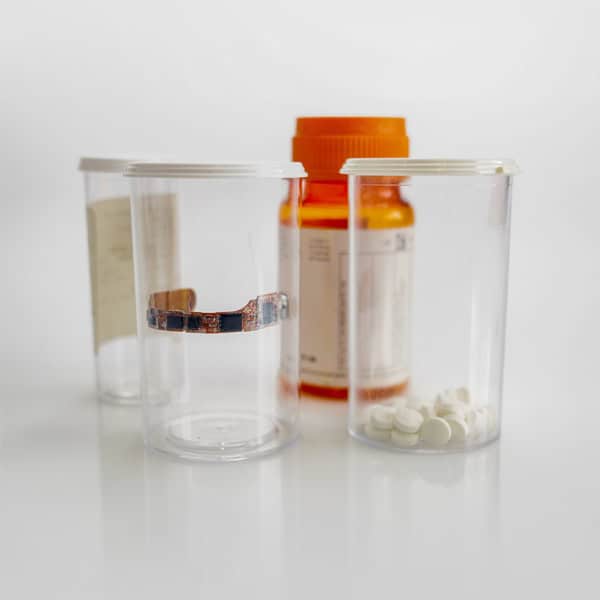

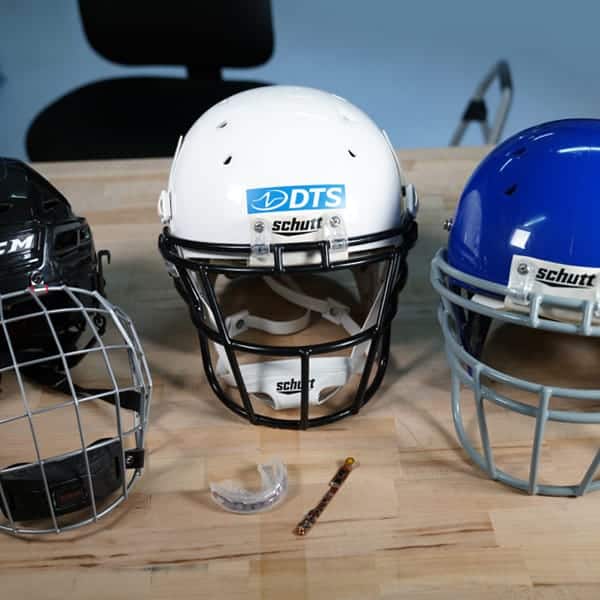

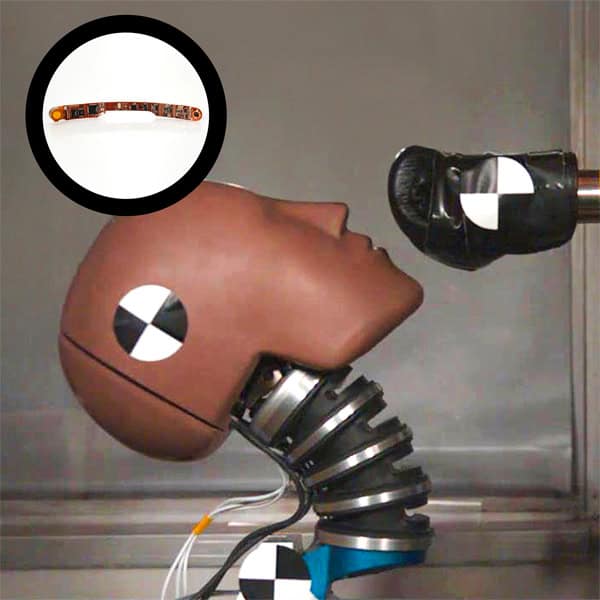

The DDR is ultra-small, ultra-low power 6DOF data logger with built-in sensors, memory and Bluetooth communication. The flexible DDR circuit is the World’s smallest 6DOF data logger and can be embedded in helmets & mouth guards for injury biomechanics safety testing or pill bottles for transit testing.

Request a Quote

Product Resources

DDR Comparison Chart

Manual

DDR DATASHEET

Data Sheet

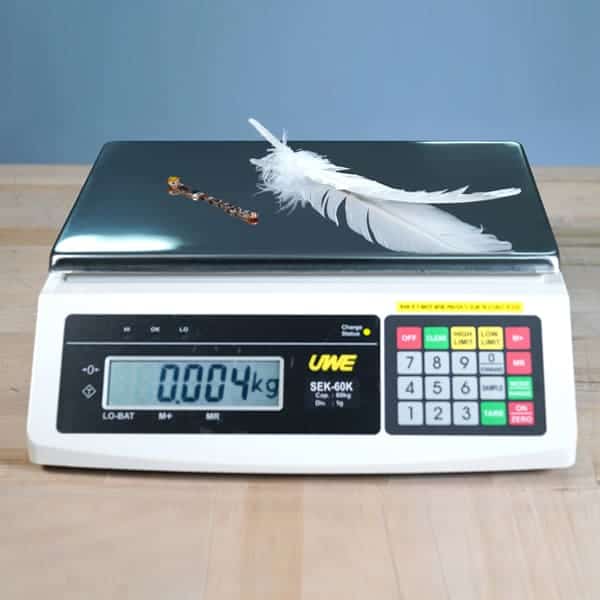

Physical	100 x 9 x 4.5 mm, 2.5 g
Features	Ultra-lightweight & low power, flexible circuit, inductive rechargeable battery
Sampling	100 to 5500 samples per second/channel
Channels	6 channels: 3-axis linear accelerometer, 3-axis angular accelerometer
Shock Rating	10000 g operating/survivable
Data Storage	8 Mb non-volatile: 100000 samples/channel
Communication	Bluetooth 4.0 to USB adapter
Environmental	-20°C to 60°C, IP67
Software	DDR Control
Performance	Meets SAE J211, ISO 6487 data acquisition requirements

Easy to Use	• Microprocessor, power, signal conditioning, flash memory
	• Complete solution, includes data recorder and built-in sensors
	• Bluetooth communication, wireless inductive charging
	• Flex circuit can be laid flat or curved around or in test article
High Performance	• Non-volatile data memory; 100,000 samples per channel
	• Logs time, temperature and date per event
	• High shock resistant
Configurable	• Programmable level trigger on each axis, automatically re-arms
	• User configurable sampling rate and anti-alias filter
	• Programmable event duration with pre-trigger data buffer
Simple Software	• Simple set-up, control and data viewing
	• SAE filters, view multiple channels/test
	• Multiple data export options
