DTS ARS PRO & ARS HG Angular Rate Sensors

Product Overview

This product is designed for use with the DTS Software.

World’s smallest, ultra-high shock tolerant uniaxis ARS (angular rate sensors). The ARS PRO and ARS HG are designed to measure high rates of angular velocity in dynamic testing environments.

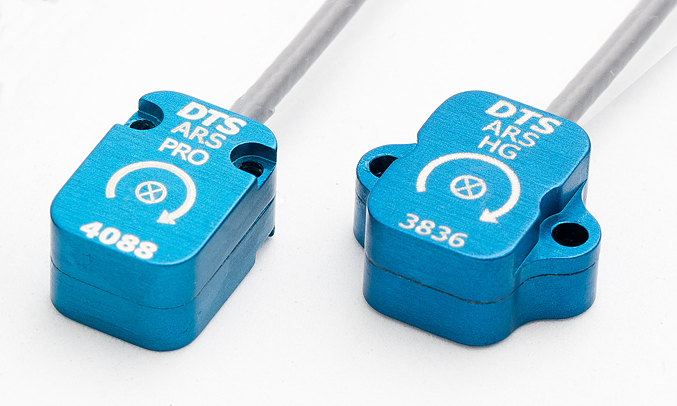

The DTS ARS PRO and ARS HG are High Performance Angular Rate Sensors. They are the highest shock tolerant angular rate sensors currently available. DTS has designed the ARS PRO & ARS HG to measure high rates of angular velocity, the ARS PRO and ARS HG are packaged in rugged aluminium enclosures and available in several ranges and various bandwidth options. For extreme high rate applications, the ARS HG offers unparalleled reliability up to ±50K deg/sec and a shock rating up to 10000g.

High linear shock ratings and flexible packaging options make the ARS PRO and ARS HG the sensors of choice for automotive, aerospace, biomechanics and blast testing applications across Europe, Asia, Americas and Worldwide.

Mounting Blocks

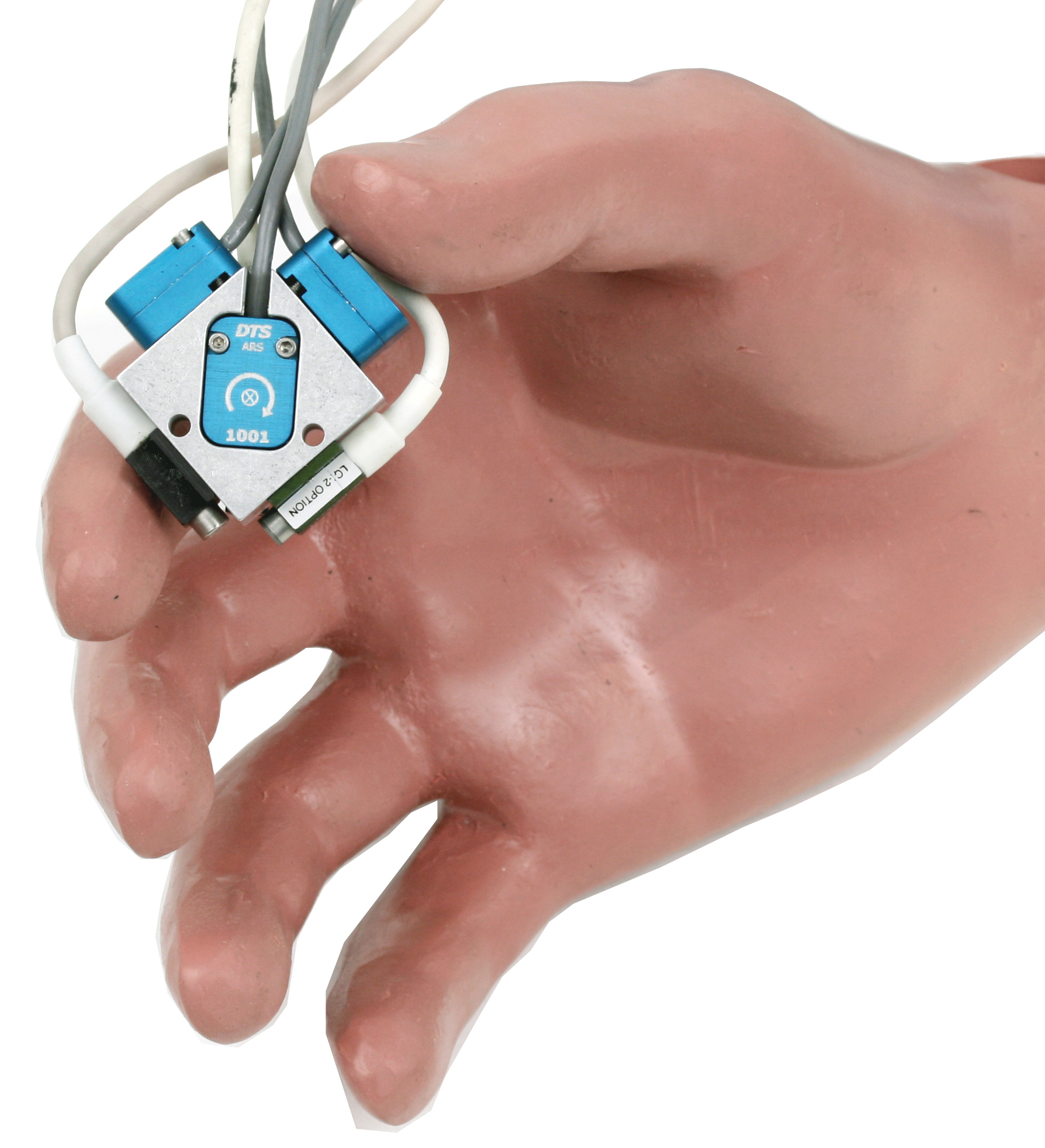

DTS mounting blocks offer an easy triax solution. Add three Endevco 7264 or MSI 64 accelerometers to create a six degrees of freedom package. For smaller requirements we advise to look at the DTS 6DX PRO (19 x 19 x 14.5 mm and 12 grams).

Markets

Blast testing, Impact testing, Pedestrian, Ride & handling, Sports & safety equipment

Request a Quote

Product Resources

DTS ARS PRO & ARS HG

Data Sheet

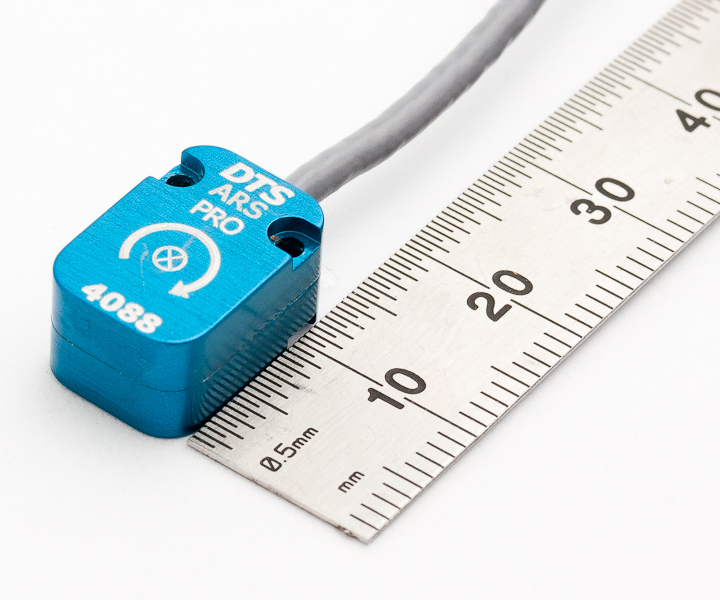

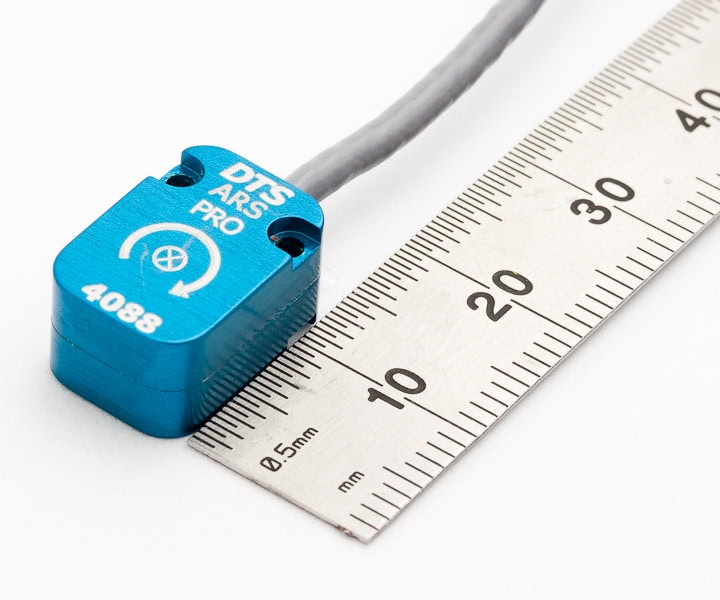

Physical	ARS PRO 7.6 x 10.2 x 14.6 mm, 2.2 g ARS HG 7.6 x 16.5 x 14.6 mm, 2.5 g
Features	Single axis, rugged aluminum enclosure
Range	Range Options: ±300, ±1500, ±8000, ±18000, ±50000 degrees/second
Bandwidth	Multiple bandwidth options
Excitation	4.9-14.0 VDC
Current	4 mA nominal
Shock Rating	10000 g
Environmental	-40°C to 80°C, IP67
Performance	Meets SAE J211, ISO 6487, NHTSA & FAA data acquisition requirements

High Performance	• Ultra-small, low mass, uniaxis sensor
	• High shock tolerant
	• Ideal for high rate measurements
Versatile	• Multiple range and bandwidth options
	• Optional Dallas ID and user-specified connector
	• Easily converts to a triaxial or six degrees of freedom sensor solution

Options

Triax Mounting Blocks

Aluminum mounting blocks make it easy to create a triaxial solution. Additional mounting holes support three Endevco 7264 or MSI 64 accelerometers to create a complete six degrees of freedom package. Two options: ARS PRO Block 21.6 x 21.6 x 10.9 mm (9.9 grams) or the ARS HG Block 21.6 x 21.6 x 16.8 mm (15.2 grams).
