IN-DUMMY DAS SOLUTIONS

Product Overview

Moving from offboard DAS to a DTS in-dummy DAS solution offers many benefits for testing with any anthropomorphic test device (ATD), crash test dummy, or test manikin. DTS in-dummy DAS systems are used for a variety of product development, safety testing, and injury biomechanics research. As a leader in the industry, DTS developed the first in-dummy data acquisition solution for a regulation crash test dummy.

DTS is a leading provider of in-dummy DAS solutions around the world. Our miniature SLICE6 data acquisition system is designed specifically for in-dummy testing and anthropomorphic test devices. DTS data acquisition solutions support the full family of ATDs including frontal impact, side impact, rear impact, underbody blast, child, in addition to pedestrian headforms and legforms. From new ATD builds to retrofitting an entire fleet of crash test dummies, upgrading to in-dummy DAS provides a wide range of benefits, including a significant reduction in test setup time and improved data quality.

Models

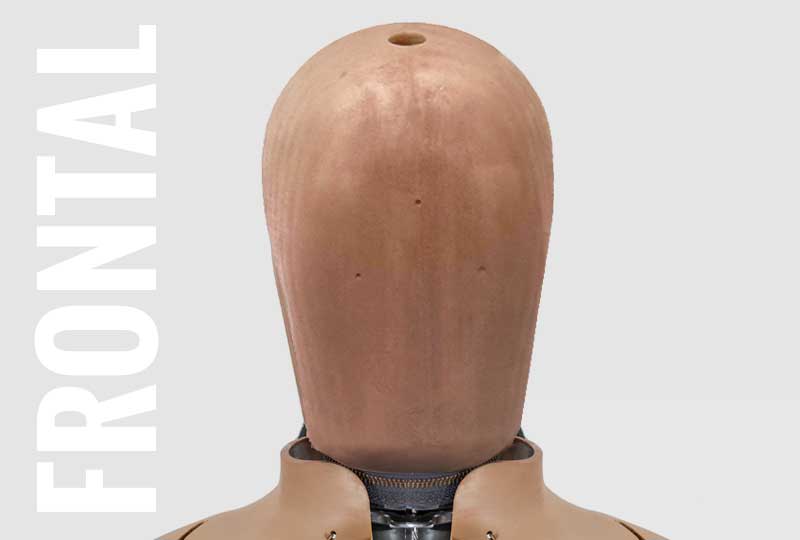

Frontal Impact ATDs - SLICE6 integrated DAS solutions for THOR and Hybrid III

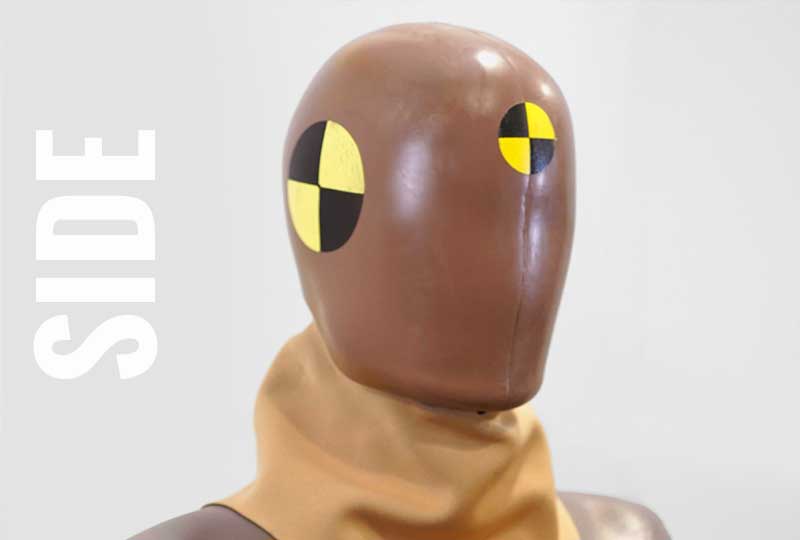

Side Impact ATDs - In-dummy DAS solutions for WorldSID, SID-IIs and ES-2
Autonomous Vehicle ATDs SLICE6 - in-dummy DAS solutions for THOR-AV
Vertical Load ATD SLICE6 - integrated solutions for U.S Army WIAMan blast manikin
Child ATDs Ultra-compact SLICE6 - solutions for the complete Q-Series and H3
Rear Impact ATDs SLICE6 - in-dummy Data Acquisition Solutions for BioRID-II

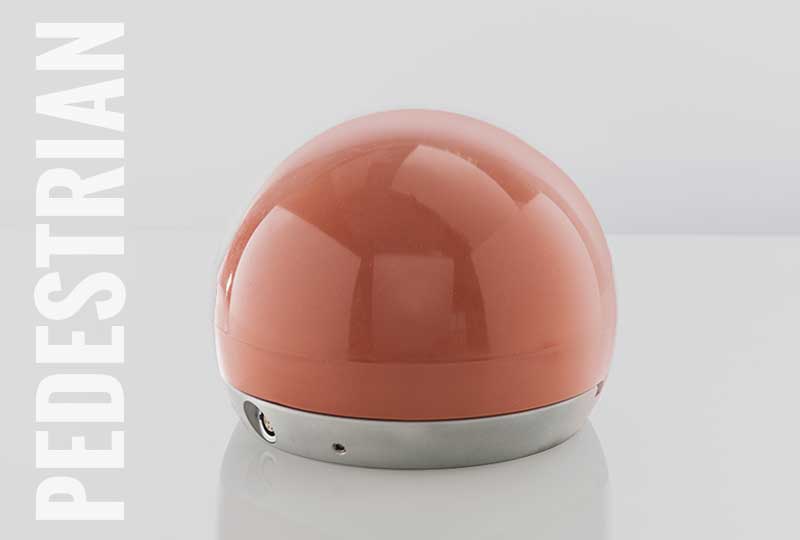

Pedestrian Safety - Embedded DAQ & sensors for headforms, aPLI & FLEX legforms

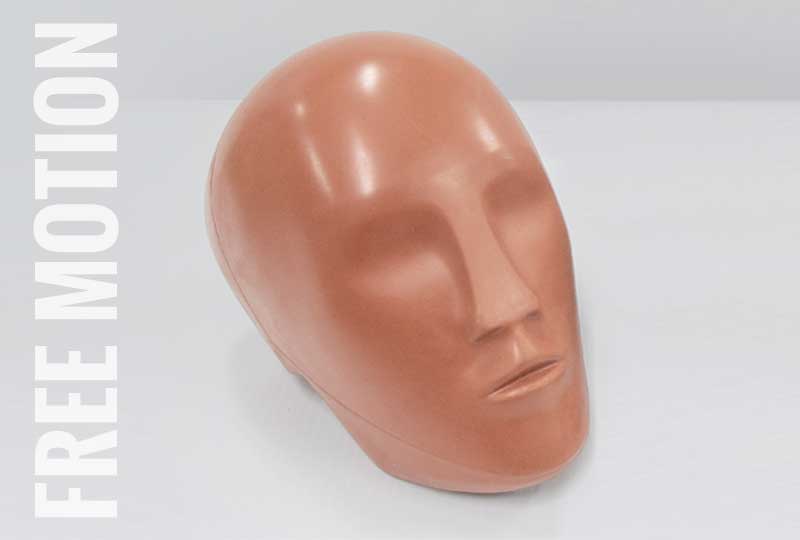

Free Motion Headform - Embedded DAQ & sensor solutions for headform testing

Request a Quote

Product Resources

Crash Battery

Data Sheet

SLICE6 ATD INTEGRATION KITS

Brochure

Technical Specifications

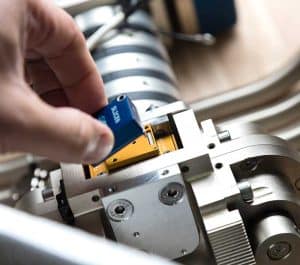

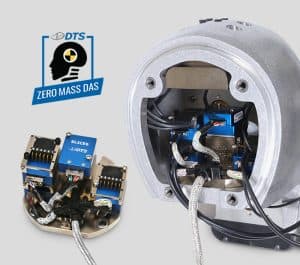

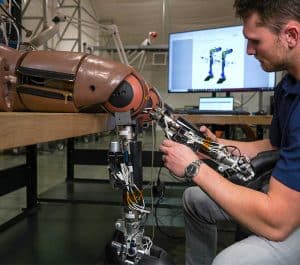

The Leader in Integrated In-Dummy DAS

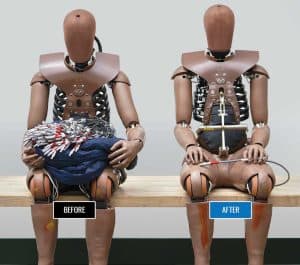

1 .BENEFIT: Minimizes Cabling & Connectors

Embedding the DAS reduces in-dummy cabling by up to 75%, eliminating the mass and noise caused by long sensor cables. A single exit cable replaces the mass of bulky trailing umbilical cables that can affect dummy positioning and target weight. Embedded DAS also minimizes the potential points of failure created by all the cables and connectors inherent in offboard DAS.

2. BENEFIT: Reduces Test Setup Time

Embedding the DAS inside the ATD means less prep time which helps keep test schedules on time and on track. Fewer cables increases data reliability and helps maintain proper dummy mass and center of gravity (CoG). SLICE6 DAS features built-in triaxial tilt sensor for easier dummy positioning, plus temperature logging.

3. BENEFIT: Improves Data Quality

Eliminating connectors and trailing cables that can alter test dynamics means fewer issues and less noise for improved data quality. DTS SLICE6 Integration Kits can be customized to support your specific test requirements including Euro NCAP, US NCAP & Global NCAP configurations. DTS DataPRO software features an intuitive user interface to create, control, and manage, every aspect of a test.

SLICE6 Integration Kits Available for Full Line of ATDs

From new ATDs or retrofits, DTS offers customized SLICE6 ATD Integration Kits for the complete family of anthropomorphic test devices (ATDs) and pedestrian safety testing forms.

SLICE6 ATD INTEGRATION KITS AVAILABLE FOR:

THOR 5th/50th

Hybrid III 5th/50th/95th

WorldSID 5th/50th / SID-IIs / ES-2

WIAMan

Q6, Q10, H3-6, H3-10

BioRID2

aPLI/FLEX PLI Legforms

Pedestrian Headforms

Free Motion Headforms

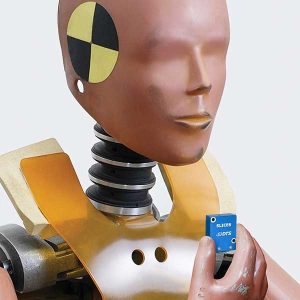

FRONTAL IMPACT ATD IN-DUMMY DAS RESOURCES

Front Impact ATD Embedded DAS	• In-dummy DAS for Frontal Impact ATDs
	• Complete turn-key integration solution for front impact manikins
	• Ultra-compact integration reduces cabling and connectors by up to 75%
High Performance	• Data writes to non-volatile flash memory
	• High-shock rated
	• Variable, customizable sampling rates
Custom Configurable	• Configurable channel counts
	• IEEE 1588 Ethernet switch allows PTPv2 daisy-chaining

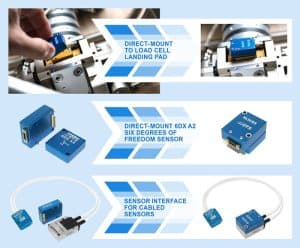

	• Cable-free, direct-mount sensor options, as well as traditional cabled sensors
Intuitive Software	• Complete set-up, control and data viewing software
	• Multiple sensor import and data export options
	• Advanced test set-up features and diagnostics tools

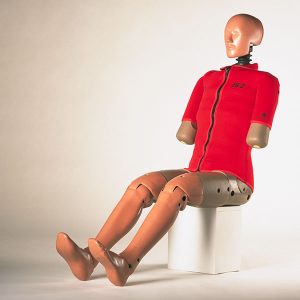

SIDE IMPACT ATD IN-DUMMY DAS RESOURCES

Side Impact ATD Embedded DAS	• In-dummy DAS for side impact test dummies
	• Complete turn-key integration solution for side impact dummies (SID)
	• Ultra-compact integration reduces cabling and connectors by up to 75%
High Performance	• Data writes to non-volatile flash memory
	• Embedded DAS allows better dummy positioning
	• Maintain center of gravity and mass for better biofidelic response
Custom Configurable	• Configurable channel counts
	• IEEE 1588 Ethernet switch allows PTPv2 daisy-chaining
	• Cable-free, direct-mount sensor options, as well as traditional cabled sensors
Intuitive Software	• Complete set-up, control and data viewing software
	• Multiple sensor import and data export options
	• Advanced test set-up features and diagnostics tools

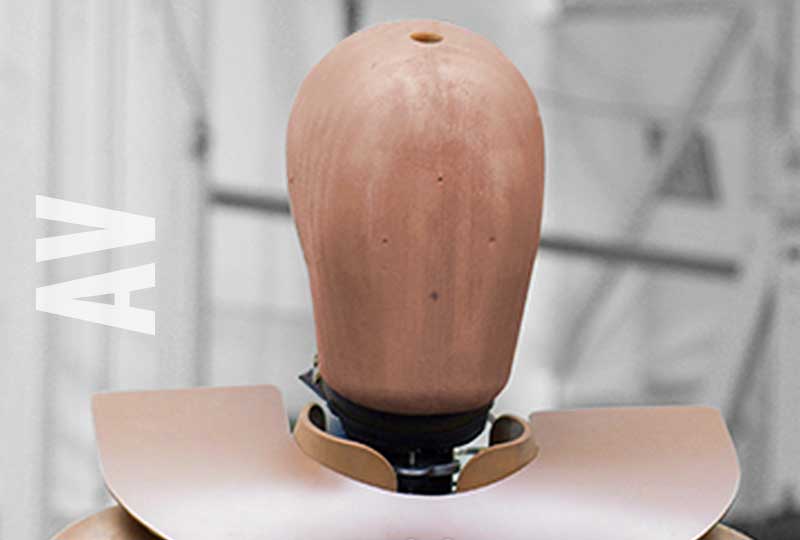

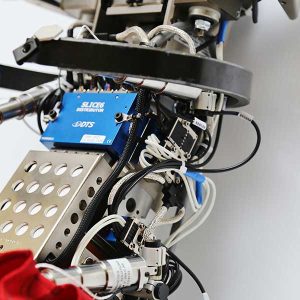

AUTONOMOUS VEHICLE ATDs IN-DUMMY DAS

Embedded DAS	• In-dummy DAS for autonomous vehicle ATDs
	• Complete turn-key integration solution for AV dummies
	• Ultra-compact integration with THOR-AV reduces cabling and connectors by up to 75%
High Performance	• Data writes to non-volatile flash memory
	• Better ATD positioning, faster set up time
	• Maintain center of gravity and dummy mass
Custom Configurable	• Configurable channel counts
	• IEEE 1588 Ethernet switch allows PTPv2 daisy-chaining
	• Cable-free, direct-mount sensor options, as well as traditional cabled sensors
Intuitive Software	• Complete set-up, control and data viewing software
	• Multiple sensor import and data export options
	• Advanced test set-up features and diagnostics tools

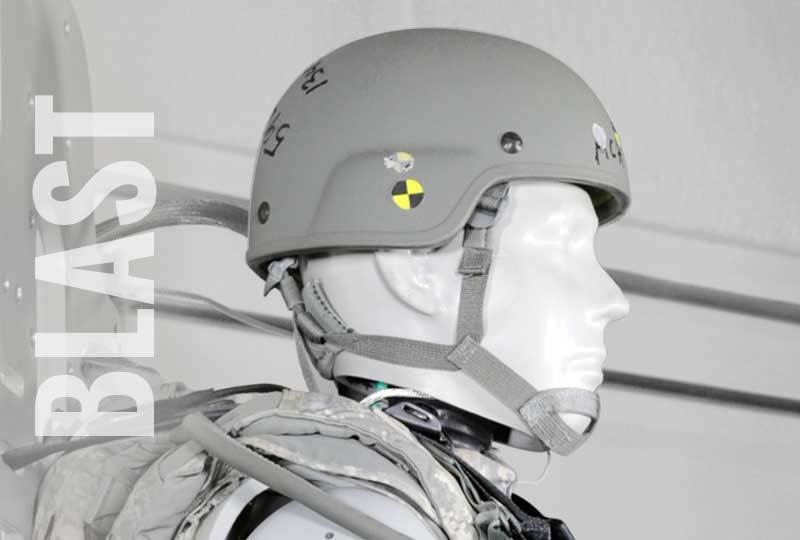

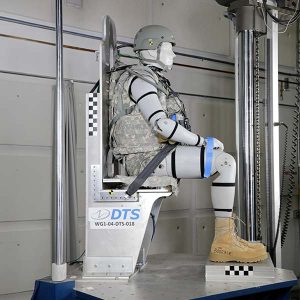

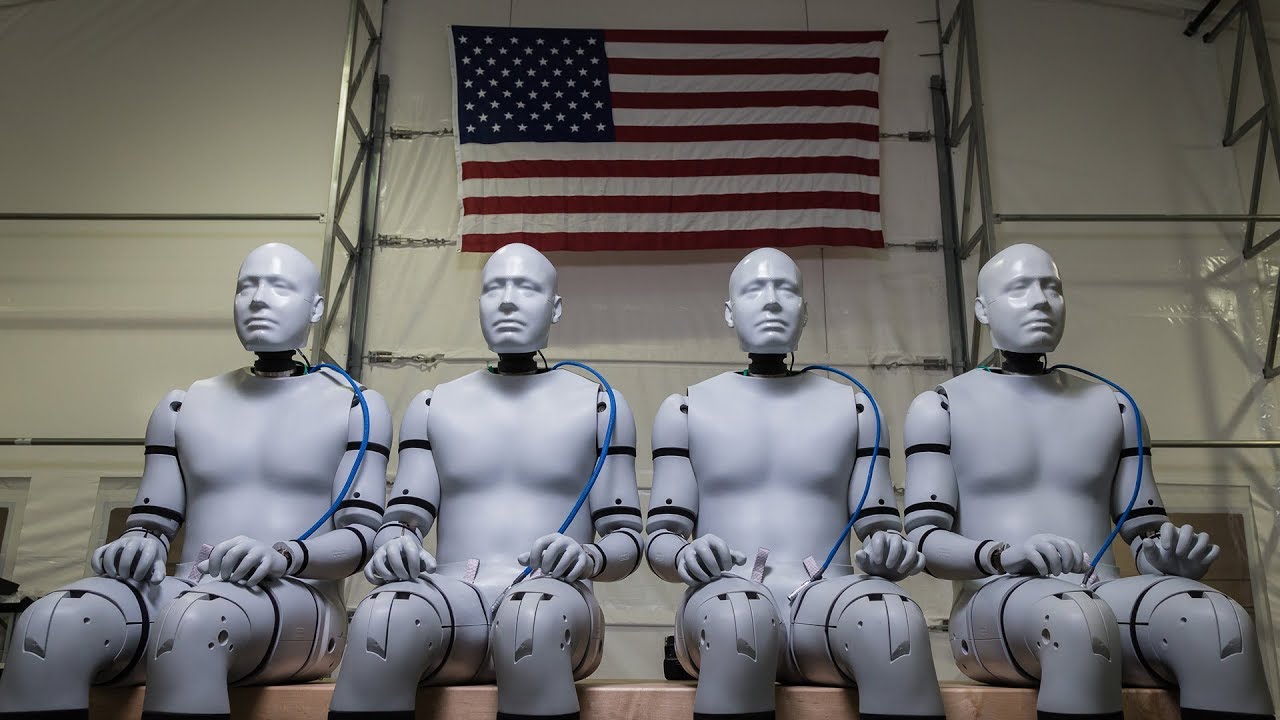

WIAMan RESOURCES

Biofidelic Kinematics	• Built for the U.S. Army for military vehicle testing in collaboration with government, universities, and industry partners
	• First vertical load blast manikin with SLICE6 in-dummy DAS
	• Supports up to 156 sensor channels; single exit cable
High Performance	• Data writes to non-volatile flash memory
	• High-shock rated, designed for vertical loading
	• True biofidelic response, based on extensive biomechanics research
Custom Configurable	• Configurable channel counts
	• IEEE 1588 Ethernet switch allows PTPv2 daisy-chaining
	• Cable-free, direct-mount sensor options, as well as traditional cabled sensors
Intuitive Software	• Complete set-up, control, and data viewing software
	• Multiple sensor import and data export options
	• Advanced test set-up features and diagnostics tools

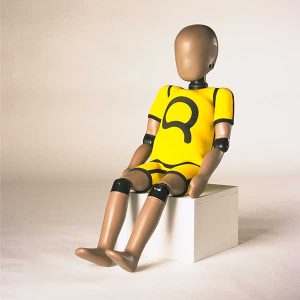

CHILD ATD IN-DUMMY DAS RESOURCES

Child ATD Embedded DAS	• In-dummy DAS for child test dummies
	• Complete turn-key integration solution for child ATDs
	• Ultra-compact integration reduces cabling and connectors by up to 75%
High Performance	• Data writes to non-volatile flash memory
	• Faster test set up and dummy positioning
	• Increased biofidelic response and improved data collection
Custom Configurable	• Configurable channel counts
	• IEEE 1588 Ethernet switch allows PTPv2 daisy-chaining
	• Cable-free, direct-mount sensor options, as well as traditional cabled sensors
Intuitive Software	• Complete set-up, control and data viewing software
	• Multiple sensor import and data export options
	• Advanced test set-up features and diagnostics tools

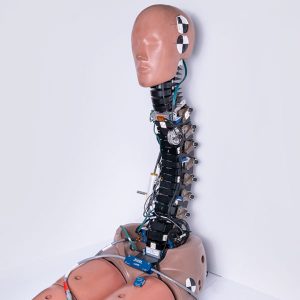

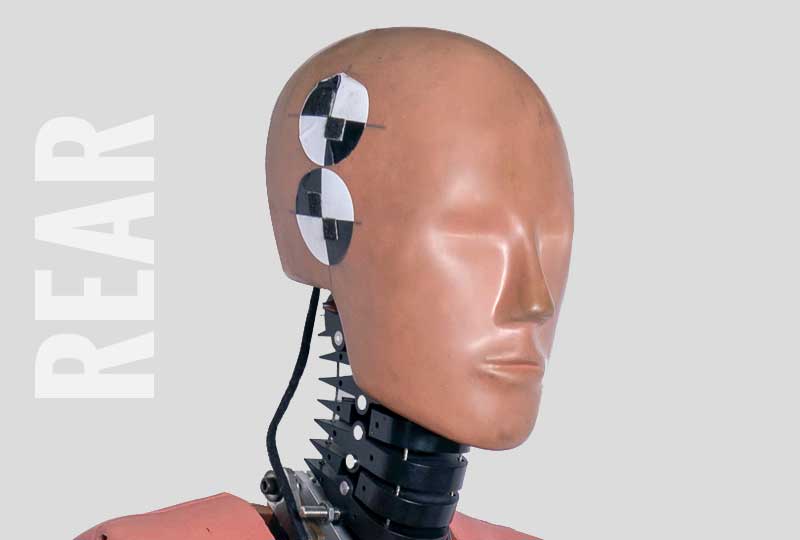

REAR IMPACT ATD IN-DUMMY DAS

Rear Impact ATD Embedded DAS	• In-dummy DAS for rear impact test dummies
	• Complete turn-key integration solution for rear impact ATDs
	• Cable free solution
High Performance	• Data writes to non-volatile flash memory
	• High-shock rated, designed for harsh test environments
	• Integrated DAS solution maintains mass and center of gravity
Custom Configurable	• Configurable channel counts
	• Customizable channel counts
	• Cable-free, direct-mount sensor options
Intuitive Software	• Complete set-up, control and data viewing software
	• Multiple sensor import and data export options
	• Advanced test set-up features and diagnostics tools

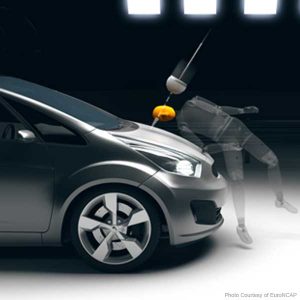

PEDESTRIAN SAFETY IN-DUMMY DAS

Pedestrian Test Forms Embedded DAS	• Pedestrian saftey test forms with embedded SLICE DAS technology
	• Cable-free solution
	• Embedded DAS maintains proper mass and CG
High Performance	• Data writes to non-volatile flash memory
	• High-shock rated, designed for harsh testing environments
	• Eliminates trailing cables, maintains CoG
Custom Configurable	• Configurable channel counts
	• Multiple trigger options
	• Multiple options for sensor import and data export
Intuitive Software	• Complete set-up, control and data viewing software
	• Multiple sensor import and data export options
	• Advanced test set-up features and diagnostics tools

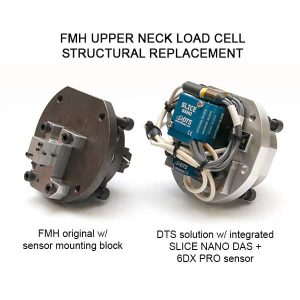

SLICE FREE MOTION HEADFORM RESOURCES

Free Motion Headform Embedded DAS	• Cable-free solution
	• Complete turn-key integration solution
	• Maintains proper mass and CG
High Performance	• Data writes to non-volatile flash memory
	• High-shock rated
	• Variable sampling rates
Custom Configurable	• Optional triaxial accelerometer
	• Optional angular rate sensor
	• Multiple trigger options
Intuitive Software	• Comprehensive set-up, control and data viewing
	• Advanced test set-up features and diagnostics tools
	• Multiple sensor import and data export options

Configuration
Options
Videos
Software

DataPRO Software

DataPRO is a powerful set-up, control and data viewing software for DTS hardware. The intuitive user interface is designed to help test engineers create, control and manage every aspect of a test. DataPRO makes it easy to access complete sensor and hardware details, plus share test information via standalone or centralized SQL databases. Key features include integrated off-line test builder, extensive ISO MME database, enhanced diagnostic tools, multiple viewing options and automatic report generation.
DAS & SENSOR OPTIONS

SLICE6 HB

The newest generation of in-dummy DAS. The ultra-small, 6-channel distributed DAS significantly reduces cabling and connectors for a compact integrated solution. Features IEEE 1588 Ethernet, PTPv2 daisy chaining, data writes directly to 16 GB flash memory.

6DX A2

The ultra-small 6DX A2 six degrees of freedom sensor direct-mounts to SLICE6 DAQ for a cable-free solution. The low mass 6DX A2 includes three angular rate sensors, plus three accelerometers in a rugged enclosure.

SLICE NANO

The rugged, miniature SLICE NANO in-dummy DAS solution offers flexibility and simplicity in 3-channel increments. Ideal for complete in-dummy integrations, as well as pedestrian head and legforms. Data writes directly to 16 GB flash memory.

ACC3 PRO – Triaxial Accelerometer

The ACC3 PRO triaxial accelerometer can be integrated into the SLICE Pedestrian Headform. Rugged and ultra-small, the ACC3 PRO sensor package is ideal for applications with tight space constraints in high-shock environments.

ARS3 PRO – Triaxial Angular Rate Sensor

The ARS3 PRO triaxial angular rate sensor can be integrated into the SLICE Pedestrian Headform to measure angular rotation. Ultra-small, the ARS3 PRO fits in tight spaces and is rugged enough to withstand high-shock test environments.
