SLICE Free Motion Headform (FMH)

DTS Software, Miniature Data Acquisition Systems

Product Overview

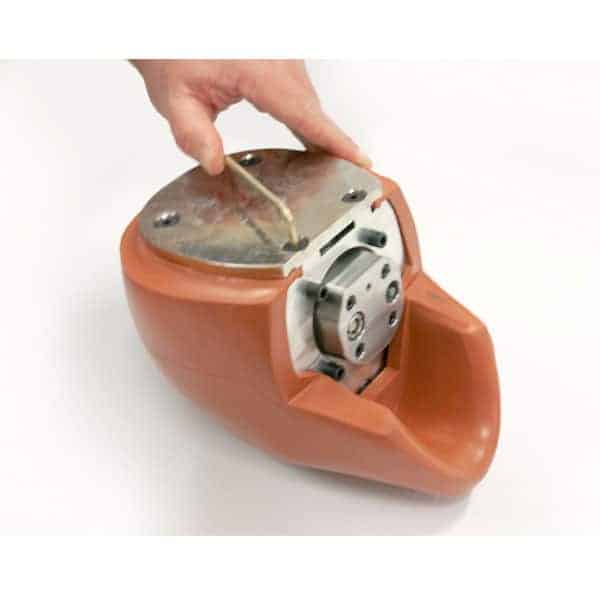

The SLICE Free Motion Headform features a cable-free operation with DAS Integration by Humanetics. The SLICE Free Motion Headform (FMH) integrates the ultra-small SLICE NANO data acquisition system into a cable-free solution that is simple-to-use, extremely flexibility and highly reliable.

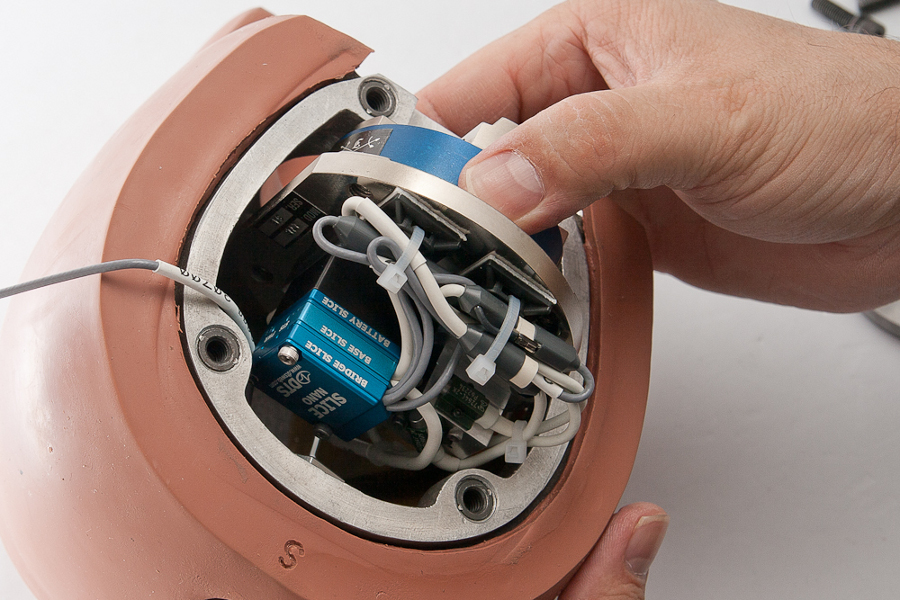

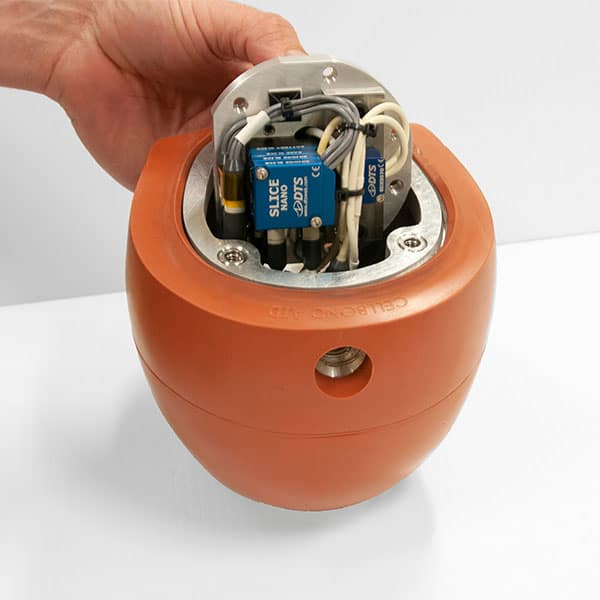

The SLICE FMH is a complete integrated, cable-free solution. Accelerometers and optional angular rate sensors connect directly to the internal SLICE NANO data recorder. Once programmed, no PC is needed to arm and launch the FMH.

The SLICE Free Motion Headform (FMH) with the integrated ultra-small SLICE NANO data acquisition system is a cable-free automotive safety testing solution. Offering the ultimate in flexibility, reliability and repeatability, the SLICE Free Motion Headform is a turn-key solution that directly writes data to flash memory.

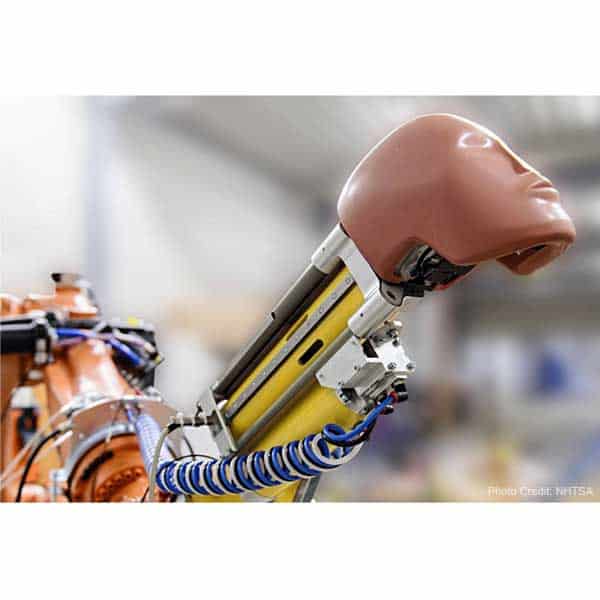

The system is armed on the launcher with the push of a switch mounted in the skull. The system automatically boots and a bright LED indicates ready status. The system triggers when the defined acceleration level is exceeded, saving both pre and post trigger data.

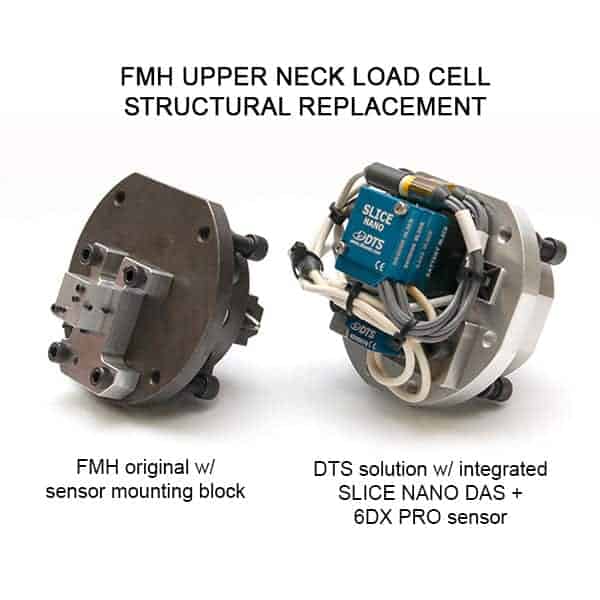

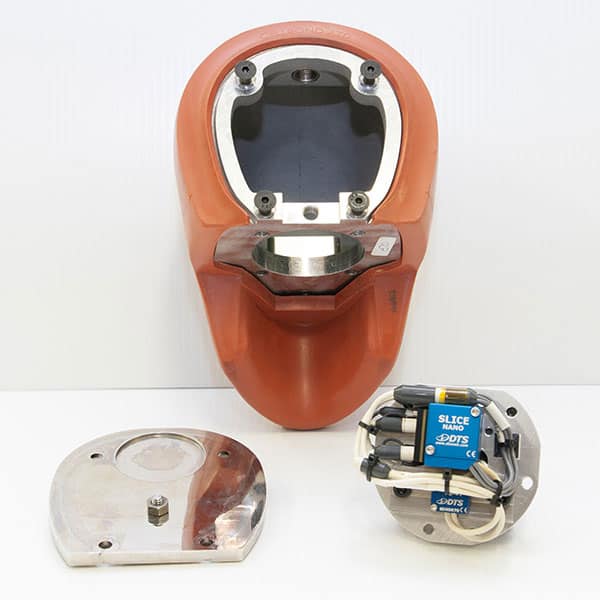

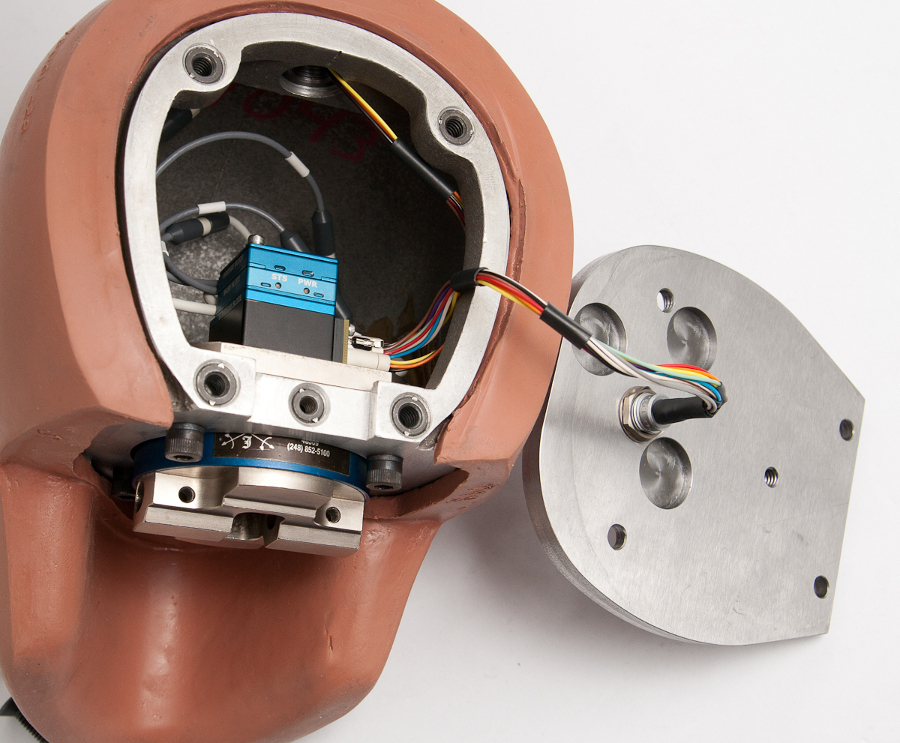

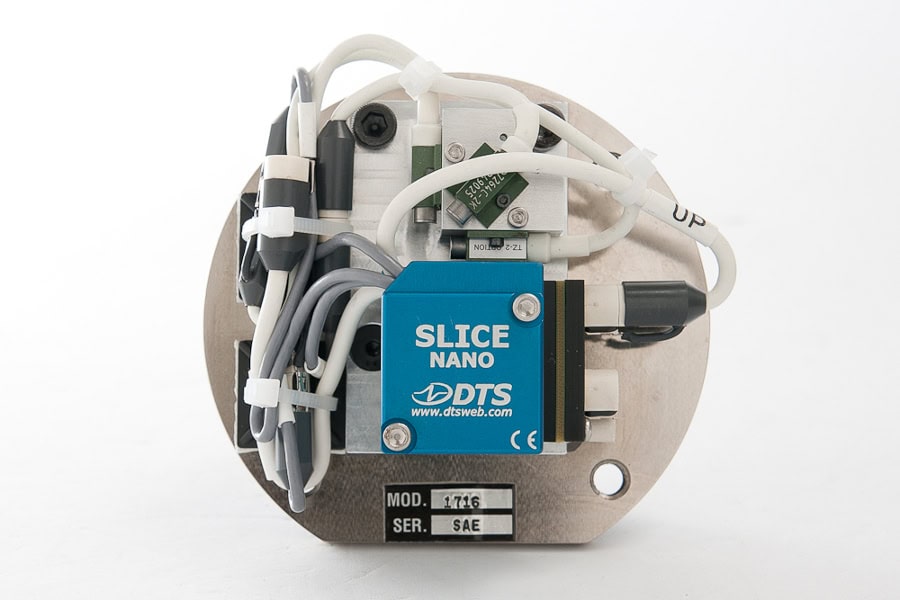

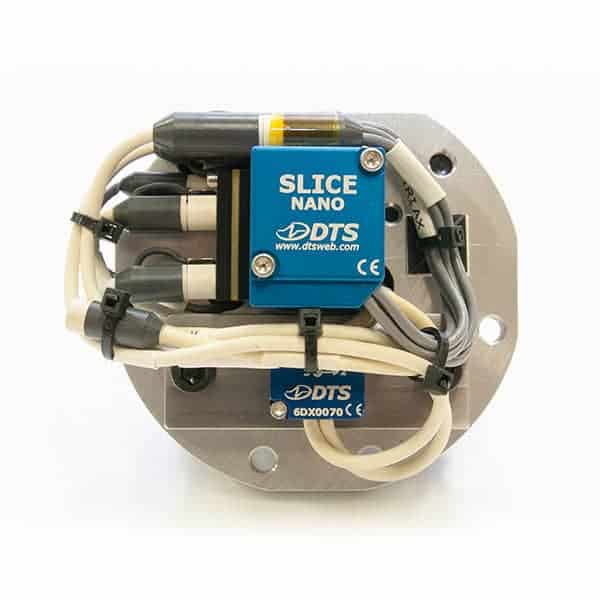

SLICE NANO DAS mounted on load cell structural replacement is designed to maintain proper mass and CG. SLICE also works with: Flex Pedestrian Legform & Pedestrian Headforms.

Markets

Vehicle Interior Testing

Request a Quote

Product Resources

SLICE FREE Motion Headform (FMH) User Manual

Manual

SLICE FREE Motion Headform User Manual

Manual

DTS Datasheet - SLICE Pedestrian Headform (2017-08)

Data Sheet

Headform	Free Motion Headform
DAS	SLICE NANO (3 Channels)
Sensors	Triaxial accelerometer, DTS ACC3 option available Triaxial angular rate sensor, DTS ARS3 PRO option available
Features	Embedded DAS and sensors, eliminates trailing cable
Sampling	10 sps to 500k sps/channel, user-programmable
Power	Integrated SLICE FMH Battery, ~15 min run time
Shock Rating	500 g
Data Storage	Data writes to 16 GB non-volatile flash memory
Communication	USB
Software	SLICEWARE, DataPRO, API
Performance	Meets SAE J211, ISO 6487, NHTSA & FAA data acquisition requirements

Incredibly compact and lightweight
Ideal for high impact testing
IP67 Rated: dust protection and water immersion. The sealed enclosure is also ideal for cadaveric work
Available in two range options:
- 6DX PRO 2K-18K
  - 3 accelerometers: ±2000 g
  - 3 angular rate sensors: ±18000 deg/sec
- 6DX PRO 20K-50K
  - 3 accelerometers: ±20000 g
  - 3 angular rate sensors: ±50000 deg/sec
Factory repair of sensor channels available
DTS re-calibration services available, NIST traceable
Meets NHTSA, FAA, ISO 6487 and SAE J211 practices

Free Motion Headform Embedded DAS	• Cable-free solution
	• Complete turn-key integration solution
	• Maintains proper mass and CG
High Performance	• Data writes to non-volatile flash memory
	• High-shock rated
	• Variable sampling rates
Custom Configurable	• Optional triaxial accelerometer
	• Optional angular rate sensor
	• Multiple trigger options
Intuitive Software	• Comprehensive set-up, control and data viewing
	• Advanced test set-up features and diagnostics tools
	• Multiple sensor import and data export options

Options

SLICE NANO

The rugged, miniature SLICE NANO in-dummy DAS solution offers flexibility and simplicity in 3-channel increments. Ideal for complete in-dummy integrations, as well as pedestrian head and legforms. Data writes directly to 16 GB flash memory.

ACC3 PRO – Triaxial Accelerometer

The ACC3 PRO triaxial accelerometer can be integrated into the SLICE Pedestrian Headform. Rugged and ultra-small, the ACC3 PRO sensor package is ideal for applications with tight space constraints in high-shock environments.

ARS3 PRO – Triaxial Angular Rate Sensor

The ARS3 PRO triaxial angular rate sensor can be integrated into the SLICE Pedestrian Headform to measure angular rotation. Ultra-small, the ARS3 PRO fits in tight spaces and is rugged enough to withstand high-shock test environments.
Software

DataPRO Software

DataPRO is a powerful set-up, control and data viewing software for DTS hardware. The intuitive user interface is designed to help test engineers create, control and manage every aspect of a test. DataPRO makes it easy to access complete sensor and hardware details, plus share test information via standalone or centralized SQL databases. Key features include integrated off-line test builder, extensive ISO MME database, enhanced diagnostic tools, multiple viewing options and automatic report generation.

Software

SLICEWare set-up and control software provides fast, easy-to-use tools for storing sensor information and performing data collection. Advanced features such as automatic sensor assignment, detailed channel diagnostics, and real-time data display support successful testing and quality data every time.
