TDAS PRO is the original, rugged modular data acquisition system designed by DTS. Customers worldwide continue to rely on TDAS PRO systems daily for critical testing. DTS continues to service and support all TDAS PRO equipment worldwide.

Request a Quote

Product Resources

TDAS PRO Digital Input Module (DIM)

Manual

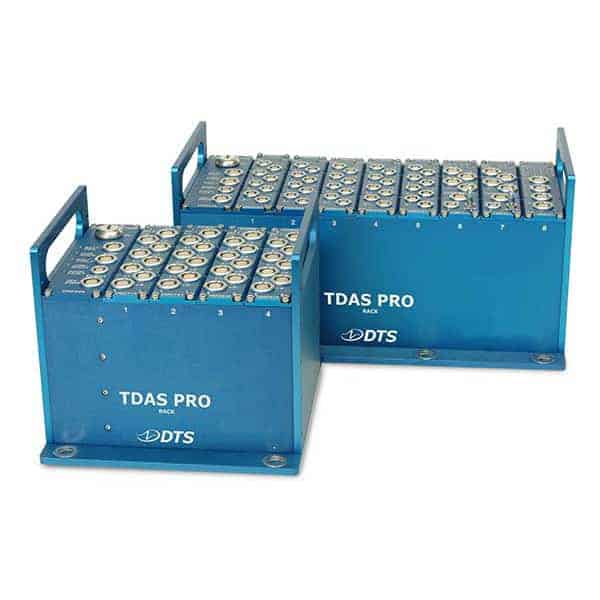

TDAS PRO Rack Hardware

Manual

TDAS PRO Sensor Input Module

Manual

TDAS PRO Timed Output Module Hardware Users Manual

Manual

TDAS PRO SIM

Data Sheet

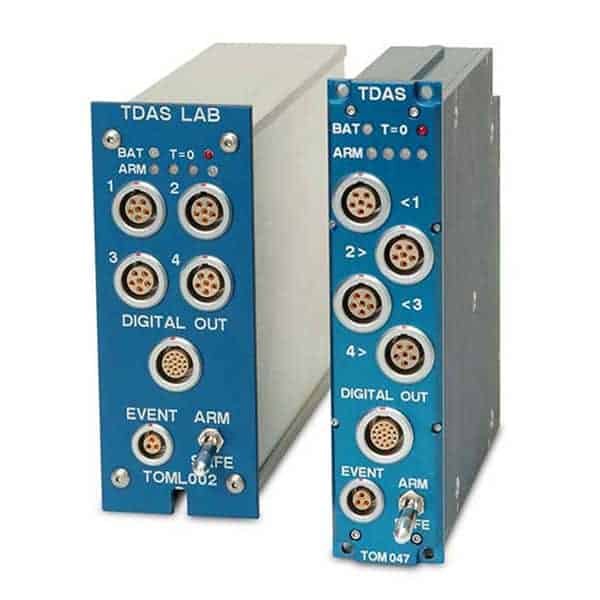

TDAS PRO TOM

Data Sheet

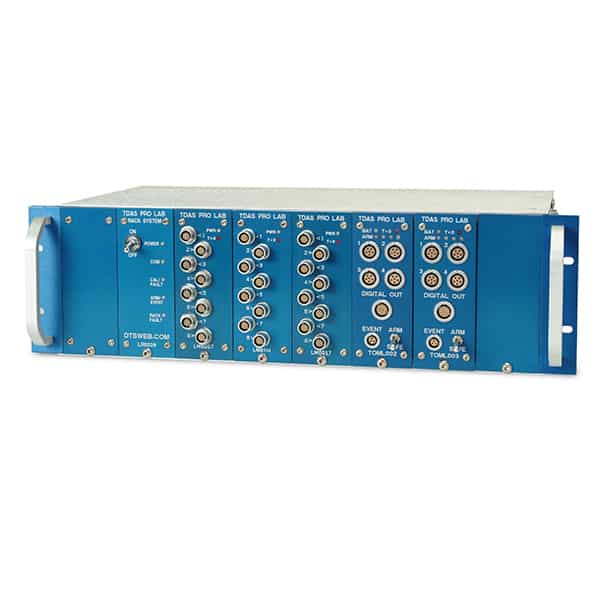

TDAS PRO LAB SYSTEMS

Data Sheet

Physical	13.7 x 12.2 x 3.4 cm
Features	Standalone, modular, user-configurable. Ideal for measuring: acceleration, strain, voltage, temperature and more.
Sampling	10304k sps/module, programmable
Channels	8 ch per SIM, daisy-chain hundreds of channels
Shock Rating	100 g
Data Storage	Battery backed SRAM, 1 M samples/channel
Communication	RS-232, USB, Ethernet
Environmental	0° to 50°C
Software	TDAS Control, DataPRO compatible
Performance	Meets SAE J211, ISO 6487, NHTSA & FAA data acquisition requirements

Proven Reliability	• Thousands of TDAS PRO channels fielded for over 20 years, still used daily for critical testing worldwide
	• Microprocessor, excitation, signal conditioning, adjustable filters
	• Standalone operation, no tethered PC required
High Performance	• Rugged, modular solution
	• Data writes to flash memory
	• Sensor support including: bridge, accelerometers, strain gages, load cells, MEMS, voltage, temperature
The Legacy Lives On	• SLICE PRO is the next generation hardware solution replacing TDAS PRO
	• DTS will continue to support, repair and calibrate TDAS equipment worldwide
	• To schedule service, please contact customerservice@dtsweb.com

Options

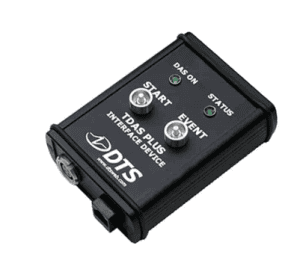

TDAS PLUS Interface Device

The TDAS PLUS Interface Device is a simple device used to perform system checks.

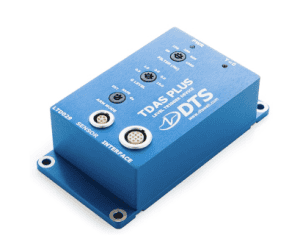

TDAS PLUS Level Trigger Device

The Level Trigger Device generates a reliable external trigger signal for T=0 for TDAS PRO, TDAS G5, TDAS PLUS or SLICE systems. The crashworthy unit provides two opto-isolated, contact-closure outputs when the user-selected acceleration threshold is exceeded. The isolated output can also be used with any device designed to accept a contact closure (e.g. high-speed imager).

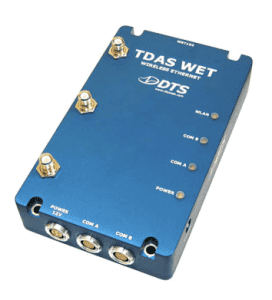

Wireless Ethernet (WET)

The TDAS WET is crash-hardened multifunction networking device that allows for wireless communication with TDAS equipment. Supports 802.11b/g/n protocols.
Software

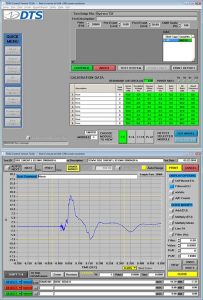

TDAS Control Software

TDAS Control is the original set-up, control, viewing and export software developed by DTS. TDAS Control provides easy-to-use tools for configuring output timing, as well as advanced features such as automatic sensor assignment, detailed channel diagnostics, real-time display and squib fire for airbag testing. TDAS Control only works with TDAS G5 and TDAS PRO.

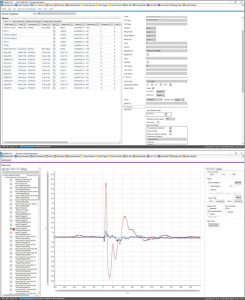

DataPRO Software

DataPRO is a powerful set-up, control and data viewing software for DTS hardware. The intuitive user interface is designed to help test engineers create, control and manage every aspect of a test. DataPRO makes it easy to access complete sensor and hardware details, plus share test information via standalone or centralized SQL databases. Key features include integrated off-line test builder, extensive ISO MME database, enhanced diagnostic tools, multiple viewing options and automatic report generation.
