TSR PRO & TSR PRO-HB

Product Overview

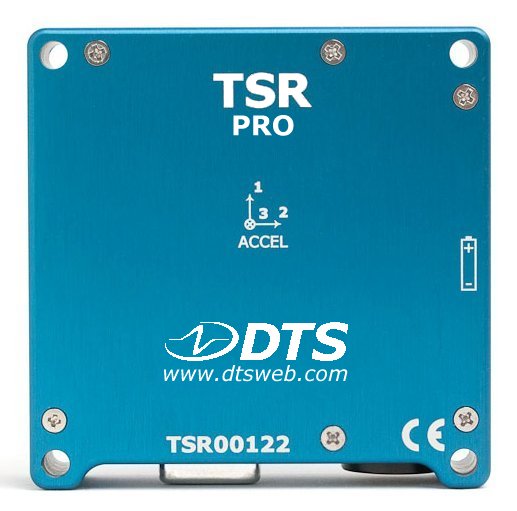

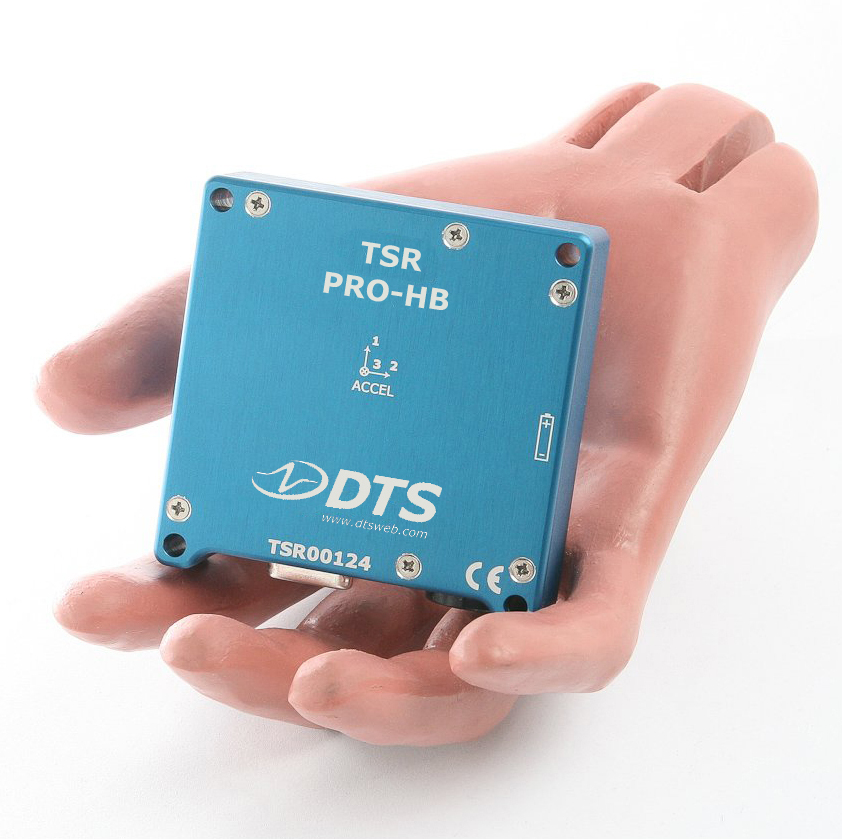

The TSR PRO & TSR PRO-HB are self-powered shock recorders with three internal accelerometers. TSR PRO * PRO-HB feature high sampling rates, small size and rugged packaging making the system ideal for unattended monitoring of acceleration including blast, package testing, vibration and multi-event impacts.

Manufactured by DTS, the TSR PRO & TSR PRO-HB are not only simple and reliable, but are also ideal for both short duration tests or long-term monitoring up to 6 months. The advanced sleep mode wakes for an event trigger, collects data to flash memory and then automatically re-arms and returns to ready mode to capture the next event. A detailed time history for thousands of events can be legged in the 1 GB Flash Memory.

The TSR PRO and TSR PRO-HB both feature an internal tri-axial accelerometer and are capable of recording up to 10 ksps/channel for extended periods of time.

Markets

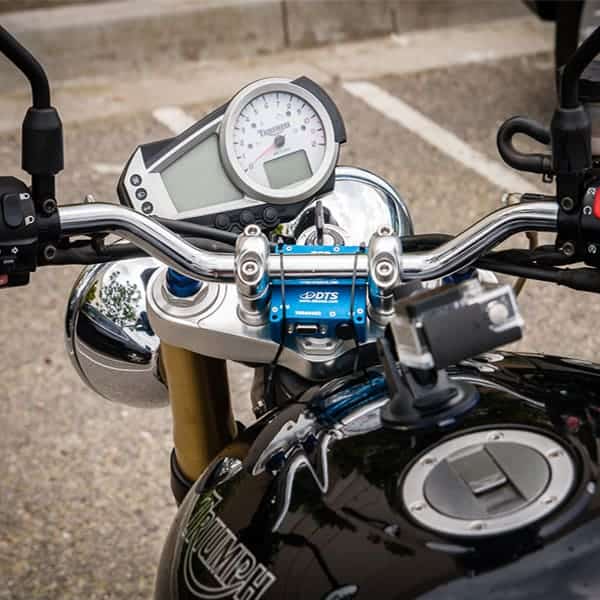

Blast testing, Impact testing, Pedestrian, Ride & handling, Sports & safety equipment, Vibration testing

Request a Quote

Product Resources

Comparison Chart

Manual

User Manual

Manual

Datasheet

Data Sheet

Physical	72 x 72 x 22 mm, 237 g
Features	Standalone recorder with built-in sensors, self-powered, easy to use
Sampling	1k to 20k sps/channel, programmable, 16-bit ADC
Channels	3 channels, built-in triaxial accelerometer
Shock Rating	500 g
Data Storage	Data writes to 1 GB flash memory, stores up to 2000 events
Communication	USB
Environmental	-20°C to 60°/85°C, IP67
Software	TSR Control
Performance	Meets SAE J211, ISO 6487, NHTSA & FAA data acquisition requirements

Easy to Use	• Microprocessor, power, signal conditioning, flash memory
	• Standalone operation, no tethered PC required
	• Complete solution, includes data recorder and built-in sensors all in one package
	• Rechargeable or primary internal battery; optional external battery
High Performance	• Stores up to 2000 events or 34 hours of continuous recording at 1k sps
	• Logs temperature, date and time per event
	• High shock resistant
Configurable	• Multiple sensor ranges and bandwidth options
	• Software & hardware trigger options
	• User adjustable sampling rates
Simple Software	• Simple set-up, control and data viewing
	• Real-time, logging, viewing and exporting
	• SAE filters, view multiple channels/test, HIC calculation (Head Injury Criterion)

Simple, easy-to-use software

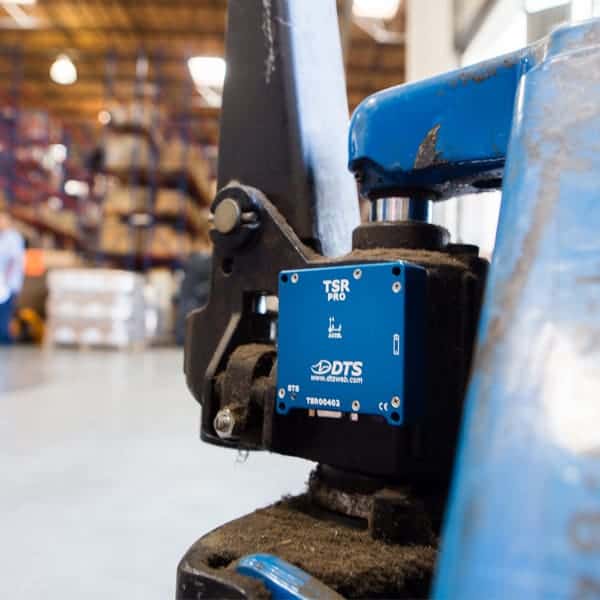

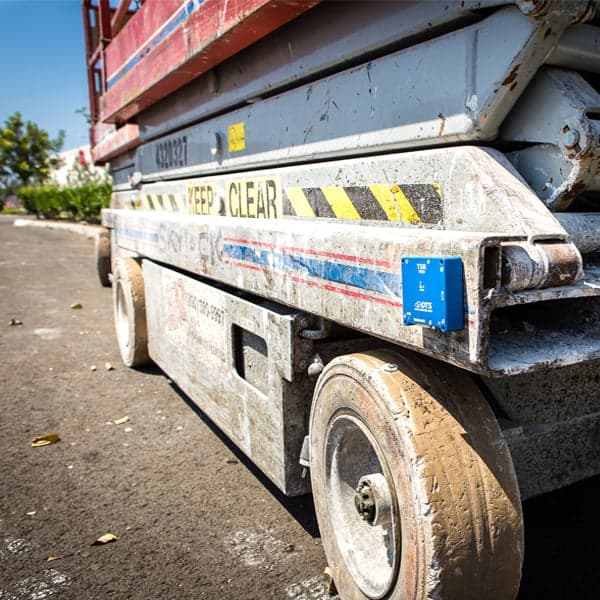

Compact size; unit easily mounts to test article or can be discretely embedded inside
Memory: 1 GB Flash – over 2 hours of data storage at maximum sampling rate
Lithium battery options: USB rechargeable or non-rechargeable
Standard range options: ±50, 250, 500 g
Records up to 10 ksps/channel
Logs temperature and time stamp for each event, synchronizes time sequence for event reporting

Configuration

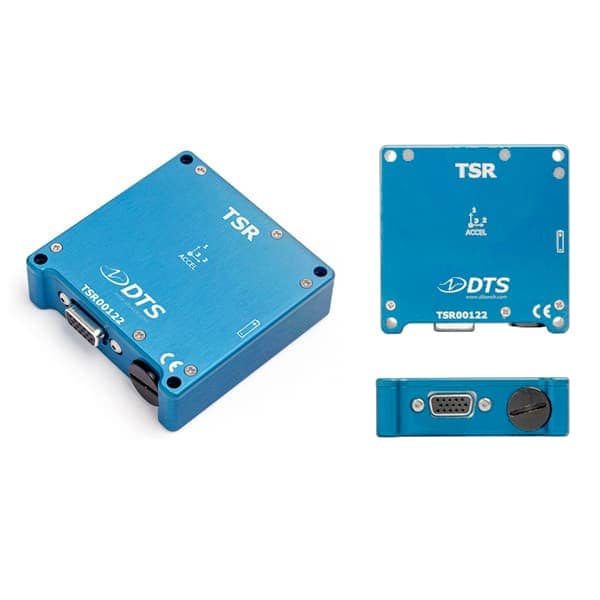

TSR PRO / TSR PRO-HB

Compact and rugged, TSR PRO and TSR PRO-HB data loggers make it easy to measure acceleration forces in dynamic test environments. Simple and reliable, the TSR PRO and TSR PRO-HB store up to 2000 events in flash memory and are ideal for both short duration tests and long-term monitoring.
Options

Communication Cable

USB cable for communication with PC. Supports both TSR PRO & TSR PRO-HB.
Videos
Software
TSR Control software provides fast, easy-to-use tools for controlling the recorder and viewing the logged events. With focus on speed and simplicity, TSR Control Software provides the tools to configure the recorder, view real-time sensor output and review your historical data.

TSR Control Software

TSR Control is the user-friendly set-up, control and viewing software for the entire line of TSR data loggers. An intuitive interface makes it easy to configure the recorder, view real-time sensor output and review time-history data. Via a PC, users can set the record time (seconds), trigger threshold (g) per axis, and download individual or multiple events stored in flash memory. TSR Control also includes tools for zoom, filtering and Head Injury Criteria (HIC) calculations.
