Product Overview

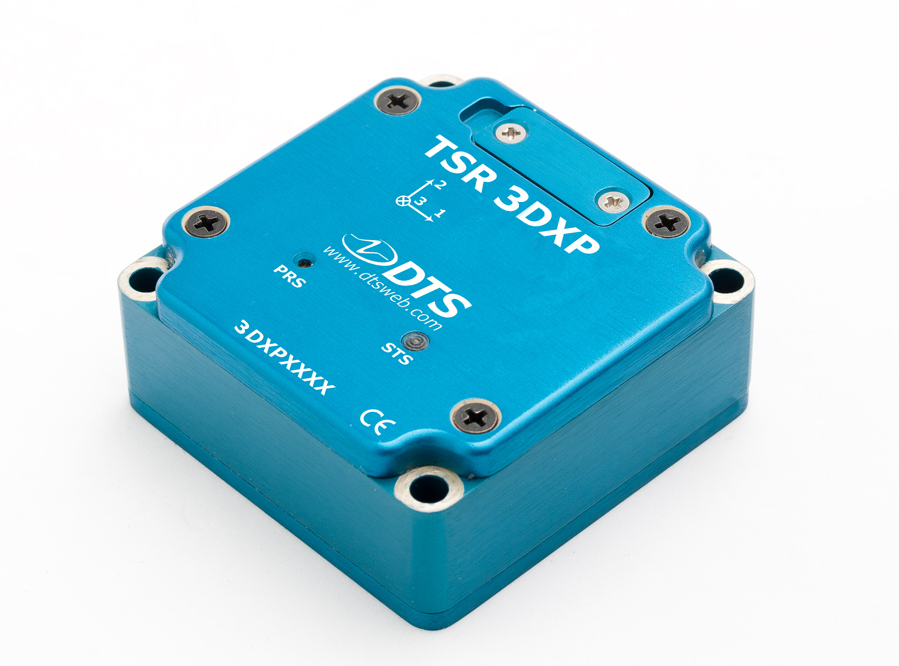

Available in 2 models: TSR 3DXP and TSR 6DXP

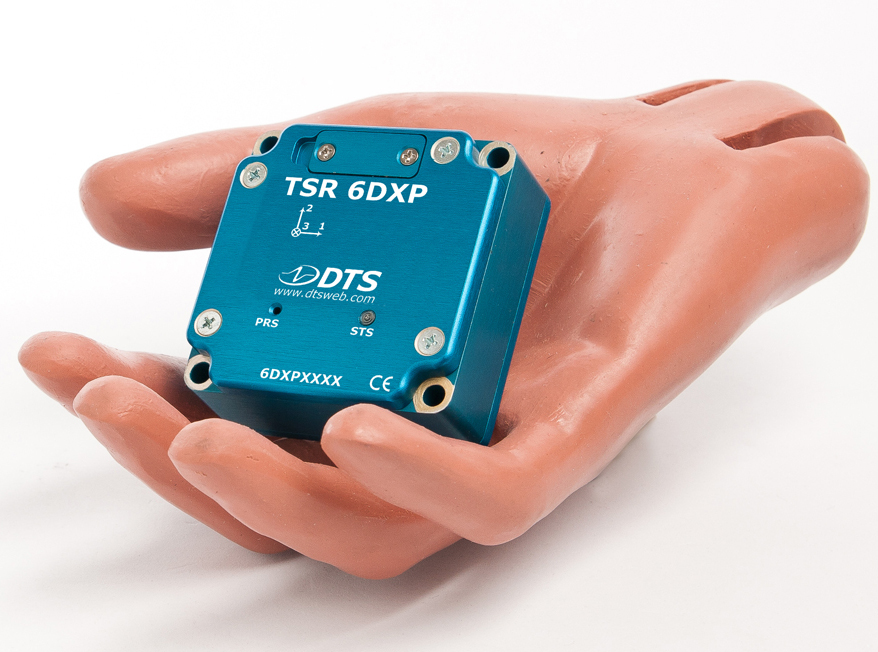

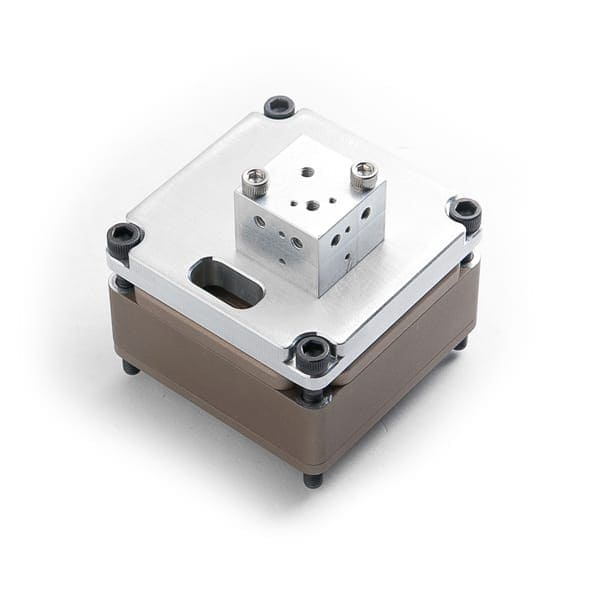

The TSR DXP from DTS is a self-powered shock recorder with Internal Triaxial Accelerometers, Pressure Sensor and Triaxial Angular Rate Sensors.

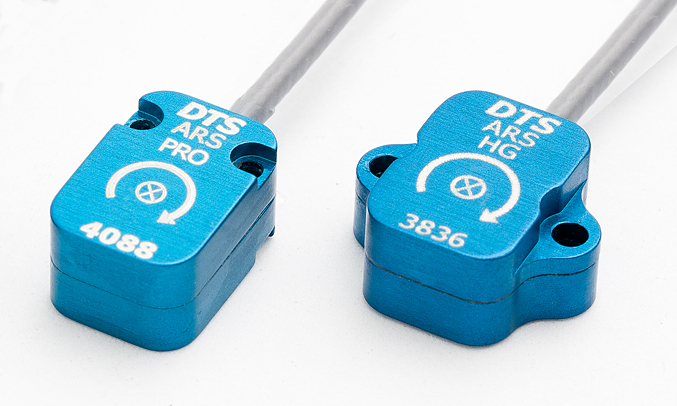

There are three internal accelerometers, a pressure sensor and up to 3 angular rate sensors (ARS). The Small size of the TSR 3DXP & 6DXP combined with the rugged packaging make it ideal for unattended monitoring of acceleration including blast, vibration and multi-event impacts. Designed for simplicity and reliability, the TSR is always on and ready to record for up to 12 months unattended.

The TSR’s advanced sleep mode “wakes” for an event trigger, collects data to flash memory and then automatically re-arms and returns to ready mode to capture the next event. A detailed time log for thousands of events can be stored in 1 GB Flash Memory

The TSR 3DXP and TSR 6DXP shock recorders are capable of recording up to 75000 samples per second per channel. The TSR 6DXP model also includes a triax angular rate sensor.

Markets

Blast testing, Impact testing, Ride & handling, Sports & safety equipment, Vehicle Black Box, Vibration testing
Request a Quote

Product Resources

  • Technical Specifications

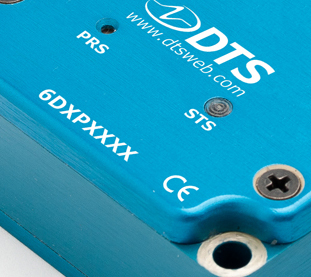

    TSR 6DXP

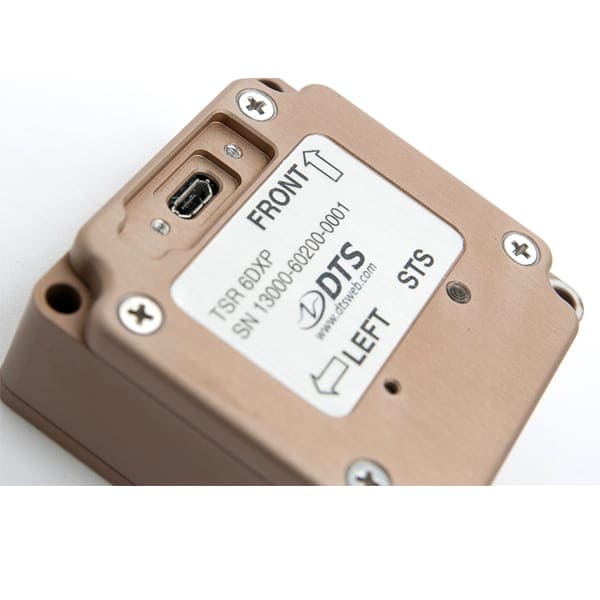

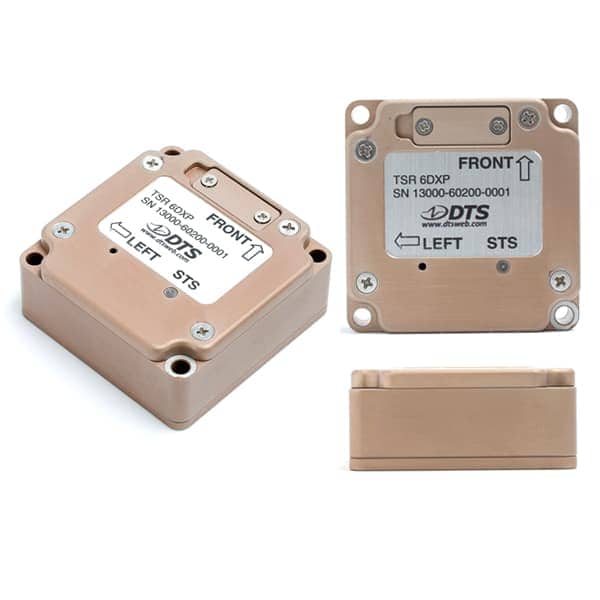

    Compact and ultra high-shock rated, the TSR 6DXP data logger features built-in triaxial accelerometers, angular rate sensors and a pressure sensor. Ideal for blast and high energy environments, the TSR 6DXP writes data directly to flash memory.

    SPECIFICATIONS
    Physical 57.1 x 57.1 x 25.4 mm, 200 g
    Features Standalone, compact, high-shock resistant, self-powered
    Sampling Fixed sampling rates, 12-bit ADC
    Channels 4 to 7 channels, built-in accelerometers, angular rate and pressure sensors
    Shock Rating 10000 g
    Data Storage Data writes to 1 GB flash memory, stores up to 2000 events
    Power Internal USB rechargeable lithium battery
    Communication USB
    Environmental -30°C to 60°C, IP67 B109
    Software TSR Control
    Performance Meets SAE J211, ISO 6487, NHTSA & FAA data acquisition requirements

  • Key Features

    • Simple, easy-to-use software
    • Compact size allows the TSR DXP to discretely attach or embed in test article
    • Memory: 1 GB Flash >15 minutes of data storage time at max sampling rate
    • Records up to 75 ksps/channel
    • Acceleration range: options for ±1250 or 6000 g
    • Angular rate range: ±20000 deg/sec
    • Pressure range: 100 psia
    • Logs temperature and time stamp for each event. Synchronizes time sequence for event reporting.
    • USB-rechargeable Lithium battery operates up to 12 months

    TSR 6DXP RESOURCES

    Cable-Free
    		 • Microprocessor, power, signal conditioning, flash memory
    • Standalone operation, no tethered PC required
    • Complete solution, includes data recorder and built-in sensors all in one package
    • Programmable level-trigger
    High Performance
    		 • Stores up to 2000 events
    • Logs temperature, date and time per event
    • Ultra-high shock resistant
    Flexible
    		 • Ideal for both short duration tests and long-term monitoring
    • Embed on or in the test article
    • Advanced motion detection for power savings
    Simple Software
    		 • Simple set-up, control and data viewing
    • Real-time, logging, viewing and exporting
    • SAE filters, view multiple channels/test, HIC calculation (Head Injury Criterion)

  • Options

    Communication Cable

    USB cable for communication with PC. Supports both TSR 3DXP & TSR 6DXP..

  • Software

    TSR Control software provides fast, easy-to-use tools for controlling the recorder and viewing the logged events. With focus on speed and simplicity, TSR Control Software provides the tools to configure the recorder, view real-time sensor output and review your historical data.

    TSR Control Software

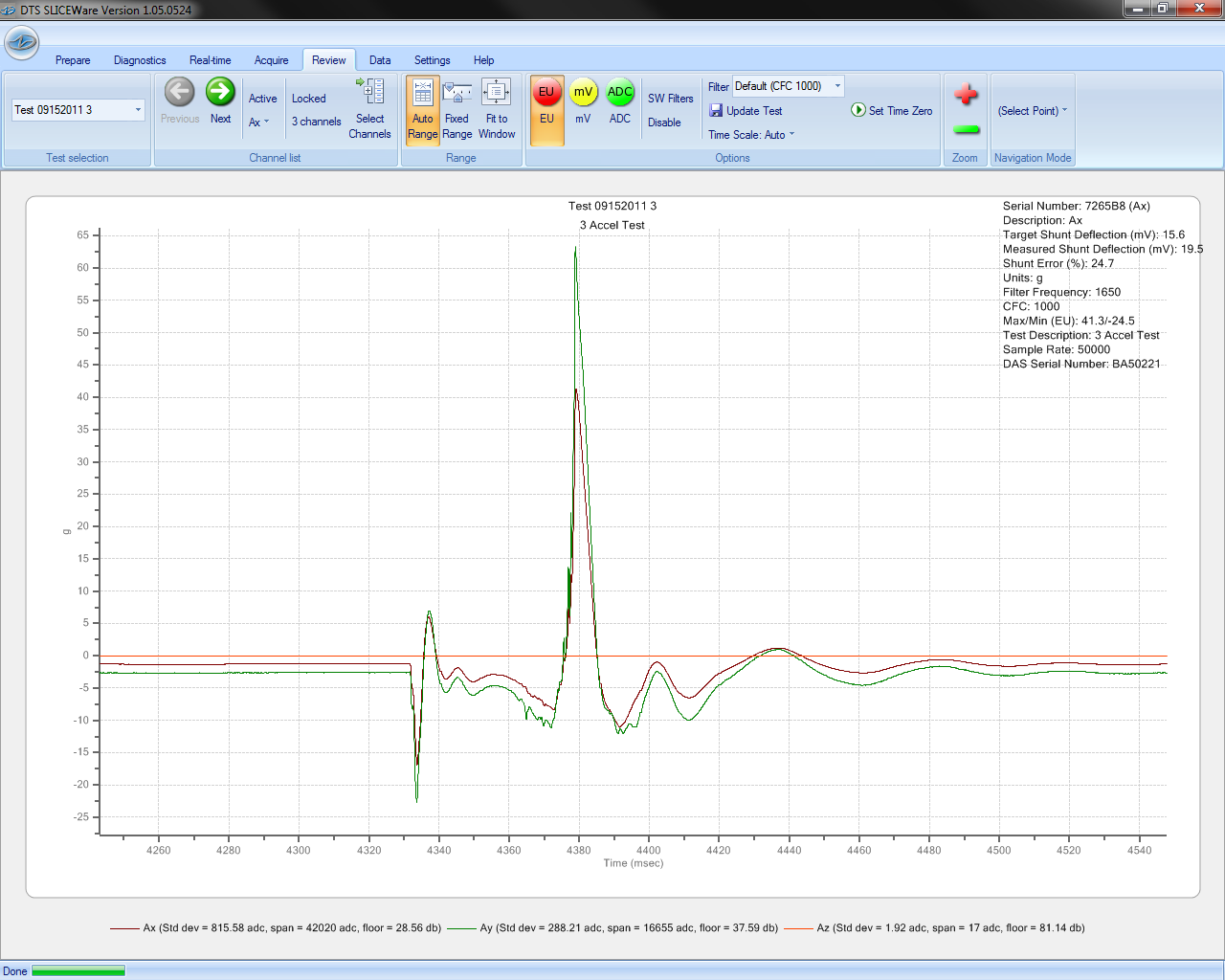

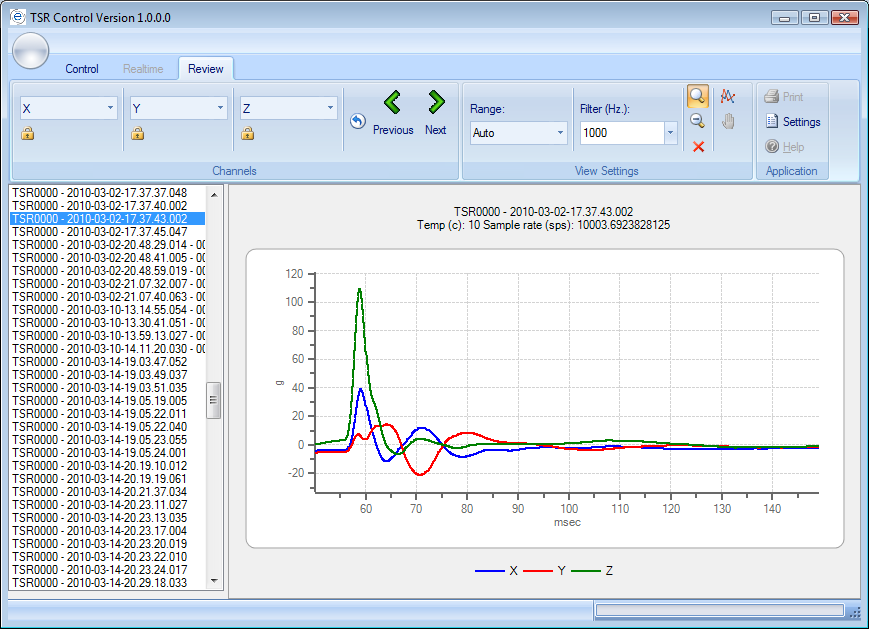

    TSR Control is the user-friendly set-up, control and viewing software for the entire line of TSR data loggers. An intuitive interface makes it easy to configure the recorder, view real-time sensor output and review time-history data. Via a PC, users can set the record time (seconds), trigger threshold (g) per axis, and download individual or multiple events stored in flash memory. TSR Control also includes tools for zoom, filtering and Head Injury Criteria (HIC) calculations.
