Product Overview

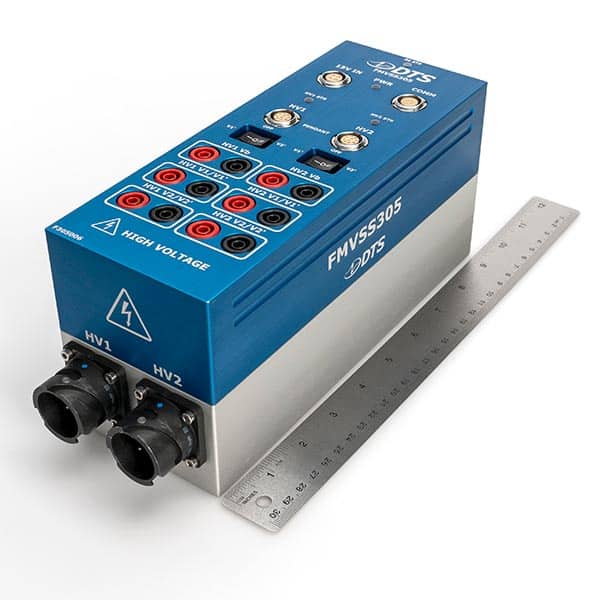

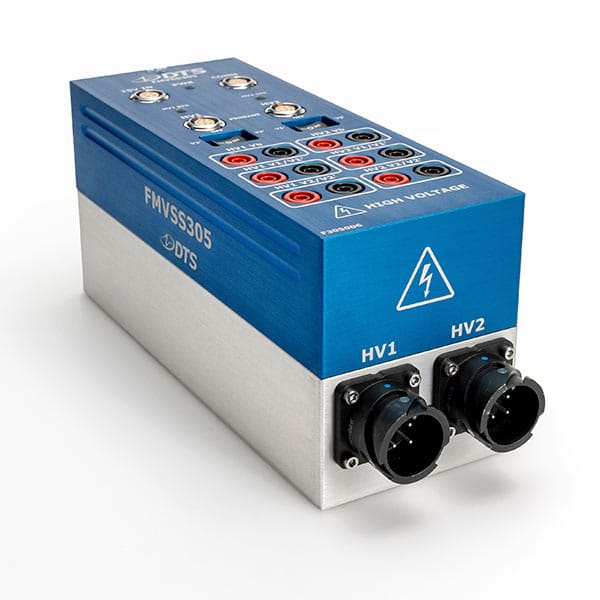

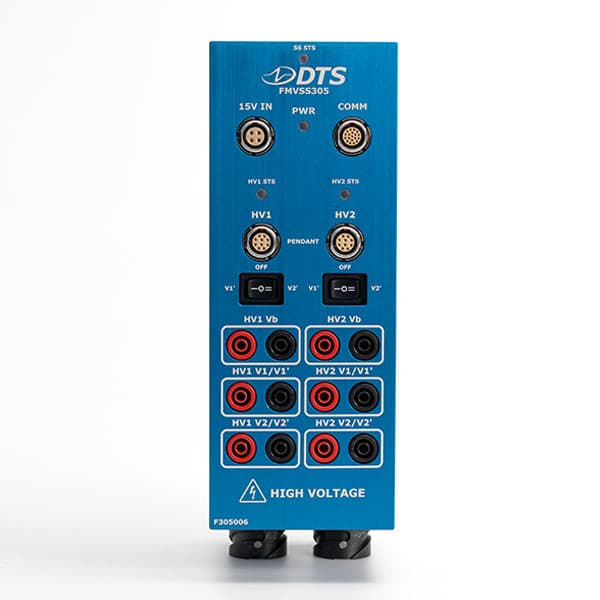

This crashworthy, high-voltage recording device provides a safe and reliable way to capture battery and drive system voltages for testing EV and Hybrid new energy vehicles (NEVs). The FMVSS305 can operate standalone or with DTS SLICE data acquisition systems and software.

Request a Quote

Product Resources

FMVSS305 Manual

Manual

FMVSS305

Data Sheet

FMVSS305 HIGH VOLTAGES

Data Sheet

Physical	262 x 90 x 110 mm, 2.7 kg
Features	Rugged; LED status indicators for HV inputs, system power, and SLICE6 DAQ measurements, standalone or DTS solutions
DAQ	Built-in, 6-channel SLICE6 data acquisition module records measurement during dynamic test
Shock Rating	100 g
Data Storage	Data writes to 16 GB non-volatile flash memory
Voltage Inputs	Fully isolated inputs up to ±1,200 volts
Environmental	10° to 40°C, ESD(8kV)
Software Interface	DataPRO software with SLICE & TDAS data acquisition systems Works standalone, includes FMVSS-compliant manual test switches
Mounting	Compatible with SLICE PRO mounting plates

High Performance	• Crashworthy, factory testing to 100 g
	• Fully isolated inputs up to ±1,200 volts via non-conductive connectors
	• Fully isolated voltage monitoring outputs with 1,000 to 1 dividers
Versatile	• Captures crucial voltage data during crash tests
Versatile	• Collects key HV1′ and HV2′ measurements both before and after the event
Custom Configurable	• Integrates with SLICE or TDAS data acquisition systems
	• Standalone option
	• FMVSS305-compliant manually operated test switches
Comprehensive Software	• DTS DataPRO set-up, control, and data viewing software
Comprehensive Software	• Advanced test set-up features and diagnostics tools
