SLICE PRO

• A complete standalone DAS with controller, filters, transducer excitation, gain amplifiers and 16-bit ADC
• Intuitive, easy-to-use software
• Modular, high-performance, low-mass, 100% shock tested

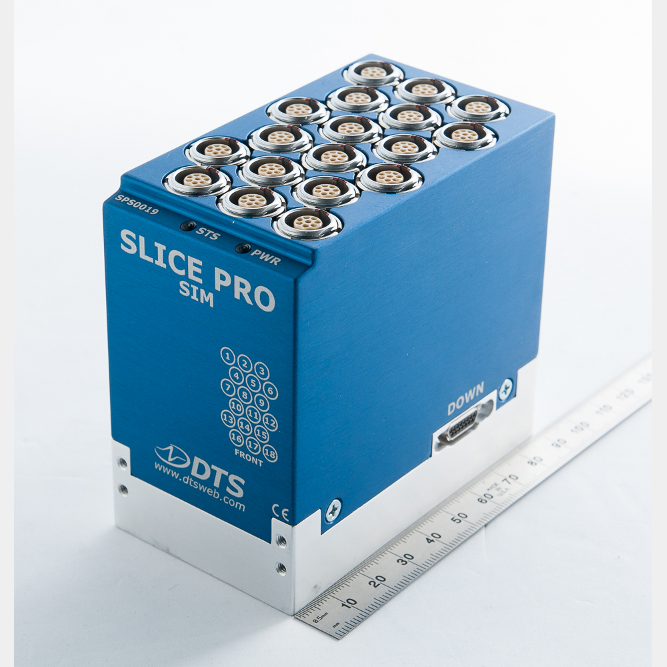

• Ultra-small 52 x 90 x 80 mm per 18 channel module
• User-selectable sampling rates up to 1 Msps/channel
• High bandwidth options up to 200 kHz
• Record for milliseconds to hours; data writes directly to 16 GB non-volatile flash memory
• Supports a variety of external sensor types: bridge (including MEMS, strain, load), IEPE, voltage, etc.
• Capable of measuring parameters such as force, acceleration, strain, displacement, temperature, etc.

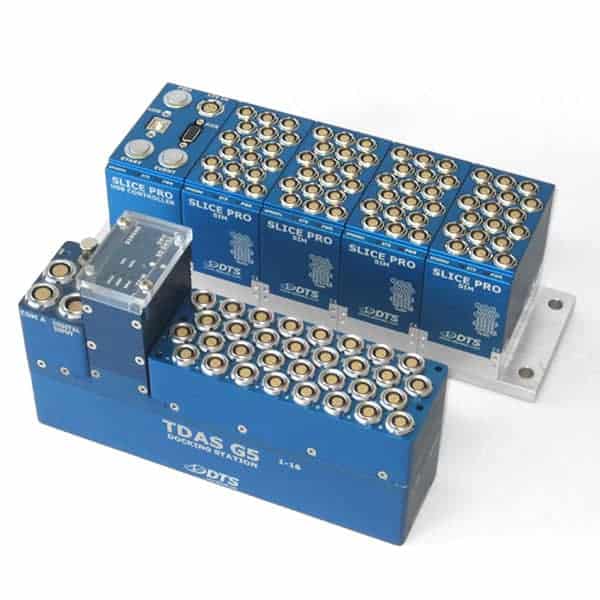

• Compatible with DTS TDAS PRO and TDAS G5 hardware
• Meets NHTSA, FAA, ISO 6487 and SAE J211 data acquisition requirements.

• igh Performance	• Microprocessor, excitation, signal conditioning, adjustable filters
  	• Standalone operation, no tethered PC required
  	• Rugged packaging designed for extreme test environments
  Mega-Sample	• User-selectable sampling rates up to 1M sps/channel
  	• Data bandwidth options up to 200 kHz
  	• Record for milliseconds to hours; data direct-writes to 16GB flash memory
  User-Configurable	• Modules to support sensor inputs, airbag fire, triggering and digital inputs
  	• Daisy-chain systems for large channel counts
  	• Sensor support including: bridge, accelerometers, IEPE, strain gages, load cells, MEMS, voltage, temperature

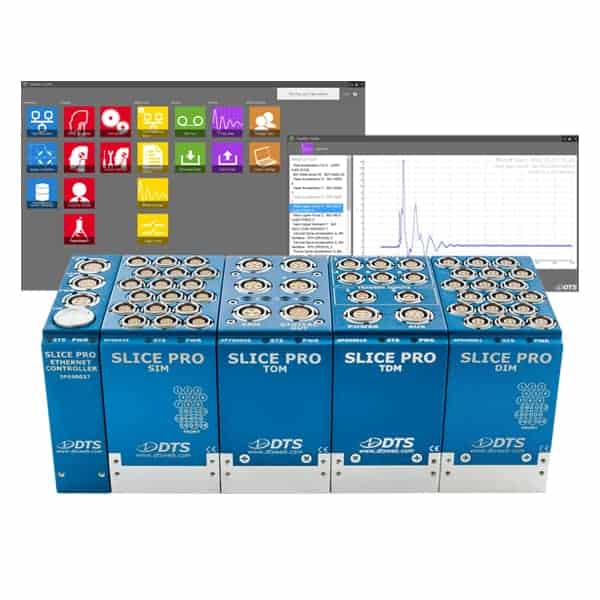

  Powerful Software	• Complete set-up, control and data viewing software
  	• Advanced test set-up features and diagnostics tools
  	• Multiple sensor import and data export options

SLICE PRO Baseplate

Aluminum baseplates make it easy to move or mount SLICE PRO systems. Baseplates are available in a variety of sizes to support an Ethernet or USB Controller, plus up to four modules. (Crashworthy)

SLICE PRO Shock Isolation Mount Kit

The SLICE PRO Shock Isolation Mount Kit is designed for applications like blast testing where additional shock isolation is needed to protect the test instrumentation from extreme levels of shock. (Crashworthy)

SLICE PRO TOM -Terminal Box

The external breakout box provides a simple terminal block connection to the 8 SLICE PRO TOM digital outputs. It also provides access to the alarm output signals.(Crashworthy)

SLICE PRO TOM Arm Enable Plug

Required to hardware-enable the arming and firing of SLICE PRO TOM squib channels. (Crashworthy)

BATTERIES, POWER & DISTRIBUTION

TDAS PLUS Distributor

Integrates power, communication, status and event signal distribution functions for multiple SLICE PRO systems (36-60 V input range). Options for 3, 6 or 9 outputs. Supports large multi-system SLICE PRO test set-ups and in-dummy solutions. (Crashworthy)

TDAS PLUS Mini Distributor

Integrates power, communication, status and event signal distribution functions for multiple SLICE PRO systems. Input range options: 10-36 V, 15-36 V,18-36 V, 36-60 V. Crashlink or Amphenol connectors. Supports large multi-system test set-ups and in-dummy test solutions. (Crashworthy)

POWER PRO

Provides primary power and back-up power for large SLICE PRO systems for up to 1 hour plus. Outputs 15 VDC nominal. (Crashworthy)
POWER PRO Datasheet

Power Splitter Box

Provides a simple way to distribute power to multiple SLICE PRO Systems. (Crashworthy)

Power Supplies

Power supplies available in variety of voltage and amp ranges.

CABLES & CONNECTORS

PC Communication Cable (REC)

Ethernet to LEMO cable to provide communication between SLICE PRO system and PC. Available in a variety of lengths.

Daisy Chain Cable (RDC)

LEMO to LEMO cable used to daisy chain SLICE PRO systems via the COM ports.

Power Cable (RPX)

DC input (LEMO) to pigtail for easy connection to a power supply. Available in a variety of lengths.



Power Cable (RPX)

Provides LEMO to LEMO connectivity between SLICE PRO system and power source. Available in a variety of lengths.

Status cable

Provides a visual indication of the SLICE PRO status via green LED. Options available to connect to either the System or COM ports.

TOM Squib Output Cable (TSX)

Provides connection between SLICE PRO TOM and external device such as an airbag or seatbelt pretensioner.

TOM Terminal Box cable

Cable connecting SLICE PRO TOM Digital output port to Terminal Box, (150 cm)

SLICE PRO Base Cable Kit (Ethernet)

Includes the basics required for a complete SLICE PRO test solution. Includes Ethernet communication, event and power cables, power supply and LEMO extraction tool.

Other Cables

DTS offers many other cable types to connect to DTS devices, sensors, etc. Please contact DTS to discuss your requirement.

Connectors

A full range of LEMO and Tajimi connectors available in a variety of configurations to provide connectivity to sensors, power, com, etc.

IEPE Sensor Adapter Plug

Adapts SLICE PRO SIM LEMO connector (Option 39) to 10-32 (microdot) connector for easy attachment to IEPE sensors.

THA Thermocouple Adapter

Uses a standard miniature thermocouple connector to connect Type K thermocouples to SLICE systems. Two range options: -100 to +400C; 0 to 1250C

Range Expander

Adapter with cable that allows DTS DAQ systems to record voltage signals exceeding the standard input range. Available in ±20 V, ±40 V, ±60 V and ±800 V ranges. Various connector options available (LEMO, Omnetics, Tajimi).
