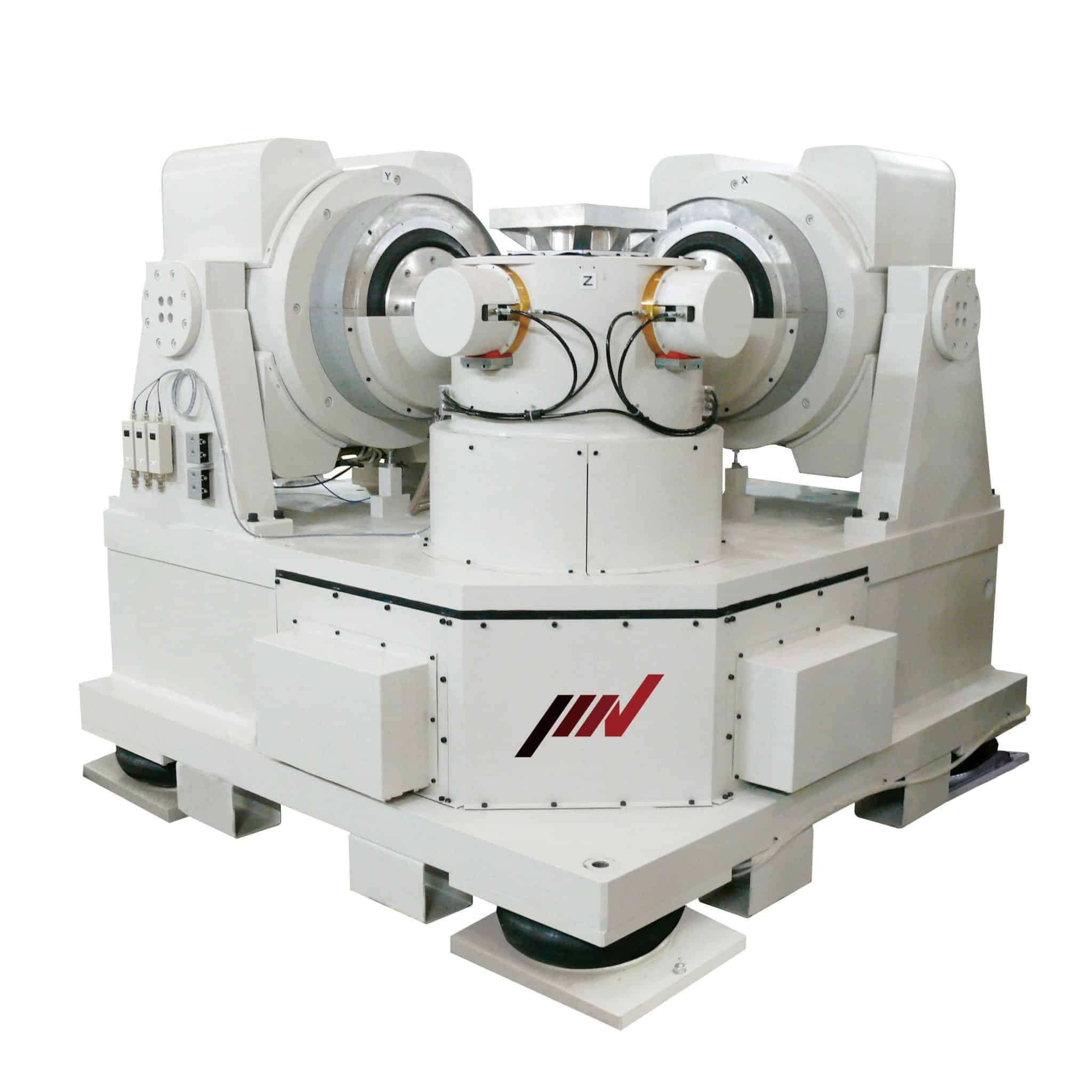

TS-Series Simultaneous Tri-Axis Vibration Test System

Product Overview

Multi-axis vibration test technology is at the cutting edge of Vibration Test & Measurement solutions available on the market today. Multi-axis test systems provide the end-user with accurate results in a realistic and convenient manner. It is possible to achieve far greater efficiency, up to a factor of three.

The TS-Series is a simultaneous Multi-Axis Vibration Test Systems from IMV. The TS-Series features tri-axis operation. The result of multi-axis simultaneous excitation is completion of tests in drastically shorter times than single axis excitation, as all axis are running simultaneously. Due to their nature, Multi-axis vibration generators can run tests across up to three separate axis, eliminating the need for additional sliptables.

IMV’s TS-Series of Multi-Axis Shakers can be combined with Climatic Test Chambers and Temperature / Humidity Chambers. IMV’s solution offers end-users reproduction of a more realistic vibration test in an extremely efficient and accurate way.

Markets

Aerospace, Automotive, Defence, Education, Electronics, Ground Transportation, Renewable Energy

Models

TS-1000-4H
TS-1000-6H
TS-1000-8H
TS-1000-10M
TS-2000-5H
TS-2000-8M
TS-2000-10M
TS-2000-15M
TS-3000-5H
TS-3000-8M
TS-3000-10M
TS-3000-15M
TS-5000-6H
TS-5000-8H
TS-5000-10M
TS-5000-15M
TS-6000-6H
TS-6000-8H
TS-6000-10M
TS-6000-15M

Request a Quote

Technical Specifications

* Depending on the reference PSD or other operating conditions such as the specimen, one part of the controlled response may deviate from the reference PSD
Key Features
- Multi-Axis Vibration Test Technology – Tri-axis operation
- Tests can be run simultaneously reducing test times
- Lower running requirements and no additional sliptables required
- True replication of the real world Vibration environment
Options
- Can be easily combined with Climatic Chambers
- Tri-Axis (TS)
