HV-Series: Hydraulic Vibration Testers

Markets

/ / / / /

Product Overview

Hydraulic Vibration Test Systems for package and product reliability testing. For performance testing of products and shipping containers.

L.A.B.’s Hydraulic Vibration Test Systems help you design high quality, cost-effective products and shipping containers by accurately measuring sensitivity to sine or random vibrations.  Field-Test Systems are specifically designed to meet a wide range of ASTM, DOT, ISTA, 3A, ISO and federal standards for vibration testing.  Our hydraulic vibration test systems are ideal for a wide spectrum of testing applications ranging from sine sweep tests to the most complex data real time simulation, or random reproduction applications.

Hydraulic Vibration Systems perform the repetitive bounce, sine sweep, resonance search and dwell, and random vibration tests that help you:

  • Design package systems that survive the distribution environment
  • Identify components susceptible to fatigue failure
  • Reduce package material costs
  • Minimize shipping damage claims
  • Cut warranty expenses
Learn More

Key Features

HV Features by System

Model ►

HV-24 HV-36 HV-48 HV-60 HV 72 hv 90
Standard Table
Size
600 mm x 600 mm
(24″ x 24″)
910 mm x 910 mm
(36″ x 36″)
1220 mm x 1220 mm
(48″ x 48″)
1520 mm x 1520 mm
(60″ x 60″)
1829mm x 1829mm (72″x72″) 2286mm x 2286mm (90″x90″)
Performance
1-500 Hz
1-300 Hz 1-200 Hz
Maximum Stroke
(Peak-to-Peak)
Typically the stroke is 2.5″ to 4″
Actuator 5,300 – 33,000 pounds of force
One G Supports

Yes (when required)

Servo-Valve
Flow
5 GPM – 200 GPM
Hydraulic Power
Supply Size
25 – 100 HP
Required Oil
Cooling System
Water Cooled, Air Cooled Option for a Greener Application



Available Options

Hydraulic Vibration Options
Test Fixture

  • Set allows easy specimen attachment to the vibration table.

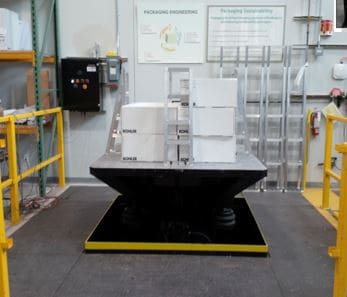

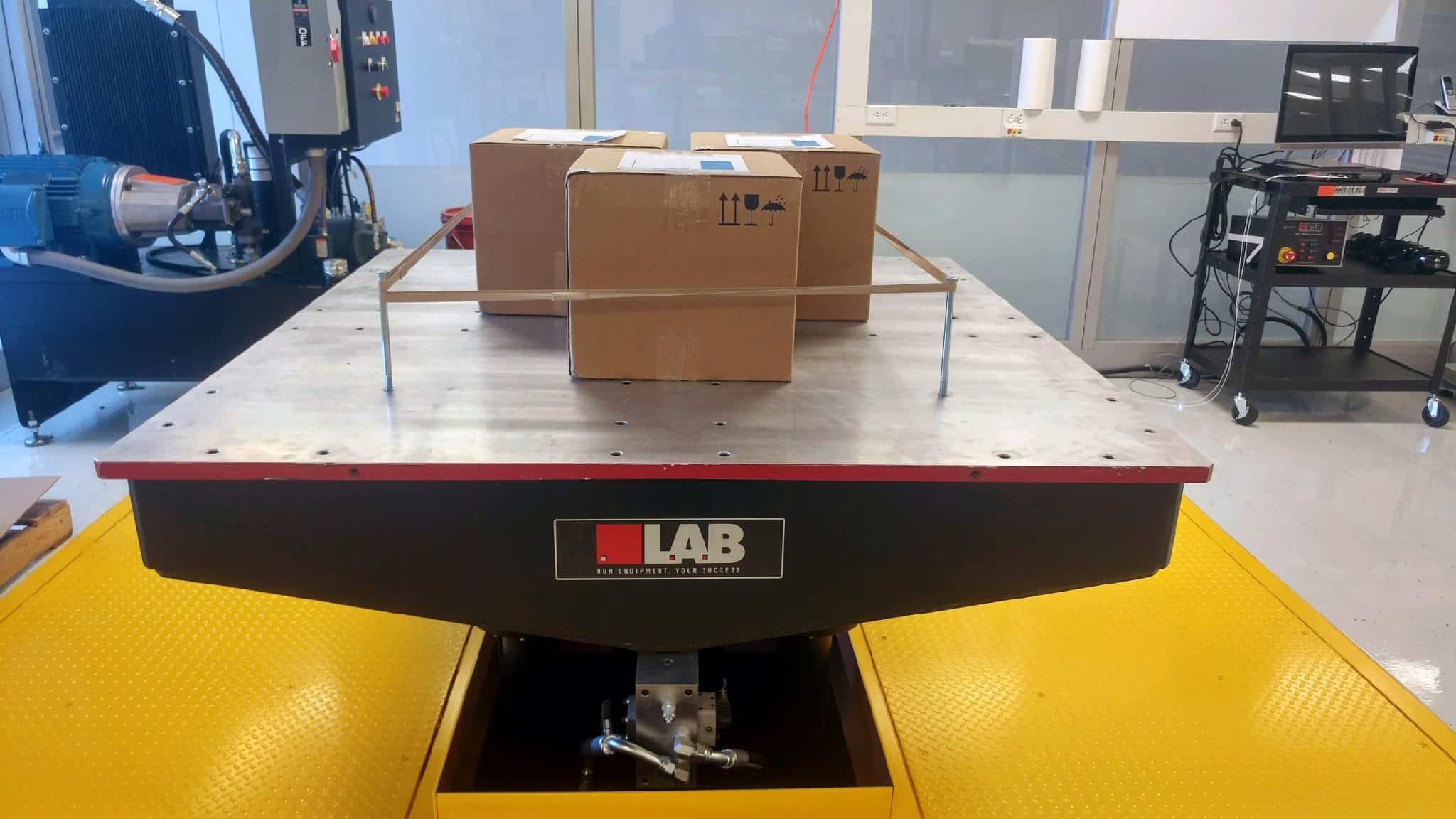

Stacking Fences

  • Maintain shipping container alignment during testing.

Custom Systems

Available for:

  • heavier payloads

  • larger displacement or velocity

  • broader frequency range
