Models
- A12/EM1HAM /
- A22/EM2HAM /
- A30/EM3HAM /
- A45/EM5HAM /
- A65/EM7HAM /
- A74/EM10HAM /
- EM2201A /
- EM2301A /
- EM2401A /
- EM2501A /
- EM2502A /
- EM2601A /
- EM2305A /
- EM2405A /
- EM2505A /
- EM2506A /
- EM2605A /
- EM2305A /
- EM2405A /
- EM2505A /
- EM2506A /
- EM2605A /
- EMK0301A /
- EMK0622A /
- EMK0801A /
- EMK1251A /
- EMK1252A /
- EMK1255A /
- EMK1256A /
- EMK2001A /
- EMK2002A /
- EMK3501A
Specifications
Click HereProduct Overview
Lower overhead costs, decrease electricity consumption and reduce your carbon footprint by lowering your CO2 emissions with the EM-Series range of ECO Vibration Test Systems, the next generation of Vibration Test Equipment from IMV.
The Energy Saving ECO Technology integrated in to the EM-Series Shakers is the worlds first automatic ECO friendly vibration test system ever produced.
The Intelligent Shaker Manager (ISM) reduces carbon dioxide (CO₂) emissions and automatically optimises power consumption by referring to payload and test conditions reducing manual input of system settings that might otherwise be required for other electrodynamic systems.
Furthermore IMV’s EM-Series of ECO Test Systems controls and optimises the output of the power amplifier, power input to vibration, the speed of the cooling fan and DC Field during test conditions, ensuring noise output is reduced, enhancing the test environment and reducing costs.
When combining the EM-Series ECO Vibration Test System with the IMV K2 Controller, it is possible to get real-time consumption figures at a glance.
Learn MoreKey Features
-
Automatic energy saving
ECO-shaker is an electrodynamic vibration test system in which the output of the power amplifier, power input to the vibration generator and cooling blower speed are automatically optimised, according to the payload and test requirements.
Complicated manual settings are no longer needed.
Changes in the operating environment or in test level are accommodated without operator intervention.
Features
- Only vibration test levels need to be set
- Automatic response to changes in sample under test or test level
- Continuous monitoring of temperatures used to control blower speed
-
Effect of energy saving
The lower the system output, the more energy saving can be achieved.
Calculation method:
Calculation of CO2 reduction, referring to actual data of our i250/SA4M (Maximum force 32kN)Conditions:
1) Random
2) Average operating output: 25%
3) Average operating ratio per year: 70%Save up to 80% on your running costs
Reduce yout CO2 emissions by up to 80%
-

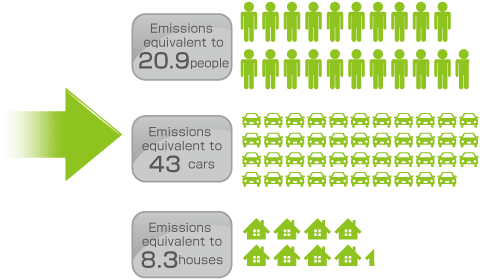

CO2 reduction effect
-
Running cost
-

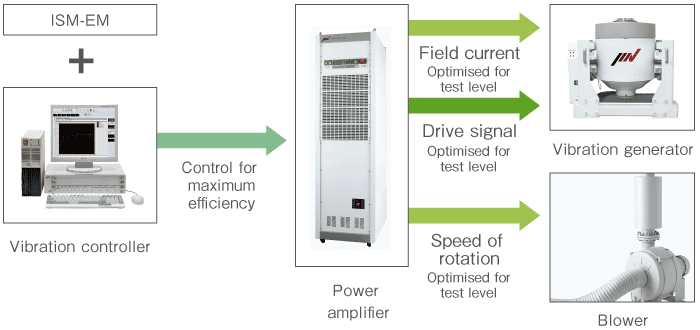

Operation of ISM-EM (Power consumption)
Minimising the energy consumption of a conventional vibration test system would require complex calculation and adjustments to suit the test requirements. The Integrated Shaker Manager (ISM-EM) technology incorporated within the ECO-shaker system automatically controls the power amplifier output, field level and blower speed to achieve the maximum efficiency under all test conditions.
-
Upgrading existing systems
ISM-EM technology can be added to existing IMV vibration test systems by installing the ISM-EM module and additional software.
Available Options

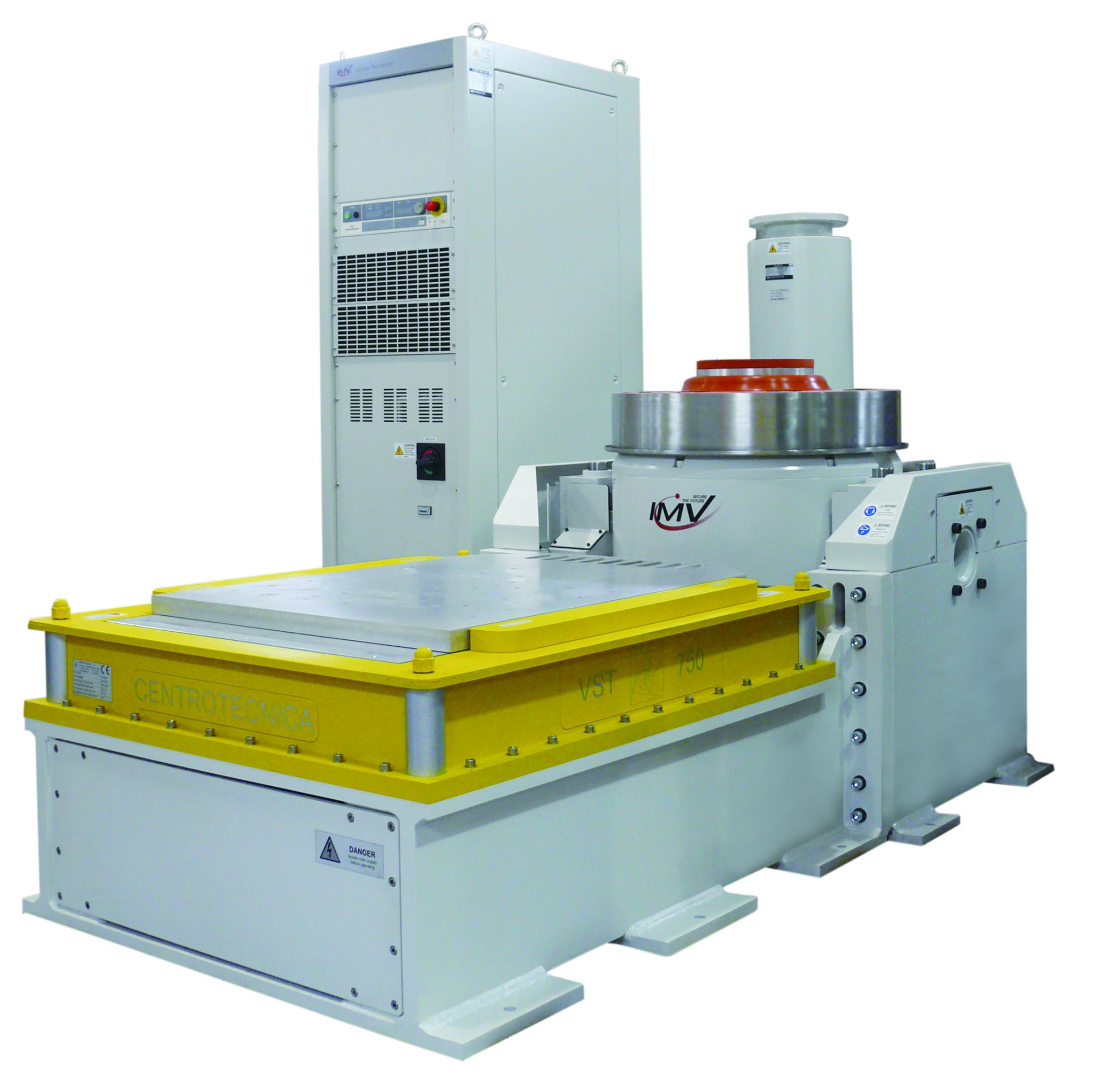

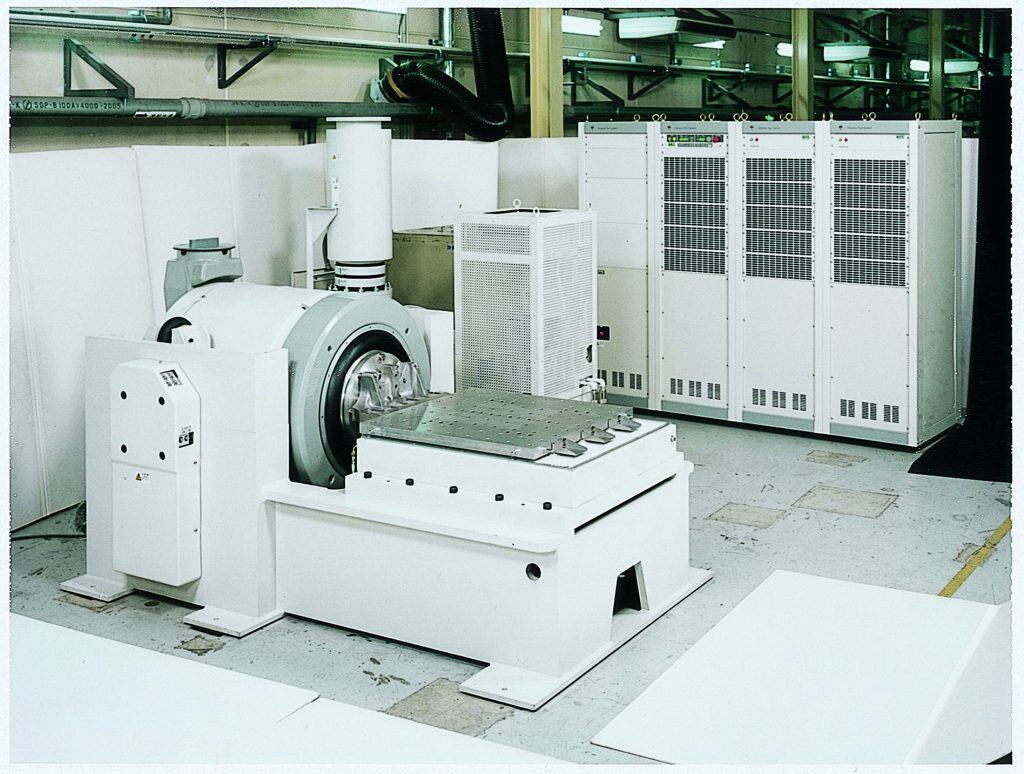

High performance slip table
Hydrostatic-Bearing Slip Tables from IMV Corporation are of the latest design and use hydro-static bearing blocks which are attached to the underside of the slip plate to enhance the performance of the test system.
Features
- High moment resistance
- Low cross-axis acceleration
- Low distortion
- No requirement for a separate hydraulic unit
- Good work efficacy
- Smaller system installation space
Variable Armature Insert Pattern
The option to freely select the table insert pattern on the shaker armature.
- Selecting this option, the armature mass will increase.
- Due to combining with other options; the horizontal slip table, insert pattern may have restrictions
Head Expanders
The purpose of a Head Expander is to allow testing of multiple items simultaneously, or expanding the test area of a shaker for larger test samples.
Head Expanders can increase efficiency, or simply expand your test capabilities on an existing Vibration Test System.
Features
- Increase Efficiency – Test Multiple Items Simultaneously
- Expand Test Capabilities
