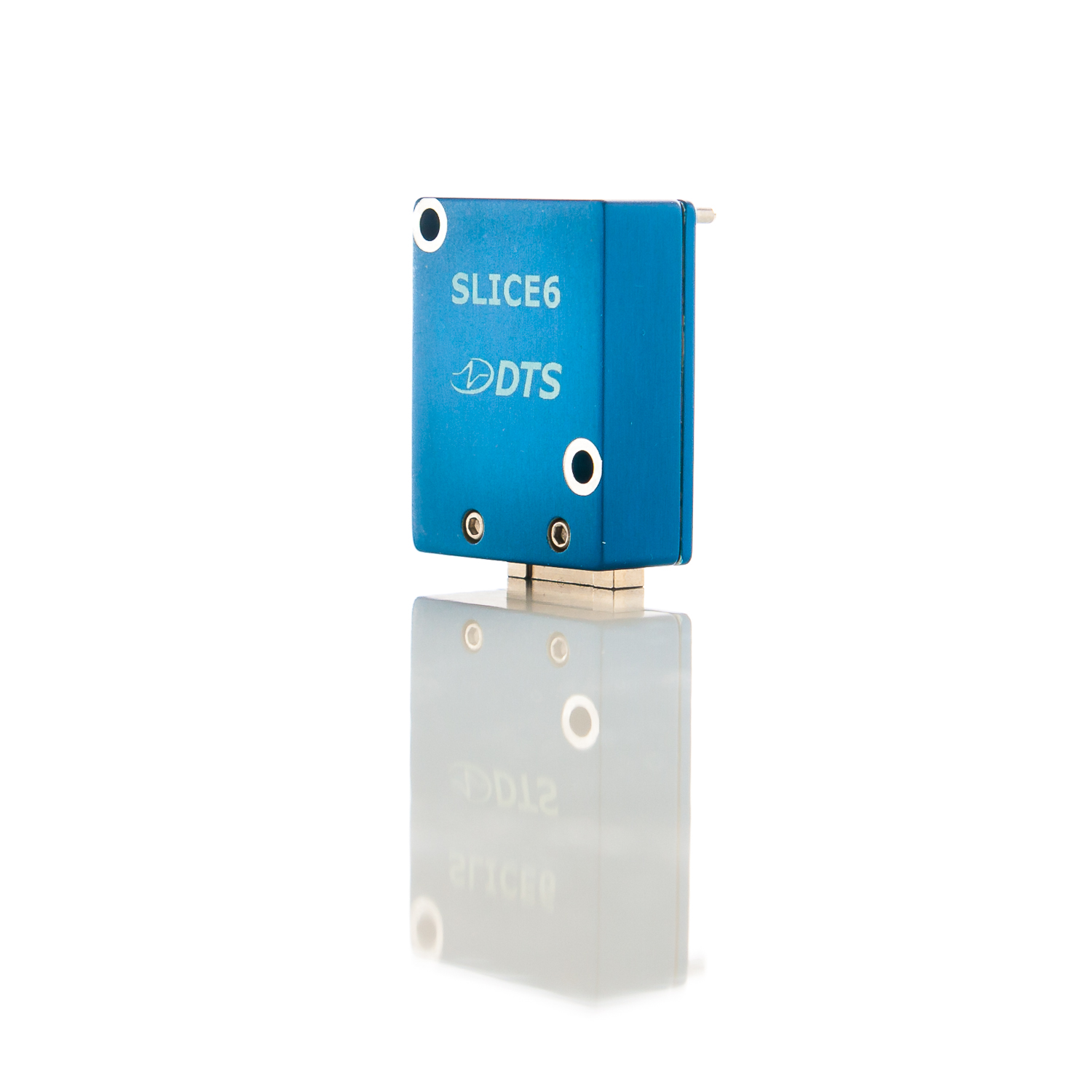

Product Overview

SLICE6 is a modular data acquisition system designed for test applications that require high-speed sampling with precision timing. SLICE6 features unmatched performance, flexibility and reliability in an ultra-small package. SLICE6 makes it easy to build systems in 6-channel increments and supports up to hundreds of channels per test.

Each module contains a microprocessor, flash memory, control circuits and a sensor interface complete with excitation, variable gain, and 16-bit ADCs. A simple interface provides trigger and communication signals for chaining multiple modules. SLICE6 is ideal for in-dummy and test applications with tight space constraints that require precision and reliability.

The miniature, rugged SLICE6 data acquisition system is designed for test applications that require high-speed sampling with precision timing. An IEEE 1588 compliant Ethernet switch allows PTPv2 daisy-chaining of hundreds of channels.

Request a Quote

Product Resources

SLICE6 DAS QUICK REFERENCE CHART

Manual

SLICE6 Ultra-Small Data Acquisition System for Embedded Solution

Data Sheet

SLICE6 HB Miniature, High Bandwidth Data Recorder with PTP Timing

Data Sheet

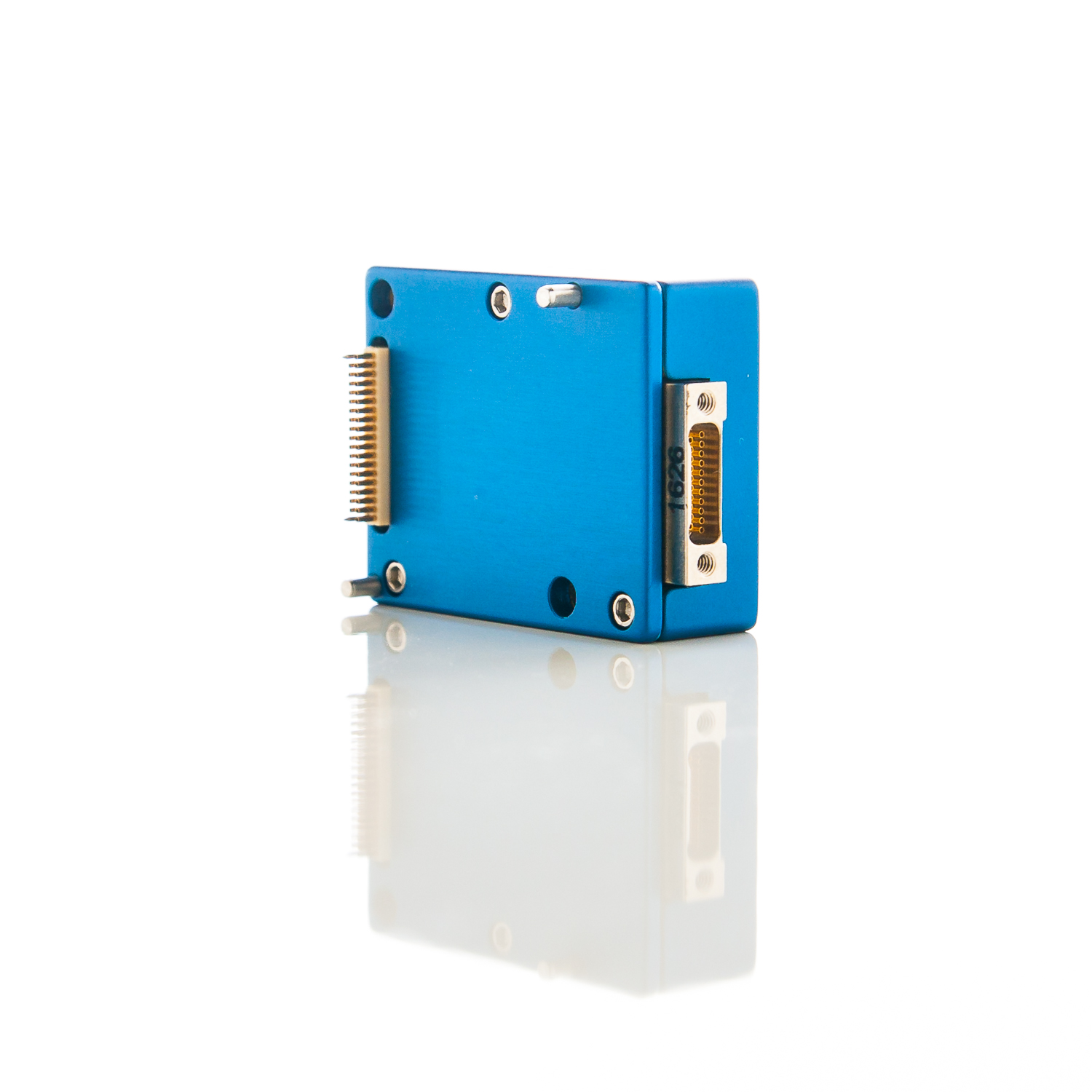

SPECIFICATIONS

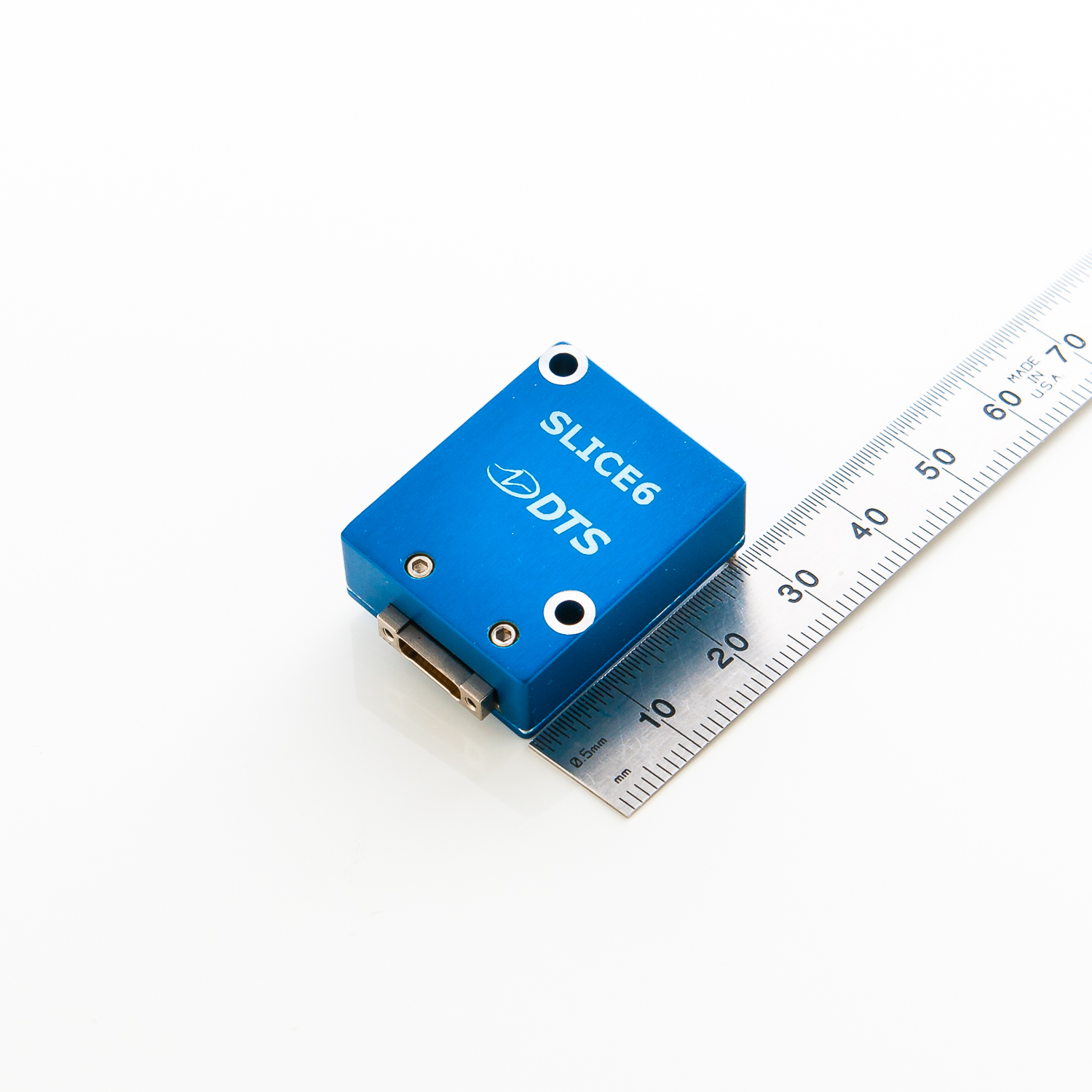

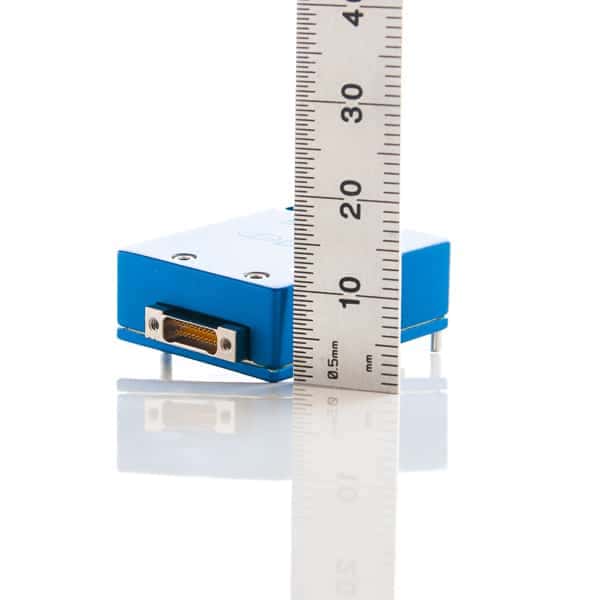

Physical	24 x 30 x 10 mm, 28 grams
Features	Standalone, modular, user-configurable, same form factor available in two models SLICE6 & SLICE6 HB (high bandwidth)
Sampling	Up to 400k sps/channel, programmable
Channels	6 channel module, daisy-chain hundreds of channels
Shock Rating	Up to 500 g, high bandwidth option also available
Data Storage	Data writes to 16 GB non-volatile flash memory
Communication	100M bps Ethernet (unit-to-unit)
Environmental	-40° to 60°C, IP51, MIL-STD-810G
Software In-Dummy DAS	DataPRO, API THOR (SLICE6), WIAMan (SLICE6 HB)
Performance	Supports NHTSA & EURO NCAP configurations, Meets SAE J211, ISO 6487, NHTSA & FAA data acquisition requirements

High Performance

Six-channel modules, network up to hundreds of channels
Ultra-small, fits on or embed in test article
High shock rated

Next Generation In-Dummy DAS

Reduces cabling and connectors by up to 75%
No digital sensor modifications required
Store in place reliability, data writes to 16 GB flash memory

Expandable

Configure exact channel count and features needed
Ultra-fast Gigabit IEEE 1588 Ethernet
Supports a variety of sensors, including: full and half bridge sensors, strain gauges, voltage input, thermocouples

Intuitive Software

Real-time, logging, viewing and exporting
Comprehensive sensor database
Detailed self-diagnostics

FEATURES

Small Size	• Complete standalone DAQ solution, available in two models SLICE6 & SLIC6 HB
	• Microprocessor, excitation, signal conditioning, flash memory
	• Reduces in-dummy DAS cabling and sensors by up to 75%

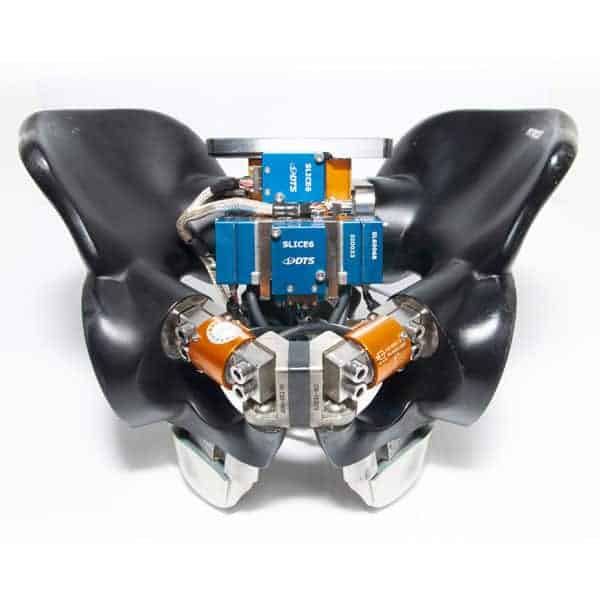

	• SLICE6 HB developed for the U.S. Army WIAMan vertical load ATD
High Performance	• IEEE 1588 compliant Ethernet switch allows PTPv2 daisy-chaining
	• Variable sampling rates up to 400k sps/ch, high bandwidth option available
	• Extended recording times at max sampling rate; data direct-writes to 16 GB flash memory

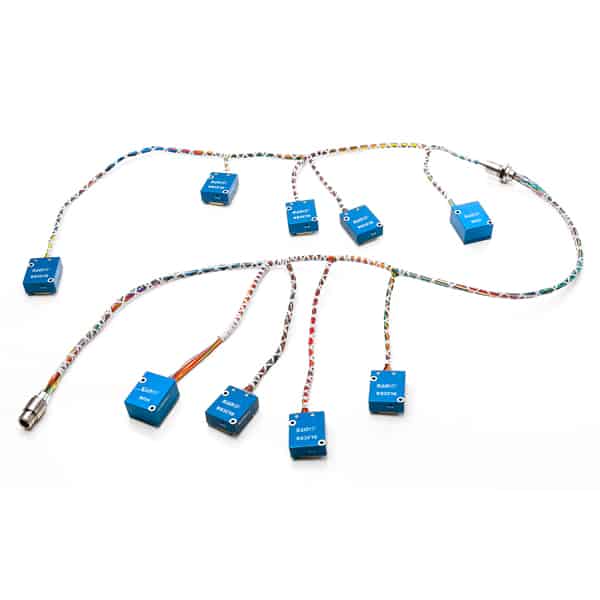

Custom Configurable	• 6-channel module, daisy-chain up to hundreds of channels
	• Direct-mount cable-free sensor options including load cells and six-degrees of freedom
	• Supports a variety of sensors: full and half-bridge, strain gages, voltage input, thermocouples & more
Comprehensive Software	• Complete set-up, control and data viewing software
	• Advanced test set-up features and diagnostics tools
	• Multiple sensor import and data export options

Options

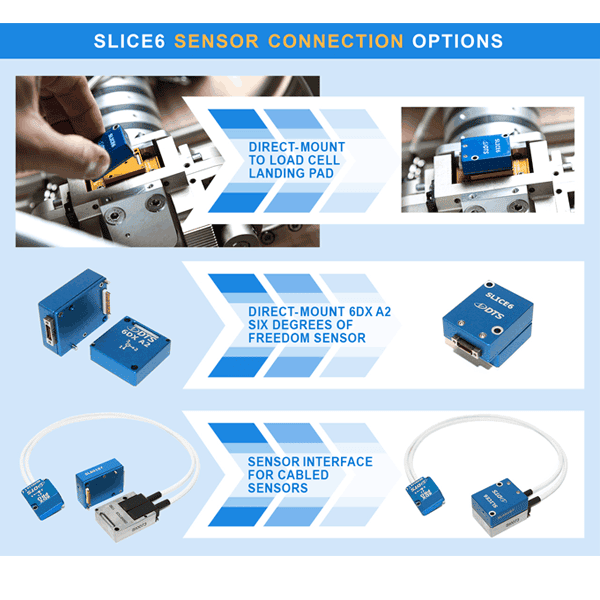

SENSOR SUPPORT

SLICE6 offers cable-free, direct-mount sensors, plus supports traditional cabled sensors,

Contact sales@thp-systems com for further information on product options.

LOAD CELLS

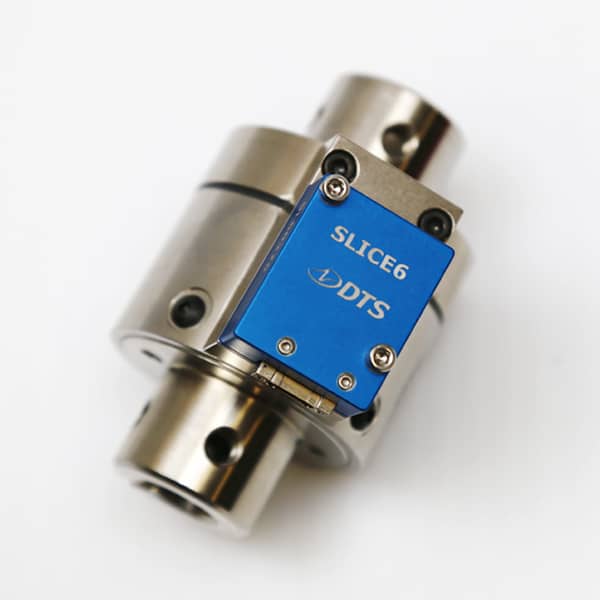

SLICE6 direct-mounts to load cells via customized landing pads

SIX DEGREES OF FREEDOM

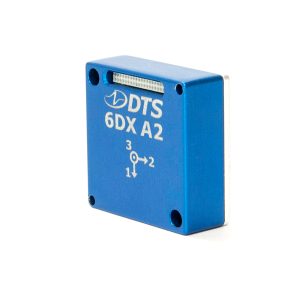

SLICE6 direct-mounts to the 6DX A2 sensor package (triaxial accelerometer + triaxial angular rate)

SENSOR INTERFACE

SLICE6 supports traditional cabled sensors via the SLICE6 Sensor Interface Module

ACCESSORIES

SLICE6 Distributor

Supports Ethernet communication, power and control signals between multiple SLICE6 system chains. Ideal for in-dummy applications.

SLICE6 Sensor Interface Module

Connection interface to SLICE6 for external cabled sensors. Direct-mounts to the SLICE6 module and supports up to 6 channels.

SLICE6 Sensor Kits (1, 2, 3-Channel)

Used with Sensor Interface Module, the Sensor Kits are available in 1, 2 or 3-channels and include the backshell and connector.

CABLES, CONNECTORS & ADAPTERS

1-Channel Sensor Cable Assembly

Supports connection of the SLICE6 Interface Module to an external sensor. Pigtail termination.

SLICE6 1-Channel Sensor Connection Cable

SLICE6 adapter cable, terminates with a 7-pin Omnetics connector

SLICE6 Nano D to Pigtails Cable

Connects to SLICE6 system port via a Nano D connector to pigtail. (1 m length)

SLICE6 Daisy Chain Cable

Chains multiple SLICE6 modules. Connects to the SLICE6 system port. Supports pass-through power, communication, event and status. (20 cm length)

EOC to Adapter Cable

Adapter cable for Interfacing SLICE6 to and End of Chain (EOC) device. Micro-D to MCS- 12 (20 cm length).
Videos
Software

DataPRO Software

DataPRO is a powerful set-up, control and data viewing software for DTS hardware. The intuitive user interface is designed to help test engineers create, control and manage every aspect of a test. DataPRO makes it easy to access complete sensor and hardware details, plus share test information via standalone or centralized SQL databases. Key features include integrated off-line test builder, extensive ISO MME database, enhanced diagnostic tools, multiple viewing options and automatic report generation.
