TSR Air

TSR Air

Request a Quote

Product Resources

Data Sheet

Brochure

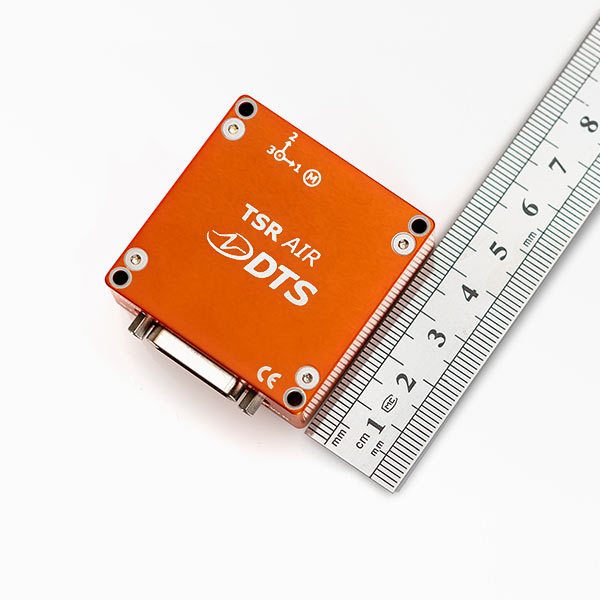

Physical	43 x 43 x 15 mm, 50 grams
Features	Standalone, 11 built-in sensors, onboard memory, plus real-time streaming capabilities
Sampling	100 to 20k sps, programmable (Recording or Streaming Mode)
Sensors	Low-g Accelerometers (Vibration) High-g Accelerometers (Shock) Angular Rate Sensors (Angular Velocity) Environmental Sensors (Temperature & Pressure)
Shock Rating	500 g
Data Storage	Data writes to 8 GB non-volatile flash memory
Synchronization	IEEE 1588 PTP, IRIG-B122, GPS/1PPS, RTC

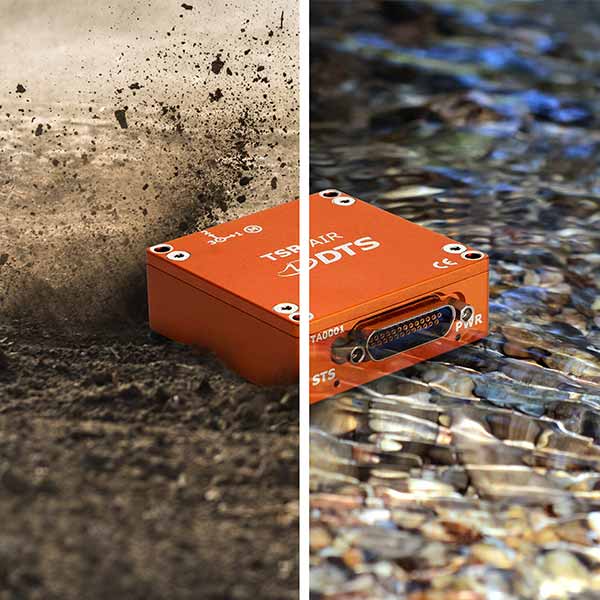

Environmental	-40° to 60°C, IP67
Software	DataPRO, API
Calibration	NIST traceable, ISO 17025 (A2LA Accredited)

Low SWaP	• Ultra-low Size, Weight and Power (SWaP)
	• Quick installation and easy test set-up
	• Battery operated, advanced power management system
	• Doesn’t alter test dynamics even on small test articles
High Performance	• “Sleep & Wake” feature extends battery life up to months
	• Programmable sampling rates; synchronization options

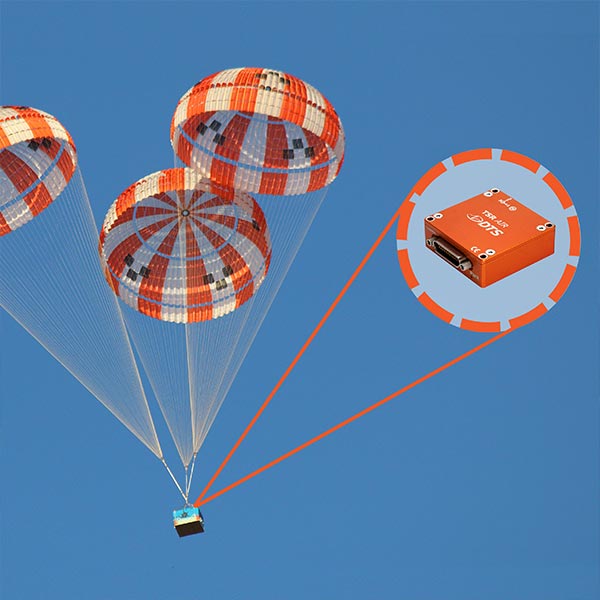

	• High shock rated for dynamic test environments
Flexible	• Works standalone, networked or integrated into existing FTI systems, as well as with SLICE6 AIR
	• Onboard recording and real-time streaming capabilities
	• Embedded sensors: accelerometers, angular rate, temperature, pressure
Comprehensive Software	• Simple, intuitive Windows software for set-up, control and data viewing
	• Includes test set-up features and diagnostics tools
	• API for user-developed application support

Options
ACCESSORIES

TSR AIR End-of-Chain Device Cable Kit

The End-of-Chain connects directly to the TSR AIR system connector to control onboard recording functions:
• On/off switch
• Start record
• Event/T=0
• Status LED
Kit includes: End-of-Chain (EOC) Interface, EOC Cable, Ethernet (RJ45) to USB 3.0 Adapter and Power Supply.

TSR AIR Test Device Cable Kit

The Test Device connects directly to the TSR AIR system connector to support time synchronization (1588 PTPv2, IRIG-B, GPS/1PPS) and control onboard recording functions:
• On/off switch
• Start record
• Event/T=0
• Status LED
Kit includes: TSR AIR Test Device and Power Supply.
Videos
Software

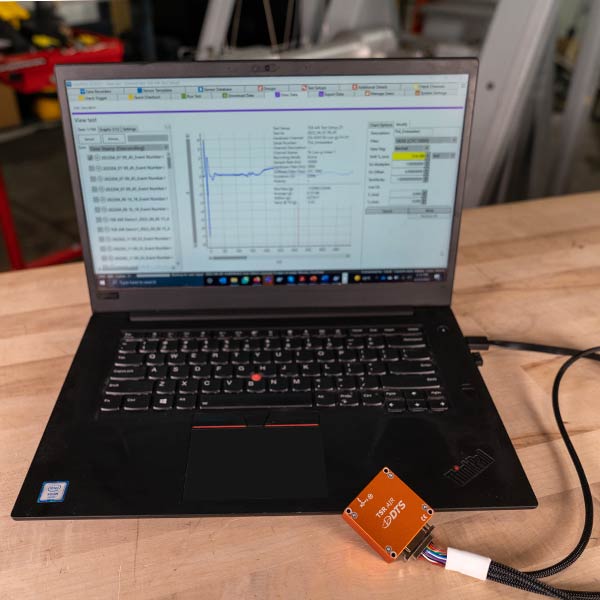

DataPRO Software

Easy-to-use Windows application designed specifically to support TSR AIR; includes sensor database, diagnostics, arming, downloading, data viewing and PSD analysis
