ACS 4 Poster Test Chambers

Product Overview

ACS works in partnership with leading road simulation actuators manufacturers. The goal is to offer integrated systems for testing in a wide range of environmental conditions. Reliability and sturdiness characterize this product.

In case of challenging acoustic performances, technologically advanced noise absorption shells are applied inside the climatic chamber and special solutions are studied to reduce the noise of air circulation. Special solutions have also been engineered for the interface between the climatic chamber floor and the actuators to avoid the formation of condensation or ice. ACS also offers the possibility to install a Sun Simulation system inside the climatic road simulation chamber.

Markets

Automotive

Request a Quote

Product Resources

Automotive Test Solutions Brochure

Brochure

Key Features
The climatic chambers for testing the device under test accurately simulate the environmental operating conditions of the product.

With the ACS climatic chamber dedicated to this application, complete and real dynamic tests can be performed in a wide range of climatic conditions. Altitude simulation can be combined on request.

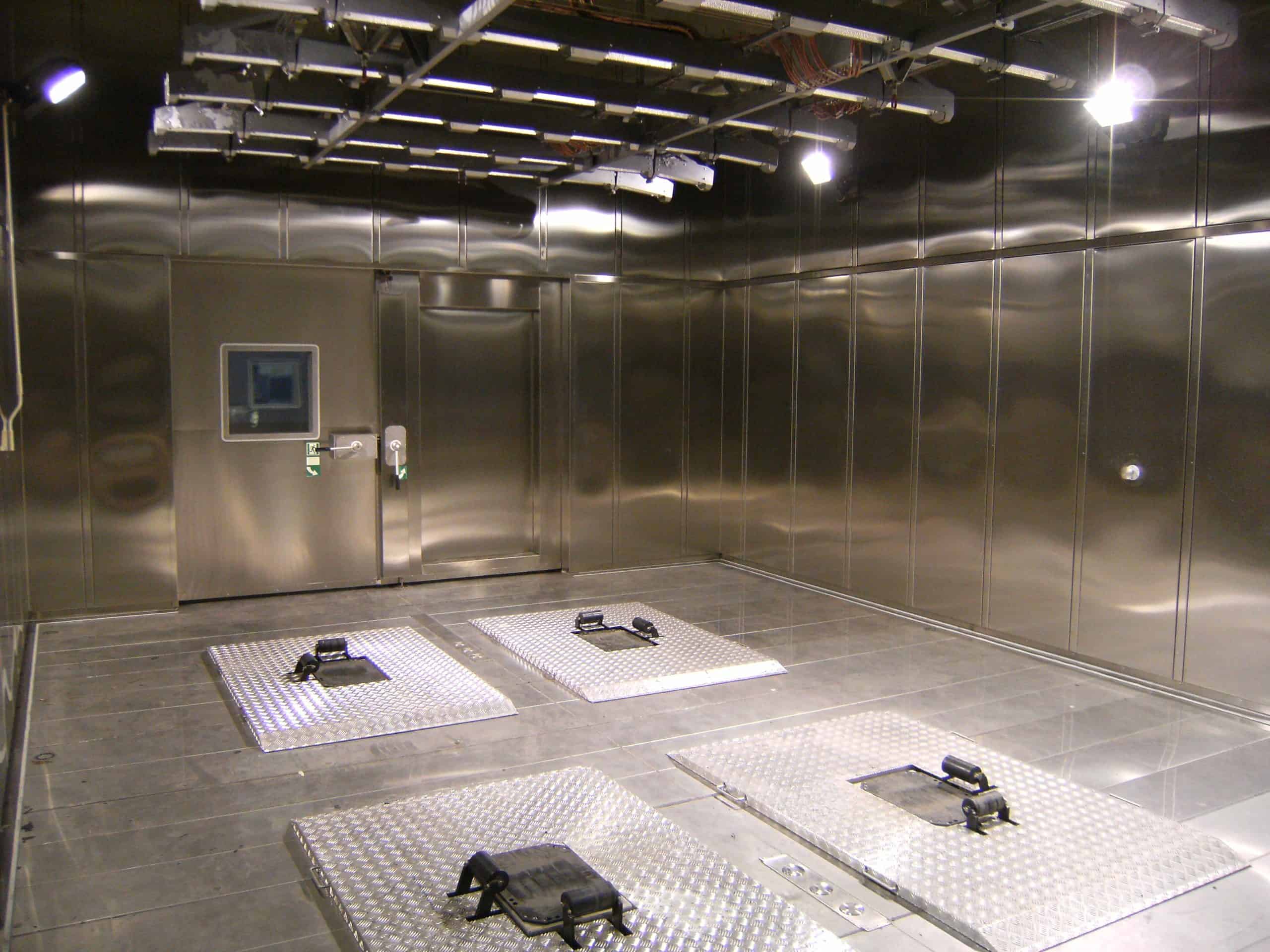

Example of a chamber built according to customer specifications.
- A special solution was designed for the interface between the floor of the climatic chamber and the actuators to avoid the formation of condensation or ice.
- Height: 4300 mm
- Width: 5400 mm
- Depth: 8000 mm
- Height between the IR irradiation device and the chamber floor: 3000 mm
- Holes in the floor for the 4-actuator system, 4 holes, according to wheelbase and track width.
- Adjustable wheelbase
- Adjustable track width
- Temperature range: +10 to +80°C
- Relative humidity range: 15% to 95%
- IR irradiation system, Irradiated area: 5000 x 2500 mm
Software
The software for this type of chamber is an application that includes all the functions based on the specifications requested by the customer. The chamber has a built-in control panel for controlling and managing its functions. The chamber can also be controlled remotely using the WinKratos software or an equivalent application.
