1. For Temperature only version change the prefix WZH with WZT
2. t=+4°C/+78°C for continuous test
3. Measured at 1 m distance in front of the unit in 1,6 m height, free field measurement
4. According to IEC 60068-3-5 and IEC 60068-3-6 in the temperature range +80/-30°C
5. The performance data refer to +22°C ambient temperature, 400V nominal voltage, without specimen
6. With water at T +29°C and temperature difference at 5°C (water temperature range +12÷+29°C)
7. Temperature range (-40/+80°C)
8. Temperature range (-30/+80°C)
9. Temperature range (-65/+80°C)
10. Temperature range (-70/+80°C)

Product Overview

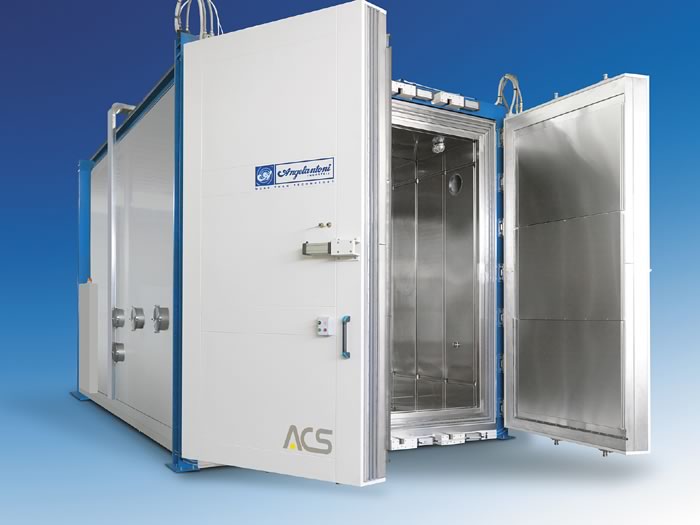

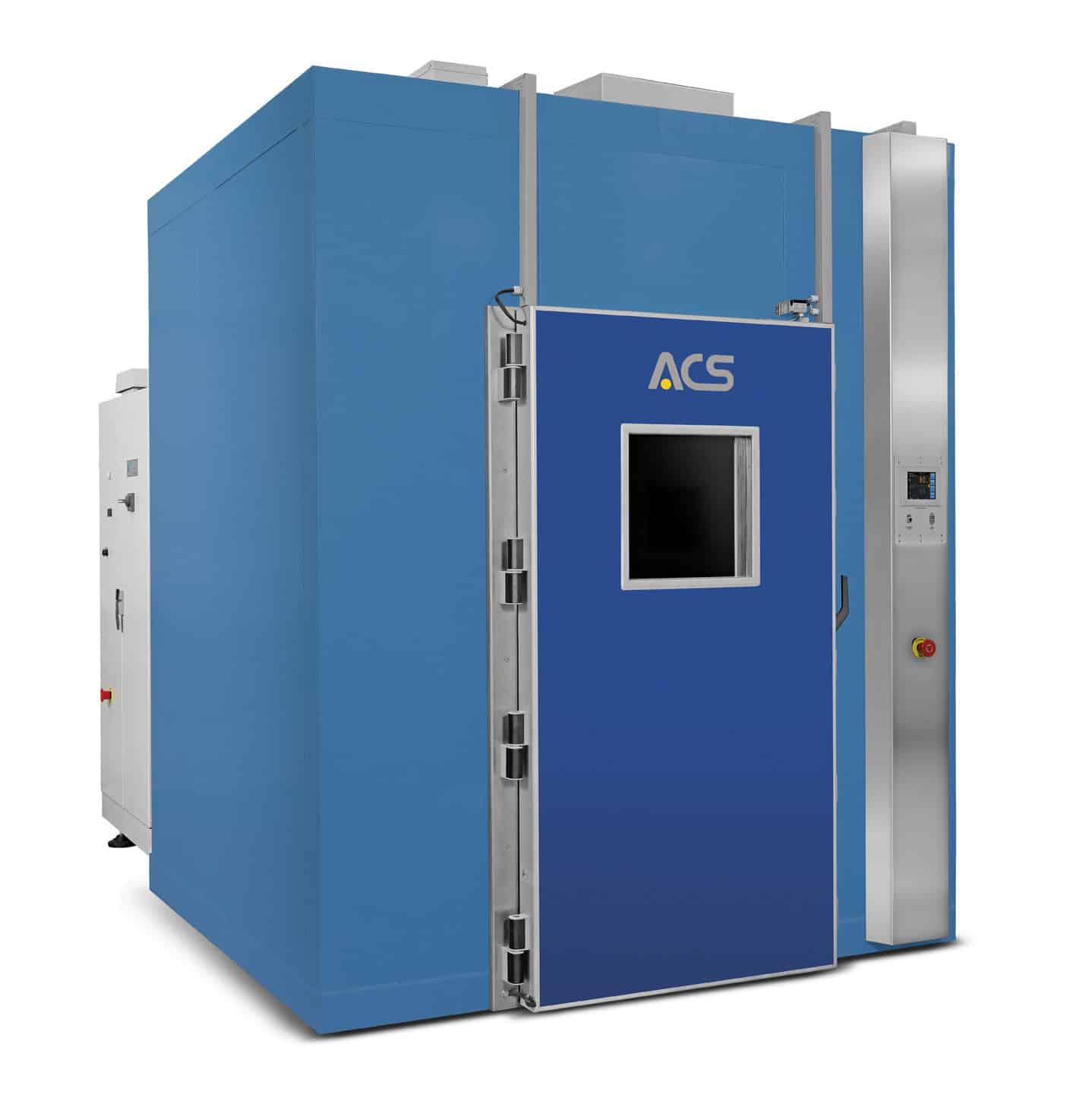

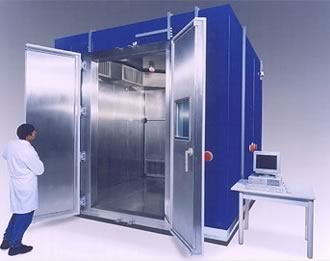

ACS offer an impressive 4 models of modular Walk In Chambers according to their useful capacity: Compact (10 m3), Medium (16 m3), Large (30 m3) and Extra Large (40 m3).

ACS aim to unite customers with a cost-effective, modular design of the four basic elements of a walk-in chamber that can be mixed and matched to provide a configuration to suit the majority of requirements:
  • Cooling Unit.
  • Air Treatment Unit
  • User interface.
  • Test room
The control system interface is placed near the door for all the versions of the walk-in chamber. It comprises:
  • Emergency STOP push button.
  • Touch panel programmer / controller.
  • Serial interface RS 232/422
  • Software + personal computer (optional).The chamber is equipped with a PLC (Programmable Logic Controller), used to manage all chamber functions and safety interlocks.

A special device is used to control the chamber via “mobile” devices, such as Tablets and Smartphones, or to establish a remote Internet comnnection. The HMI system consists of an on-board panel  and a Remote connection control (MyKratos™ and MyAngel™).

Learn More

Customised

Walk-in chamber equipped with indirect cooling

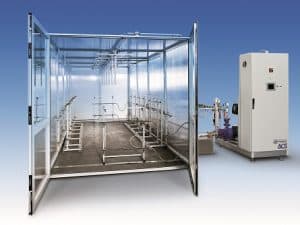

Walk-In Chamber for Rain Tests

Walk-in chamber equipped with indirect cooling system to test specimen (base station) with high heat dissipation

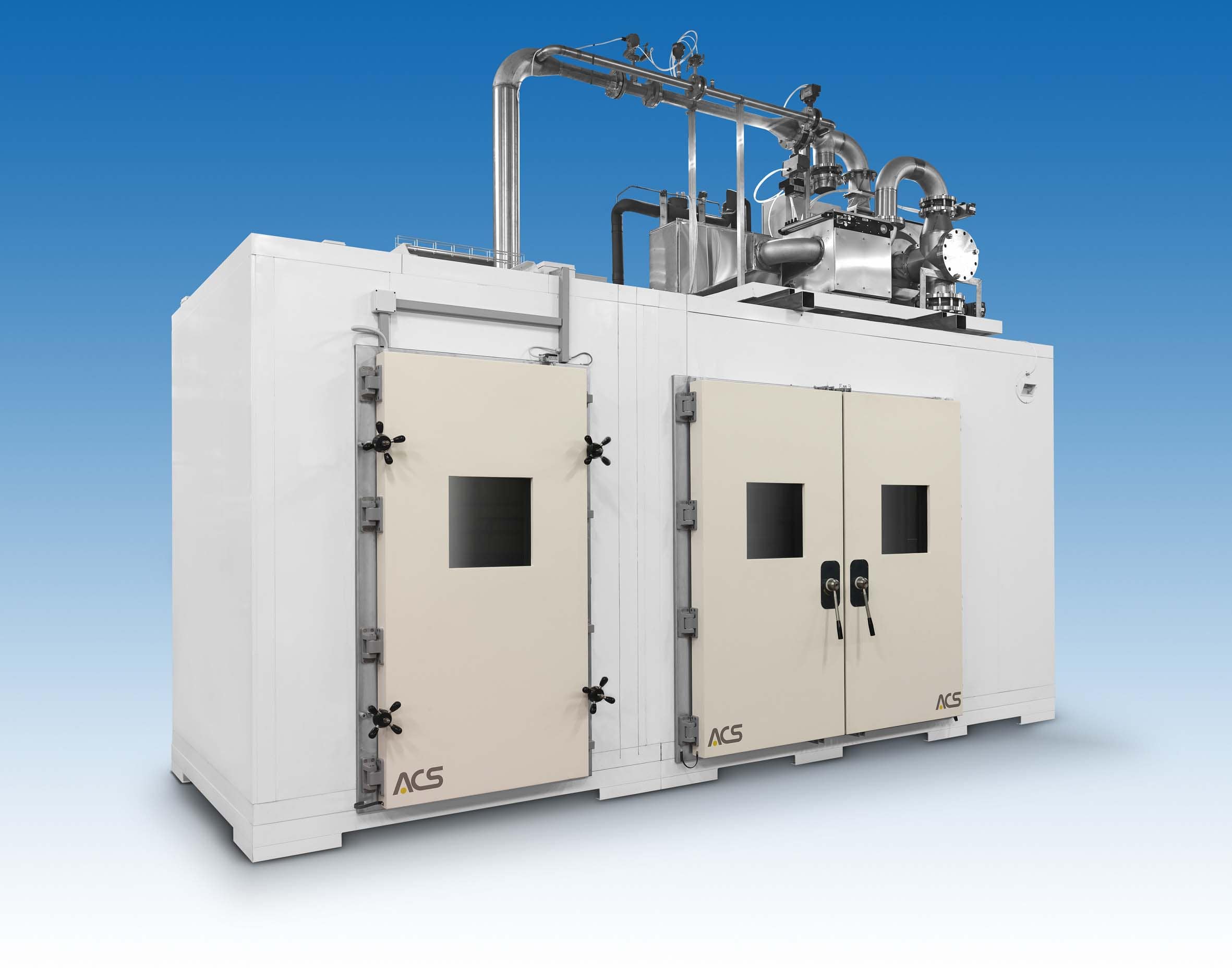

Walk-in chamber for rain tests

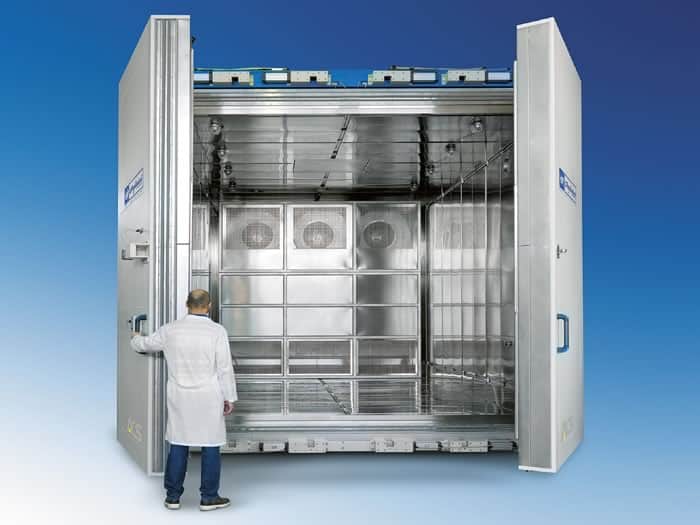

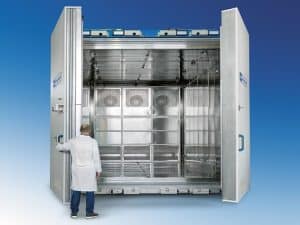

Walk-in chamber for tests on satellite antennas and panels

Calorimeter to measure the efficiency of air conditioning systems

Walk-in chamber for tests on satellite antennas and panels cooling system to test specimen (base station) with high heat dissipation

Calorimeter to measure the efficiency of air conditioning systems

Control System

MyKratos Support Manage & Control

MyKratos™ control software makes it possible to manage, monitor and assist the chamber anywhere, at any time, in multiple ways via the on-board panel and desktop/mobile devices (Wi-Fi, Ethernet, mobile network). The chamber wireless (Wi-Fi) connection permits operation using tablets and smartphones (iOS or Android compatible).

The operator interface can also be remotely accessed through a chamber connection to the customer’s LAN or via mobile network (on activation of a SIM card data). It includes the MyAngel24™ interactive assistance system.

MyKratos With Devices
Main Features
  • Wi-Fi or Ethernet connection to the chamber
  • Visualization and graphical analysis of measures and recordings
  • Synoptic charts of the entire system
  • Multilanguage support
  • High configurability of chamber parameters
  • Unlimited measures recording possibilities
  • Program and Manual chamber operation modes
  • Delayed start of a program
  • Possibility to select more than one chamber from a single Tablet: secure access by means of multiple password levels
  • Automatic notifications of event and alarms
  • Archive manager for easy access to the stored recordings
  • Possibility to send email notification
  • Possibility to send SMS notification(SIM card required)
  • Multi-chamber management
  • System available in several languages
Test Program Editor
  • Unlimited possibilities for storing cyclesof 350 segments delaying their execution
  • Internal repetitions of 10 groups of segments up to 999 times each
  • Possibility to upload, edit, export, and delete already existing cycles and recordings
  • Graphic and numeric profile parameters data entry
Graphic Functions (Graphic Viewer)
  • Live data update of measures on the charts
  • Graphic charts or numeric table representation views on the monitor
  • Graphic cursor for in-chart datameasurements and evaluations
  • Calculation of Measure Slopes and report generation.
  • Enable/disable of chart display
  • Zoom in, zoom out and scroll functions

Export function to convert the MyKratos™ log file into ASCII format (usable in Excel or other applications)

Key Features

  • Flexible and modular design for a wide production range
  • Strong standard floor 3000 Kg/m²
  • Robust self-supported structure
  • High degree of customization through many accessories(portholes, door inspection windows, double wing door)
  • Quick assembling on site
  • Quick disassembling to relocate or rebuild the chamber if necessary
  • Easy upgrading and refurbishing thanks to unit plant and air treatment modularity

Basic Configuration

  • MyKratos™ including MyAngel24™
  • Single wing door
  • Skidproof floor: stainless steel floor with anti-slip surface treatment
  • Closing: mechanical
  • Thermostat: max./min. digital thermostat with independent probe
  • Auxiliary contacts (specimens, alarms)
  • Interface: Ethernet port for remote control system connection and USB port for operator panel
  • Water condenser

Available Options

  • Inspection window for single wing door: multiple-crystal, with double heated transparent film, 450×450 mm size
  • Double wing door: with 2 heated multi-pane windows with double transparent film, 450×450 mm size
  • Additional portholes: no. 2 Ø150mm portholes, number and positions available as per drawings
  • Set of 4 input PT100 (max 1 set) (no. 1 set max)
  • Set of no.4 analogic inputs: 0÷10V for user’s data acquisition (no. 1 set max)
  • Set of no. 8 auxiliary contacts (no. 1 set max)
  • No break power unit for PLC
  • Specimen switching off in case of chamber alarm
  • Remote air condenser
  • MyKratos™Multichamber software: installed on a PC, for monitoring and control multiple chambers (to be supplied upon request)
