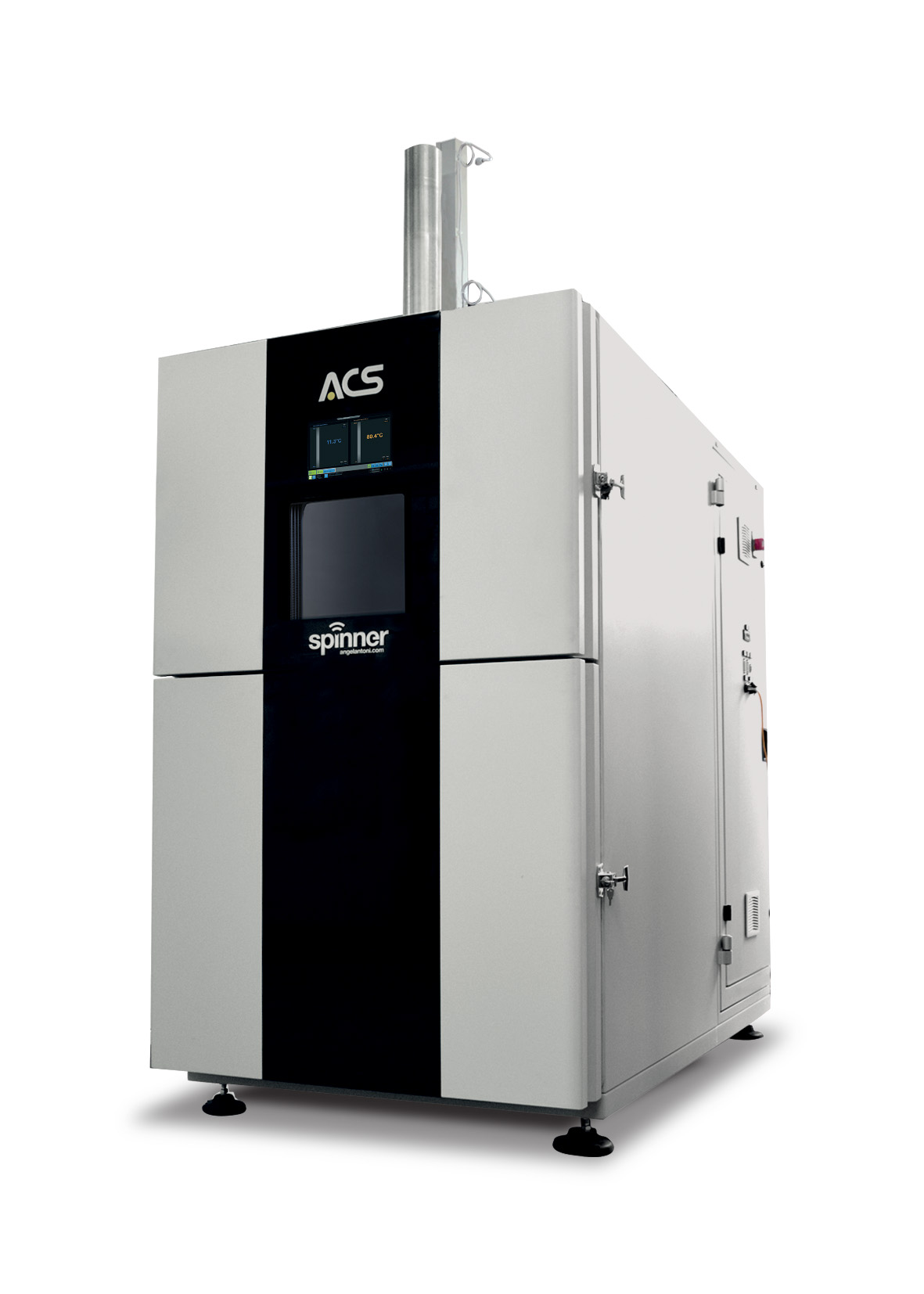

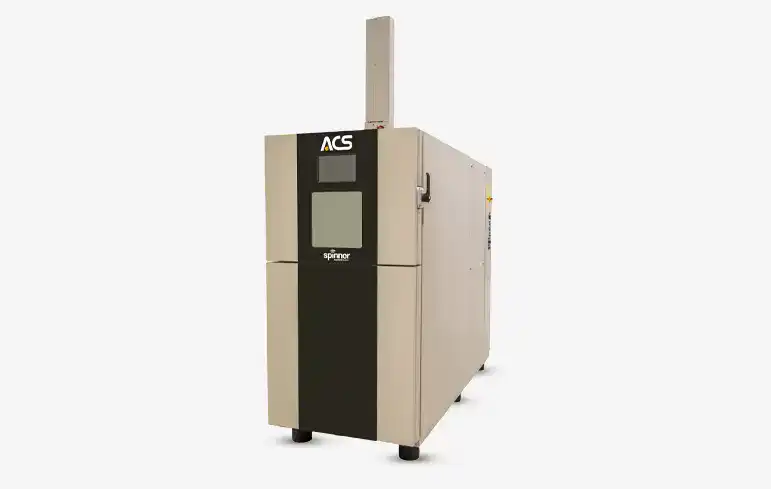

ACS CST130/2T “spinner” Chambers

• Electronic control of the ON/OFF solenoid valves
  Optimize the operation of the cooling system according to the machine’s working conditions
• Compressed air drying columns
  Improve chamber performance in terms of productivity, for long-term tests without the need to use defrosting cycles
• Add a preconditioning and postconditioning stage to the test cycle
  • Preconditioning allows the obtaining of cycles that are closer to the thermal profile set in the first stages;
  • Postconditioning allows the specimen to be moved more rapidly at the end of the cycle. To speed up the cooling of the hot chamber, it is equipped with a compressed-air flushing system

• Control and management system and interfaces
  Controlled by PLC and Advanced HMI
• Remote access
  There is a wide range of possibilities thanks to the built-in MyKratos™ and MyAngel24™; multichamber control also available upon request
• Electromagnetic closing system
  Ensures the security of environmental tests
• Air treatment system
  Ensures a precise control of the climatic parameters inside the chamber with minimal thermal inertia; an axial fan allows rapid temperature variations of both air and specimen.
• Humidification system (only climatic version)
  The humidifier with a self-contained heater and dedicated controlling S/W offers two great advantages:
  • it does not require distilled or demineralised water to operate properly
  • it uses ‘dry’ vapour in order to avoid condensation on the specimens and to reproduce real environmental conditions

• MyKratos™ and MyAngel24™
• Electromagnetic closing system
• Inspection window
• Self-pivoting wheels and feet
• Air condenser
• Internal light
• Self feeding system (town waterthrough chamber embedded softener)
• No. 1 internal grid shelf
• Humidification water recycling system
• Min/max digital thermostat withindependent probe
• Silicone portholes
• Auxiliary free contacts
• Ethernet port
• RS232 serial interface

• Additional portholes
• UV lamp
• Handling port hole (availablefor models from 500 litres up)
• Internal shelves
• Water condenser
• Reinforced floor
• Capacitive probe
• Notch
• Set of no.4 analogic inputs
• Set of no. 4 PT100 inputs
• Set of no. 4 PT100 probes
• Set of no. 8 auxiliary contacts
• No break power unit for PLC
• Temperature extension to +200°C
• Air fan motor speedadjustment
• Air flow booster
• Specimen switching off in case of chamber alarm
• Compressed air dehumidification kit
• T e RH analogicretransmission
• Surface cleaning set

MyKratos™ control software makes it possible to manage, monitor and assist the chamber anywhere, at any time, in multiple ways via the on-board panel and desktop/mobile devices (Wi-Fi, Ethernet, mobile network). The chamber wireless (Wi-Fi) connection permits operation using tablets and smartphones (iOS or Android compatible).

The operator interface can also be remotely accessed through a chamber connection to the customer’s LAN or via mobile network (on activation of a SIM card data). It includes the MyAngel24™ interactive assistance system.

Main Features

• Wi-Fi or Ethernet connection to the chamber
• Visualization and graphical analysis of measures and recordings
• Synoptic charts of the entire system
• Multilanguage support
• High configurability of chamber parameters
• Unlimited measures recording possibilities
• Program and Manual chamber operation modes
• Delayed start of a program
• Possibility to select more than one chamber from a single Tablet: secure access by means of multiple password levels
• Automatic notifications of event and alarms
• Archive manager for easy access to the stored recordings
• Possibility to send email notification
• Possibility to send SMS notification(SIM card required)
• Multi-chamber management
• System available in several languages

Test Program Editor

• Unlimited possibilities for storing cyclesof 350 segments delaying their execution
• Internal repetitions of 10 groups of segments up to 999 times each
• Possibility to upload, edit, export, and delete already existing cycles and recordings
• Graphic and numeric profile parameters data entry

Graphic Functions (Graphic Viewer)

• Live data update of measures on the charts
• Graphic charts or numeric table representation views on the monitor
• Graphic cursor for in-chart datameasurements and evaluations
• Calculation of Measure Slopes and report generation.
• Enable/disable of chart display
• Zoom in, zoom out and scroll functions

Export function to convert the MyKratos™ log file into ASCII format (usable in Excel or other applications)
