ACS Pedal Test Chambers

ACS Pedal Test Chambers

Environmental Chambers, Pedal Test Chambers

Product Overview

Integration of a climatic chamber with an automatic moving system for pedals is possible. Special safety measurements are integrated to avoid risks related to the operator’s exposure to moving parts and extreme temperatures.

Markets

Request a Quote

Product Resources

Automotive Test Solutions Brochure

Brochure

Key Features

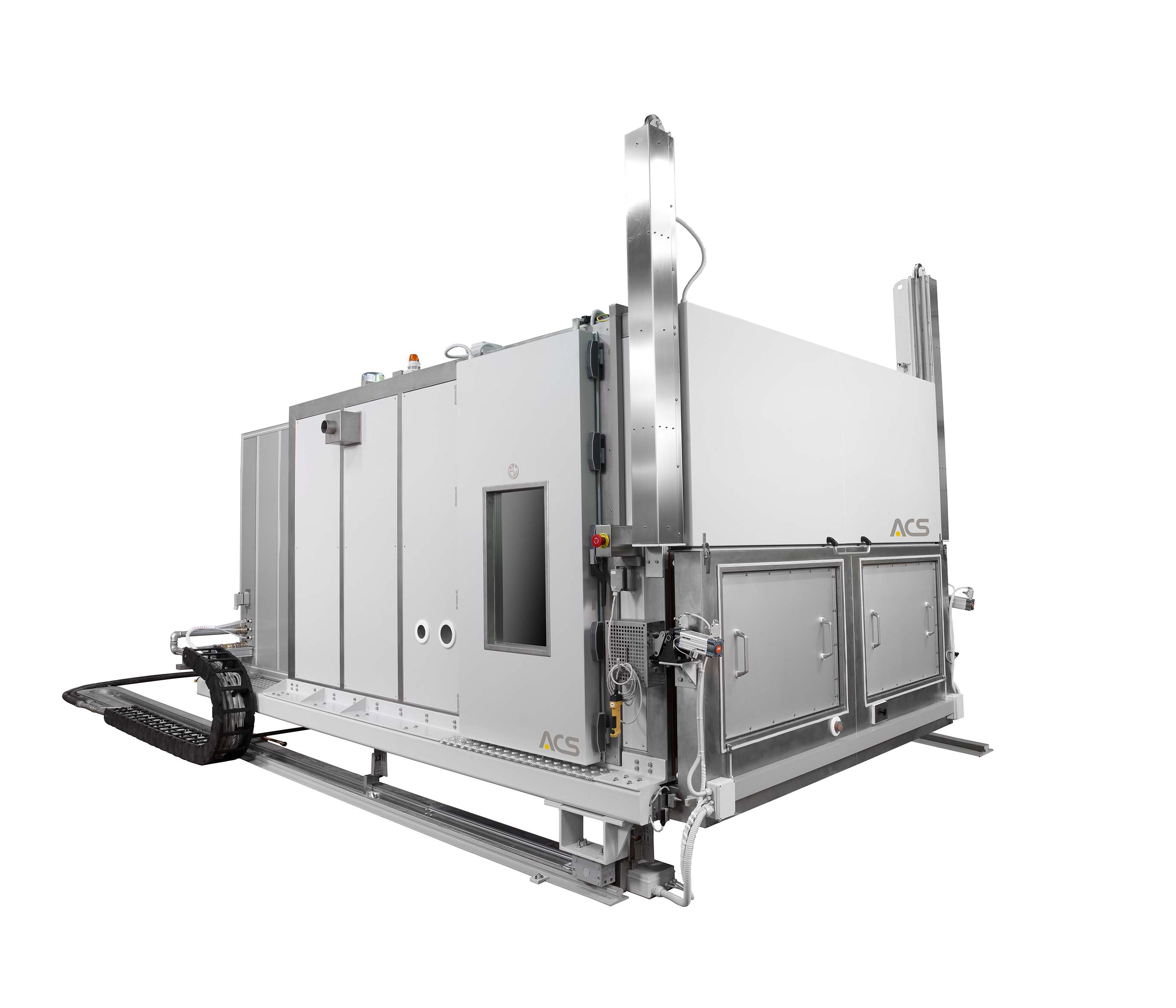

Example of a chamber built according to customer specifications.
- Internal Dimensions: 2500x3000x2000 mm (LxDxH)
- External Dimensions: 3200x5100x2700 mm (LxDxH)
- Temperature range: -40°C / +150°C
- Rate of temperature change, in accordance with IEC EN 60068-3-5 standards with 500 Kg steel specimen:

  1°C/min from +20°C to +150°C

  0.5°C/min from +20°C to -40°C
FEATURES:

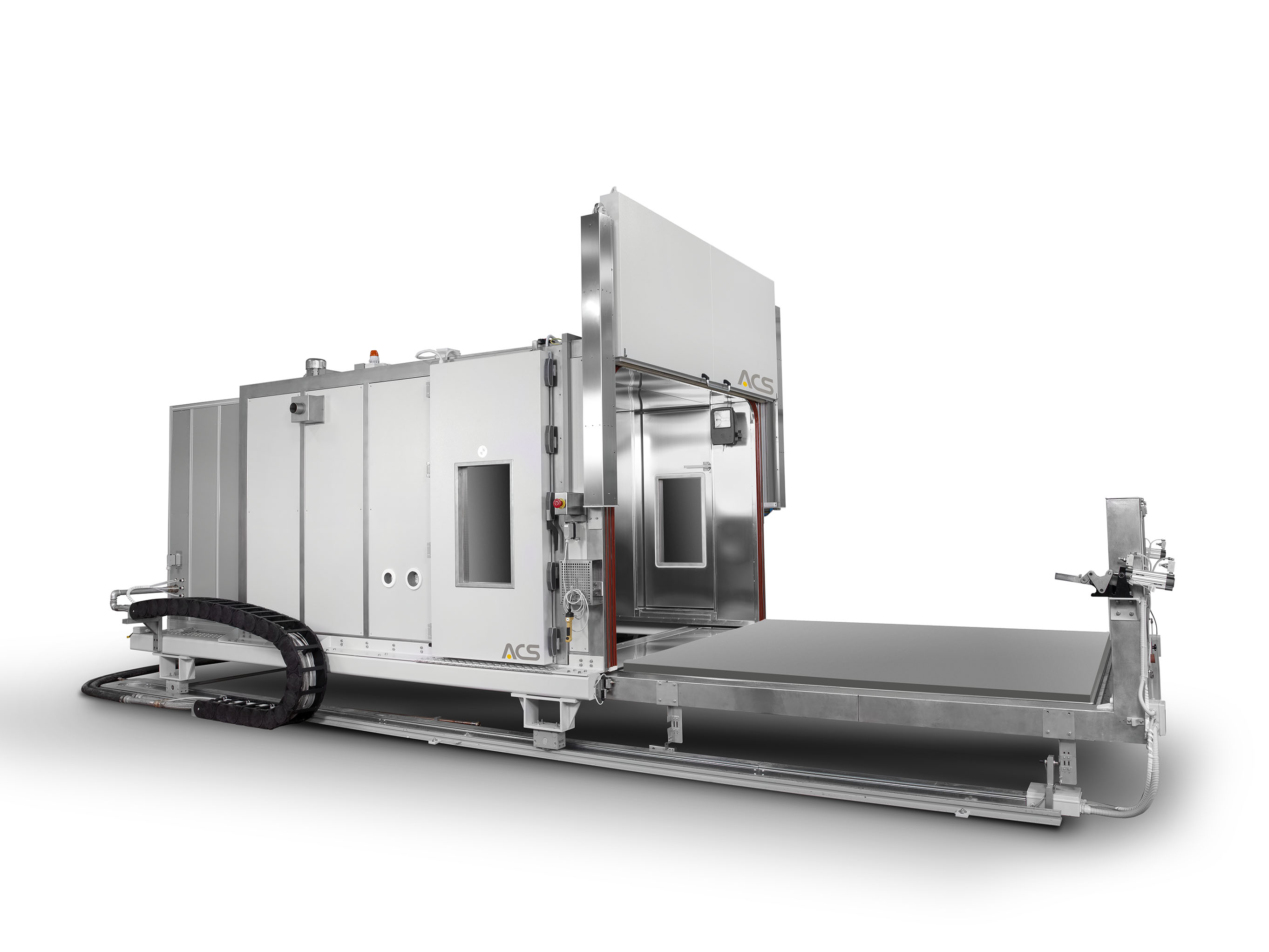

- Automatic cell movement system with regard to the fixed floor

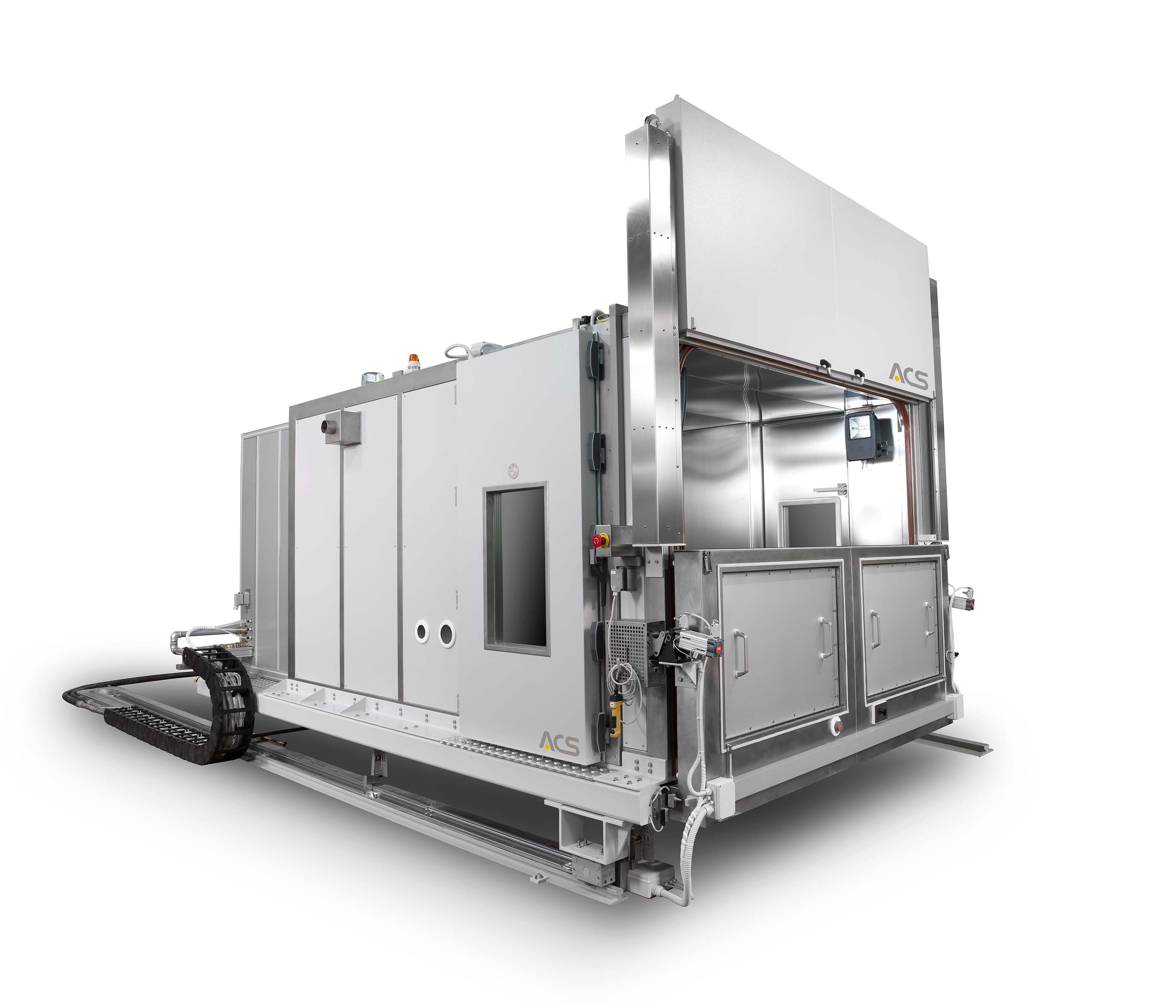

- Vertically sliding front door
- Service doors on both sides
- Front panels for interface with hydraulic cyclic pedal actuation system
Customised Solutions
ACS can provide customized solutions that are adapted to the requests of every customer. Thanks to its accurate analysis of testing needs and highly specialized technical consultancy, ACS designs and manufactures environmental simulation chambers in the configuration most suitable for meeting the customer’s testing needs.
Software
The software for this type of chamber is an application that includes all the functions based on the specifications requested by the customer. The chamber has a built-in control panel for controlling and managing its functions. The chamber can also be controlled remotely using the WinKratos software or an equivalent application.
