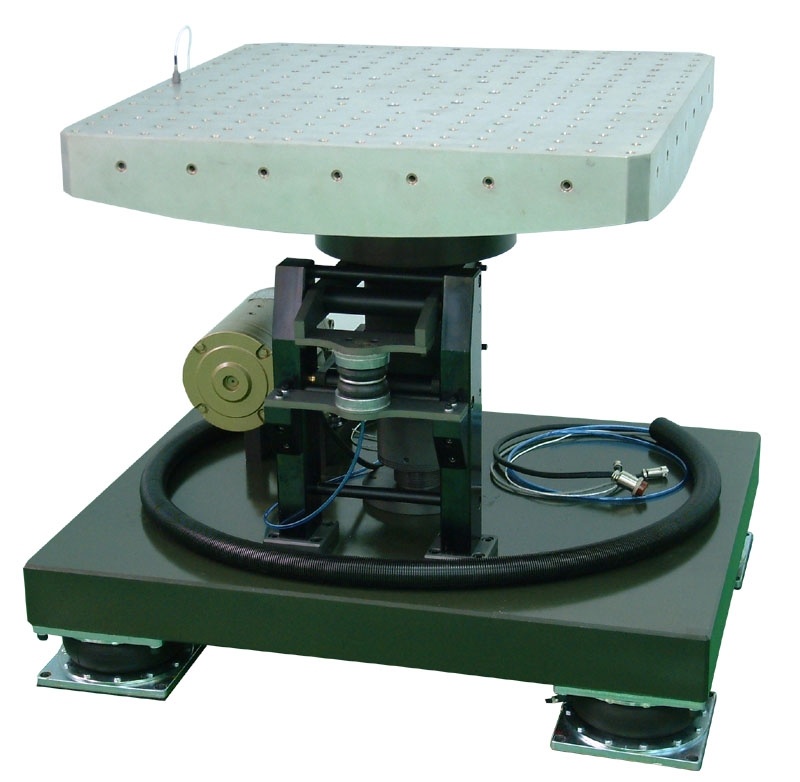

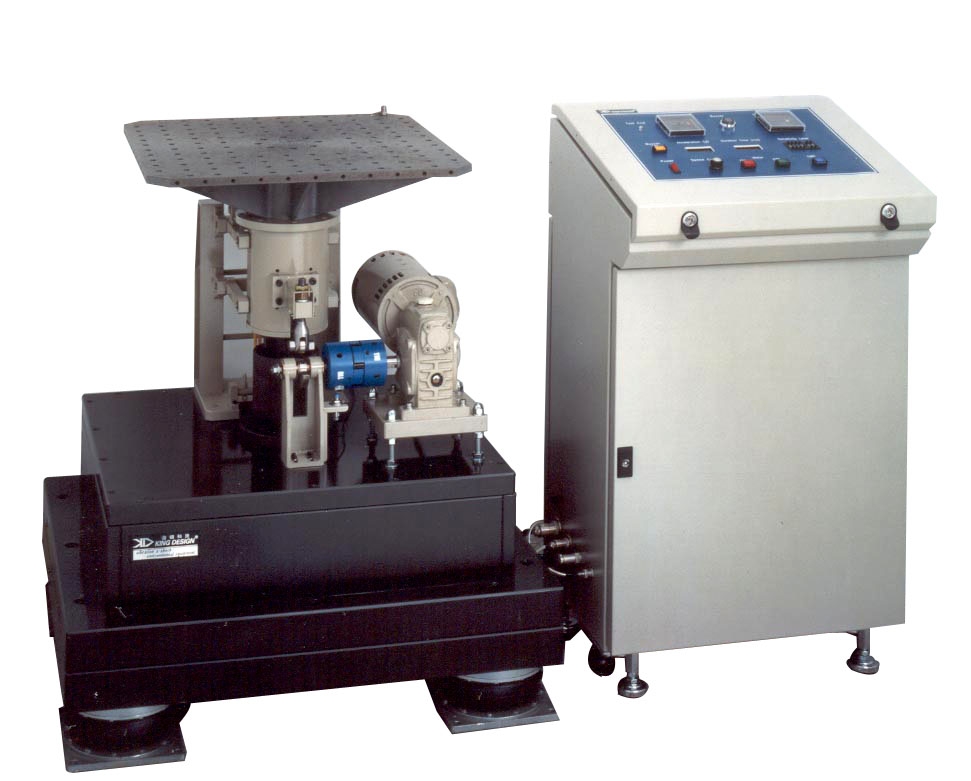

KD-163 Bump / Shock Tester


Product Overview

The KD-163 is a Bump / Shock Test System manufactured by King Design. The purpose of the Bump Tester is to identify damage and degradation of specific functions to the test specimen following a series of repetitive mechanical ‘bumps’. It is also used to assess structural integrity of test samples.

King Design’s Bump Tester features a maximum drop of 30mm, a maximum load of 25kg, test platform size of up to 600 x 600 mm and a bump repetition rate of 1 to 2 seconds.

King Design’s Bump Tester complies with IEC-60068-2 test specification, features
easy installation and operation with no maintenance required.

The design is high-quality with excellent durability and features a resonance-free structure. Air below the anti-vibration pad can effectively isolates floor vibration.


Key Features

  • Complies to IEC-60068-2 Test Specifications
  • Maximum load: 25kg
  • Bump Repetition Rate: 1 ~ 2 Seconds
  • Accelerometer feedback measurement
  • Adjustable half-sine wave generator
  • Precise data control

Available Options

  • 450mm x 450mm Table -KD163-45H
  • 350mm x 350 mm Table-KD163-35H
  • Additional Measurement accelerometers
