Drelloscop 1504

Get a Quote
Drelloscop 1504

Markets

/ /

Product Overview

Long-time flash trigger unit. Consisting of supply unit with adjustable flash period. Separate lamp with built in quartz flash tube.

For illumination and photography of fast moving objects when making records with high speed cameras. Flash half width 20 ms. Flash energy 2040 Joule per flash. Equivalent to a d.c. light source of 102,000 Watt respectively 102 kW. Easy handling and set-up

Learn More

Key Features

Flash rate control: Externally by electric pulses 5 … 15 Vs. In addition manual triggering possible by internal and external close contact
Flash range: max. 0,8 min-1 (Stand-by display by LED)
Half width of the flash: 20 ms
Flash energy: 230 V ±10%, 50-60 Hz
Dimensions (W x D x H): 19″ desktop unit, optionally available as rack insert module
470 mm x 420 x 185 mm
Weight: approx. 17,5 kg

Available Options

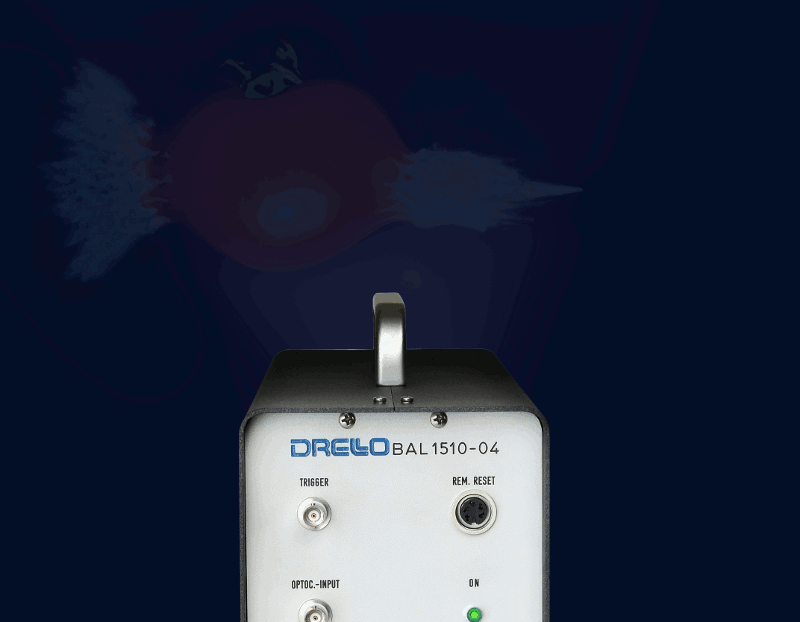

Drelloscop 1510

Ultra high-speed flash device for photographing very fast moving objects

In the case of high-speed photography, the shortest possible flash duration is necessary to generate sharp images.
The DRELLOSCOP 1510 is one of the fastest flash devices in the world.

High speed camera

DRELLO delivers different brands of cameras according to your application.
Please contact our sales team for a detailed and professional advice.
