Noise Leakage Detection / Automotive / Ground Transportation / BSR Noise Detection / NVH NoiseProduct Overview

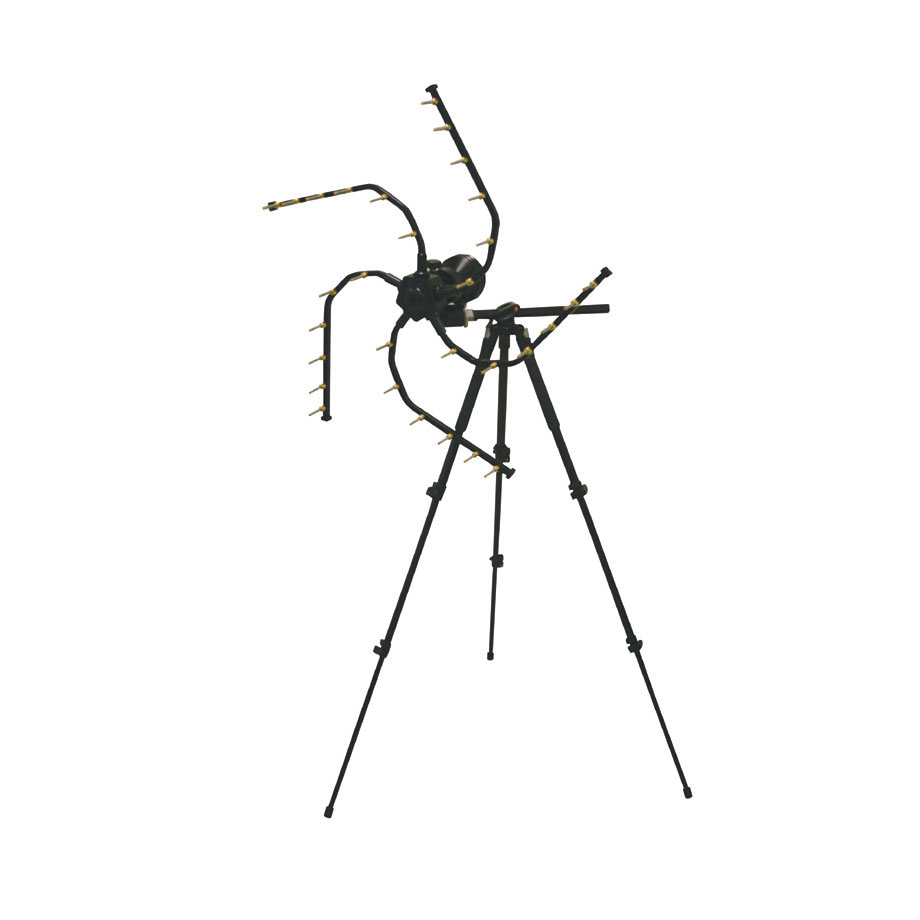

SeeSV-S200 is a real-time sound camera which implements FPGA-based high speed beamforming technology. SeeSV-S205 is developed for Buzz, Squeak and Rattle (BSR) noise source detection as well as Noise, Vibration, and Harshness (NVH) source visualization. It displays transient noise effectively due to its high image per second update rate.
SeeSV Sound Cameras are developed for highly transient noise source detection, and also perform excellently on stationary noise sources. It is capable of capturing 25 images per second. Highly sensitive microphones detect small annoyance sounds immediately. Its major application is for Buzz, Squeak and Rattle (BSR) noise source detection as well as Noise, Vibration and Harshness (NVH) source visualization.
Learn MoreKey Features
Hardware
- Easy to Carry and Install
- ¼” Condenser Microphone
- 85 cm Diameter Array
- High Resolution Optical Camera
- FPGA-based Real-Time Analysis
Software
- Real-time Sound Imaging
- High Speed Image Update, 25 FPS
- Impulsive Noise Detection
- Optimized for BSR detection
- Auto Image Ranging Function
- AVI & WAV Export and Replay
- Real-Time Frequency Adjustment
- Linear/Exponential Image Averaging
- Effective Post Processing
- FFT and Octave Analysis
