Product Overview

The CoCo-80X is a new generation of handheld data recorder and dynamic signal analyzer from Crystal Instruments. It is ideal for a wide range of industries including petrochemical, paper, steel and other metals, automotive, aviation, aerospace, electronics and military. These industries demand quick, easy, and accurate data recording and analysis, as well as a real-time machine condition monitoring solution.

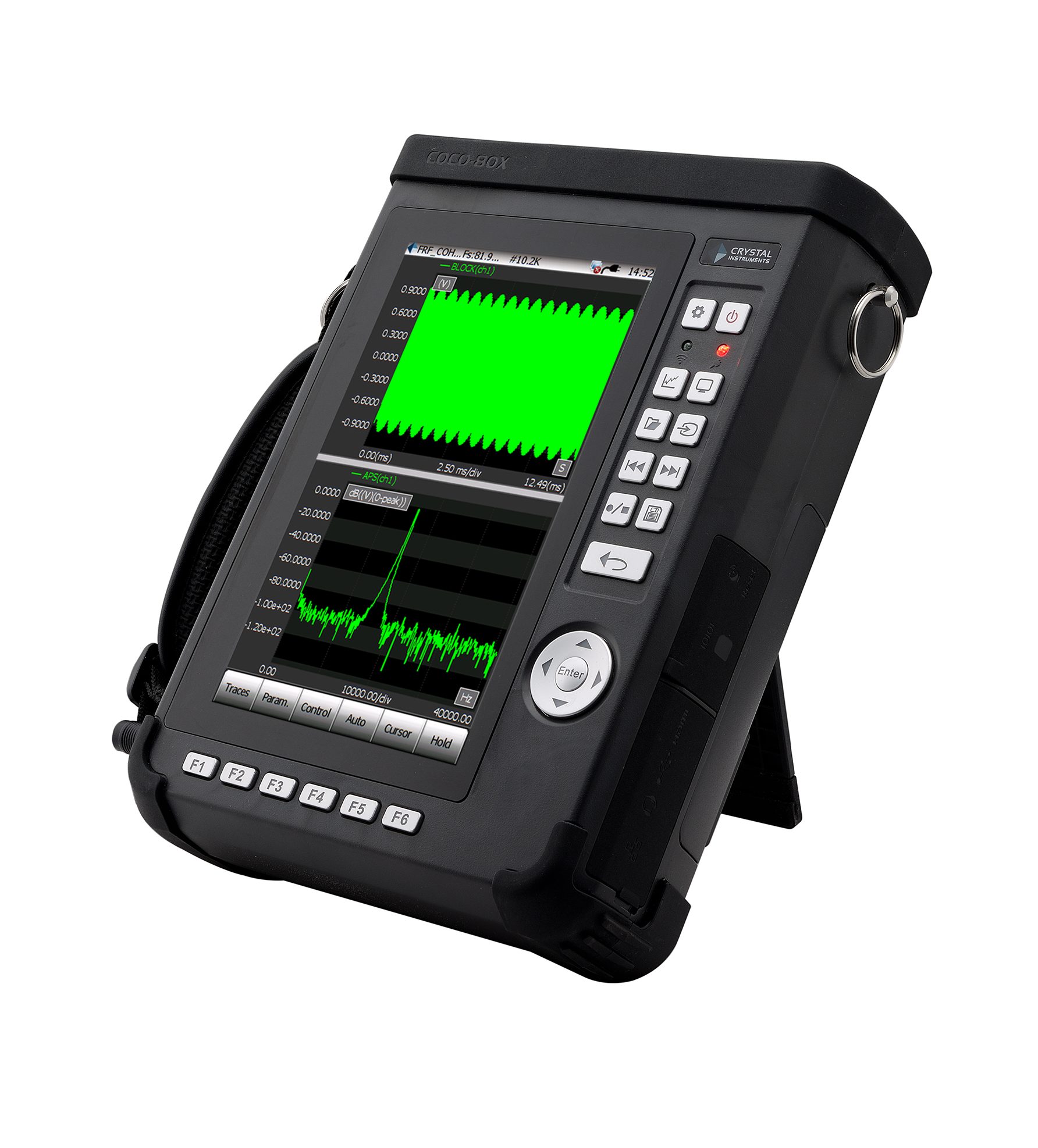

The CoCo-80X is a rugged, lightweight, battery-powered handheld system with unparalleled performance and accuracy. Combined with hard keys, the multi-point touch functionality touchscreen is designed for an intuitive user interface that provides a wide variety of analysis functions.

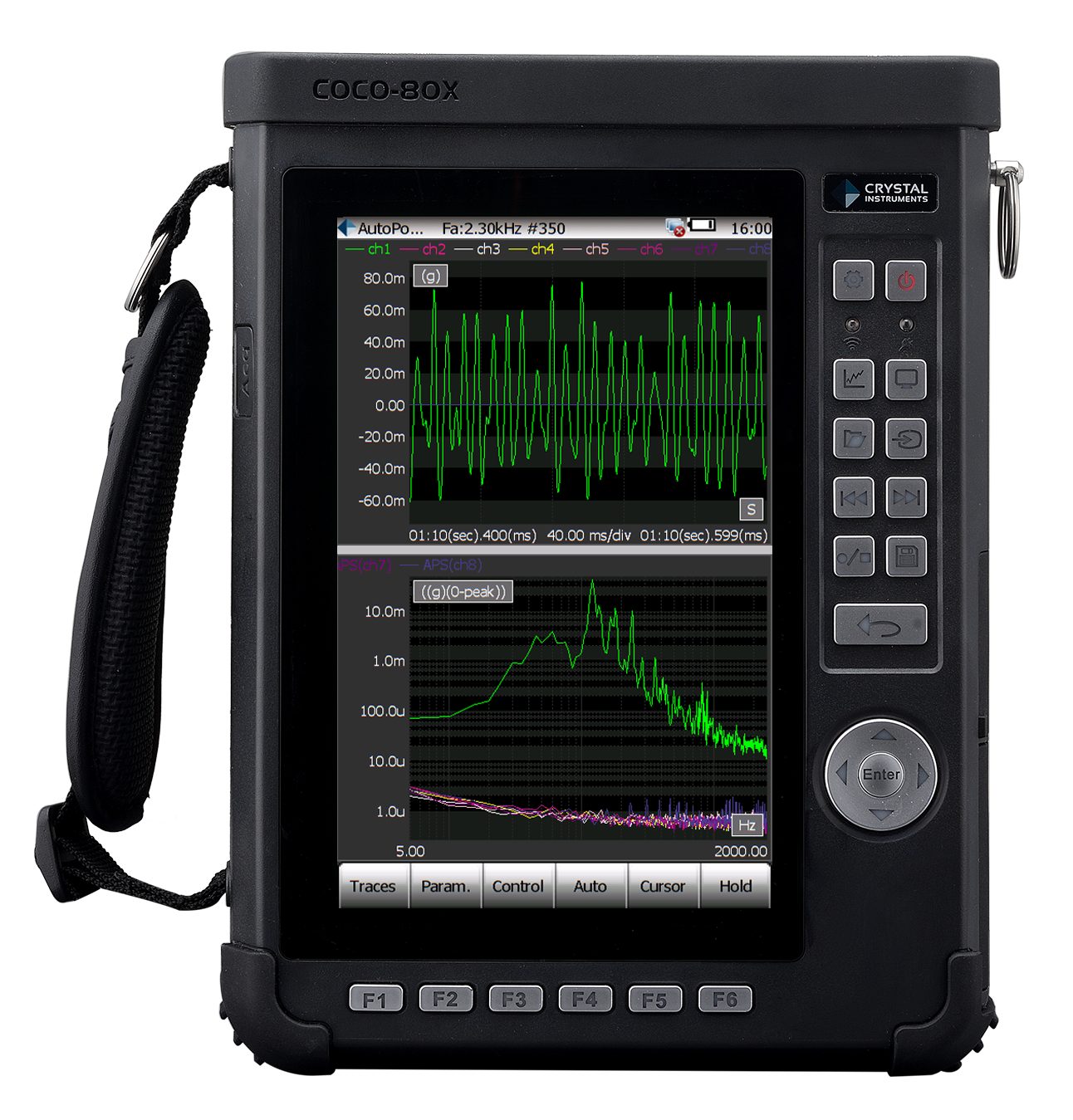

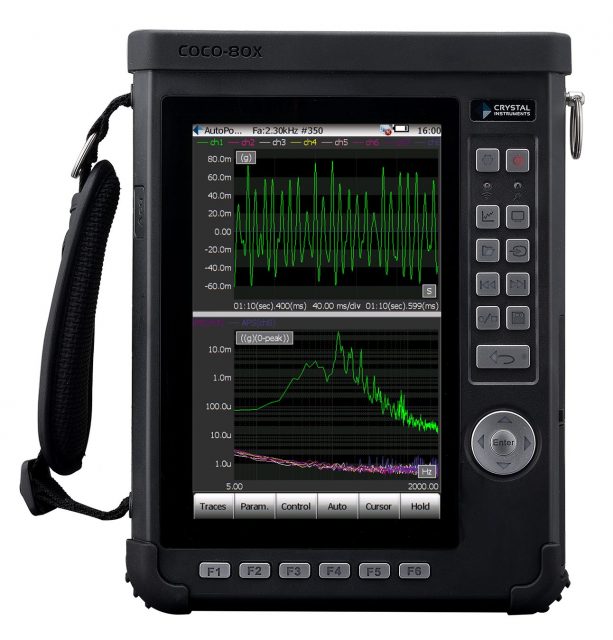

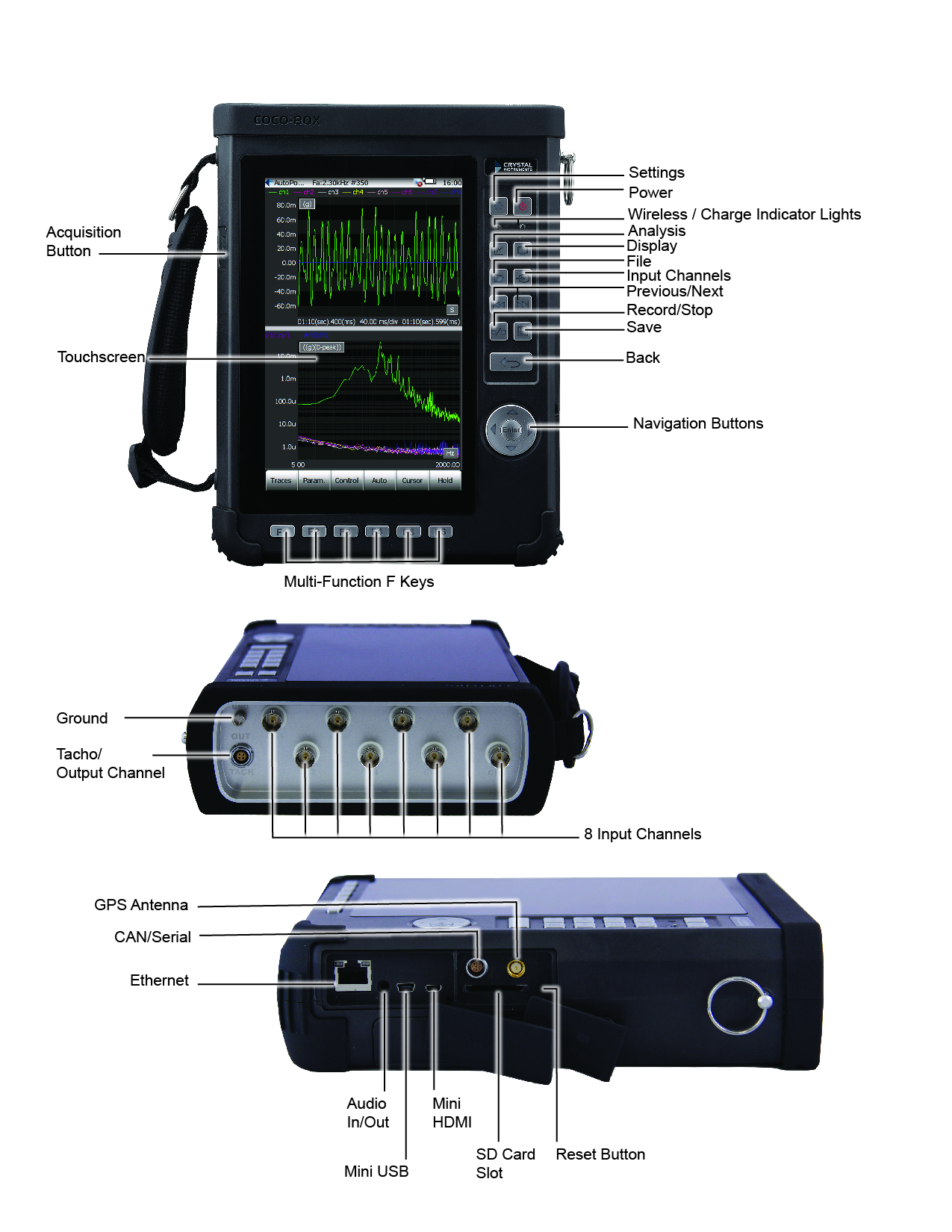

Building on the success of the original CoCo-80, the new CoCo-80X boasts improved speed, a bigger screen, and more connection options. A significantly more powerful processor frees DSP resources for faster, more reliable, and more complex processing in real time. The handheld system is equipped with a bright 7.0 inch color LCD display with multi-point touch functionality as well as a physical keypad. Flexible connections via a USB 2.0 port, 100Base-T Ethernet port, 802.11 b/g/n Wi-Fi connection, SD card interface, HDMI interface, CAN bus/serial port, stereo headphone and microphone jack, and GPS.

Connect the CoCo-80X to a PC to download files, remotely control operations, or upgrade the software through several means of network connections.

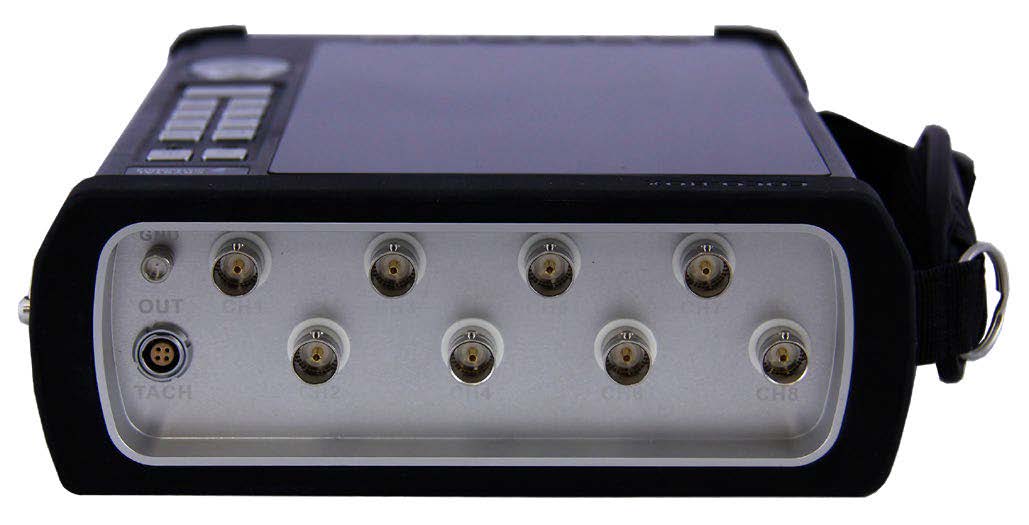

The CoCo-80X is equipped with 8 software-enabled input channels. Every CoCo-80X ships with 8 fully populated and functionally tested input channels. Embedded firmware contains a key enabling those channels for which software has been purchased. This means a unit initially purchased as a 2 channel CoCo-80X can be remotely upgrade to 4, 6, or 8 channels via purchased upgrade. Each analog input is serviced by two 24-bit ADCs and a DSP implementing the cross-path calibration technology of US Patent number 7,302,354 B2 to achieve better than 160 dBFS dynamic range. Measured time histories are stored in 32-bit single precision floating point format (per IEEE 754-2008) and all subsequent signal processing is performed using floating-point arithmetic. 54 sample rates from 0.48 Hz to 102.4 kHz are provided with better than 150 dB of alias-free data from DC to 45% of any selected sample rate protected by steep 160 dB/Octave anti-aliasing filters. The eight channels are amplitude matched within 0.1 dB and phase matched within 1°.

Learn More

Key Features

  • High Dynamic Range
    Crystal Instruments achieves its very high dynamic range for all its measurement instruments by using a unique patented technology that uses two A/D converters in each measurement channel.With such high dynamic range of each input, the gain settings (voltage range settings) are very much eliminated.
  • Performance
    The new dual-core Da-Vinci Series processor allows for a very fast and reactive user interface, which works very well with the new touchscreen interface. This processor handles the user interface, project configuration, power management, network communication, and all peripherals. A high-speed floating point DSP manages the data input/output and real-time processing.
  • Portable Recording Solution
    In addition to providing advanced real-time signal analysis, the CoCo-80X also serves as an excellent data recording device. The CoCo and Spider platforms support the unique ability to simultaneously perform both real-time processing and continuous data recording. To increase the reliability of data recording, a special check sum algorithm is always applied to the measurements.
  • Touchscreen with Intuitive Interface
    The color LCD display with multi-point touch functionality provides for a smooth user experience. The setup and configuration interface is easy to navigate, and allows for a simple and quick setup process.
  • GPS Feature*
    Record all location data automatically during signal recording. Users are also able to view live location data through the easy-to-use GPS feature.

    *Non Wi-Fi and Non GPSoptions are also available

  • CAN bus

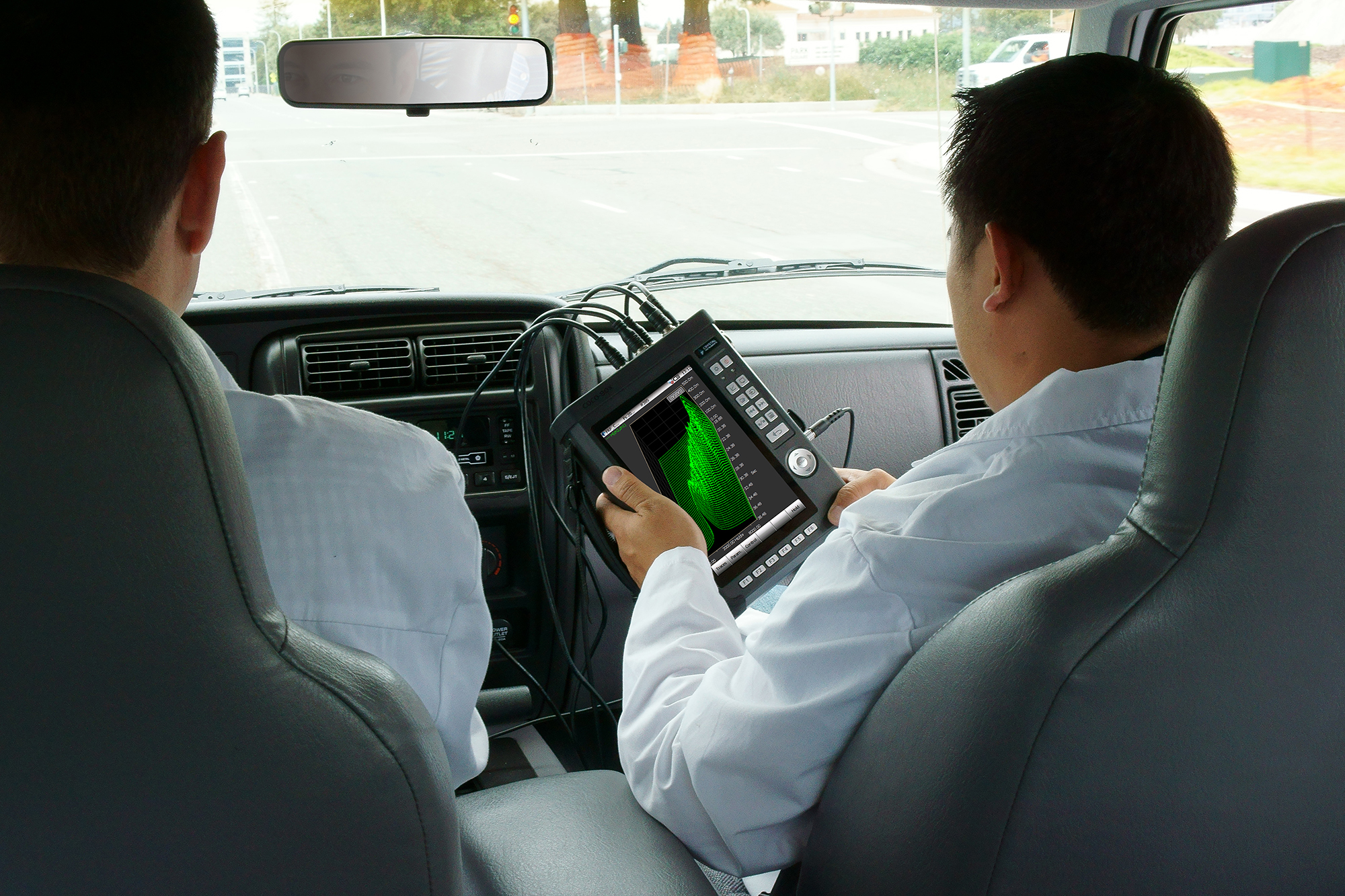

    The (ISO 11898-1&2) CAN bus digital input allows simultaneous measurement of an automobile’s speed, engine RPM and/or any of the hundreds of performance variables tracked by its Controlled Area Network (CAN). This diagram on the right illustrates how the CAN bus works with the CoCo-80X. Users need to configure the CAN bus profile on EDM, upload the profile to the CoCo-80X, and initiate the operation of CAN bus.
  • Wi-Fi Connection to PC*
    CoCo-80X is wireless equipped. It can connect to the LAN or Internet via Wi-Fi to transfer the data or control signals.

    *Non Wi-Fi and Non GPS options are also available

  • Convenient SD Card
    Users can copy recorded signal files from the internal flash memory to an SD memory card or directly record the time stream data to an SD memory card.
  • High Resolution Display (HDMI)
    Signals from the CoCo-80X are displayed on a high-resolution monitor or television with the simple connection of an HDMI cable. Set-up is easy and simple.

Software Features

  • Configurable Signal Display
    • Measurement Channels: 1 or 3 channels (tri-axis) with ta-chometer enabled or disabled
    • Route Collection Control: Easy navigation from the UI level to routes. View or hold live signals, review measured record, previous measurement entry, next measurement entry, previ-ous point, next point, point and route management.
  • Touch-Enabled Customizable Menus
    The intuitive user interface is specifically designed for easy operation while still providing a wide variety of analysis functions. Various display options are accessible via the touch screen, including axis scaling and the input channel display.
  • Trigger Function
    The CoCo-80X provides many common tools for data acquisition, including a trigger function. A dedicated trigger setup interface allows for faster configuration. Users can choose from several trigger modes and trigger conditions.
  • Languages
    The CoCo-80X supports multiple languages that can be switched dynamically. It supports English, Chinese, Japanese, French, and Spanish.
  • Signal Generator
    The CoCo-80X provides an output channel from which you can generate a variety of signal types. Waveforms can be configured via several parameters settings such as range, frequency, and amplitude.
  • Automated Test & Limiting Check
    The CoCo-80X can autonomously conduct complex multi-step tests through automated testing schedules. The CoCo-80X can also perform certain functions when a predefined limit is exceeded. Customized limit profiles can be created in EDM and uploaded to the CoCo-80X.

Available Options

For further information on options available for this Product, please contact our specialist sales team on:

+44 (0) 1462 481859 or

Contact Us via


Request Quote

Please select the form below relevant to your enquiry:



  • LCD: 7”color TFT WVGA display 800×480 resolution with P-Cap touch screen, 1300 NITS

  • SD Card Storage: up to 256 GB (removable)

  • Number of Input Channels: 2, 4, or 8

  • Coupling: AC, DC, or IEPE (ICP)

  • Input Type: Differential or single-ended

  • Input Range: ±20 Vpk

  • A/D Resolution: 2 x 24-bit per input channel

  • Sampling Rate: 0.48 Hz to 102.4 kHz, with 54 stages

  • Dynamic Range: 160 dBFS (100 Hz to 46 kHz)

  • Phase Channel Match: Less than 0.3 degrees up to 20 kHz

  • Full feature tachometer

  • Number of Outputs: 1

  • Output Range: ±10 Vpk

  • D/A Resolution: 24 bits

  • Digital Filter: high-pass and low-pass digital filters

  • GPS Connection

  • Grounding Connection

  • Hard Keys

  • Interface: CAN bus, Micro-HDMI, Audio input, Ethernet, Optional Wi-Fi, USB 2.0, SD Card
