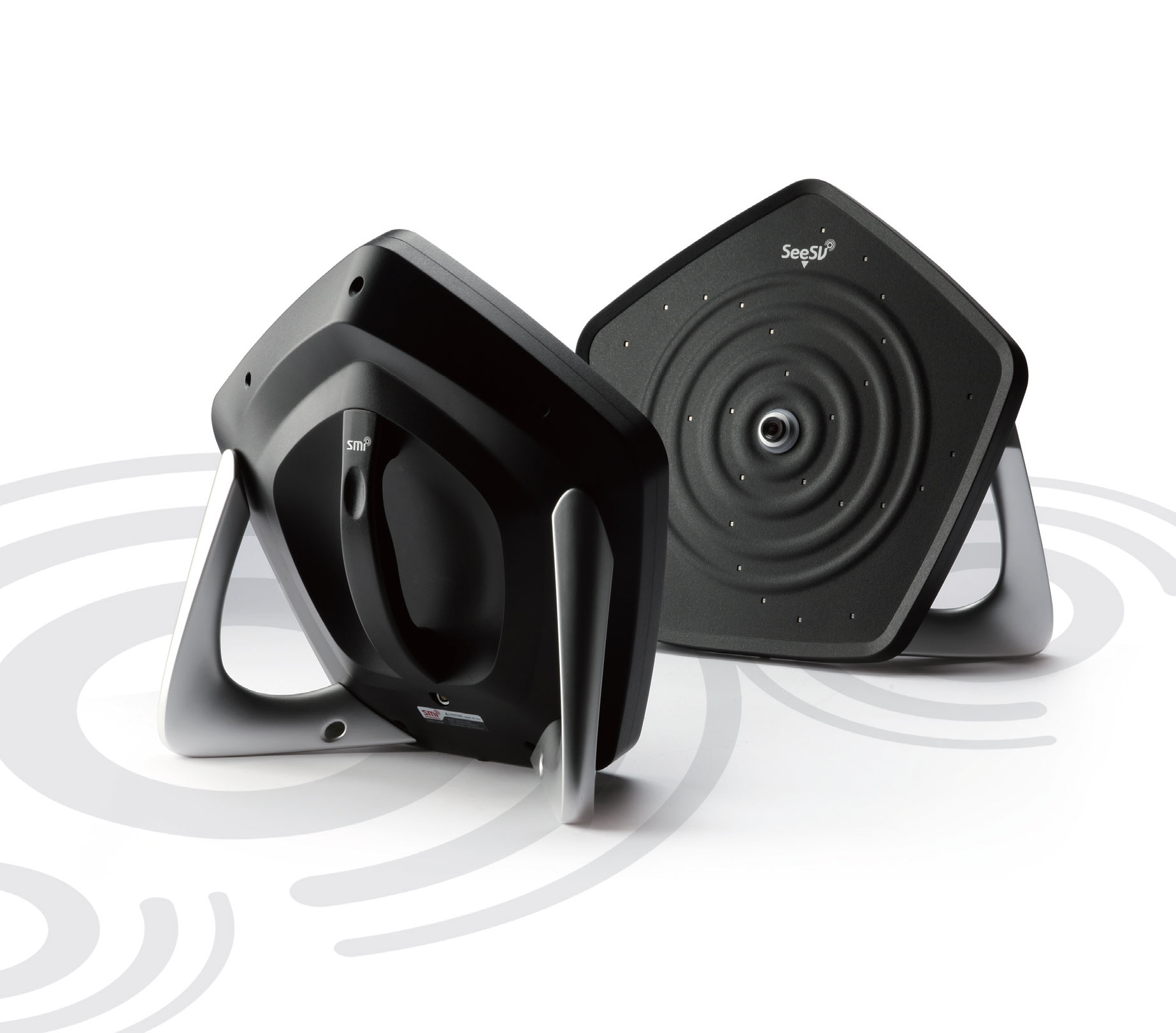

SeeSV-S205 Sound Camera


Product Overview

SeeSV-S205 is a real-time handheld sound camera which implements FPGA-based high speed beamforming technology. SeeSV-S205 is developed for Buzz, Squeak and Rattle (BSR) noise source detection as well as Noise, Vibration and Harshness (NVH) source visualization. It displays transient noise effectively due to its high image per second update rate. The unique design of SeeSV-S205 makes measuring sound easy.

SeeSV Sound Cameras are developed for highly transient noise source detection, and also perform excellently on stationary noise sources. It is capable of capturing 25 images per second. Highly sensitive microphones detect small annoyance sounds immediately. Its major application is for Buzz, Squeak and Rattle (BSR) noise source detection as well as Noise, Vibration and Harshness (NVH) source visualization.

Now you can carry your sound camera anywhere to perform measurements. Sound Cameras have traditionally been heavy and expensive instruments. However, the SeeSV-S205 will open new doors and your ears. It has an ergonomic design, weighs only 1.6 kgs, and has a highly competitive price. Start your sound measurements with our new camera today.


Key Features

Hardware

  • Unique, Innovative Design
  • High Sensitivity Digital MEMS Microphone
  • High Resolution Optical Camera
  • FPGA-based Real-Time Analysis
  • Light Weight at 2.5 kg

Software

  • Real-time Sound Imaging
  • High Speed Image Update, 25 FPS
  • Impulsive Noise Detection
  • Optimized for BSR detection
  • Auto Image Ranging Function
  • AVI & WAV Export and Replay
  • Real-Time Frequency Adjustment
  • Linear/Exponential Image Averaging
  • Effective Post Processing
  • FFT and Octave Analysis
